Wear Resistant Ceramic Elbow Pipe Liner for Ash Removal Pipeline

1 / 5

Wear Resistant Ceramic Elbow Pipe Liner for Ash Removal Pipeline

Customization:	Available
Application:	Refractory, Wear-Resistant Ceramics
Purity:	92%,95%

Send Inquiry

Product Description

Basic Specifications

Model NO.

chemshun ceramics

Type

Ceramic Tube

Temperature

High Temperature Piping

Material

Ceramics

Alumina Content

92%, 95%

MPa Class

High Pressure Piping

Diameter

300mm

Connection

Flange

Product Description

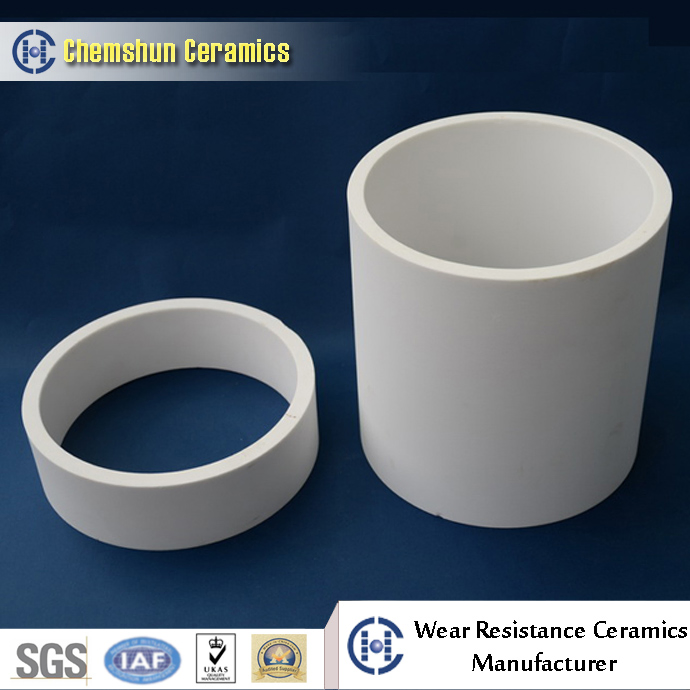

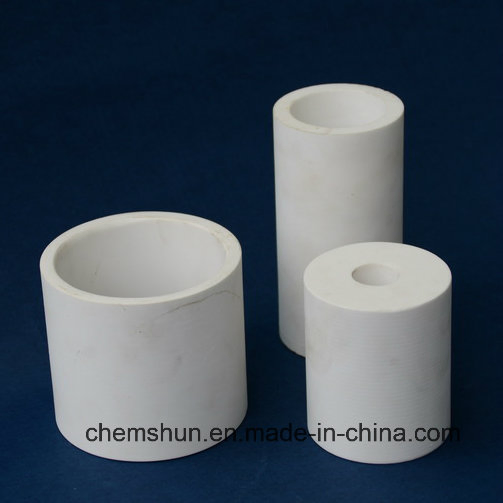

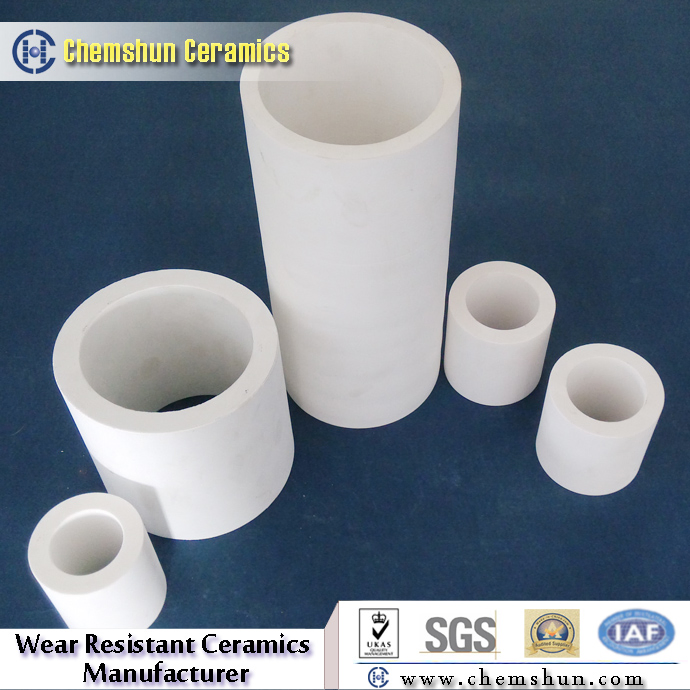

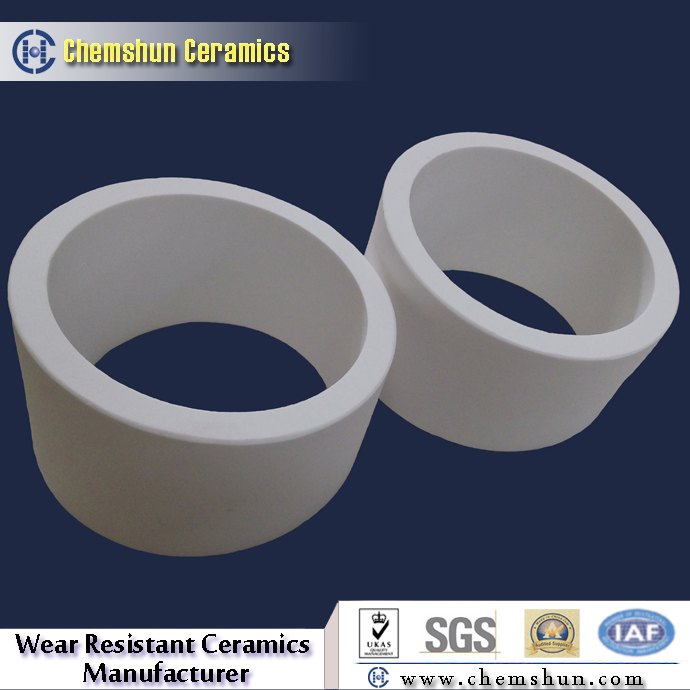

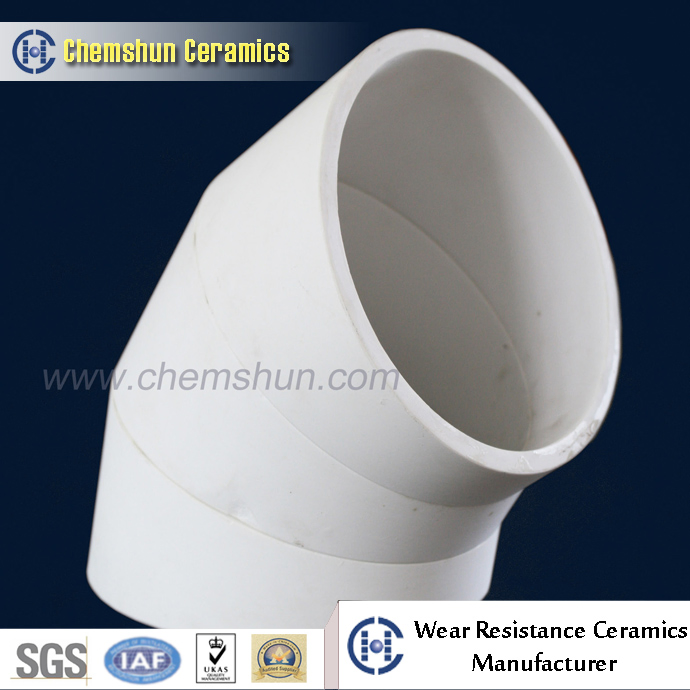

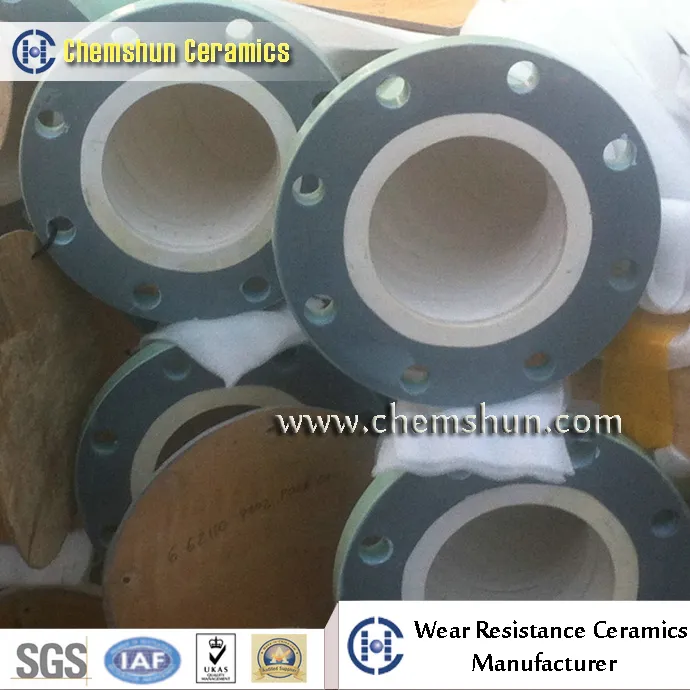

Ceramic Cylinders and Segments (Elbow Pipe Liner) are made from ISO pressed alumina. This extremely dense ceramic material offers remarkable resistance to both sliding and impact abrasion, providing durable wear protection for straight steel pipes and bends.

Our special products are engineered to offer weight-saving solutions for pipe transport systems, even at small wall thicknesses. Size ranges from 10mm to 500mm, including pre-engineered ceramic cylinder lined steel composite pipes.

Key Advantages

High Hardness: Superior resistance to surface indentation.
Superior Abrasion: Designed for extreme sliding and impact conditions.
Chemical Resistance: Excellent durability against corrosion.
Lightweight Solution: Efficient protection with reduced wall thickness.
Low Maintenance: Reduced maintenance frequency and costs.
Smooth Fluidity: Surface finish ensures free flow without blocking.

Technical Data

Attributes	Unit	92 I	92 II	95
Alumina Content	%	92	92	95
Density	g/cc	≥3.60	≥3.60	>3.65
Water Absorption	%	<0.01	<0.01	0
Flexural Strength	Mpa	270	300	320
Rock Well Hardness	HRA	80	85	87
Max Operation Temp	ºC	1450	1450	1500

Industrial Applications

Mining & Mineral Processing
Cement Manufacturing
Coal Handling Systems
Steel & Iron Industry
Power Plant Ash Removal
Port Bulk Material Handling

Product Gallery

Frequently Asked Questions

Q1: What materials are the ceramic tubes made of?

A: They are made from high-quality ISO pressed alumina (92% or 95% Al2O3), which provides exceptional wear and impact resistance.

Q2: What is the maximum size available for ceramic cylinders?

A: The standard size ranges from 10mm up to 500mm, with custom sizes available upon client request.

Q3: Can these linings handle high temperatures?

A: Yes, these ceramic linings can operate in temperatures ranging from 1450ºC to 1500ºC depending on the alumina grade.

Q4: Are these ceramic liners suitable for corrosive environments?

A: Absolutely. Alumina ceramics offer excellent corrosion and chemical resistance, making them ideal for harsh industrial environments.

Q5: How do ceramic liners help in reducing maintenance costs?

A: Their superior wear resistance significantly extends the lifespan of piping systems, reducing the frequency of replacements and downtime.

Q6: Is OEM service available for specific piping projects?

A: Yes, OEM and custom-engineered solutions are accepted to meet specific technical requirements and drawings.
