| Material | Steel | Type | Wear Resistant Pipe |

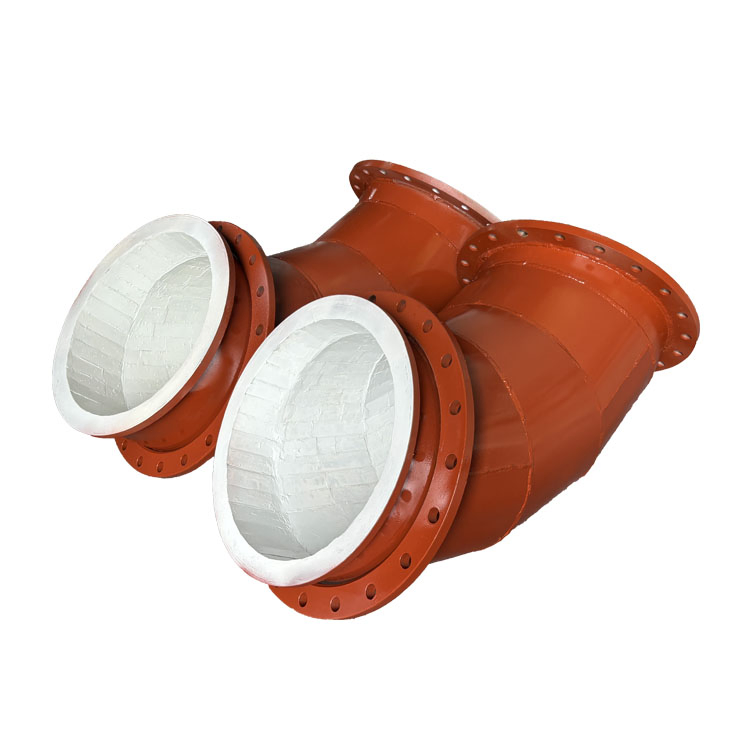

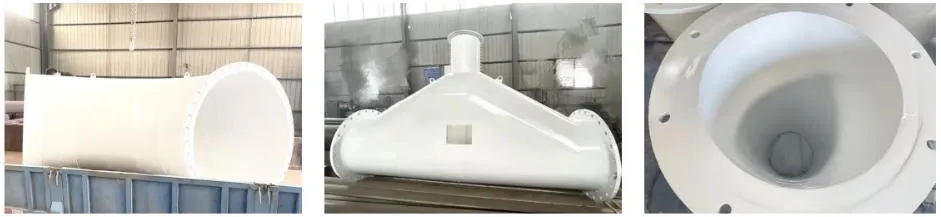

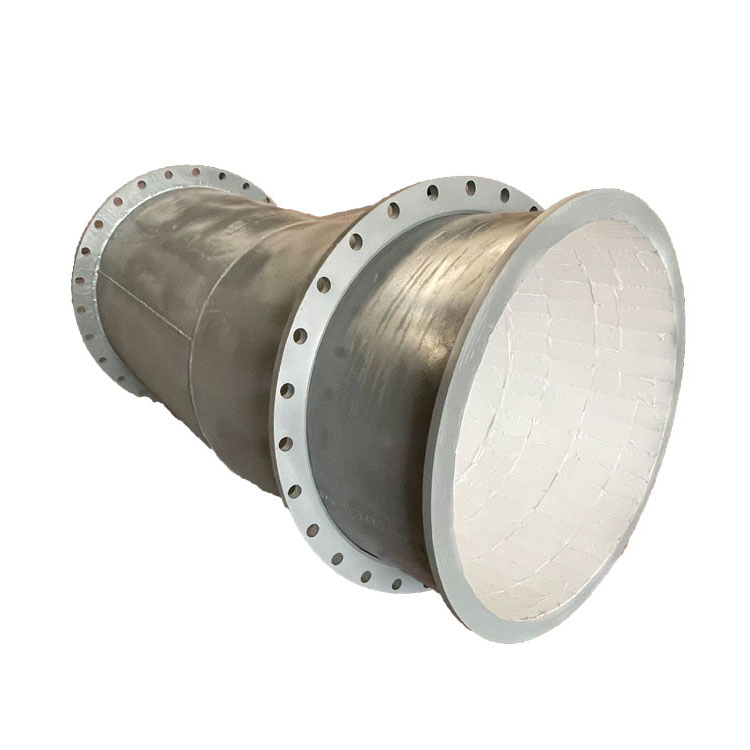

| Product Name | Ceramic Tile Lined Wear-Resistant Elbow | Size | DN80-DN600 |
| Feature | Wear-Resistant | Specification | Customized |

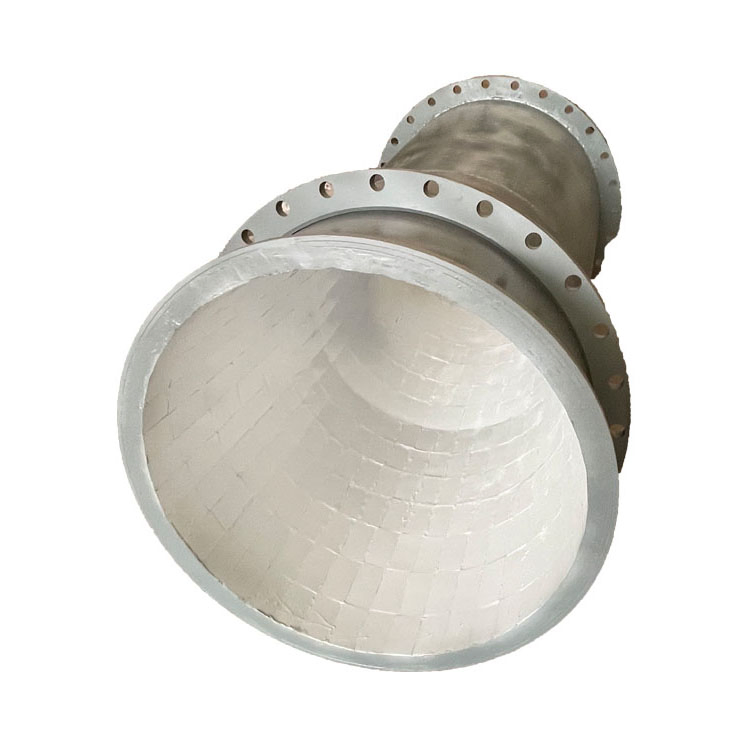

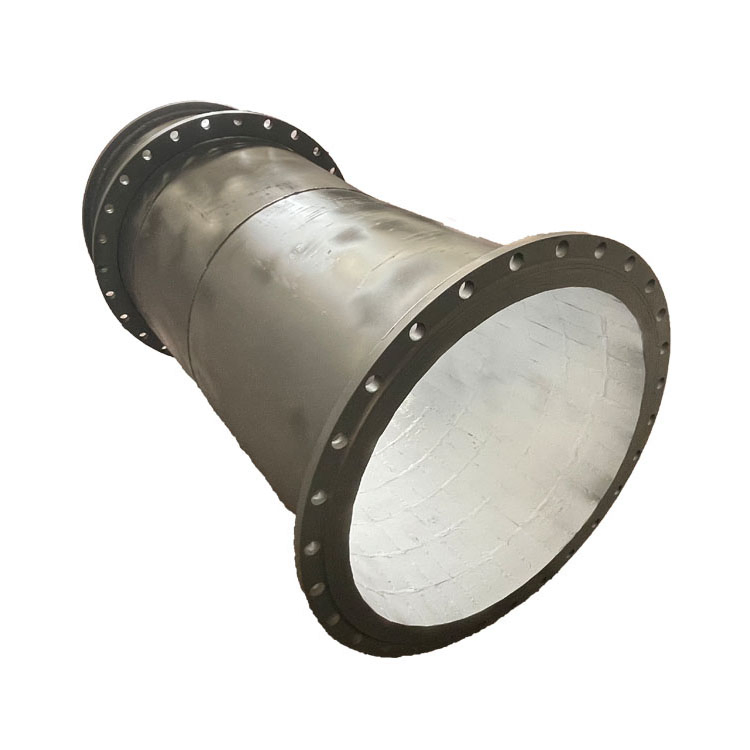

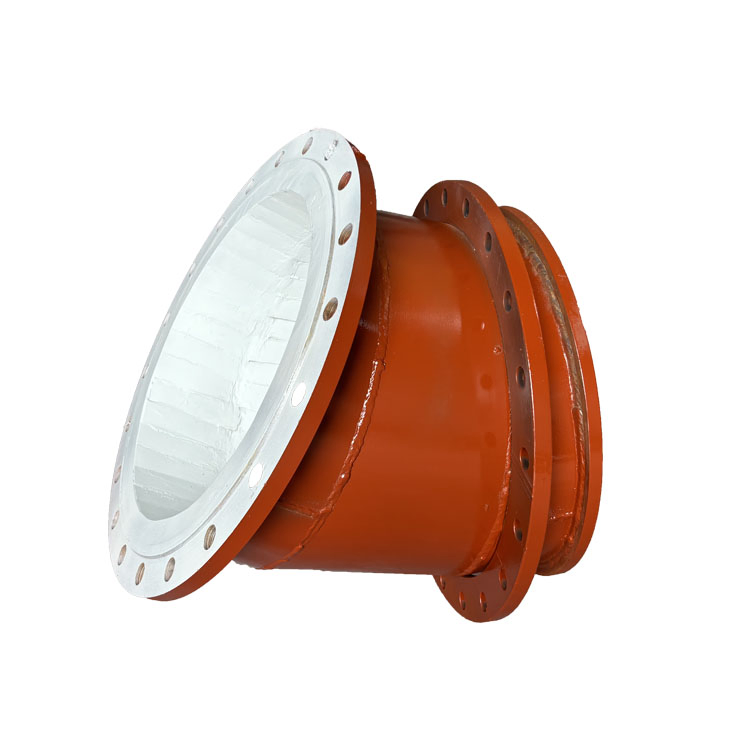

Alumina ceramic patch wear-resistant pipe is a composite pipe product developed specifically to address the wear challenges faced by industrial pipes. It utilizes a dual-layer composite structure consisting of a high-strength ceramic patch and a metal matrix. The core wear-resistant layer is made of alumina ceramic (AlO2) with a purity exceeding 92%, sintered at high temperatures.

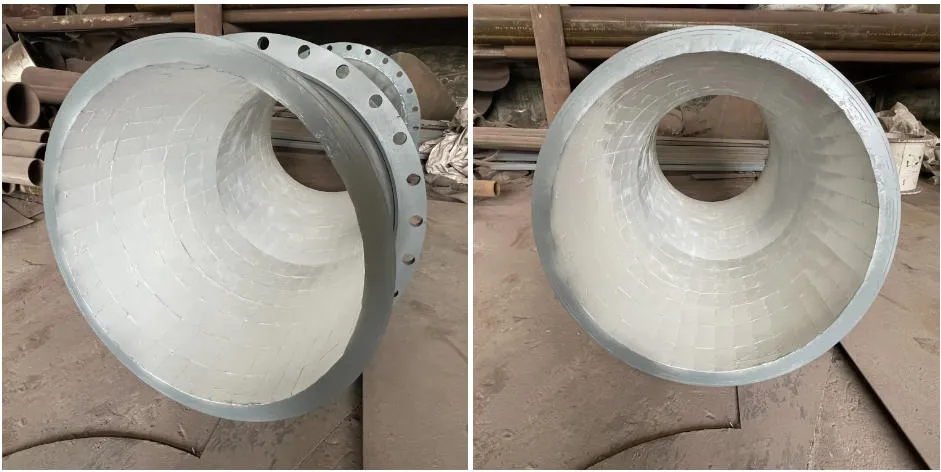

The ceramic patch has a hardness of HV1100-1300, far exceeding ordinary steel. A special adhesive bonds the ceramic patch tightly to the inner wall of metal pipes, such as Q235 carbon steel and stainless steel. This ensures exceptional wear resistance while maintaining the impact and pressure resistance of metal pipes.
| Specification | Outer Diameter | Inside Diameter | Wall Thickness | Steel Pipe Thick |
|---|---|---|---|---|
| DN80 | 112~132 | 80 | 10~14 | 6~12 |
| DN100 | 132~152 | 100 | 10~14 | 6~12 |
| DN200 | 236~264 | 200 | 10~20 | 6~12 |
| DN400 | 436~464 | 400 | 10~20 | 6~12 |
| DN600 | 642~684 | 600 | 15~30 | 6~12 |
| Note: Customized according to customer needs. | ||||
Service life extended 5-10 times compared to traditional pipes. Alumina ceramics offer 20 times the wear resistance of ordinary seamless steel pipes.
Withstands acidic, alkaline, and salt solutions (pH 1-14) and high-temperature flue gases up to 800°C.
Smooth surface reduces friction (0.15-0.2 coefficient), lowering energy consumption by 15%-20% during transportation.
High-strength adhesive ensures shear strength >15MPa, preventing ceramic fallout during shock or vibration.
| Alumina Content | ≥95% |
| Density | ≥3.6 g/cm3 |
| Rockwell Hardness | ≥85 HRA |
| Compressive Strength | ≥850 MPa |
| Bending Strength | ≥290 MPa |
