Product Description

Basic Information

Model NO.

Wear Resistant Ceramics

Installation

Adhesive Bonding

Material

Alumina Ceramic (92% / 95% Al2O3)

Shape

Custom Shape

Surface

Smooth Finish

Moh's Hardness

9 Grade

Density

3.60g/cm3

Capacity

4500 tons / Year

Product Description

Wear Resistant Ceramic Elbow Bend Pipe Tile Lined Steel Pipeline is designed for extreme industrial wear environments.

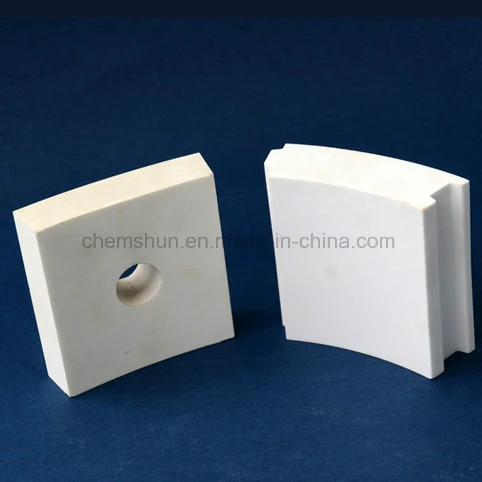

Available Ceramic Tile Liner Types:

Alumina ceramic plain tile

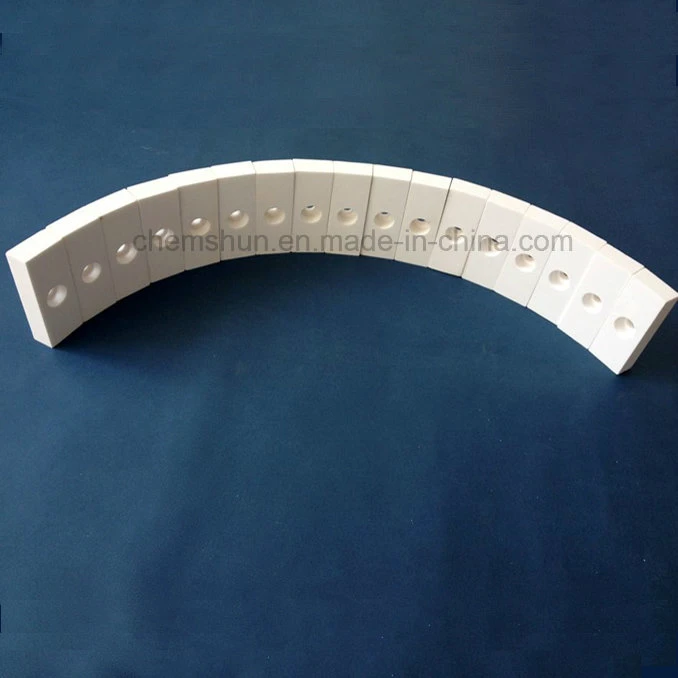

Ceramic weldable tile liner

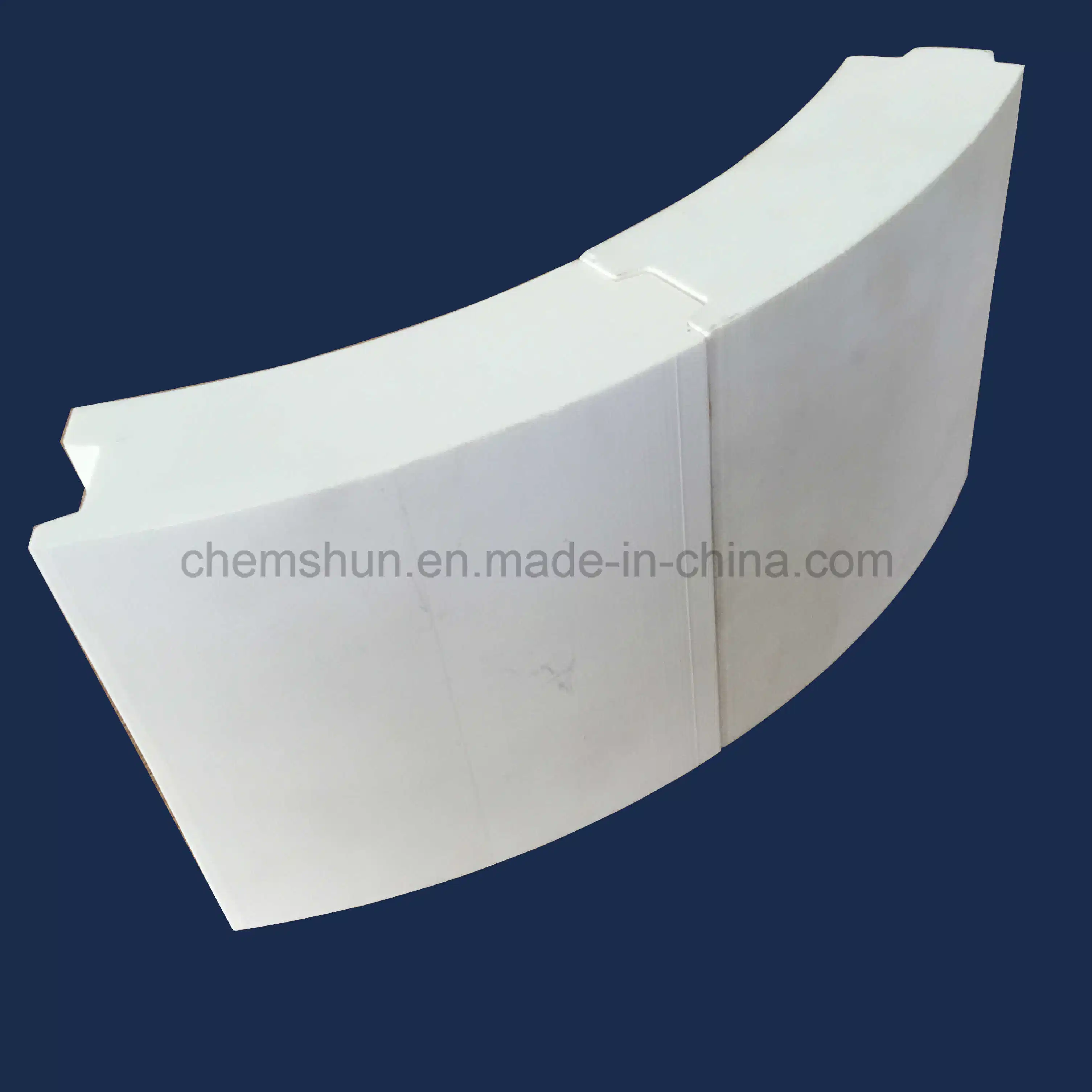

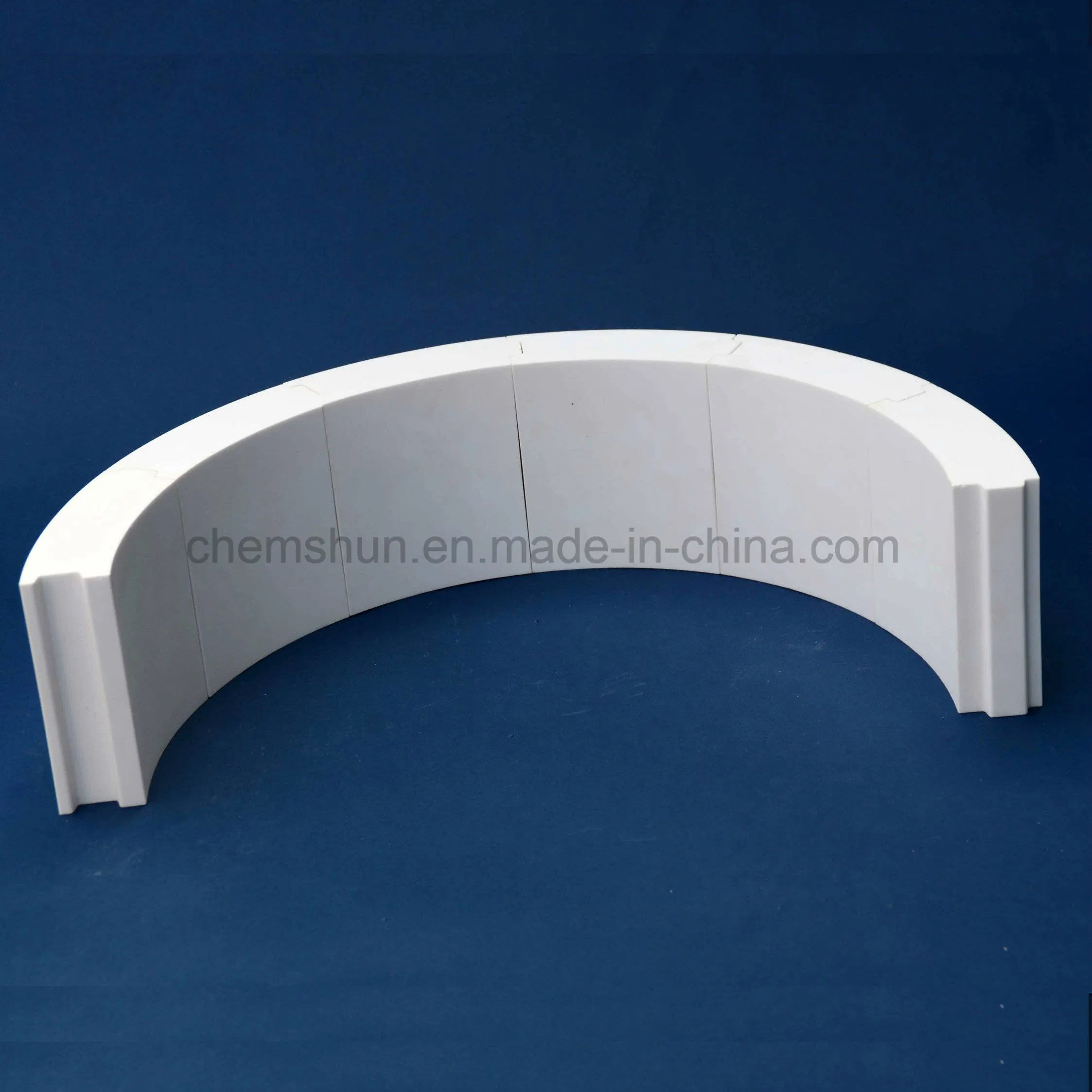

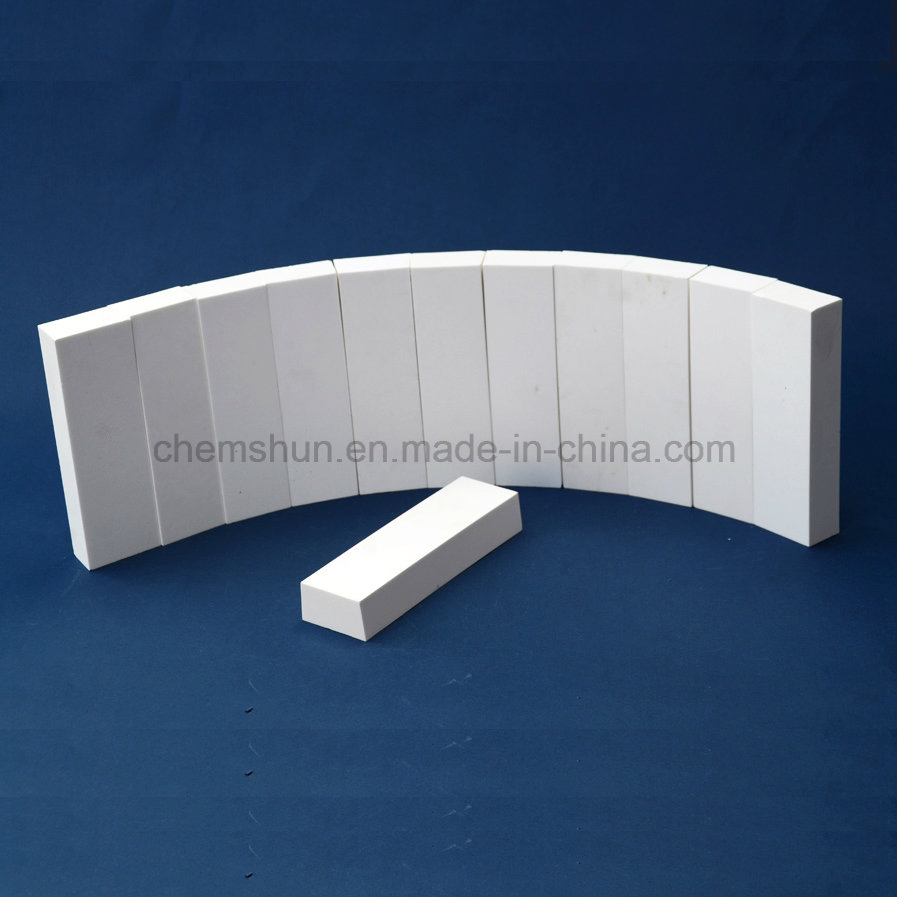

Ceramic curved pipe tile liner
Ceramic arc pipe tile linings
Alumina brick linings
Ceramic square / rectangle / hexagonal tile

Technical Specifications

Attributes	Unit	92% Alumina	95% Alumina
Alumina Content	%	92	95
Density	g/cc	3.60	3.68
Flexural Strength	Mpa	280	300
Moh's Density	Grade	9	9
Vickers Hardness	Kg/mm2	1050	1190-1220
Compressive strength	Mpa	850	950-1000
Max Temp	°C	1250	1250

Product Gallery

Frequently Asked Questions (FAQ)

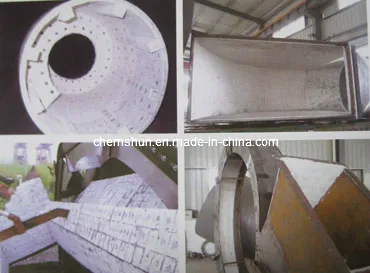

Q1: What industries use these wear-resistant ceramic linings? A: They are widely used in the mining industry, power plants, steel plants, and cement plants for equipment like hoppers, chutes, and conveyors.

Q2: What are the main advantages of 95% alumina over 92%? A: 95% alumina offers higher density, superior Vickers hardness, and better compressive strength for more demanding wear environments.

Q3: Can the ceramic tiles be customized for specific pipe sizes? A: Yes, custom shapes and customized thicknesses are available to fit specific equipment and pipeline geometries.

Q4: How are the ceramic tiles installed in steel pipelines? A: The primary installation methods include adhesive bonding and weldable solutions using steel cones and ceramic rods.

Q5: What is the maximum operating temperature for these ceramics? A: Both 92% and 95% alumina ceramics can operate at a maximum temperature of up to 1250°C.

Q6: Are samples available for quality testing? A: Yes, samples are available upon request to verify the material attributes and quality.
