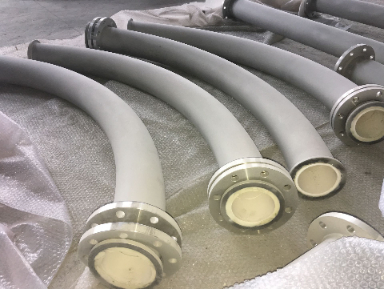

Wear Resistant Elbow Pipe Lining (Al2O3: 92%, 95%)

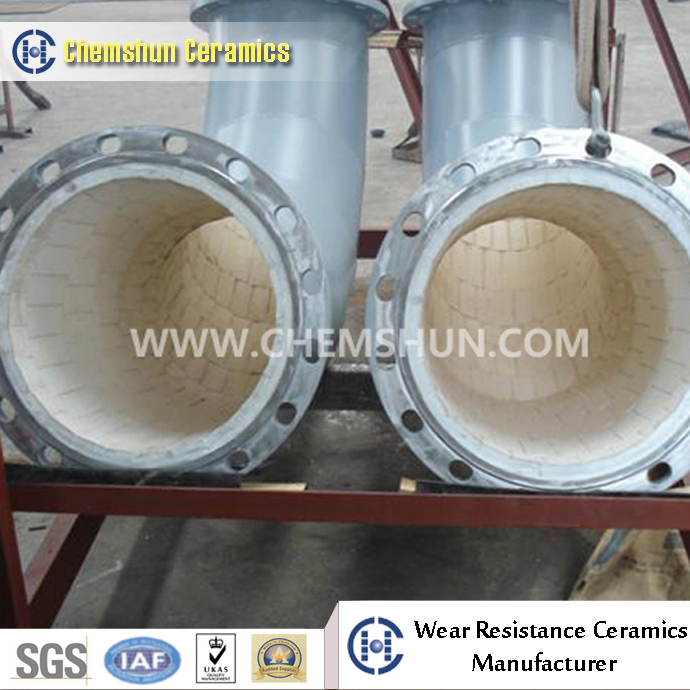

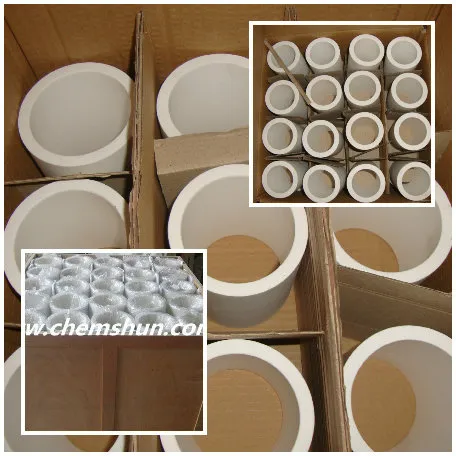

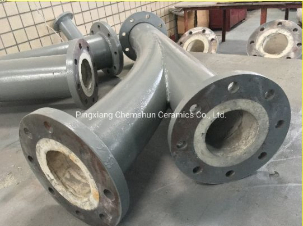

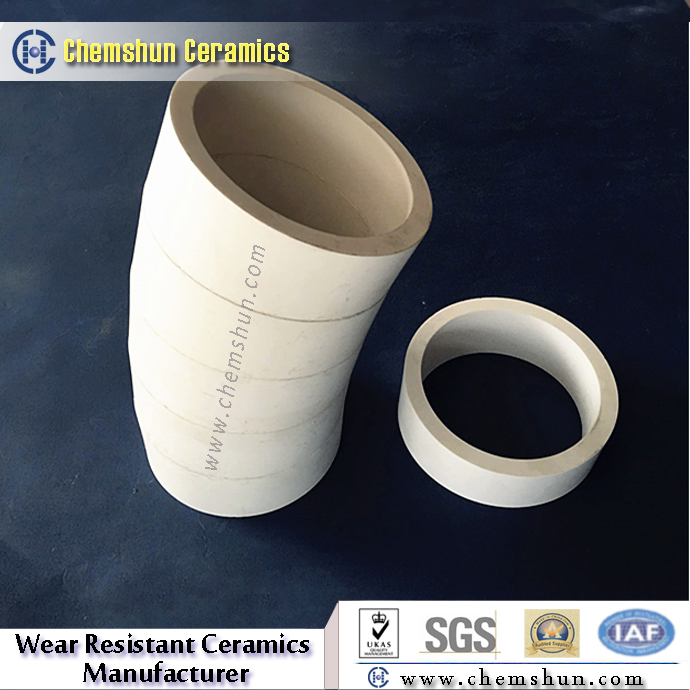

Alumina ceramic tube, bend and elbow have exceptional hardness and strength, resistance to wear and chemical attack. It is especially used as the ceramic pipe liner of the pipeline and can protect the steel pipe for excessive wear and extend the use life. This kind of ceramic tube is easy for installation and diameter can be varied from 10mm to 500mm. Shape can be straight tube, bend tube or Y-piece with properties of smooth surface, no gap and good abrasion and impact resistant ability.
| Attributes | Unit | 92% Alumina (I) | 92% Alumina (II) | 95% Alumina |
|---|---|---|---|---|
| Density | g/cc | ≥3.60 | ≥3.60 | >3.65 |
| Flexural Strength | Mpa | 270 | 300 | 320 |
| Rockwell Hardness | HRA | 80 | 85 | 87 |
| Max Operation Temp | ºC | 1450 | 1450 | 1500 |
