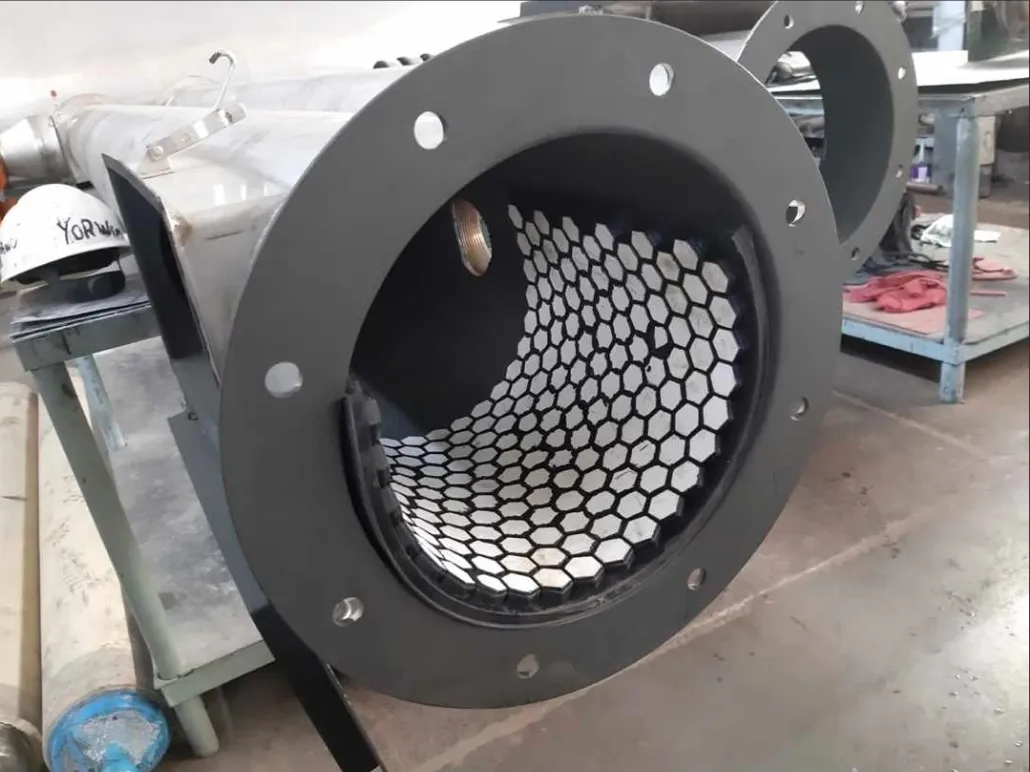

Premium Alumina Ceramic Lined Steel Elbow Bends for Pipelines

Customization:	Available
Standard:	JIS, GB, DIN, BS, ASTM, AISI
Application:	Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard

Send Inquiry

Product Description

Basic Information

Model NO.	Composite ceramic wear-resistant lining	Material	Al2O3
Type	Wear Resistant Pipe	Fracture Toughness	3.7 Kic
Al2O3 Content	92/95/99/Zta	Steel Grade	Q235
Production Capacity	30000 PCS/Year	HS Code	690912000

Product Description

💎

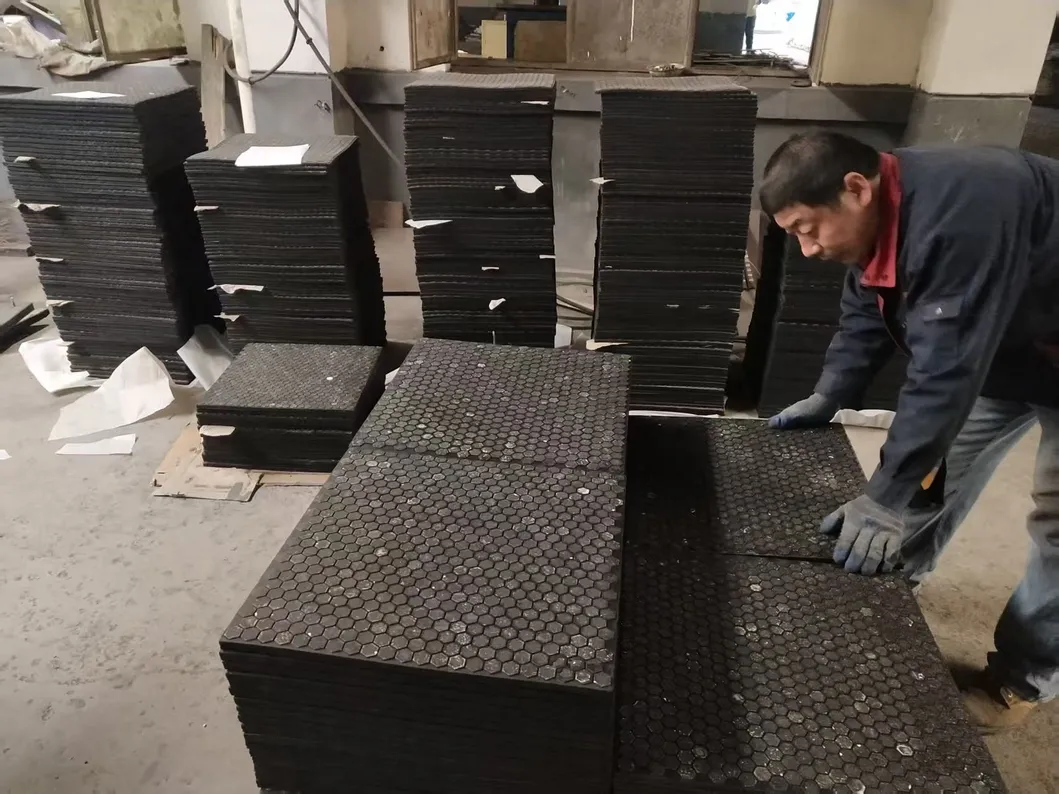

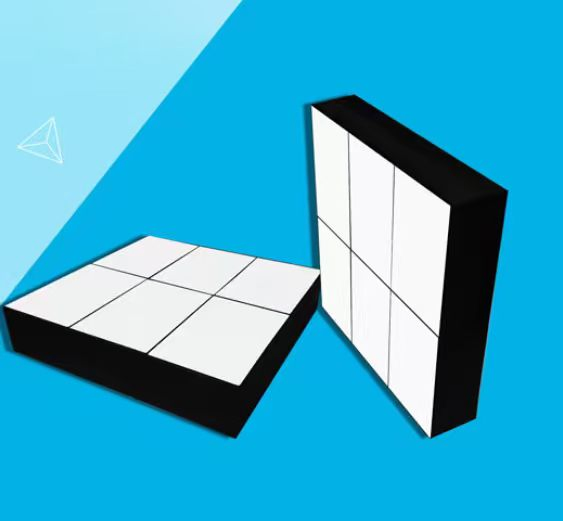

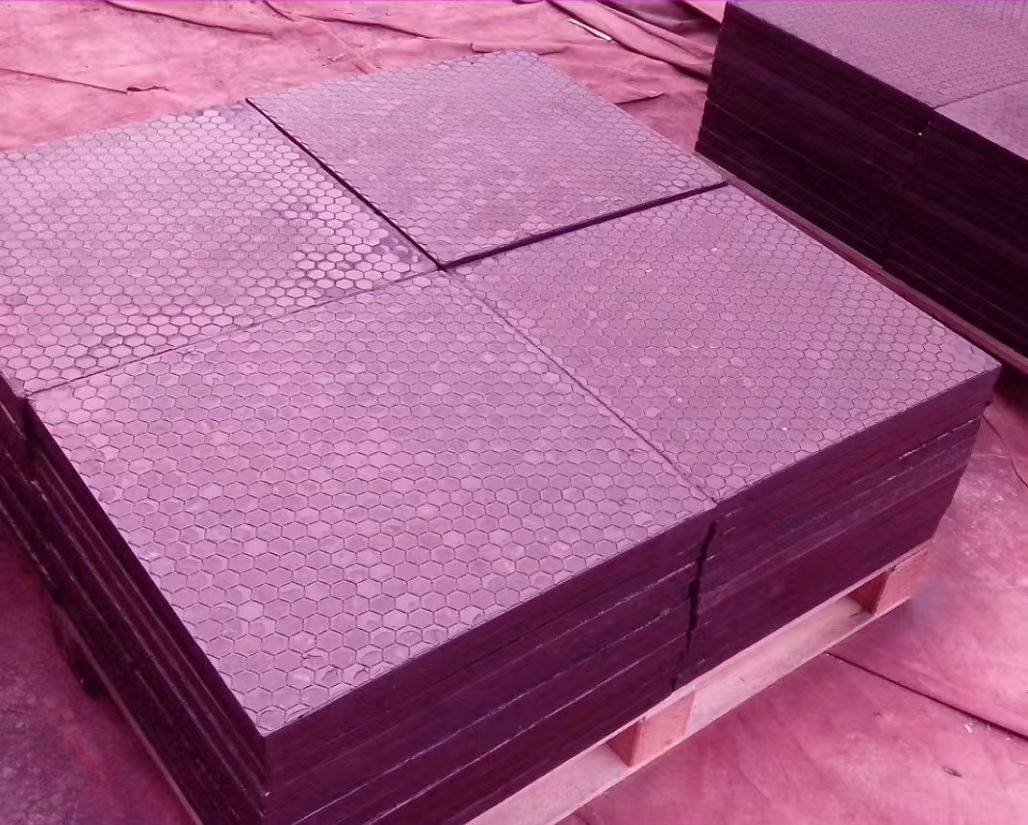

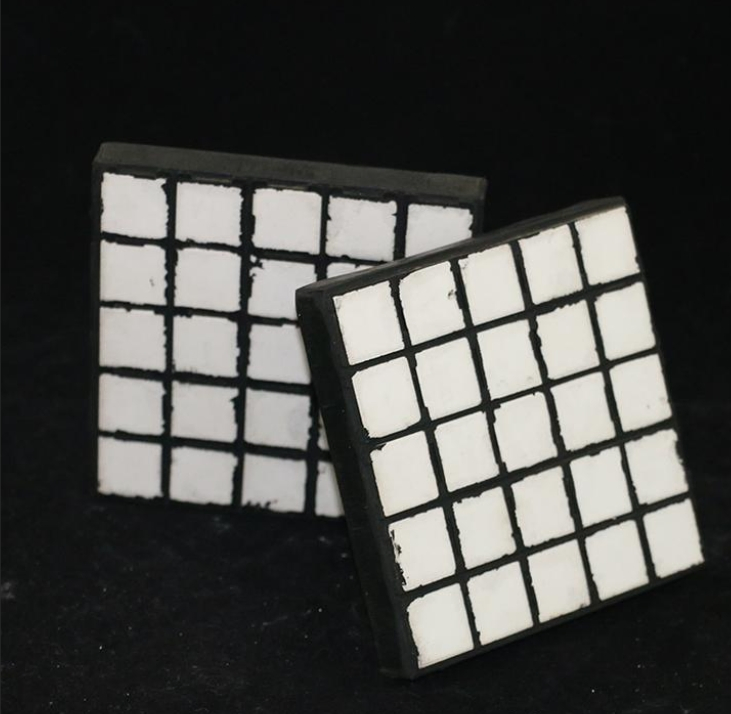

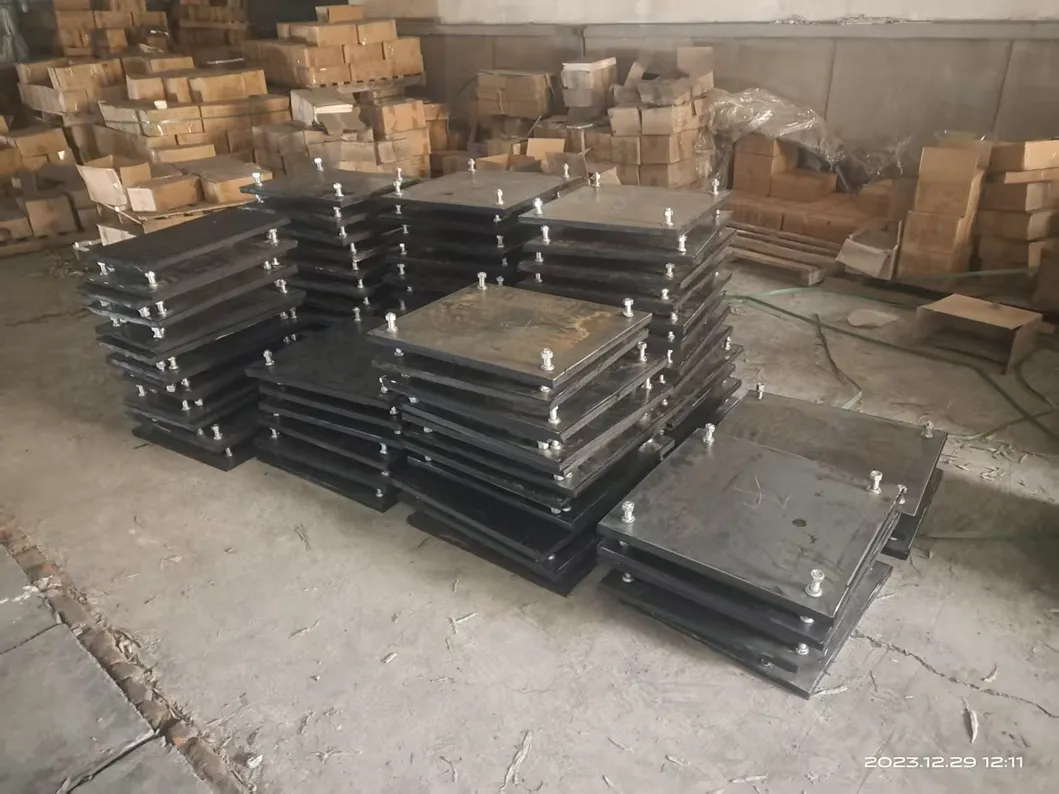

Ceramic Composites Wear Panels
Product features: The surface of the ceramic tiles is smooth, does not absorb water, does not stick to materials, has high hardness, is resistant to wear, reduces noise, and has a long service life.

⚙️

Application scope: Widely used in coal conveying and ash discharge systems of thermal power plants, as well as in conveying, batching silos, hoppers, mixing machines, and pelletizing discs of the metallurgical and steel industries.

Product Performance & Features

1. Impact Resistance: It has excellent buffering performance and can effectively absorb the impact caused by falling minerals.

2. Anti-Fall: Integrated vulcanization with countersunk bolt welding provides double protection and firm connection.

3. Easy Maintenance: Lighter than wear-resistant steel plates by more than 60%, making installation highly convenient.

Technical Parameters

Component	Specification / Property	Details
Ceramic Material	92%, 95%, T95%, 96%, ZTA	High Purity Alumina
Rubber Component	Natural/Nitrile-butadiene/Flame Retardant	Tensile strength ≥15Mpa
Rubber Density	~1.4g/cm3	Shore Hardness: 45-65
Steel Plate	Q235A	Thickness: 3-10mm
Temperature Range	Working Environment	-50ºC - 200ºC
Plate Dimensions	Standard Sizes	300x300, 500x500, 600x450 mm etc.

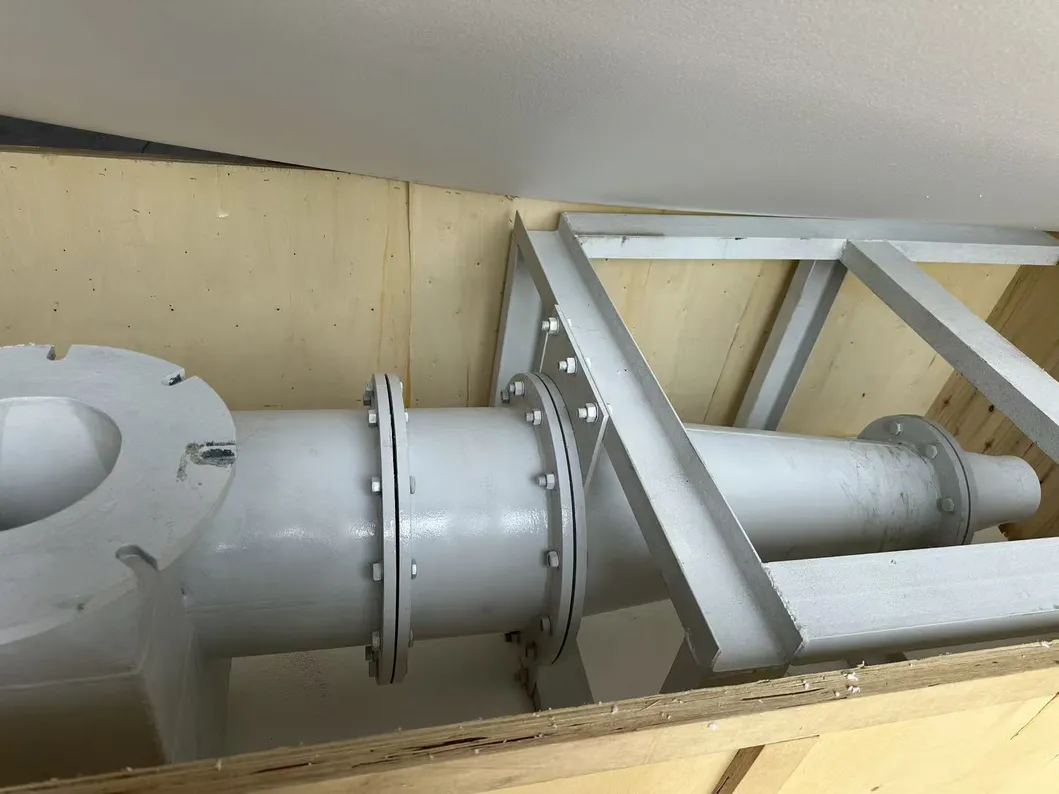

Packaging & Shipping

Our Advantages

Frequently Asked Questions

❓ What is the typical lead time for an order?

It usually takes about 10-20 days for production depending on your order quantity.

❓ What is the Minimum Order Quantity (MOQ)?

The MOQ is only 1pc. For OEM services, please contact us for details.

❓ Do you accept OEM orders?

Yes, we welcome OEM orders. We can customize specifications according to your requirements.

❓ What are your payment terms?

Standard terms are 30% T/T in advance, with the balance paid after inspection against TT or other agreed terms.

❓ How do you ensure product quality?

We utilize a complete QC system for chemical composition and physical properties. All goods are tested post-production and quality certificates are provided.

❓ Can we visit your production facility?

Yes, visitors are always welcome to inspect our facilities and production processes.
