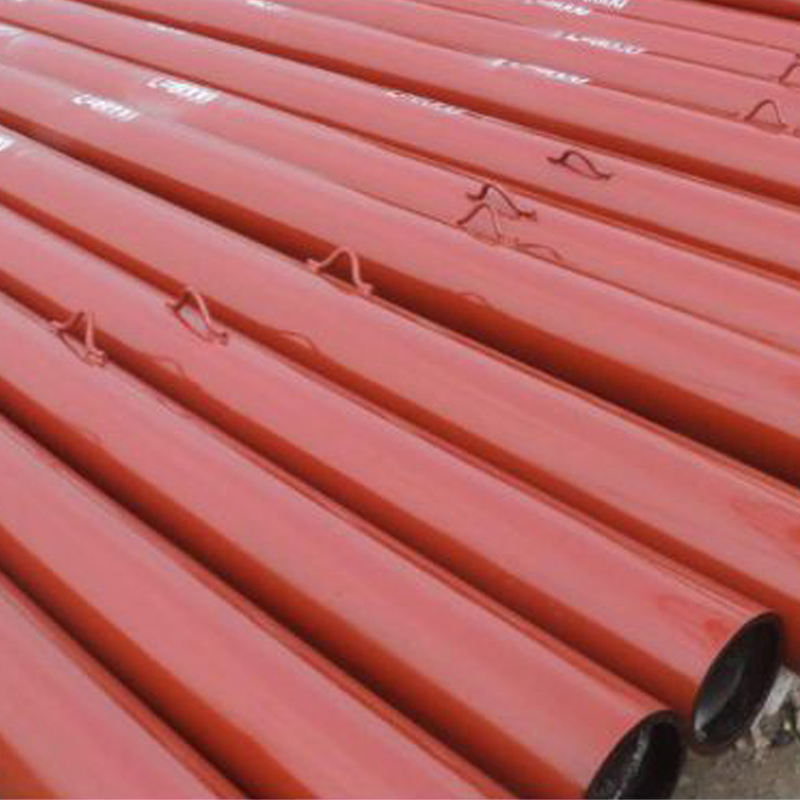

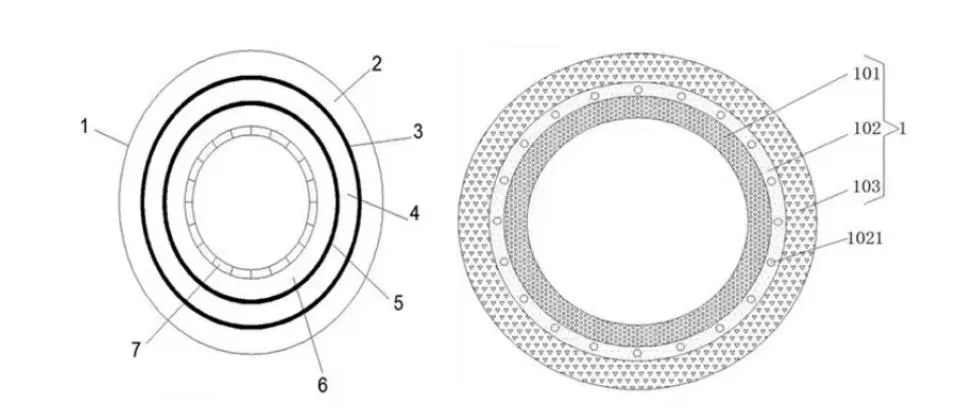

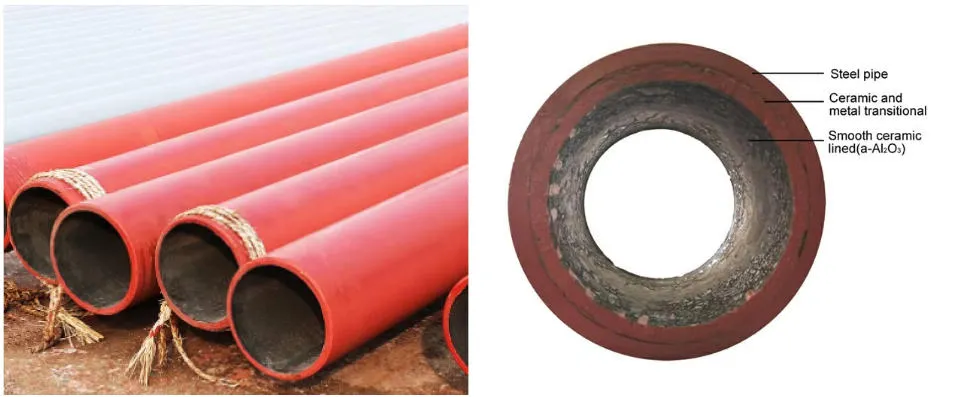

Composite ceramic steel pipe is a new type of composite material manufactured by the self-propagating high-temperature synthesis method (SHS). It uses the aluminothermic reaction to exothermicly melt the reactants, separating Al2O3 and Fe under centrifugal force. The tube consists of a dense corundum ceramic (AL2O3) inner layer, a transition layer, and an outer steel pipe layer, forming a firm metallurgical bond at temperatures above 2000 ℃.

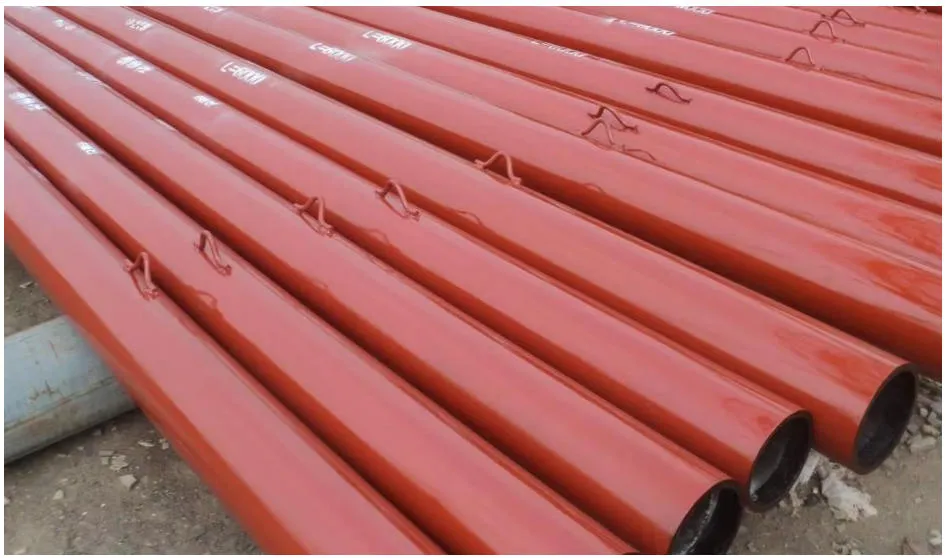

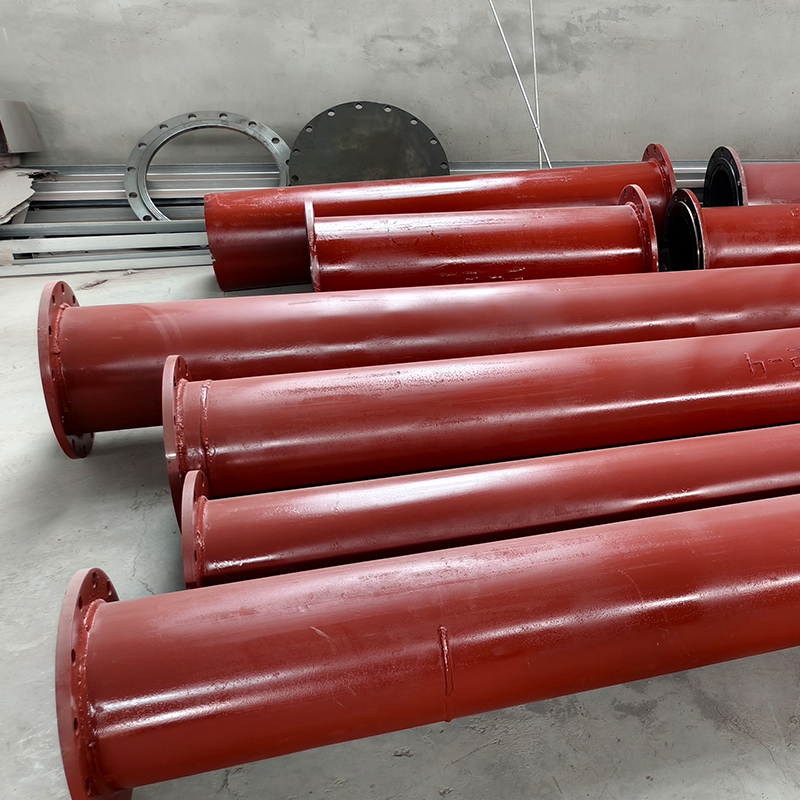

| Ceramic-lined composite straight tube parameters | |||||||
|---|---|---|---|---|---|---|---|
| Number | Pipe Diameter | Wall Thickness | Wear Layer | Number | Pipe Diameter | Wall Thickness | Wear Layer |
| 1 | 68 | 8/10 | 4 | 18 | 168 | 8/10 | 4 |
| 5 | 83 | 8/10 | 4 | 22 | 219 | 10/12 | 4/5 |
| 10 | 114 | 8/10 | 4 | 27 | 351 | 12/14 | 5/6 |

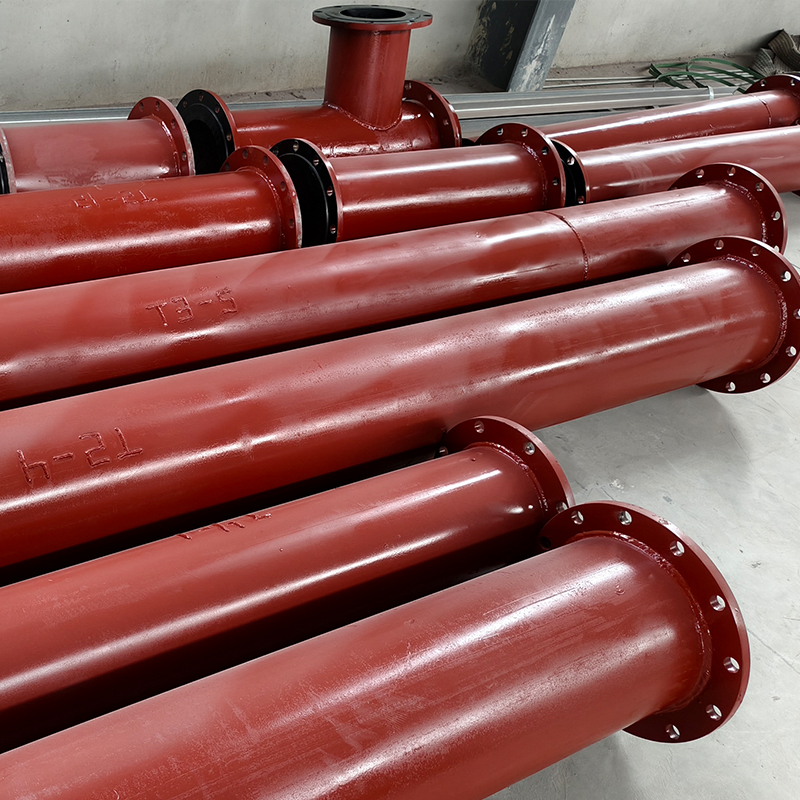

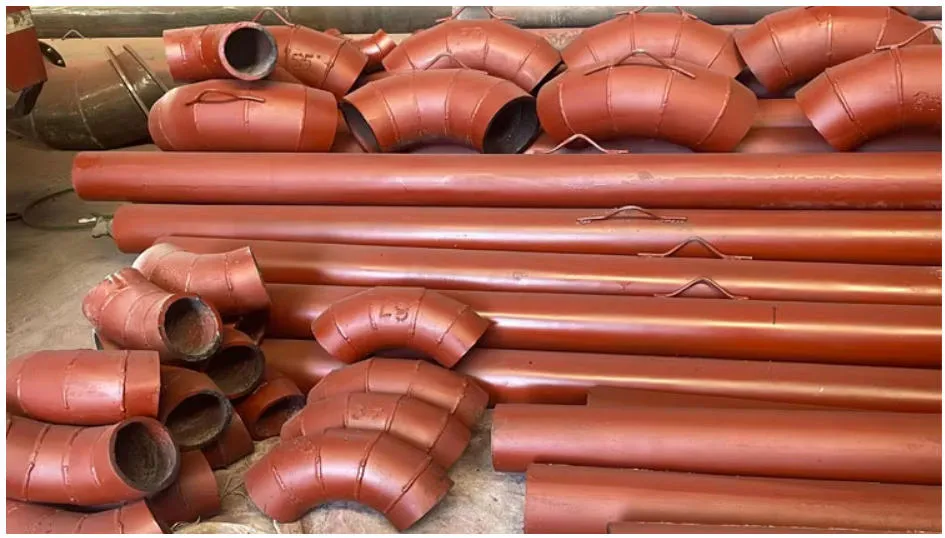

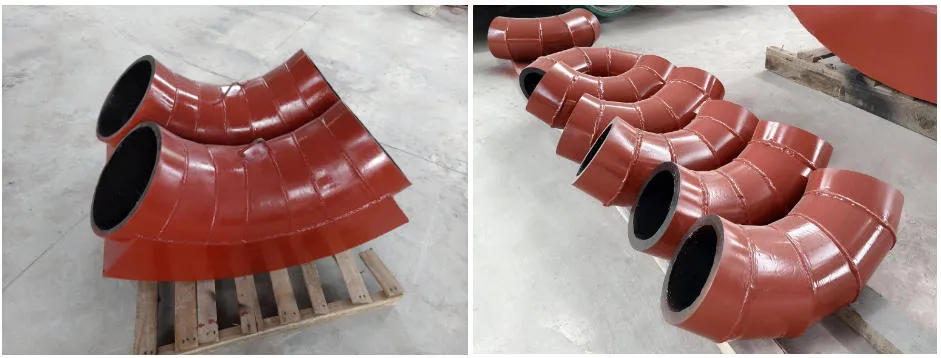

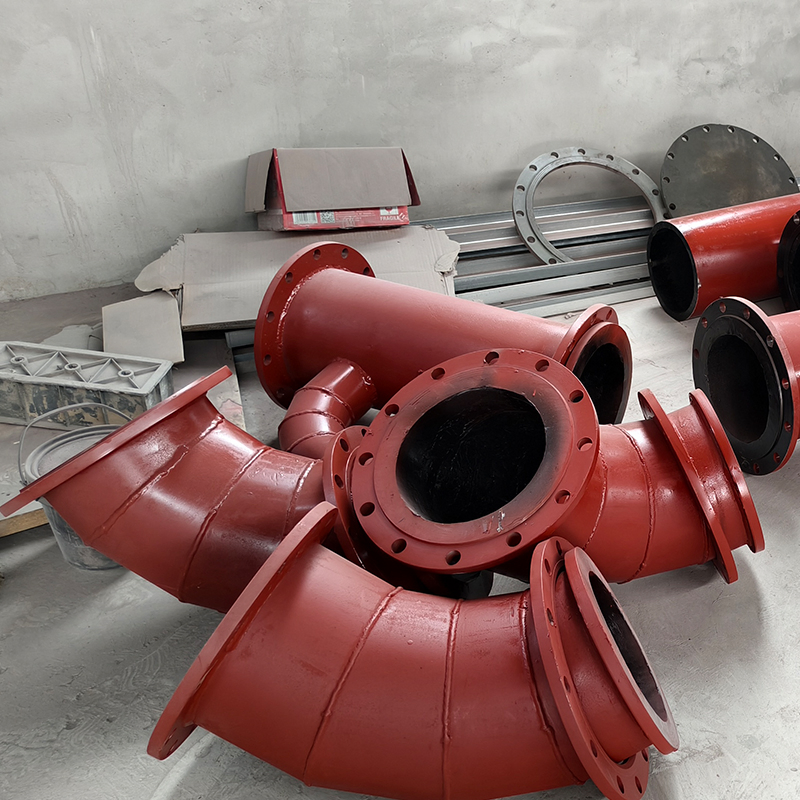

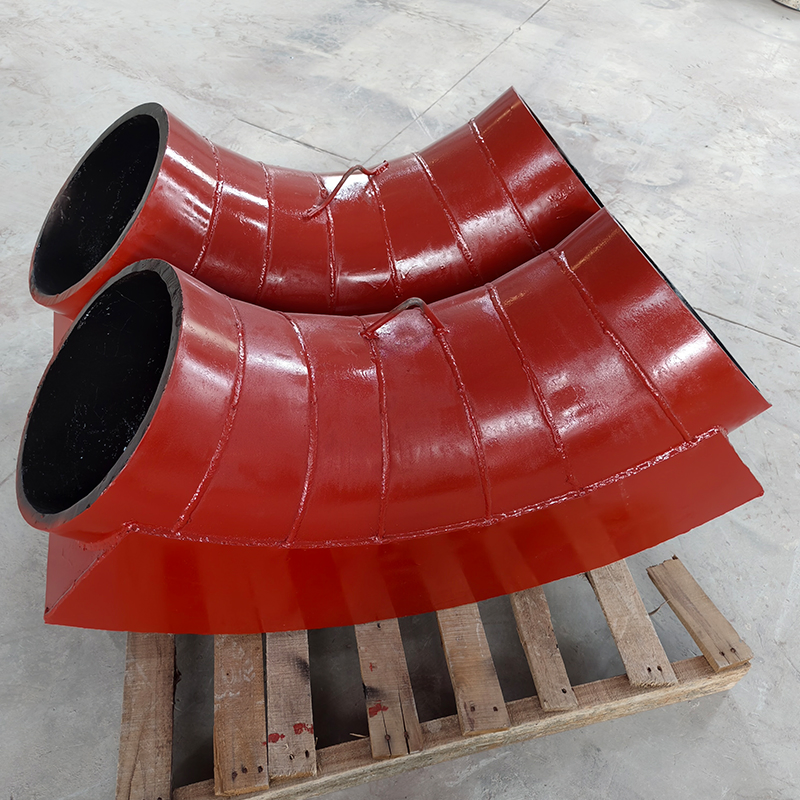

Ceramic lined pipes are essential in mining, power generation, oil and gas, and chemical processing. They protect systems from abrasion and corrosion, ensuring reduced downtime and improved flow rates. Available in various shapes including elbows, tees, and reducers.
