Basic Specifications
Material
Alumina Ceramic + Rubber + Cn Layer / Steel Plate
Function
Wear, Abrasion and Impact Protection
Install Method
Steel Plate and Studs, or Bonding Layer
Certificate
ISO9001: 2015, SGS, CE
Why Choose Our Solutions
- Expert Manufacturing: Over 20 years experience in wear products and conveyor accessories.
- Global Reach: Over 10 years experience in exporting to UK, France, Chile, Canada, USA, Australia, and more.
- Quality Assurance: ISO9001:2015 certified factory with strict QC/QA consistency.
- Verified Supplier: SGS audited supplier ensuring high industrial standards.
Product Description
Chute liners protect and cushion equipment from material handling impacts, reducing maintenance fees and conveyor structure damage. Our ceramic wear liner composite plates embed high alumina tiles into rubber via vulcanization, where the rubber cushion prevents ceramic tiles from breaking.
Technical Configuration Types

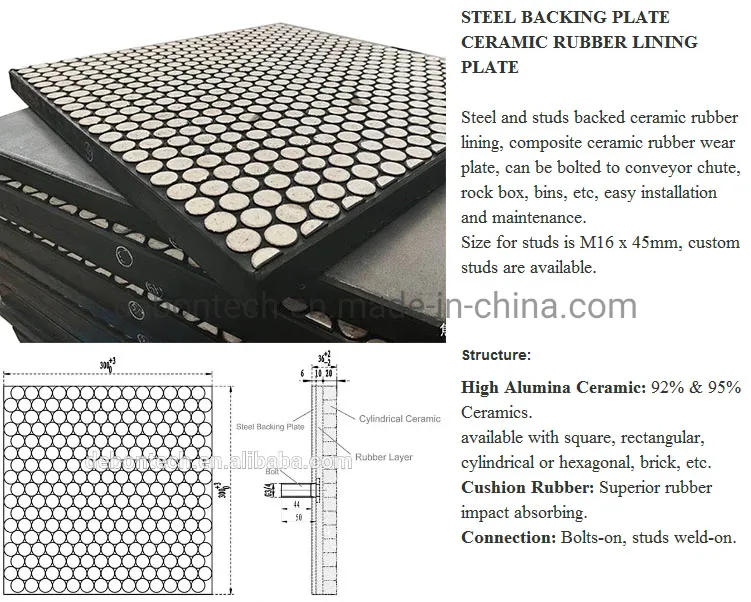

Type 1: Ceramic + Rubber + Steel Plate + Studs (Welded mounting)

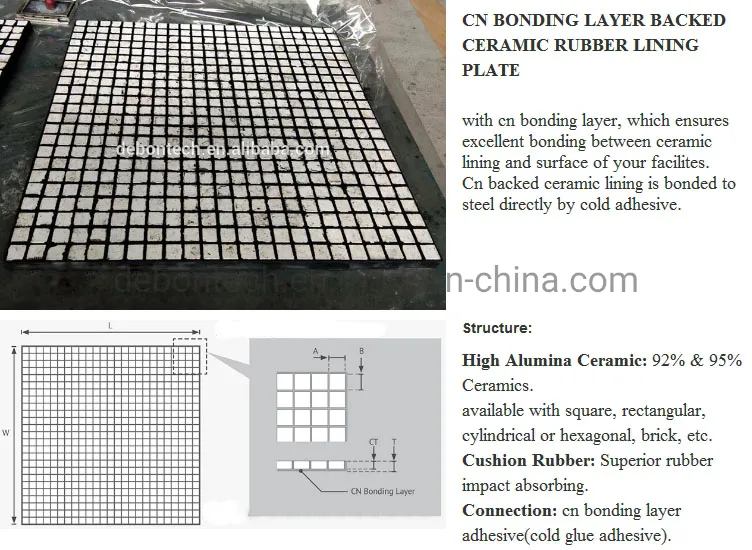

Type 2: Ceramic + Rubber + CN Bonding Layer (Cold vulcanization)
Type 3: Ceramic + Rubber + Countersunk (Bolt and stud installation)

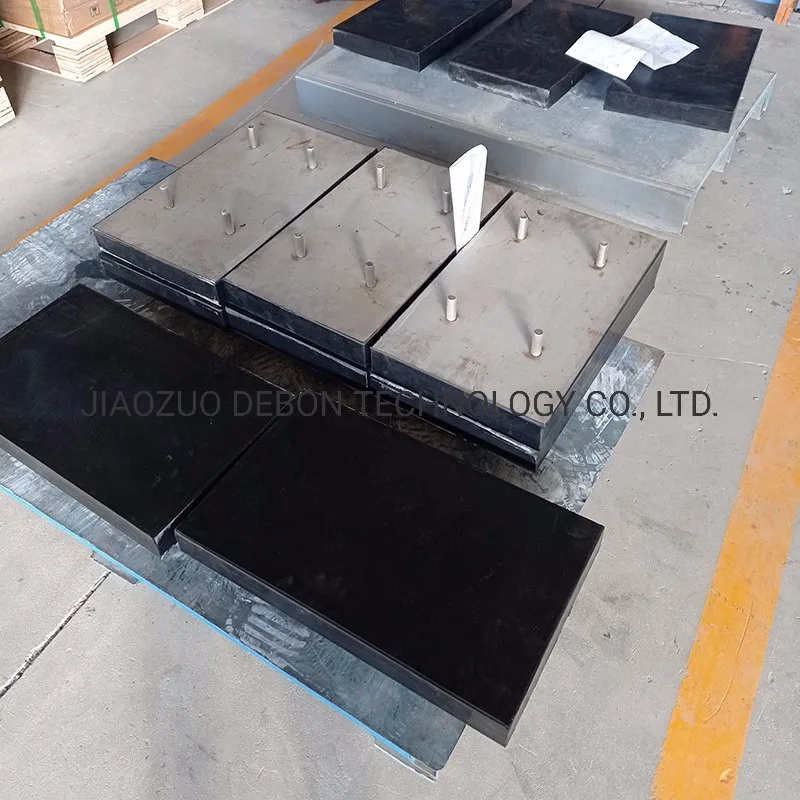

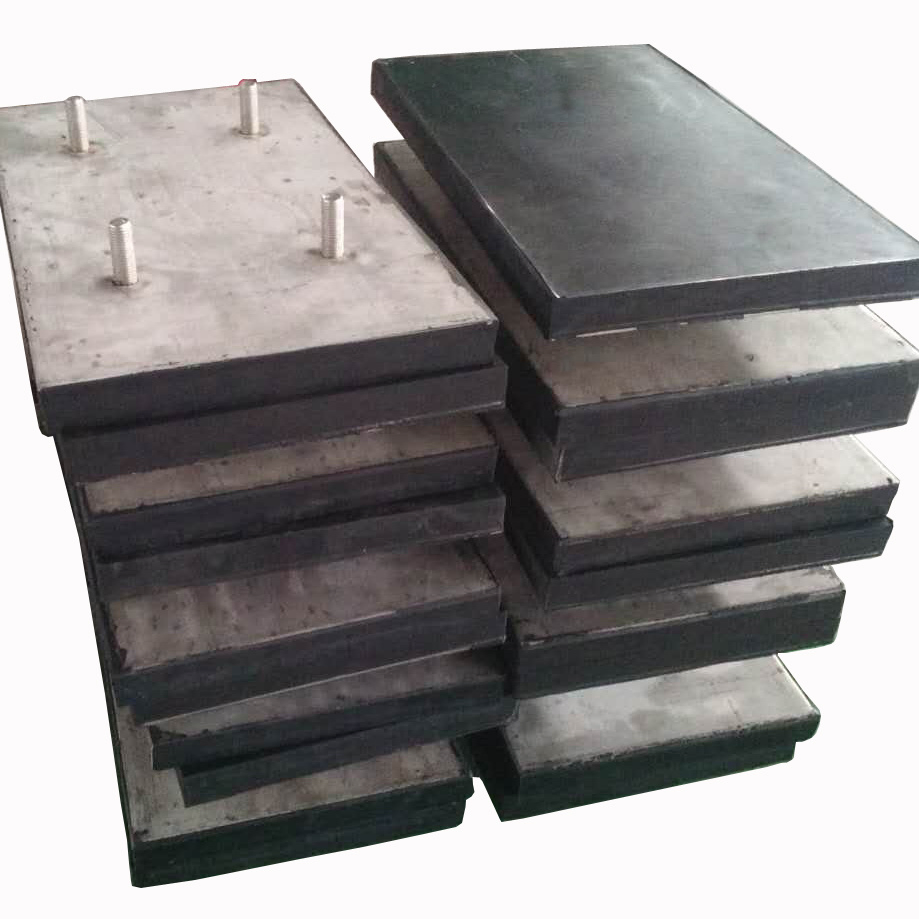

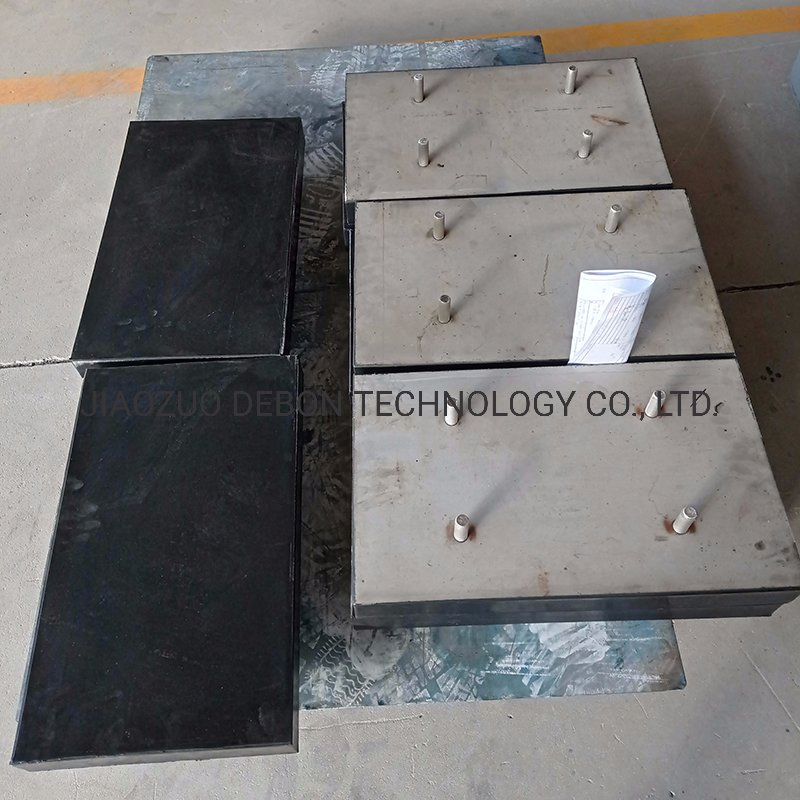

Type 4: Rubber + Steel Backing Plate + Studs (Impact protection)
Technical Parameters
| Component |
Property |
Unit |
Value |
| Alumina Ceramic | Alumina(Al2O3) | % | 92% / 95% |
| Alumina Ceramic | Density | g/cm3 | 3.62 |
| Alumina Ceramic | Hardness | Mohs | 9 |
| Rubber | Material | - | NR & SBR Blend |
| Rubber | Hardness | Shore A | 60 ± 5 |
Core Features & Benefits
- Excellent impact and wear resistance
- Significant noise reduction solutions
- Extended service life of equipment
- Reduced maintenance and downtime
- Cost-effective long-term protection
- Fully customizable sizes and shapes
Frequently Asked Questions
What is the advantage of combining ceramic with rubber?
The ceramic tiles provide extreme abrasion resistance, while the rubber matrix absorbs impact energy, preventing the ceramics from shattering.
How are these liners installed?
Installation methods include welded studs on steel backing plates, countersunk bolts, or cold bonding using a CN bonding layer.
Can I get customized sizes for my specific chute?
Yes, we provide customized shapes and sizes to fit various equipment including hoppers, bins, and pipes.

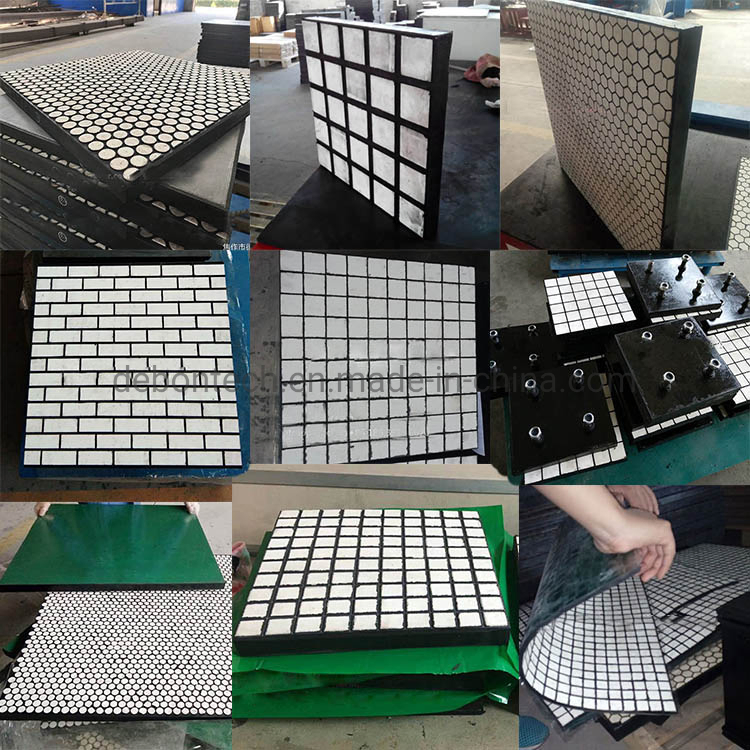

What ceramic shapes are available?
We offer cylindrical, hexagonal, square, and spherical ceramic tile shapes depending on your application needs.
Is the quality certified for mining environments?
Yes, our products are produced in an ISO9001 certified factory and have been audited by SGS for high-durability applications.
