Supplier Impact Absorbing Wear Liners Composite Ceramic Lined Rubber Chute Linings

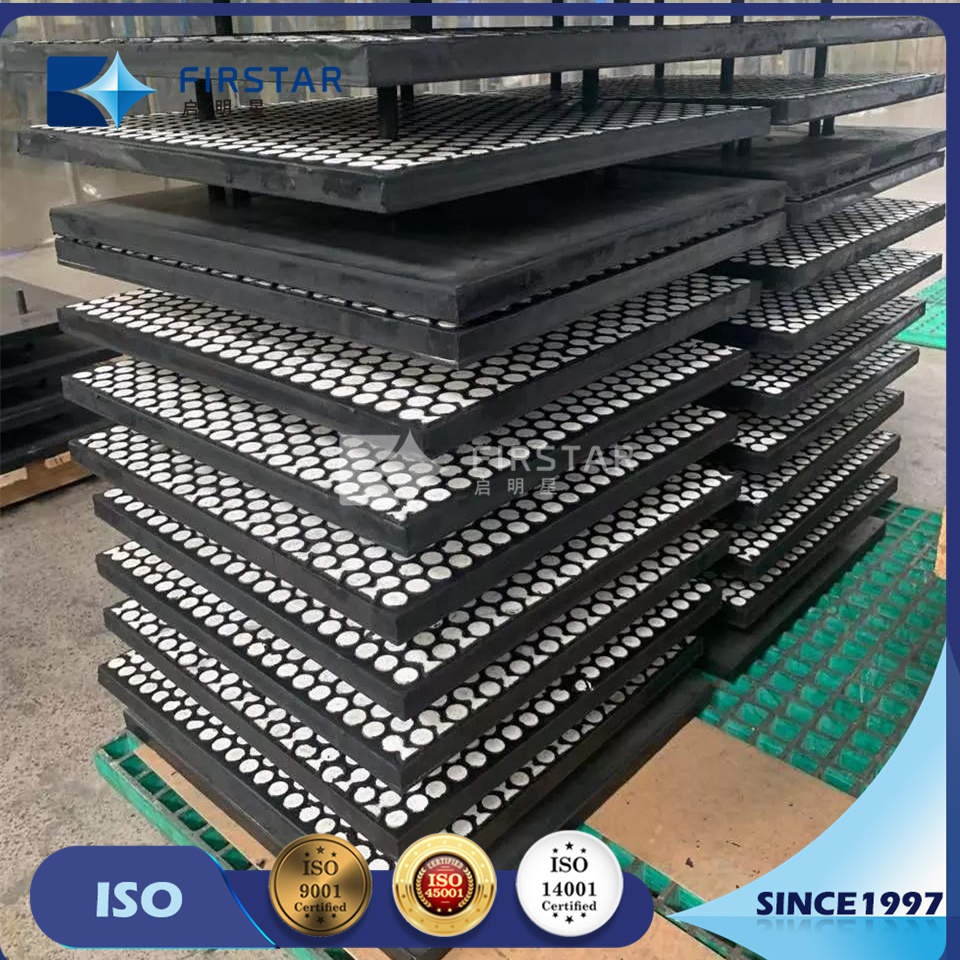

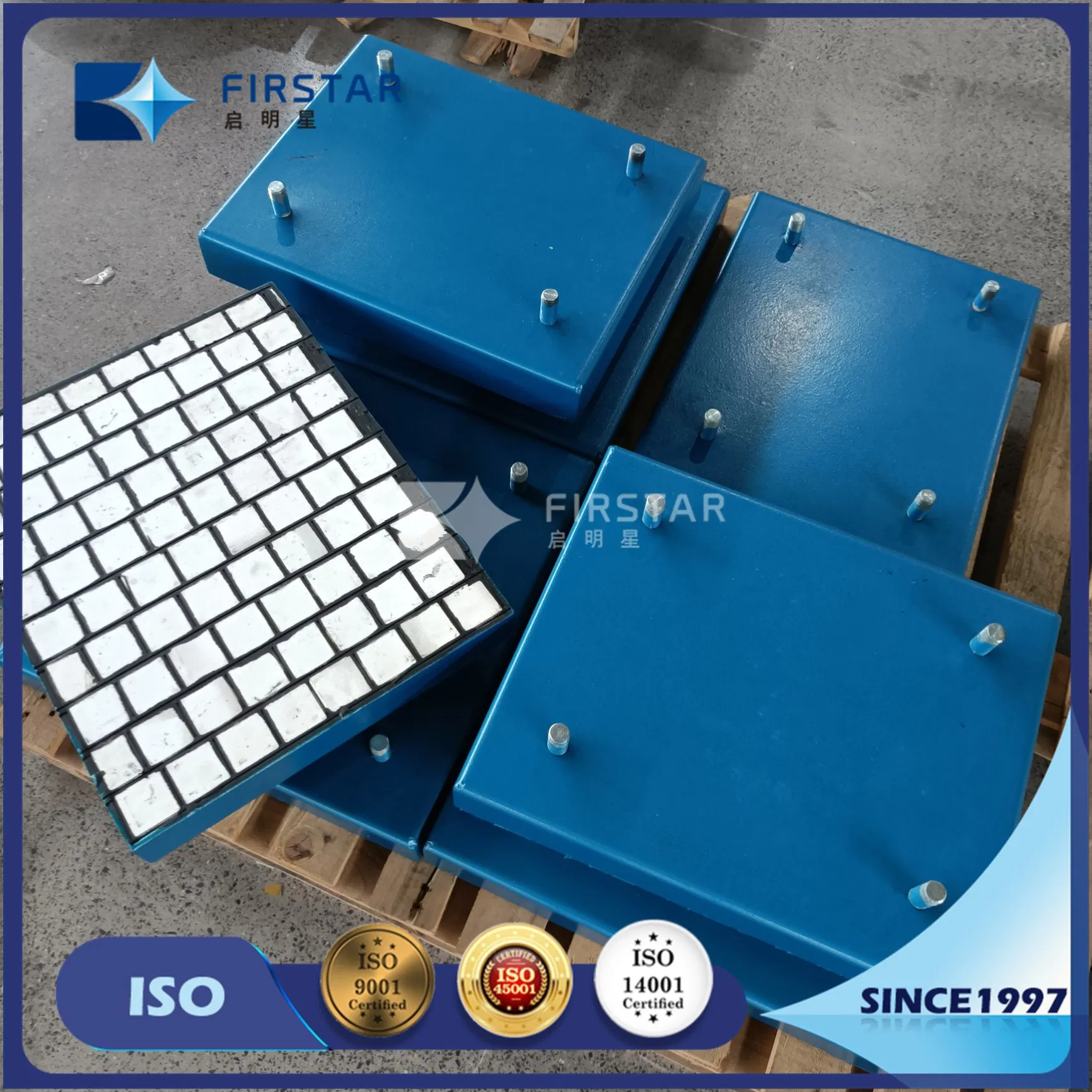

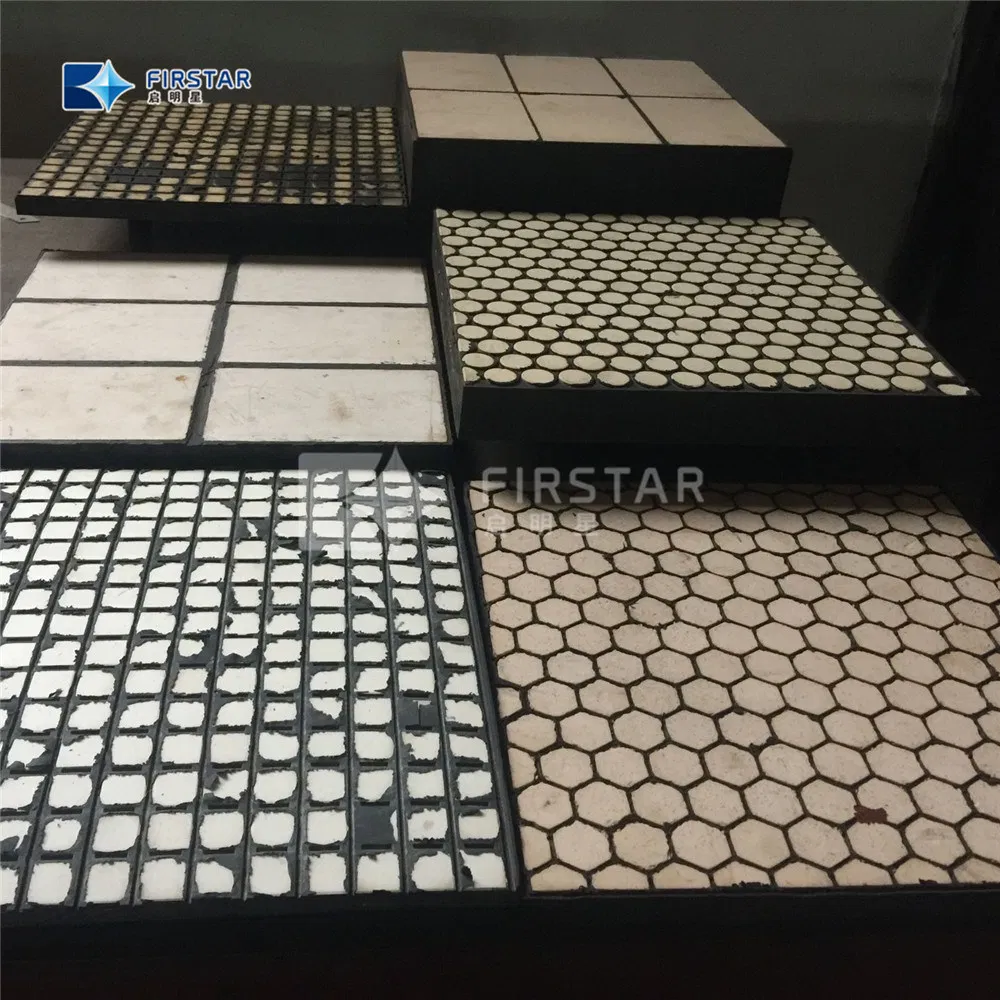

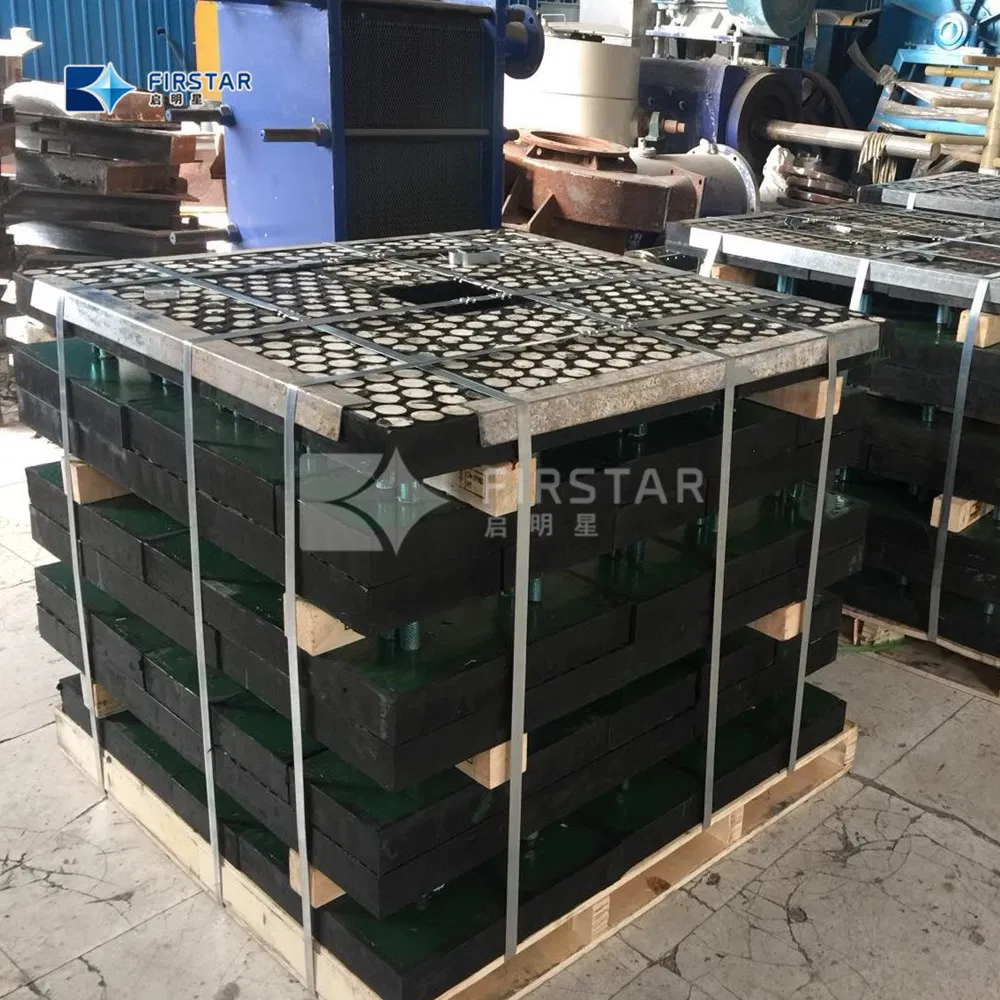

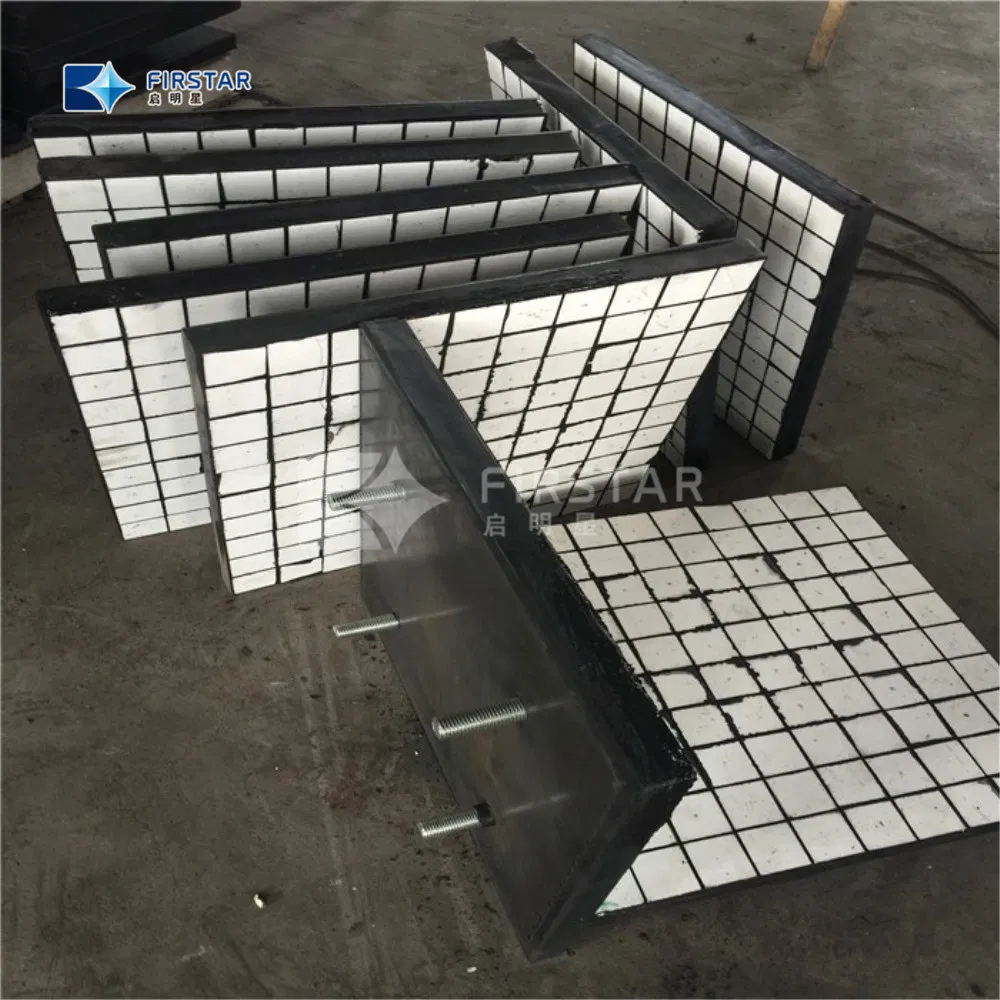

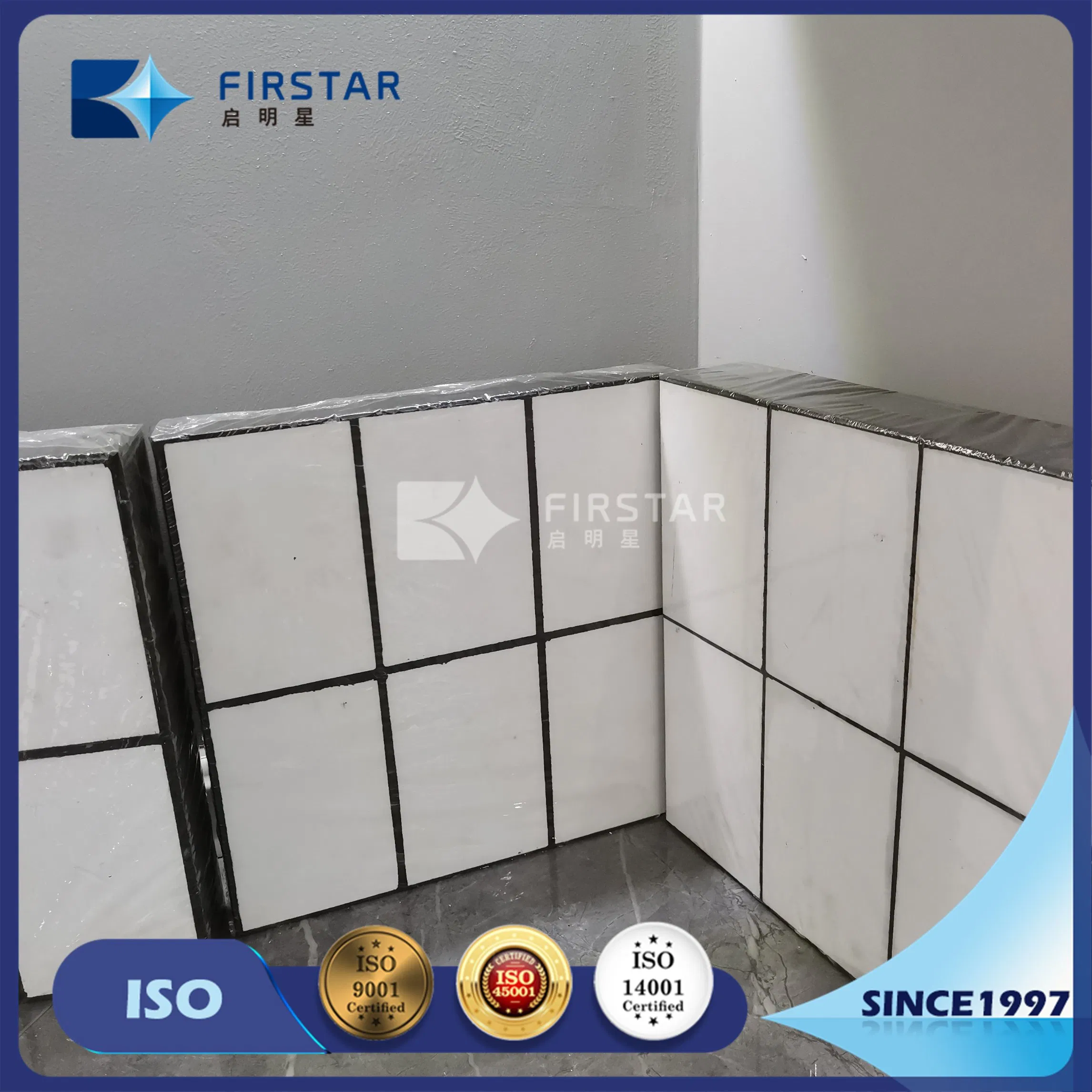

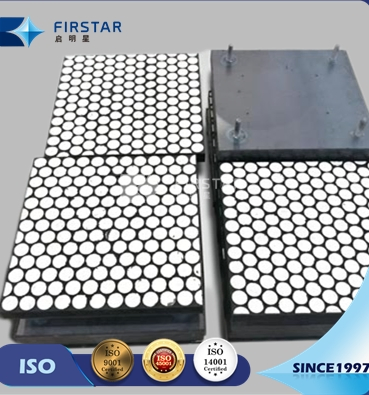

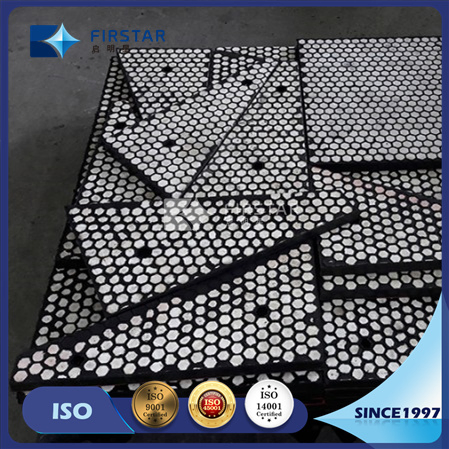

Ceramic rubber composite pads & plates utilize a rubber vulcanization process to embed wear-resistant ceramic tiles into a resilient rubber base. These can be bonded directly to equipment or vulcanized together with a steel backing plate for mechanical fastening via bolts.
Key Features: Combines the extreme hardness and wear-resistance of ceramics with the impact-absorbing properties of rubber. Ideal for conveying systems operating under normal temperatures that require high impact resistance.

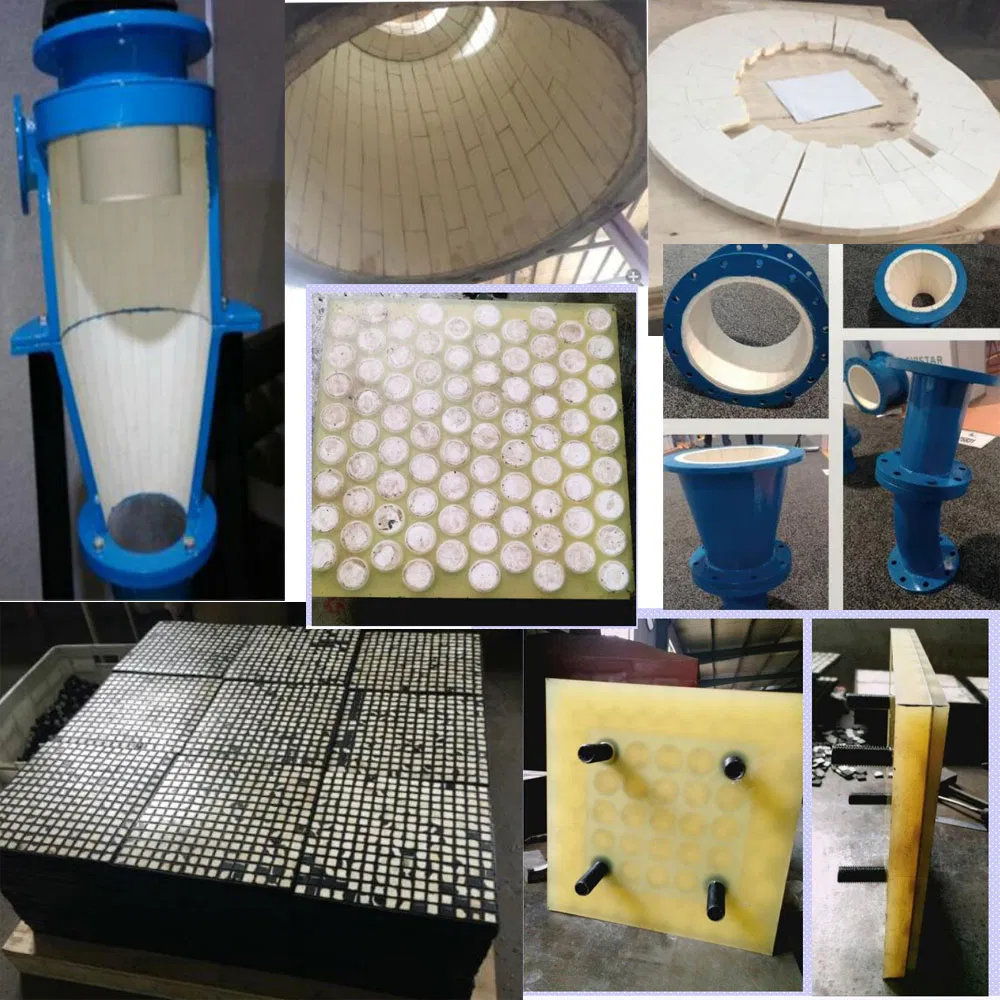

Applications: Pipes and tanks, deflectors, launders, spill face sloping walls, loading chutes, bins, hoppers, and mill feed components.
| Material | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Purity | 92%, 95%, T95%, 96%, ZTA |
| Rubber | Density | ~1.4g/cm3 |
| Rubber | Tensile Strength | ≥15Mpa |
| Rubber | Hardness | 45-65 Shore A |
| Rubber | Working Temp | -50ºC - 200ºC |
| Steel Plate | Material | Q235A (5-6mm thickness) |

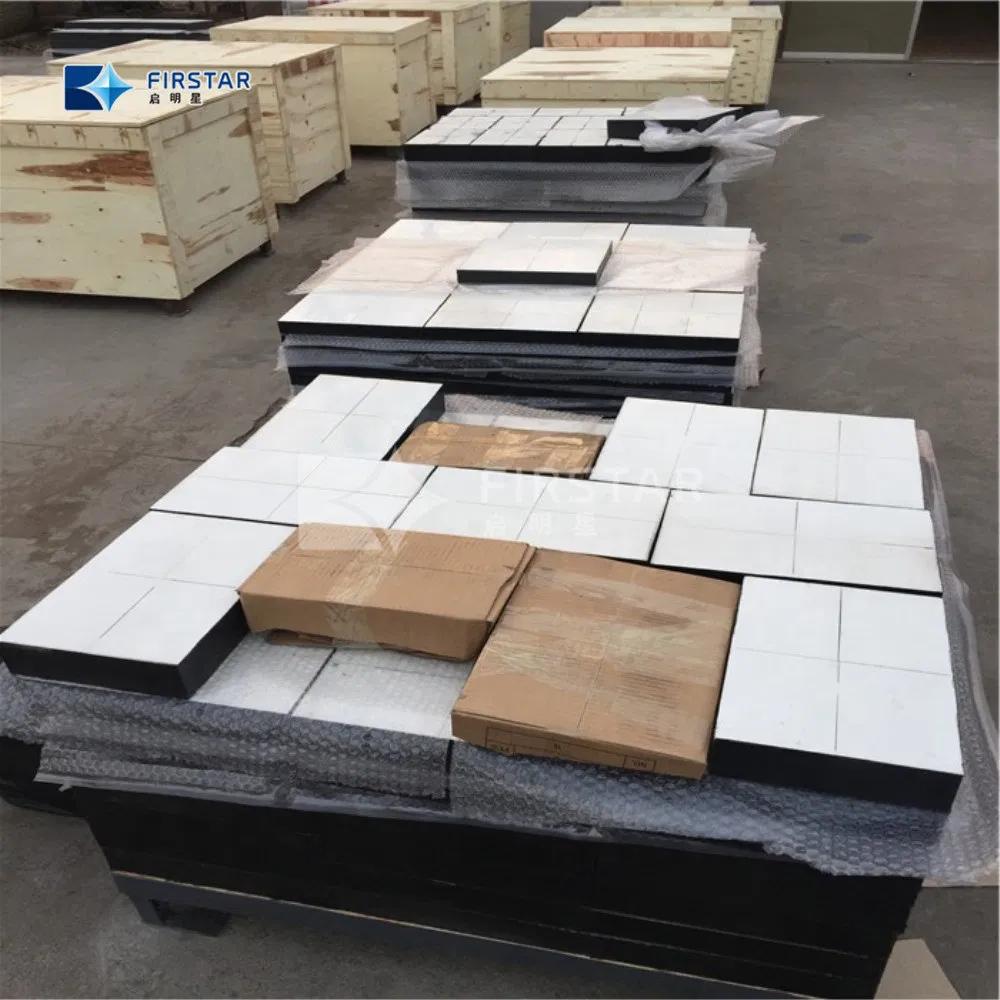

Products are packaged in secure carton boxes with internal compartments to prevent friction, then secured on pallets for safe transport.
