We are a manufacturer specializing in wear-resistant rubber ceramic liners, mats, plates, and panels. We produce various kinds of rubber ceramic liners to meet different applications; custom sizes and structures are available.
Abrasion Resistant Ceramic Rubber Composite Liner
Broken chutes are common problems in load zones causing environmental pollution and high maintenance fees. Ceramic rubber liners protect and cushion chutes from material handling impact.

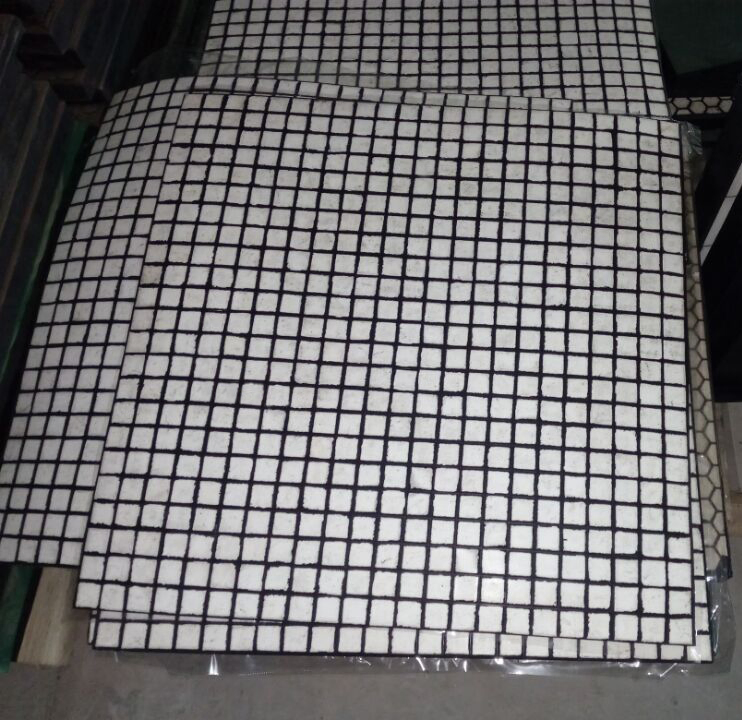

This liner embeds high alumina tiles into rubber via vulcanization. The ceramic tiles provide excellent wear resistance, while the rubber elasticity effectively reduces impact forces.

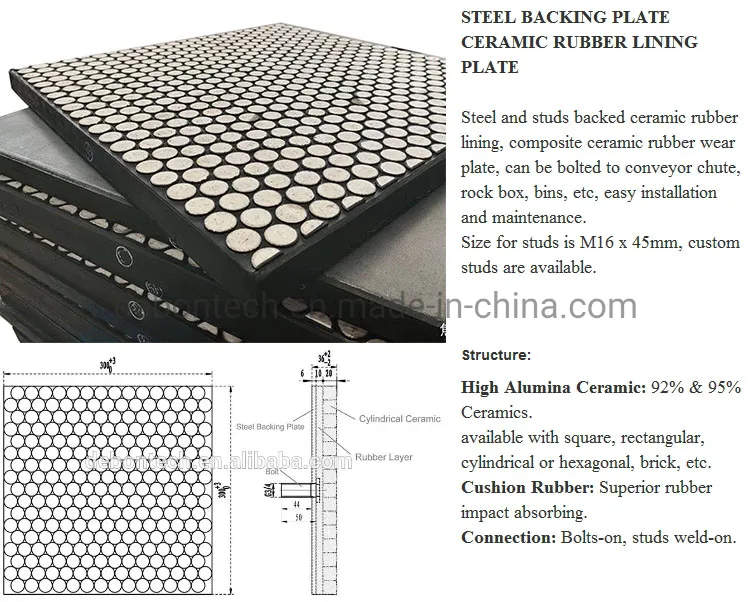

1. Type 1: Ceramic + Rubber + Steel back plate + Studs (Welded mounting studs for easy installation).

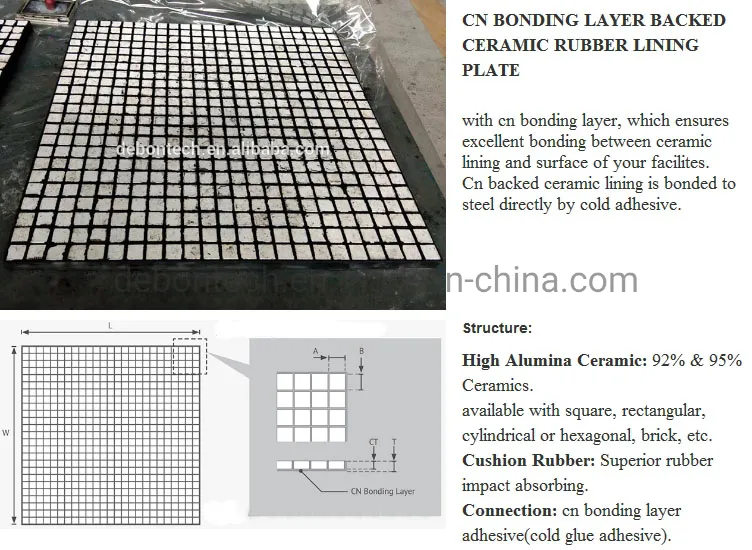

2. Type 2: Ceramic + Rubber + CN bonding layer (Fastened via cold vulcanization).
| Alumina Ceramic Tiles | |||
| 1 | Alumina(Al2O3) | 92% / 95% | Grade 92/95 |
| 2 | Density | g/cm3 | 3.62 |
| 3 | Water Absorption | % | ≤0.01 |
| 4 | Hardness | Mohs | 9 |
| Rubber Properties | |||
| 1 | Material | - | NR & SBR blend |
| 2 | Gravity | g/cm3 | 1.15 |
| 3 | Hardness | Shore A | 60 ± 5 |
| Backing: Mild steel or Stainless Steel | |||
The liners consist of high alumina ceramic tiles (92% or 95%) embedded in a high-quality rubber cushion, often with a steel backing plate or CN bonding layer.
They can be installed using welded mounting studs on a steel backing plate or via cold bonding using a CN layer and adhesive.

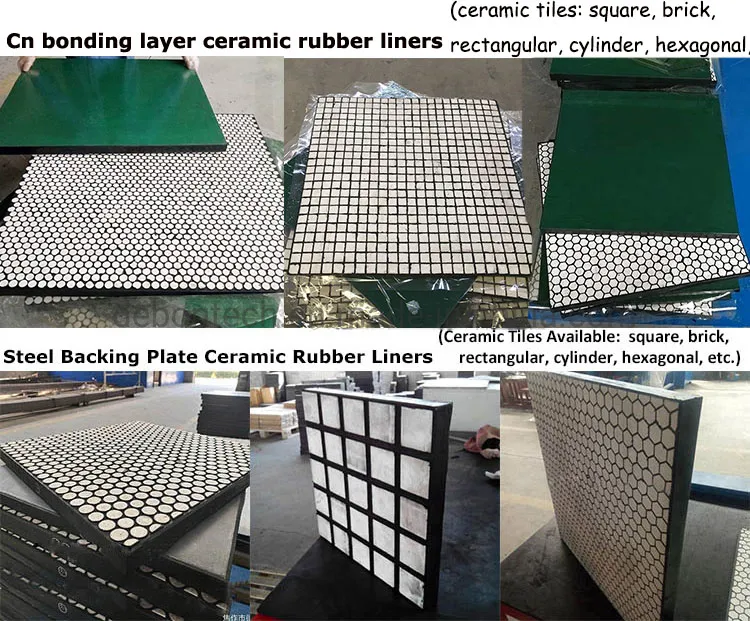

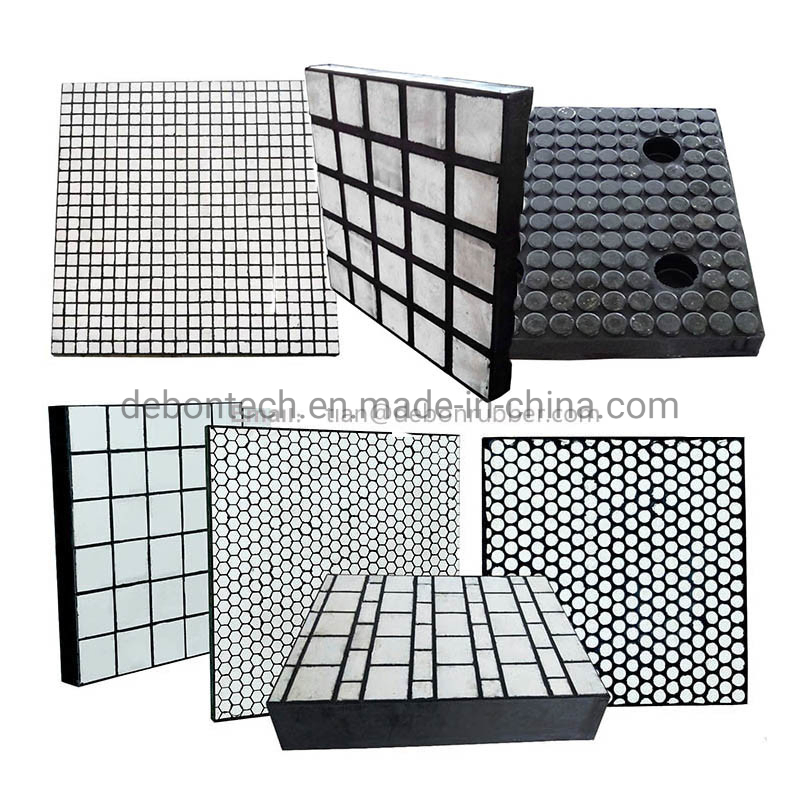

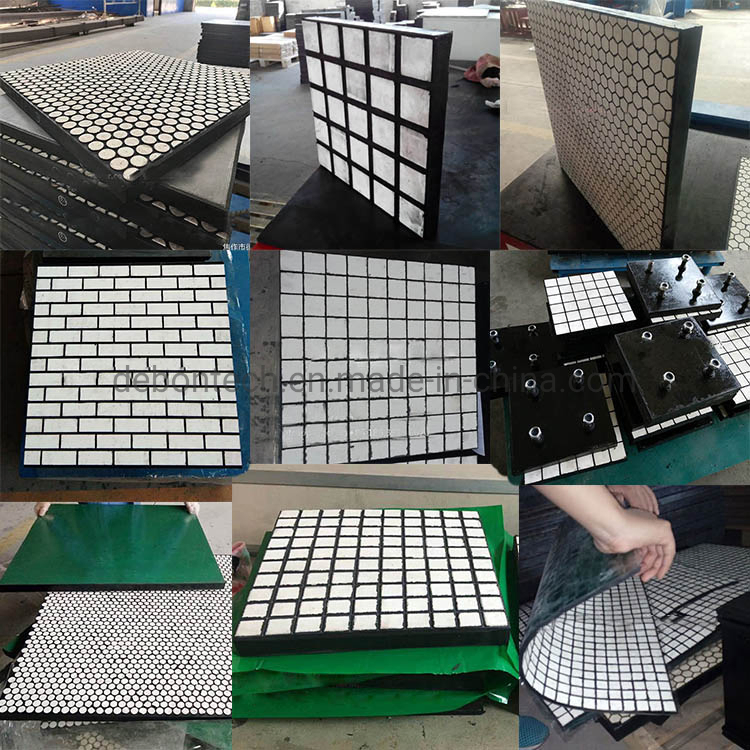

Yes, we provide customized sizes and ceramic shapes including cylindrical, hexagonal, square, and spherical tiles to fit your specific equipment.

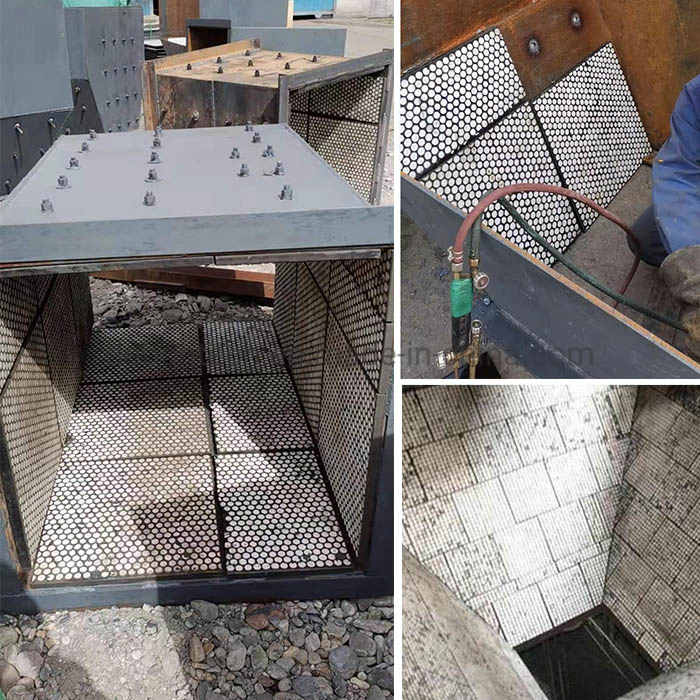

They are ideal for mining, quarries, conveyor systems, chutes, hoppers, bins, and pipes where heavy abrasion and impact occur.
The rubber acts as a cushion that absorbs impact energy, preventing the brittle ceramic tiles from cracking under heavy material load.

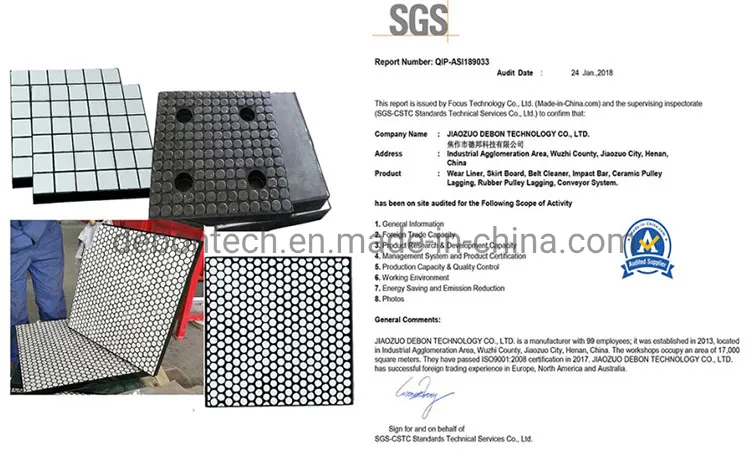

Our products and factory are certified to ISO 9001:2015 and have been audited by SGS for quality assurance.
