Basic Information
Model NO.:
DB-TCM-I, DB-TCM-II, DB-TCM-III
Material:
High Alumina Ceramic Tiles, Rubber, Steel Plate
Type:
Conveyor Transfer Chutes, Bins, Hoppers
Description:
Composite Rubber Ceramic Wear Plate
Quality:
High Abrasion & Impact Resistance
Ceramic Tile:
92% or 95% Al2O3
Fixing:
Stud and Bolt, Welding, Bonding
Origin:
Jiaozuo, Henan, China
Product Description

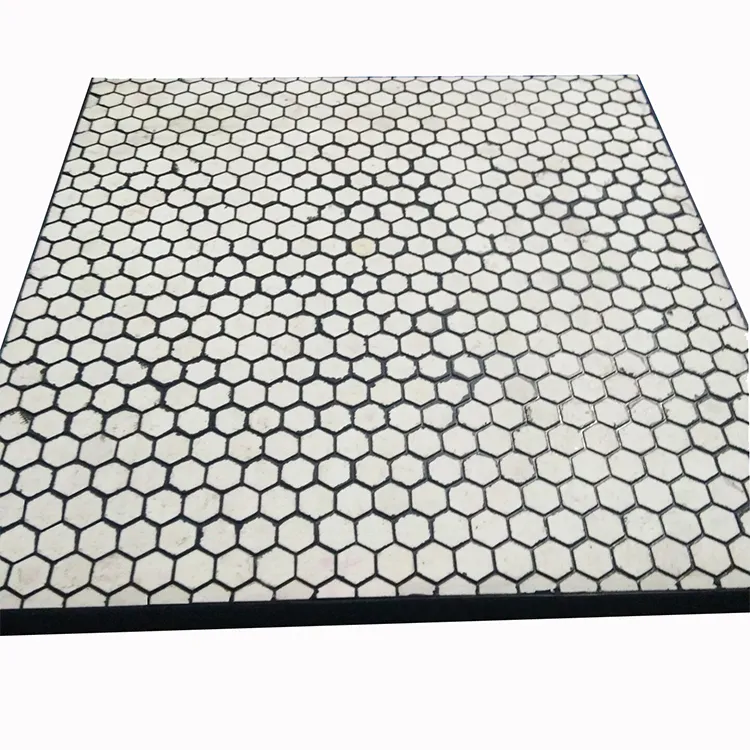

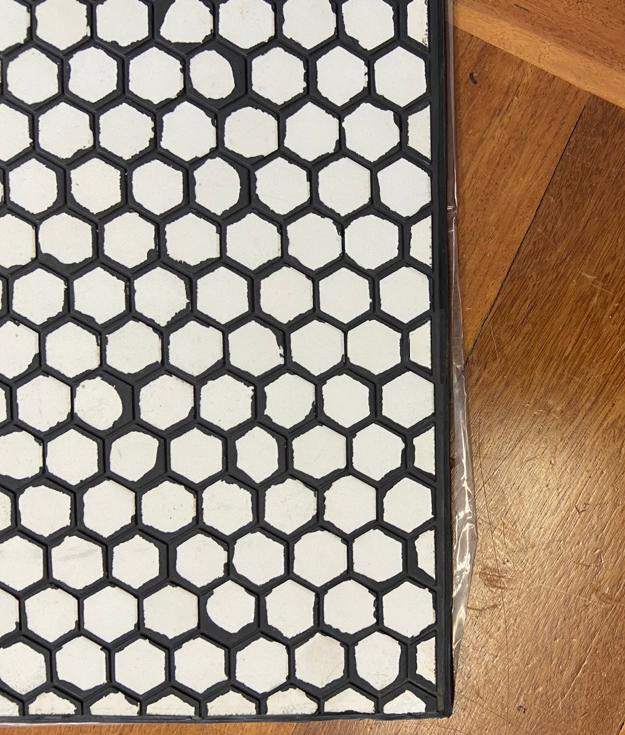

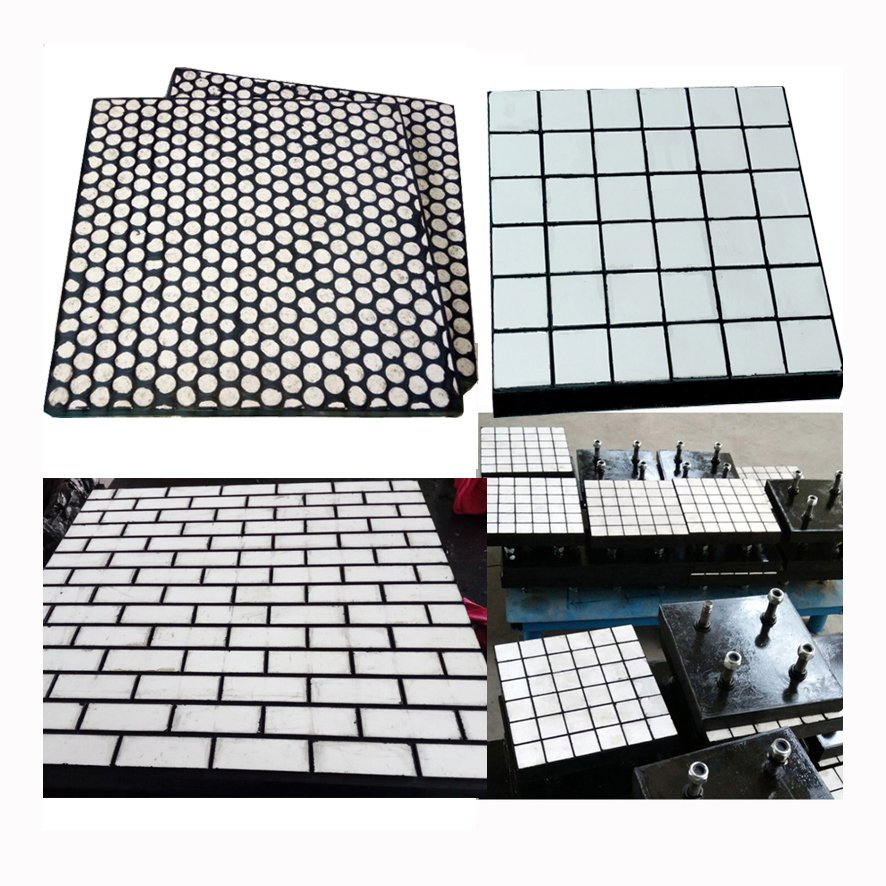

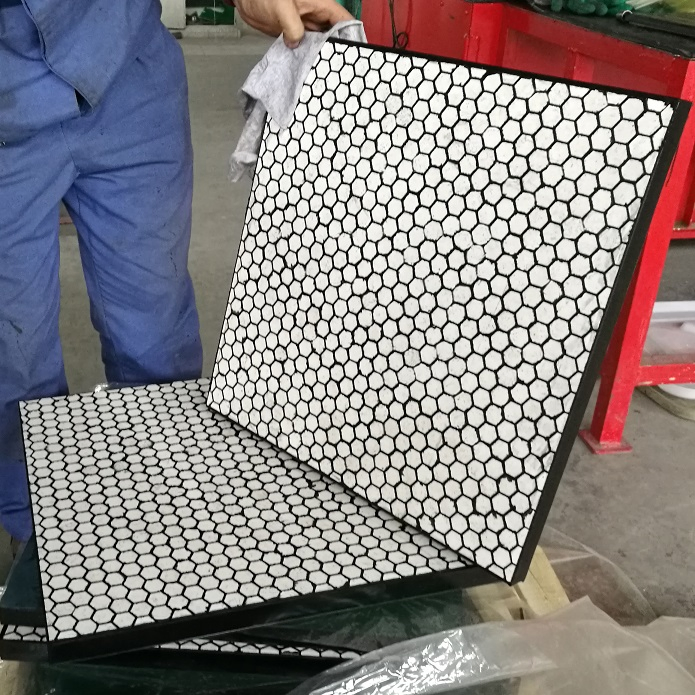

Ceramic Wear Protection Liners Composite Rubber Ceramic Wear Plate
🚀 Why Choose Our Ceramic Wear Plates?
- Dedicated manufacturer specializing in high-performance ceramic wear plates.
- Proven global export record to multiple countries.
- Verified high quality and durability by international industrial customers.

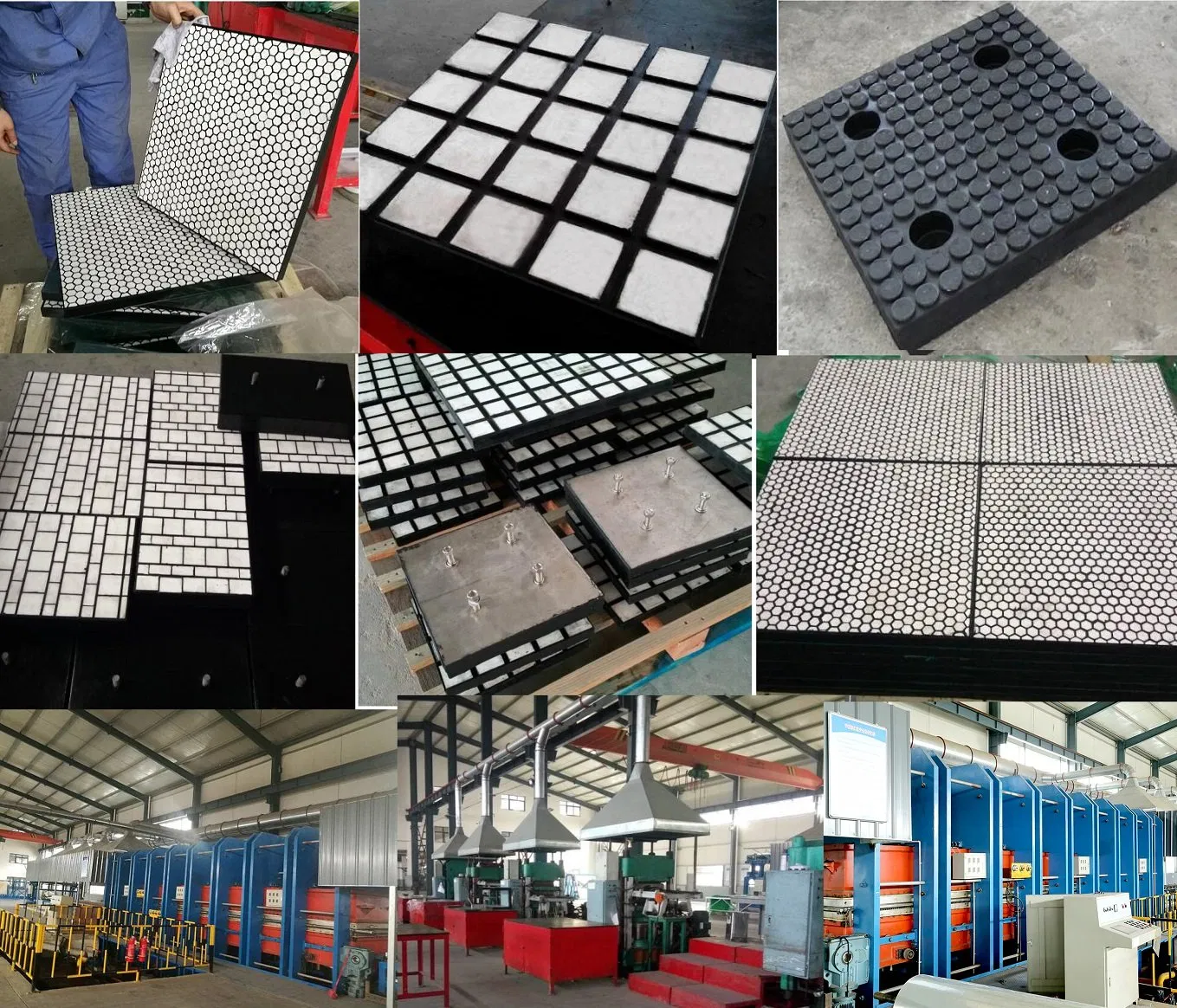

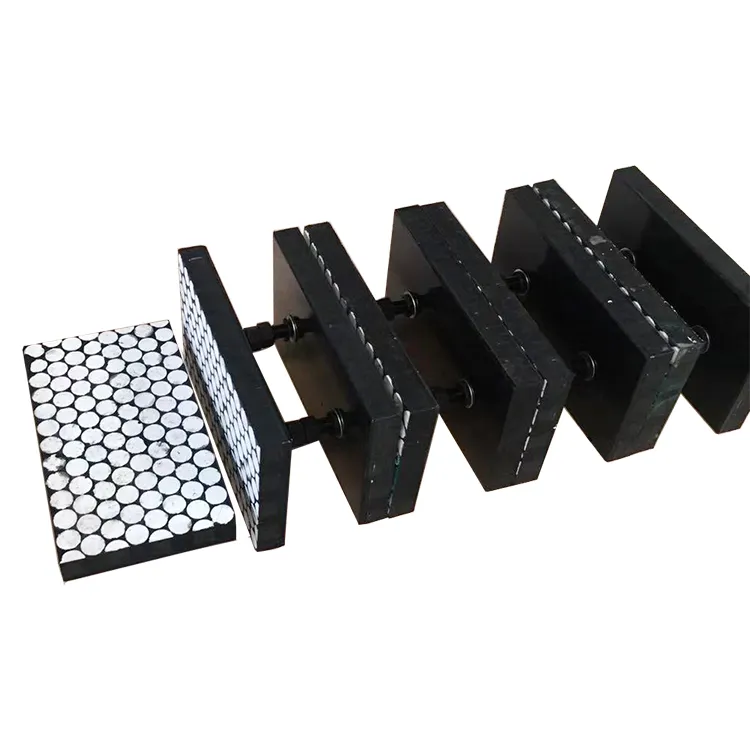

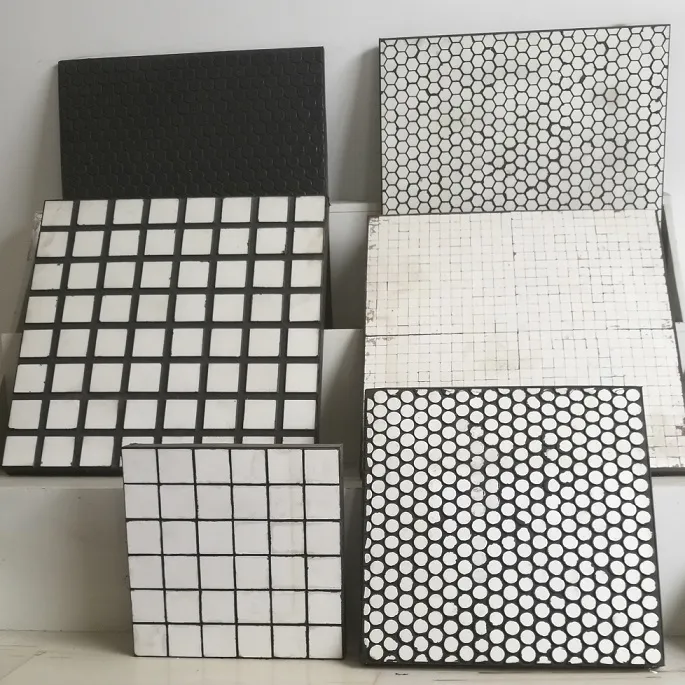

We produce various kinds of ceramic wear plates to meet different wear and impact protection requirements, including metal back rubber ceramic wear plates.

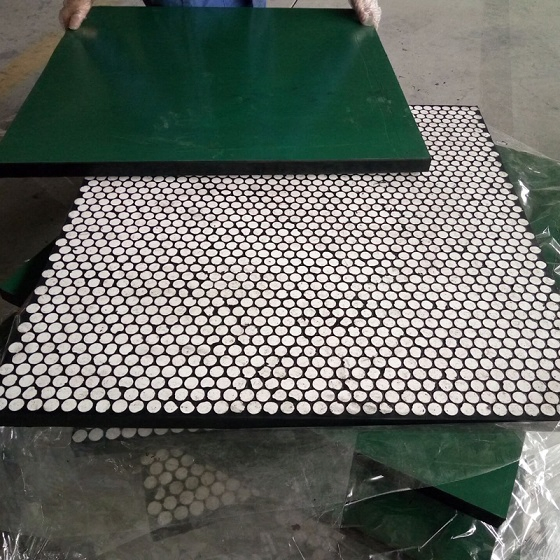

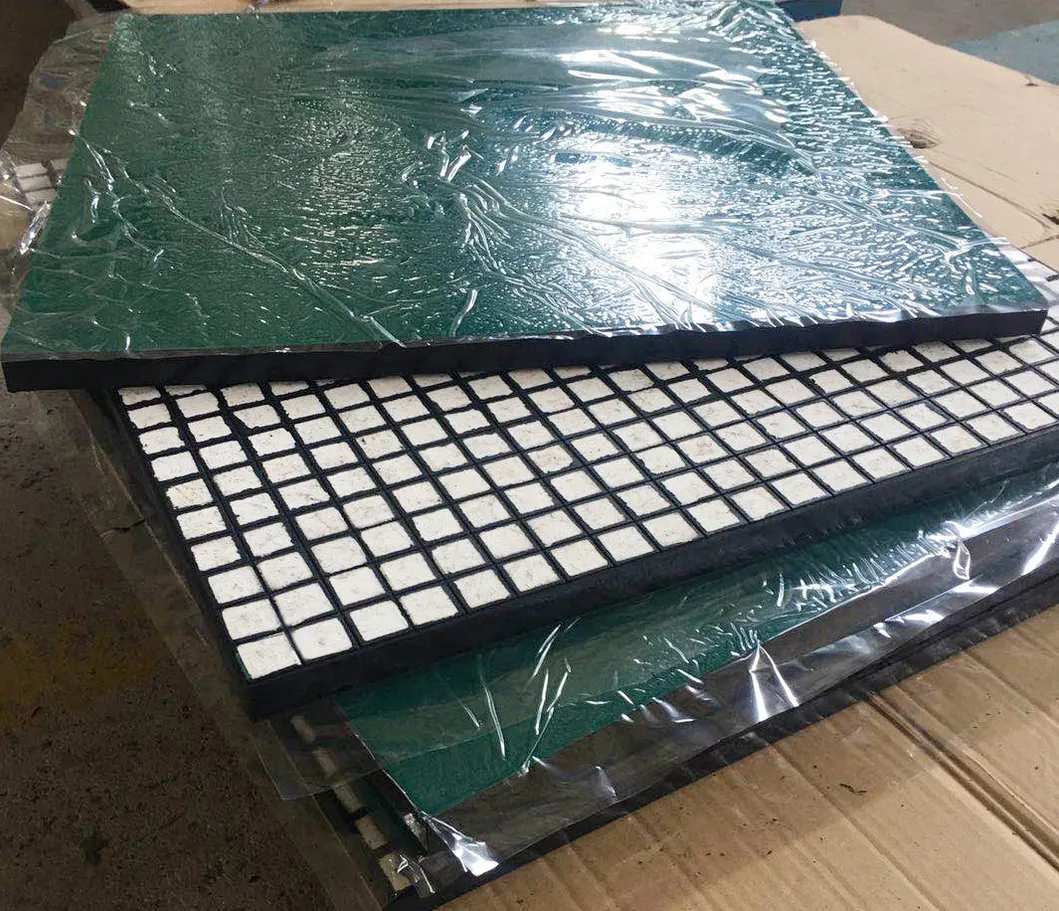

Ceramic tile on rubber sheets: 500x500x8mm (4mm ceramic on 4mm rubber). Can be produced with a CN bonding layer for easy installation.
Technical Specifications
| Item | Description | Unit | Result |
| Alumina Ceramic |
| 1 | Alumina(Al2O3) | % | 92, 95 |
| 2 | Density | g/cm3 | 3.64 |
| 3 | Hardness | Mohs | 9 |
| Rubber |
| 1 | Material | - | NR or SBR |
| 2 | Tensile Strength | MPa | 15 min. |
| 3 | Hardness | Shore A | 55±5 |
| 4 | Abrasion Loss | mm3 | ≤90 |

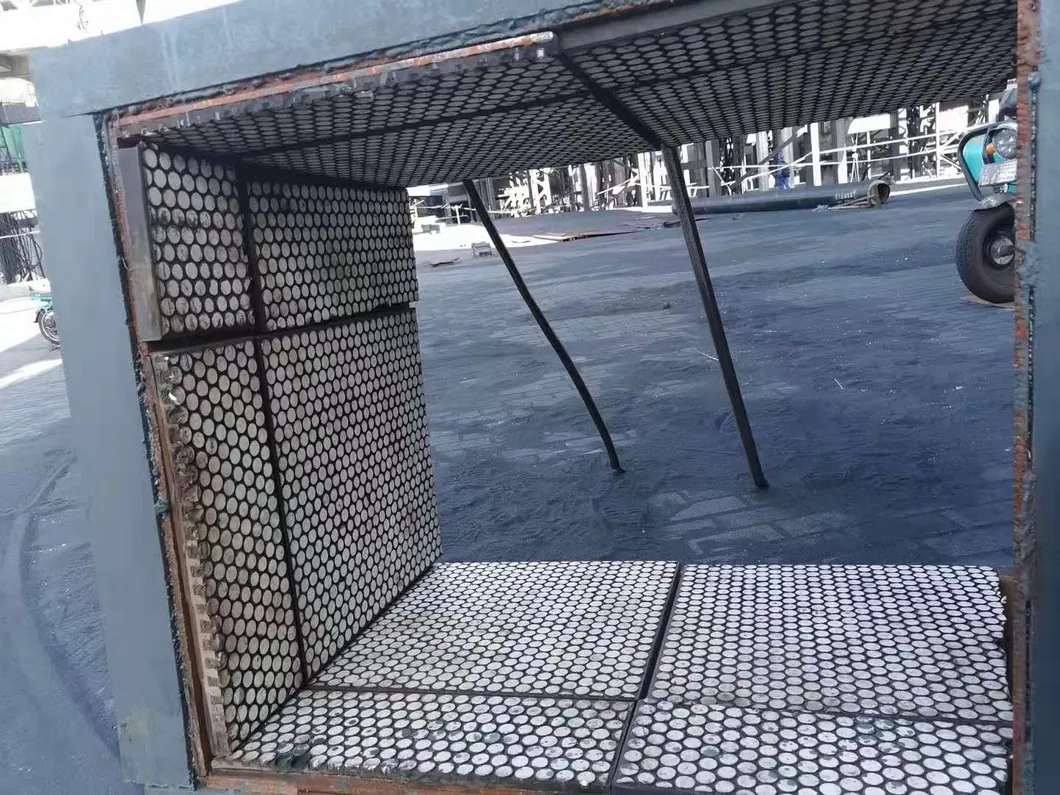

Applications & Industries
Ceramic wear liners offer excellent abrasion resistance and are ideal solutions for areas suffering severe wear and impact. Key applications include:
- Chutes and Transfer Points
- Bins and Hoppers
- Conveyor Skirt Liners
- Stackers and Reclaimers
Selection Chart (Dimensions)
| Size (mm) | Ceramic (mm) | Rubber (mm) | Steel Plate (mm) | Total (mm) |
| 300x300x36 | Φ21x21 | 9 | 6 | 36 |
| 300x300x50 | Φ31x31 | 13 | 6 | 50 |
| 250x250x18 | 17.5x17.5x8 | 5 | 6 | 19 |

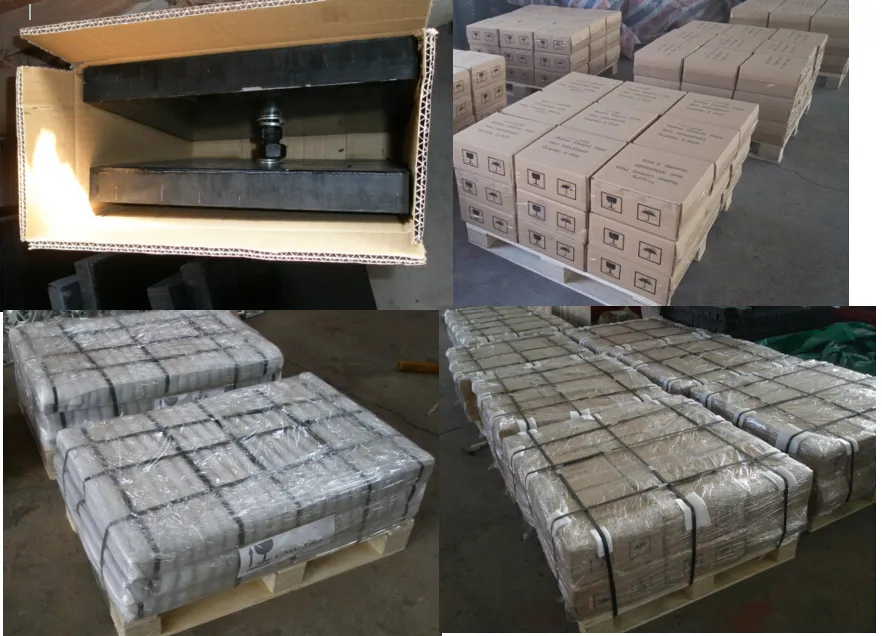

Packaging & Logistics
Standard Export Packing: Plywood pallets (no wood fumigation required).
- Pallet size: 1000*1000*620mm | Weight: 1.2 tons
- Container capacity: 20~24 pallets per 20GP container
Frequently Asked Questions
Q1: What materials are used in the composite wear plates?
Our plates are composed of 92% or 95% high alumina ceramic tiles, natural rubber (NR), and can include a steel backing plate for heavy-duty applications.
Q2: How are the ceramic liners fixed to the equipment?
They can be fixed using various methods including stud and bolt mounting, welding directly to the substrate, or bonding using a CN layer.
Q3: What makes your rubber ceramic liners impact resistant?
The natural rubber layer acts as a cushion, absorbing the kinetic energy of falling materials and preventing the ceramic tiles from cracking.
Q4: Can you provide customized sizes?
Yes, we specialize in customized sizes and shapes to fit specific chutes, bins, and hoppers according to your technical drawings.
Q5: What is the typical service life improvement?
High alumina ceramics are significantly harder than steel, often extending the service life of equipment by 5 to 10 times in high-abrasion environments.
Q6: Are the pallets safe for international shipping?
Yes, we use plywood pallets that comply with international shipping standards and do not require additional fumigation.
