Impact and Resistant Composite Zta Ceramic Wear Liners

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Type

Belt Conveyor

Commodity

Wear Resistant Ceramic Wear Plate

Quality

Proven Quality

Alumina Ceramic

92% or 94% 95% Al2O3, ZTA

Ceramic Shape

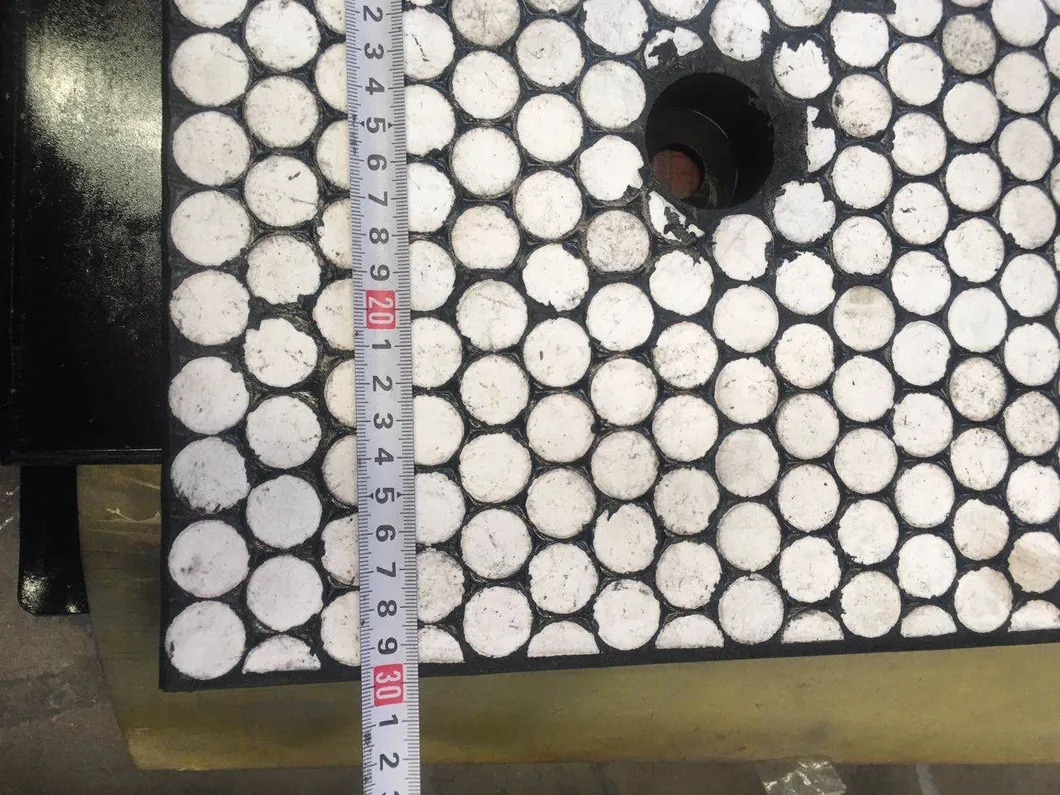

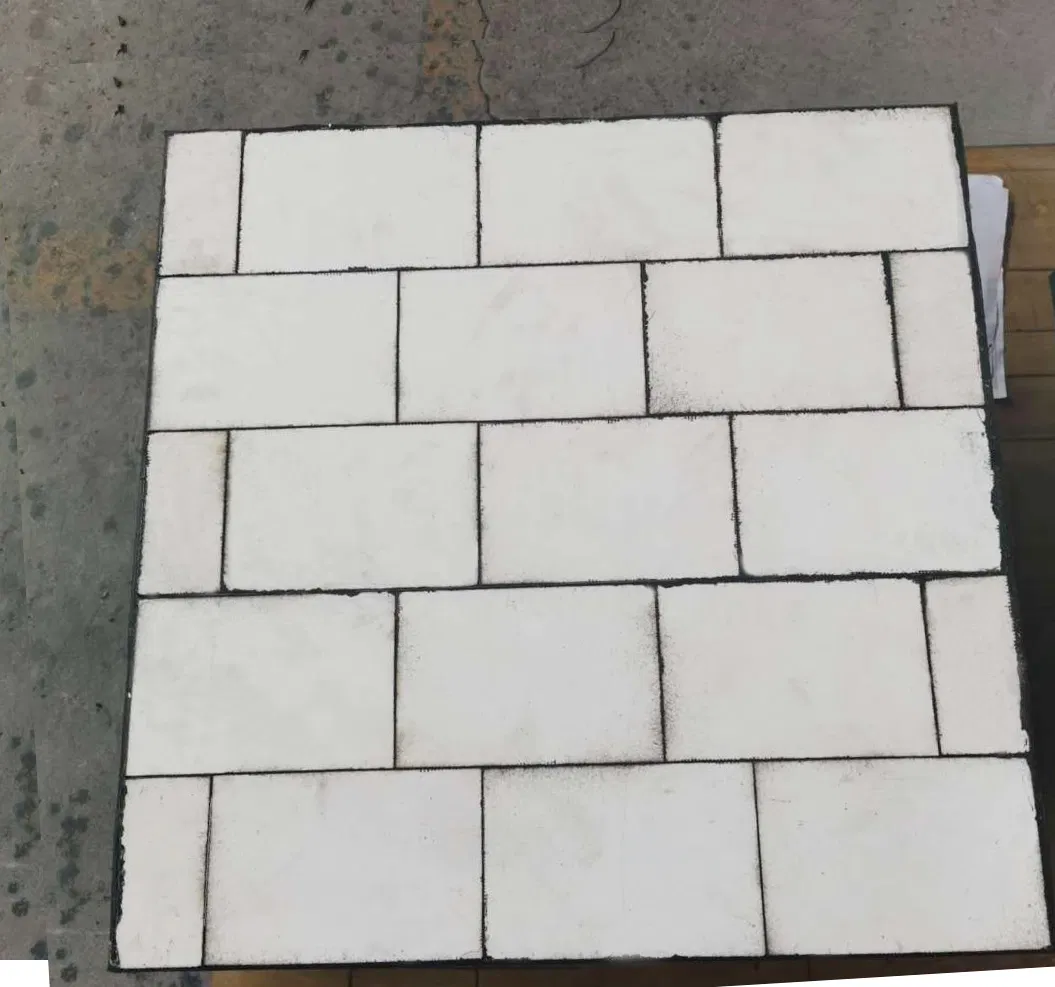

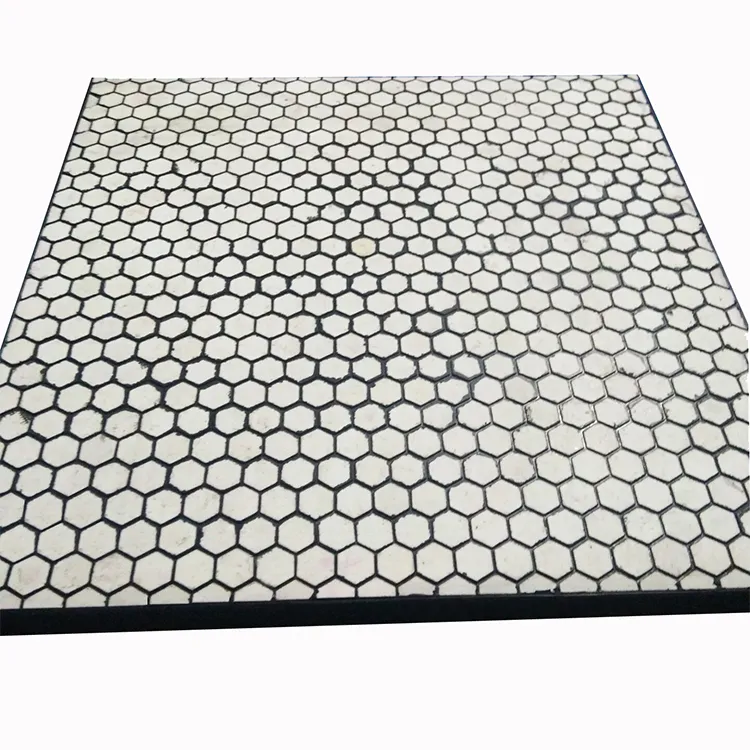

Ceramic Brick, Cylindrical Ceramic Tiles, etc

Rubber

Natural Rubber

Our Advantage

Reliable Factory, High Quality and Consistency

Use

Offer Wear, Abrasion and Impact Protection

Fixing Method

Steel Plate and Studs, or Bonding Layer

Certificate

ISO9001:2008, SGS

HS Code

6909120000

Capacity

5000 PCS/Month

Impact and Resistant Composite ZTA Ceramic Wear Liners

Why Choose Us:

Professional ceramic wear plate factory with over 20 years experience
Proven quality and high consistency
ISO9001, ISO14001, ISO45001 certified manufacturing

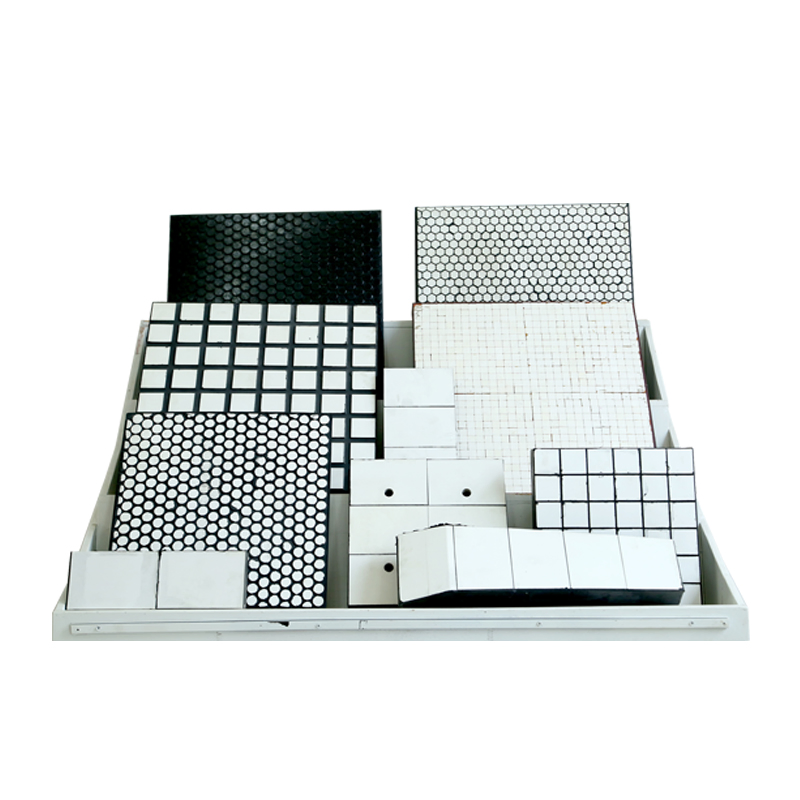

Standard and non-standard custom solutions available

Advantages & Features

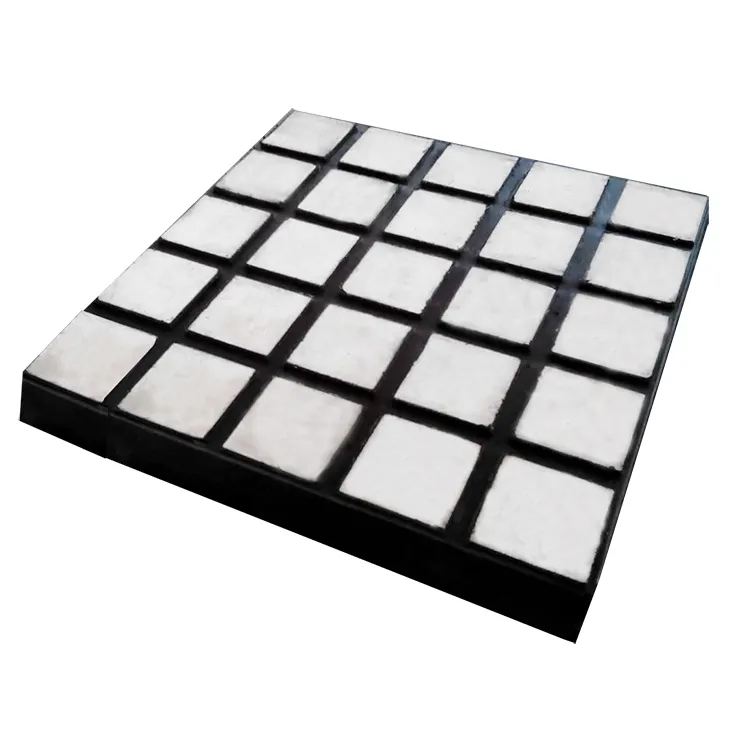

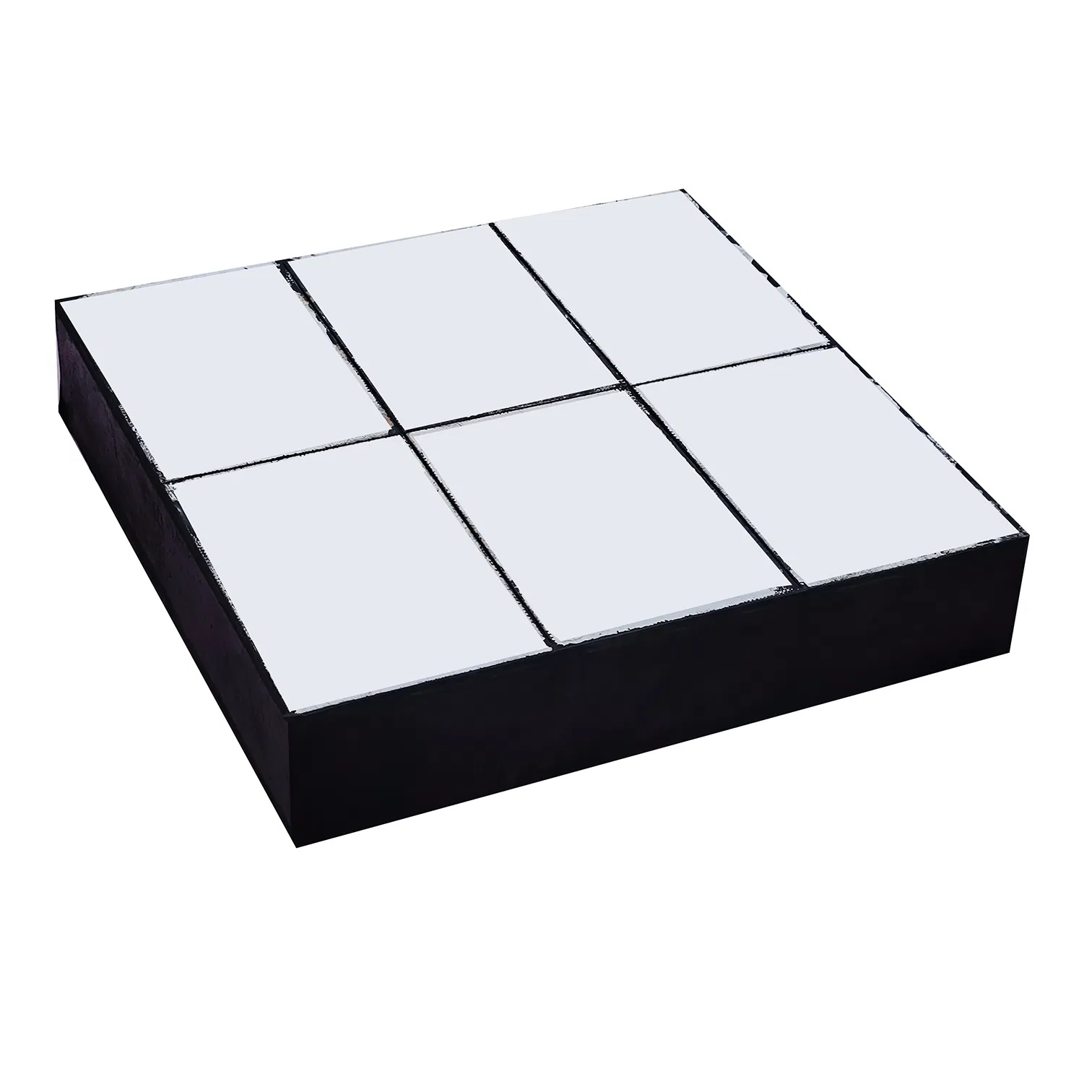

Ceramic wear plate is a combination of high alumina ceramic tiles, soft rubber and steel backing plate. The high alumina ceramic tiles are embedded and vulcanized in rubber matrix. Elastic rubber help prevent ceramic tiles breakage.

Technical Specifications

Item	Description	Unit	Result
Alumina Ceramic Tile
1	Alumina(Al2O3)	%	92, 95, ZTA
2	Density	g/cm3	3.64
3	Hardness	Mohs	9
Rubber Properties
1	Material	-	NR or SBR
2	Tensile Strength	MPa	15 min.
3	Hardness	Shore A	55±5
4	Abrasion Loss	mm3	≤90

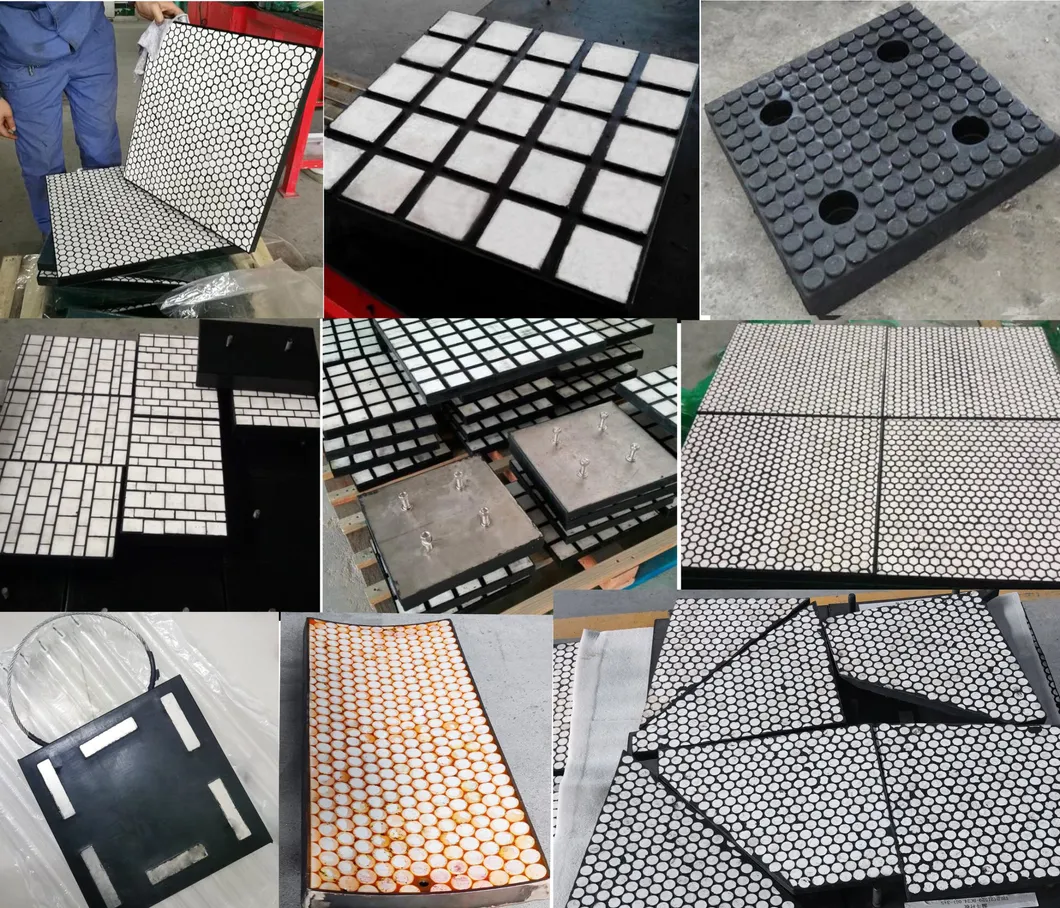

Industrial Applications

High wear resistant rubber ceramic wear plates are designed for areas of severe impact and high abrasion:

Conveyor chutes & skirt liners
Reflectors and impact plates
Bins and hoppers
Stackers and reclaimers

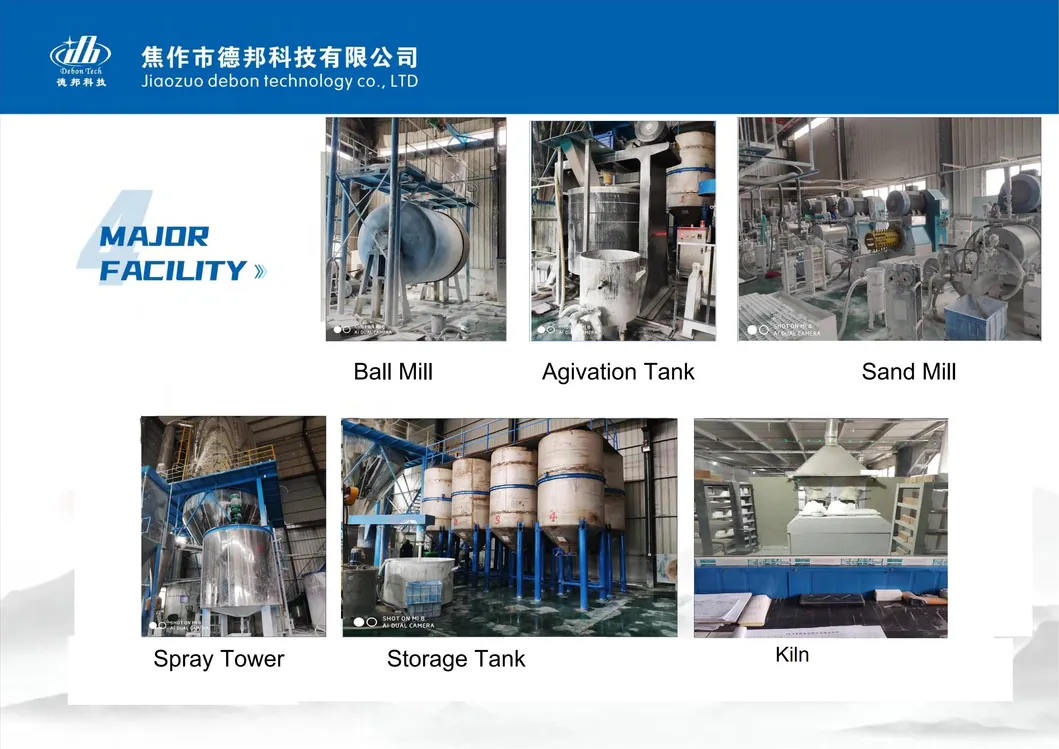

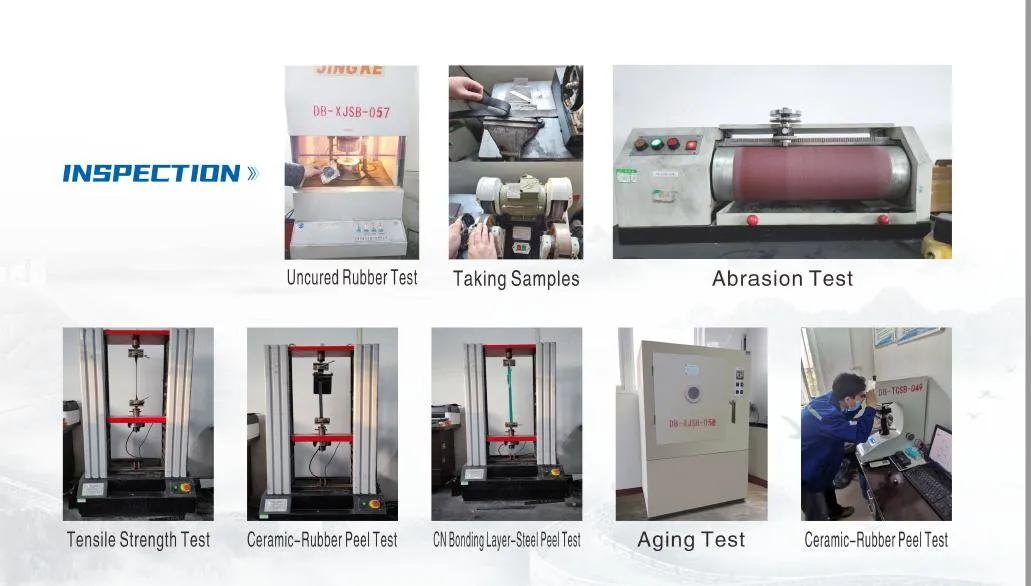

Factory & Quality Control

Frequently Asked Questions (FAQ)

What is a composite ceramic wear liner?

It is a combination of high alumina ceramic tiles vulcanized into a rubber matrix, often with a steel backing plate for easy installation via studs or bonding layers.

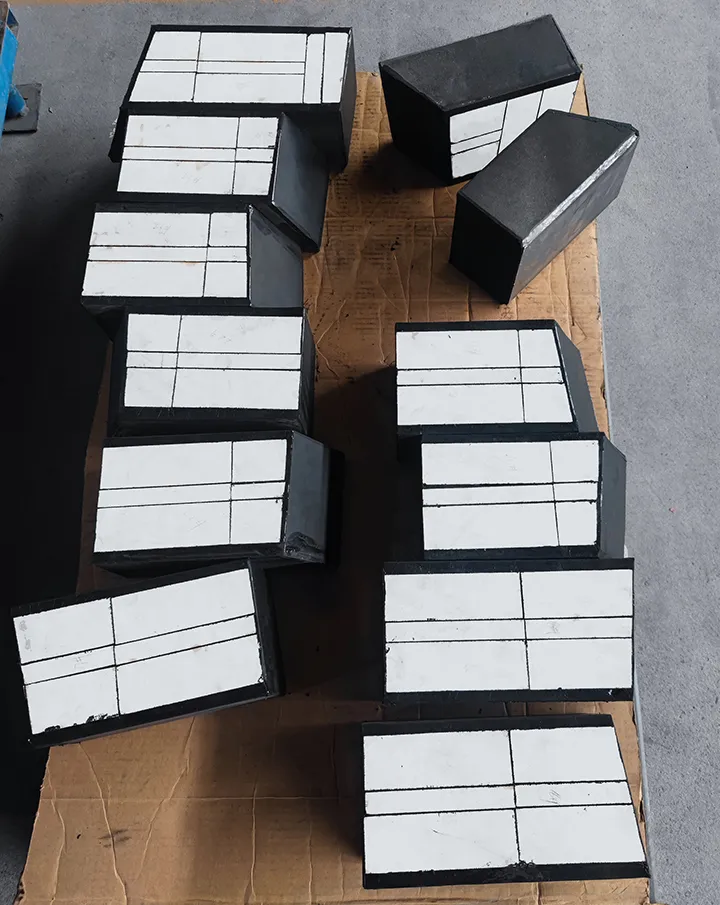

What are the benefits of using ZTA ceramic?

ZTA (Zirconia Toughened Alumina) offers higher impact resistance and toughness compared to standard 92% alumina, making it ideal for severe wear environments.

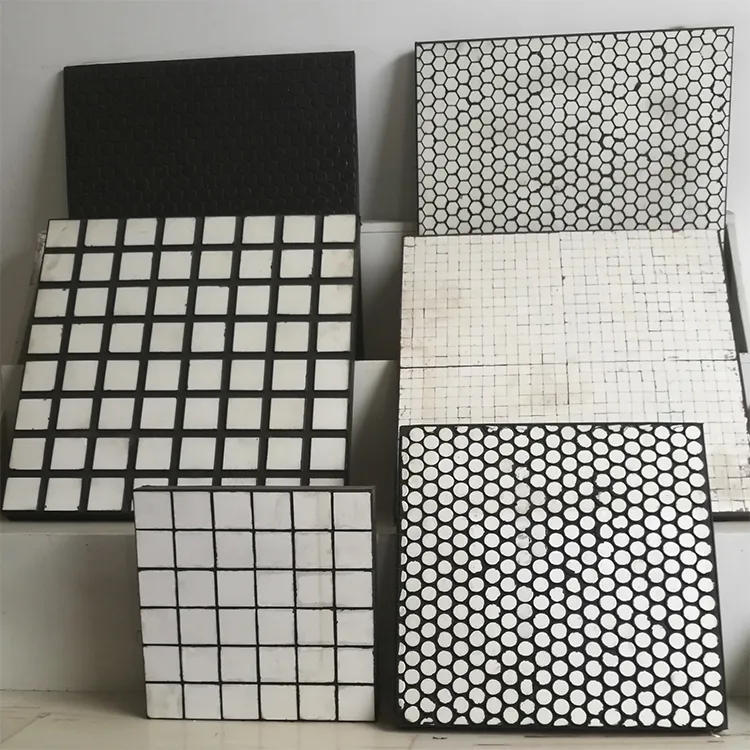

Can the wear plates be customized?

Yes, both standard and non-standard ceramic wear plates can be custom-made according to specific size, shape, and thickness requirements.

How are the liners installed?

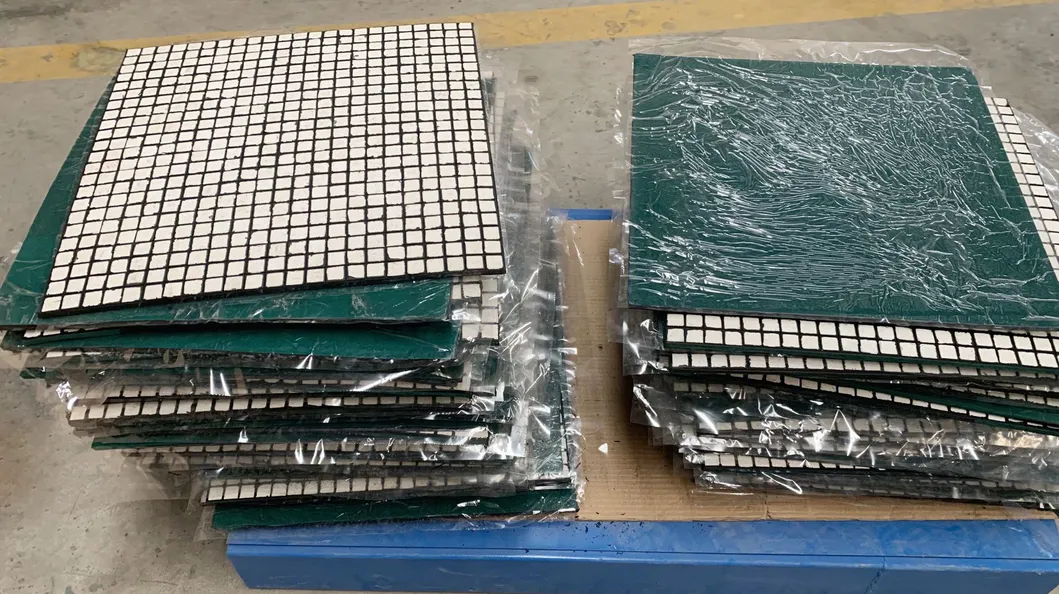

They can be fixed using steel backing plates with studs for bolting, or via a CN bonding layer for cold vulcanization directly onto the equipment surface.

What is the typical lifespan improvement?

By combining the hardness of ceramics with the impact absorption of rubber, these liners significantly extend the wear life of chutes and hoppers compared to traditional steel liners.

What quality certifications do your products have?

Our manufacturing processes are certified by ISO9001, ISO14001, and ISO45001, and products are audited by SGS for consistent quality.
