Basic Information
Commodity:
Composite Rubber Ceramic Wear Liner Plate
Alumina Ceramic:

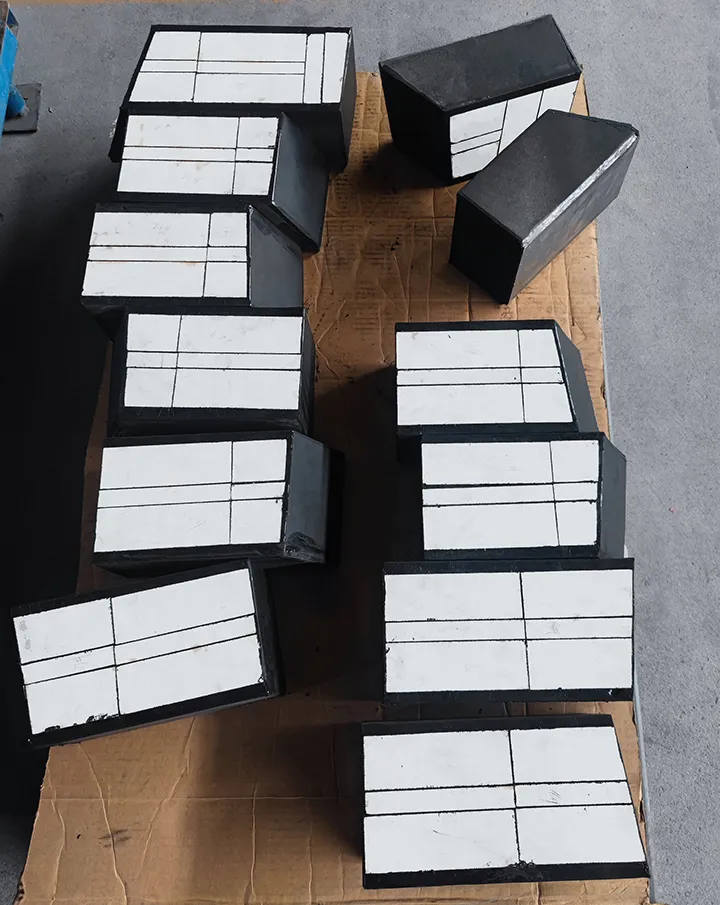

92% or 95% Al2O3, Zta
Ceramic Shape:
Ceramic Brick, Cylindrical Ceramic Tiles, etc
Our Advantage:
Reliable Factory, High Quality and Consistency
Use:
Wear, Abrasion and Impact Protection
Fixing Method:
Steel Plate and Studs, or Bonding Layer
Product Overview

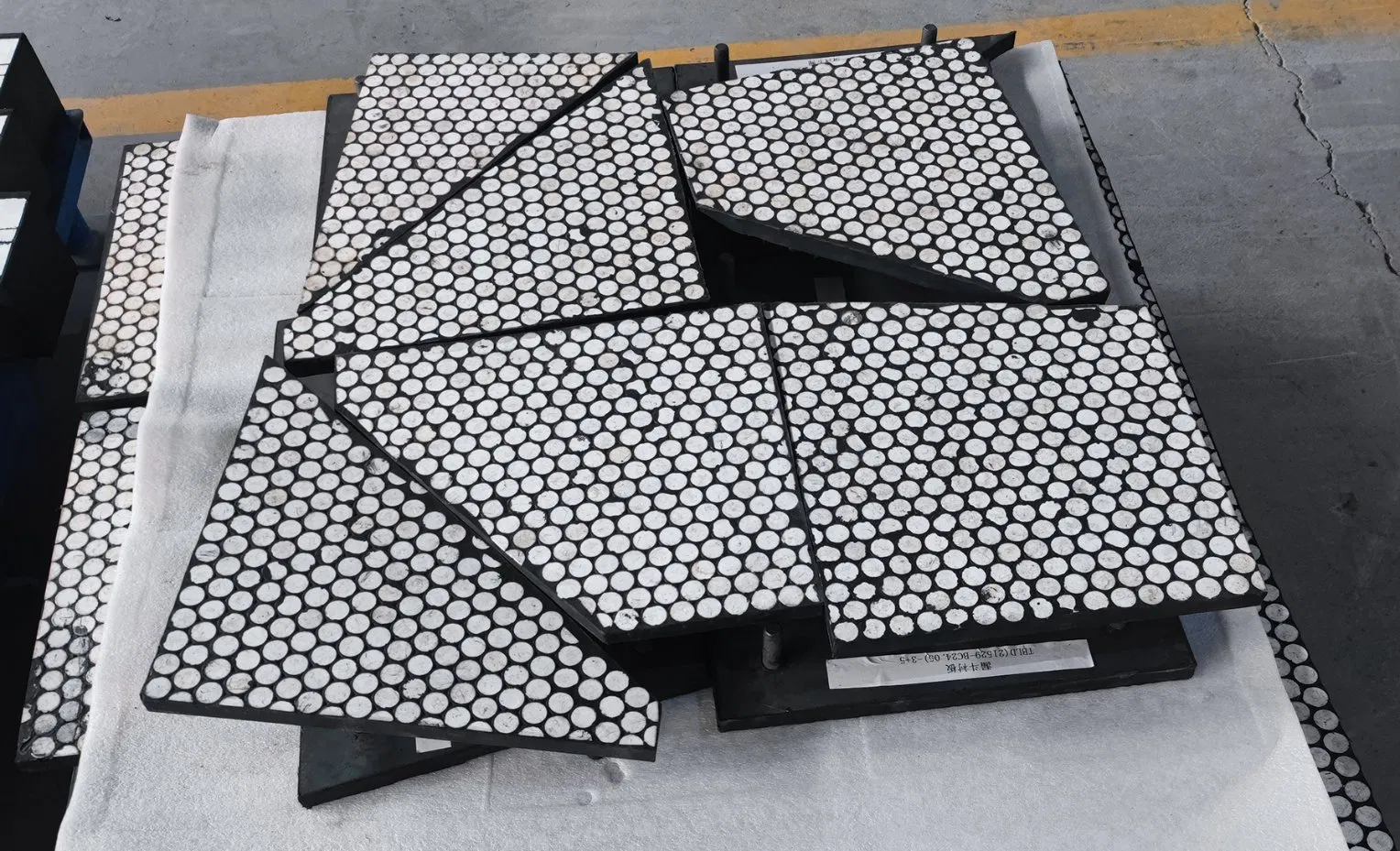

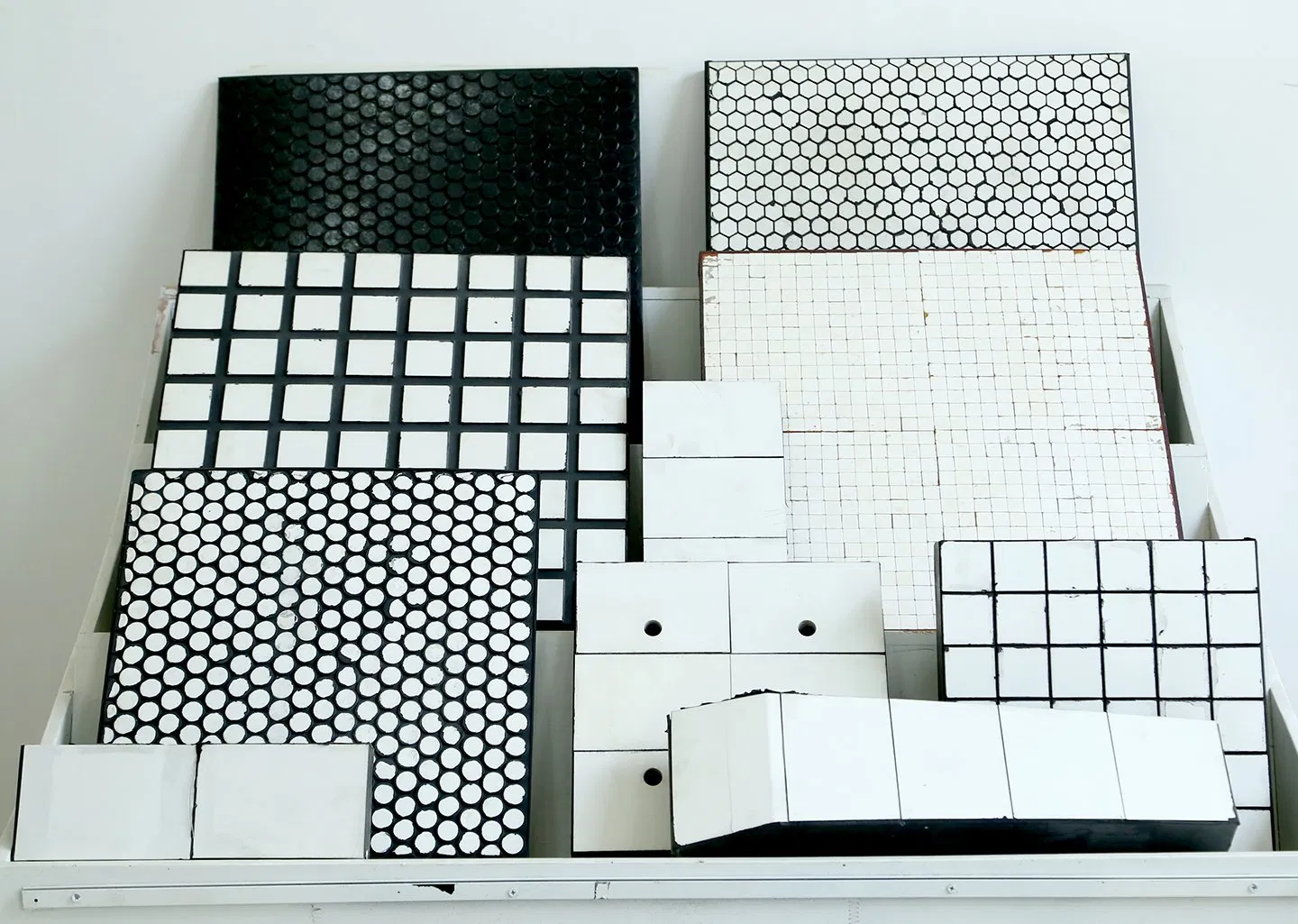

Proven Quality Composite Rubber Ceramic Wear Liner Plate

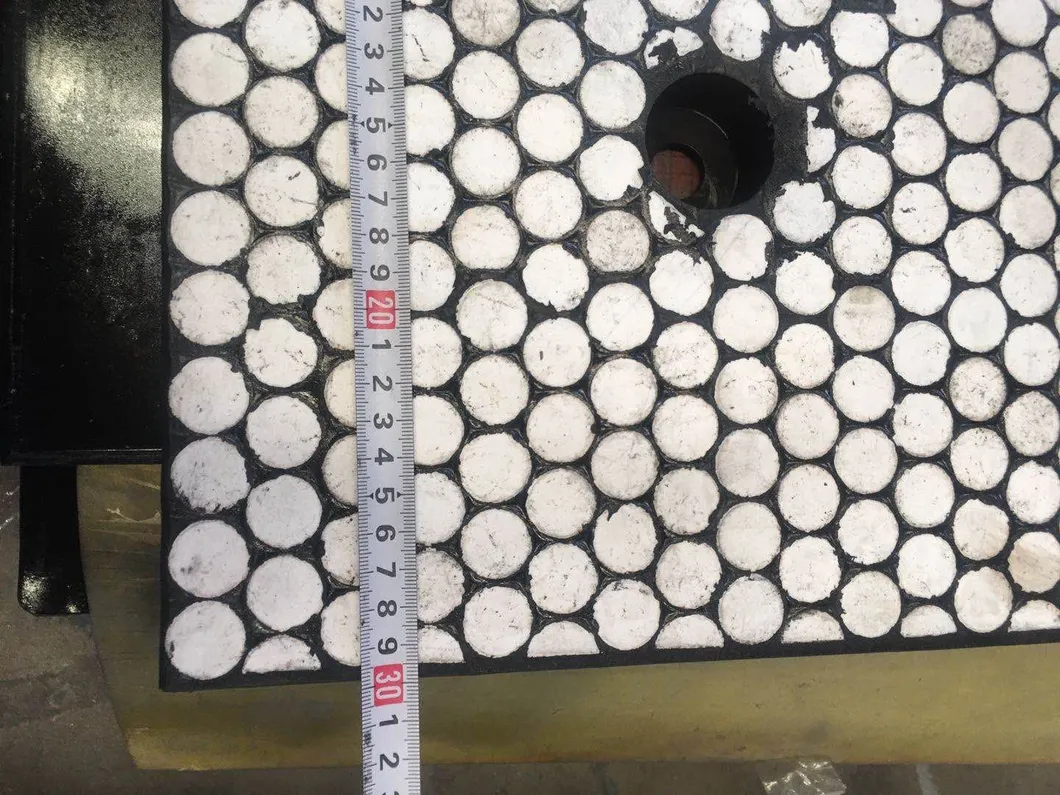

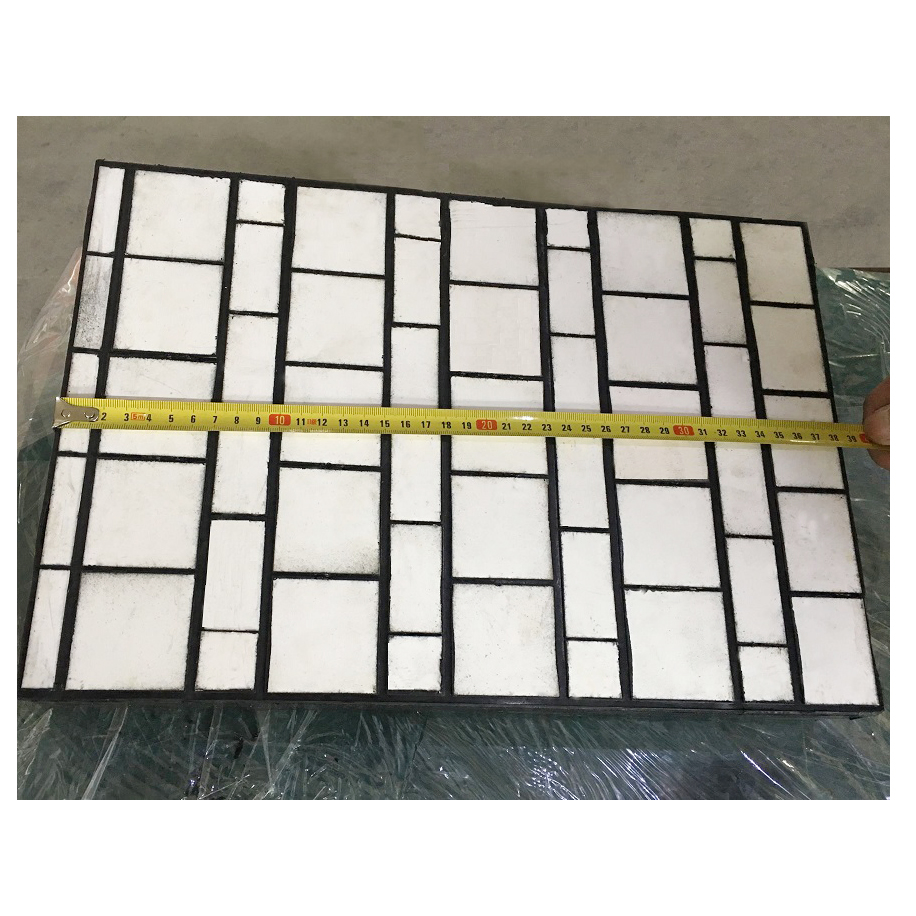

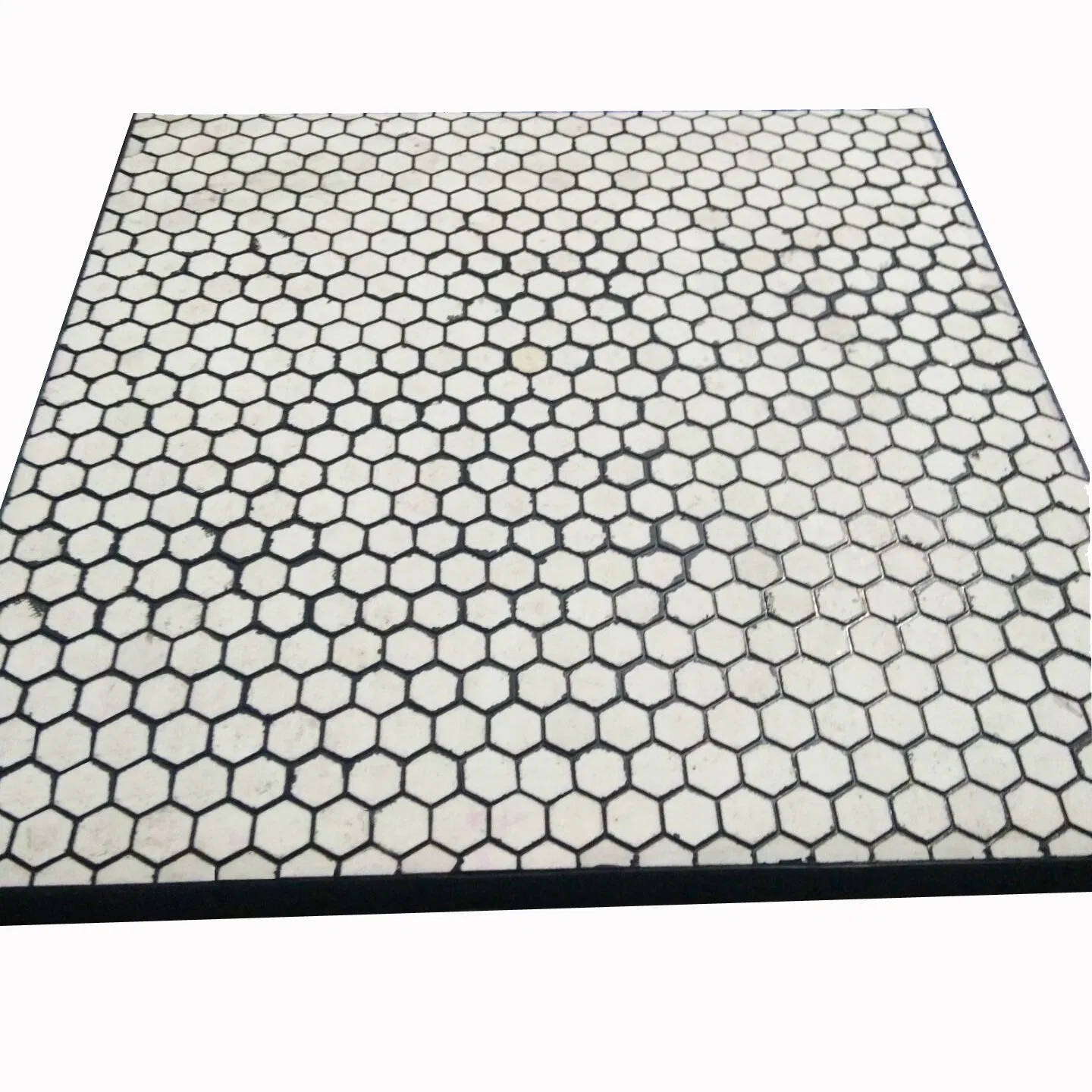

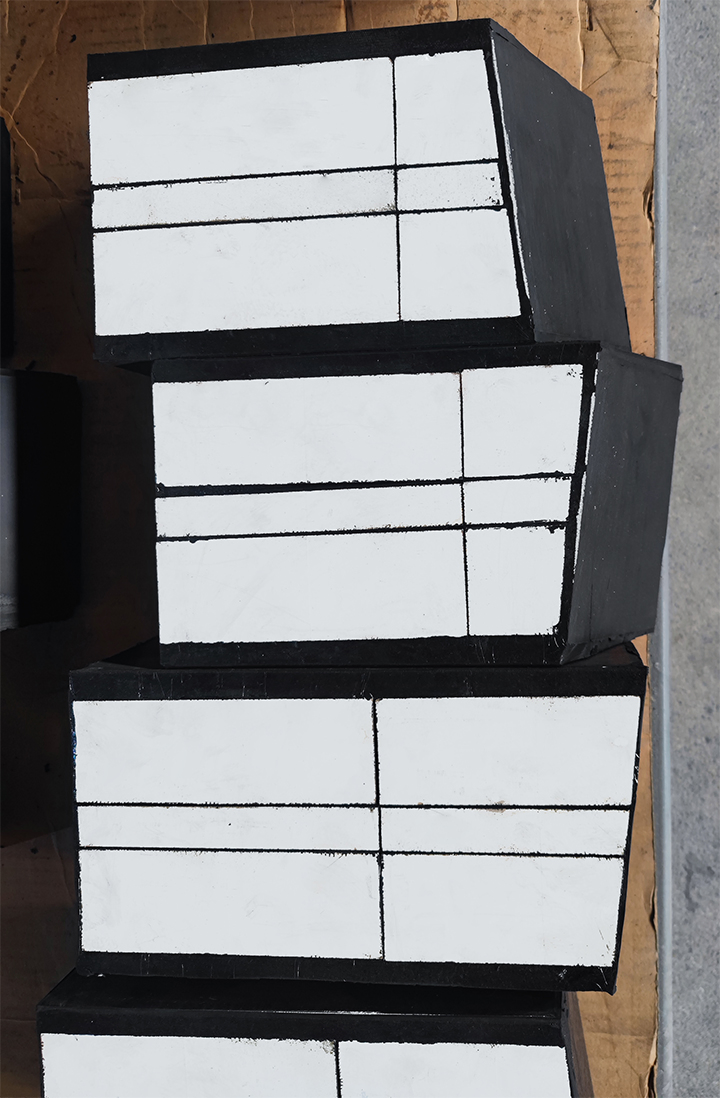

A combination of high alumina ceramic tiles, soft rubber, and steel backing plate. The high alumina ceramic tiles are embedded and vulcanized in a rubber matrix, providing superior abrasion and impact protection.
Key Advantages
- Over 20 years of factory manufacturing experience.
- Excellent bonding between ceramic, rubber, and steel.
- Elastic rubber matrix prevents ceramic tile breakage.
- Strict QA/QC management and ISO certified processes.
Technical Specifications
| Component |
Property |
Unit |
Result |
| Alumina Ceramic | Alumina(Al2O3) | % | 92, 95, ZTA |
| Alumina Ceramic | Hardness | Mohs | 9 |
| Rubber | Material | - | NR or SBR |
| Rubber | Tensile Strength | MPa | 15 min. |
| Rubber | Hardness | Shore A | 55±5 |
| Rubber | Elongation | % | 400 min. |
Applications
- Conveyor chutes
- Reflectors and impact plates
- Bins and hoppers
- Conveyor skirt liners
- Stackers and reclaimers

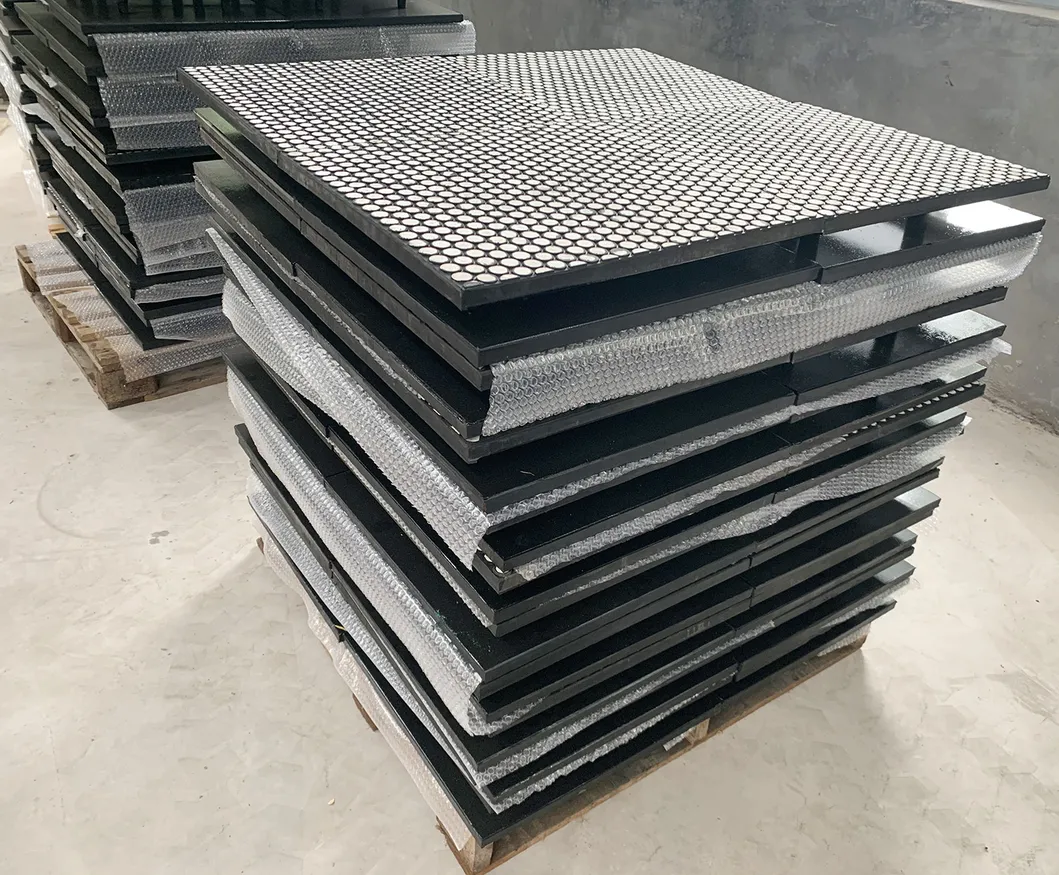

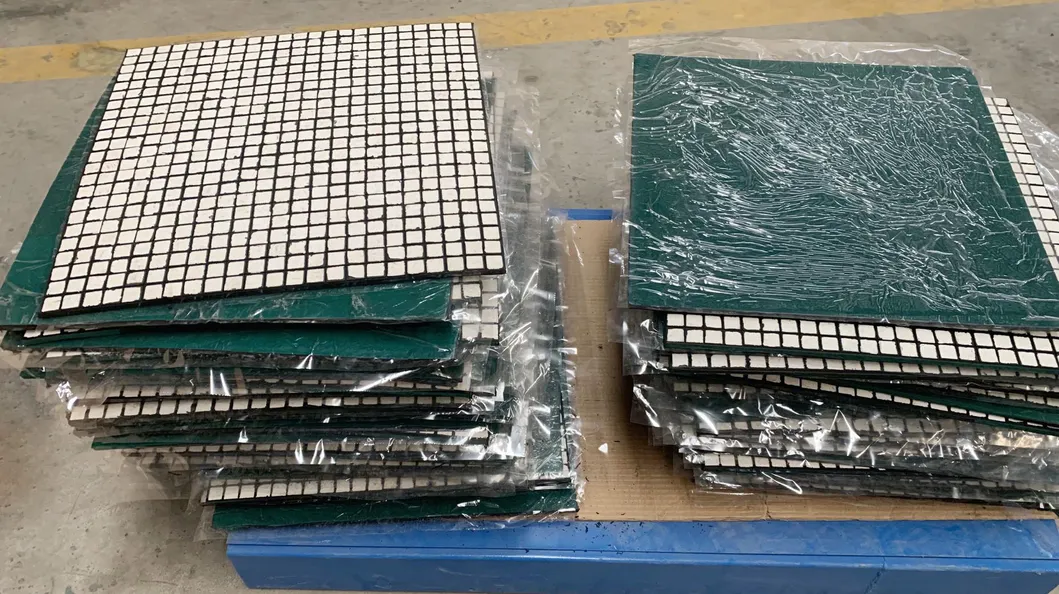

Packing & Logistics

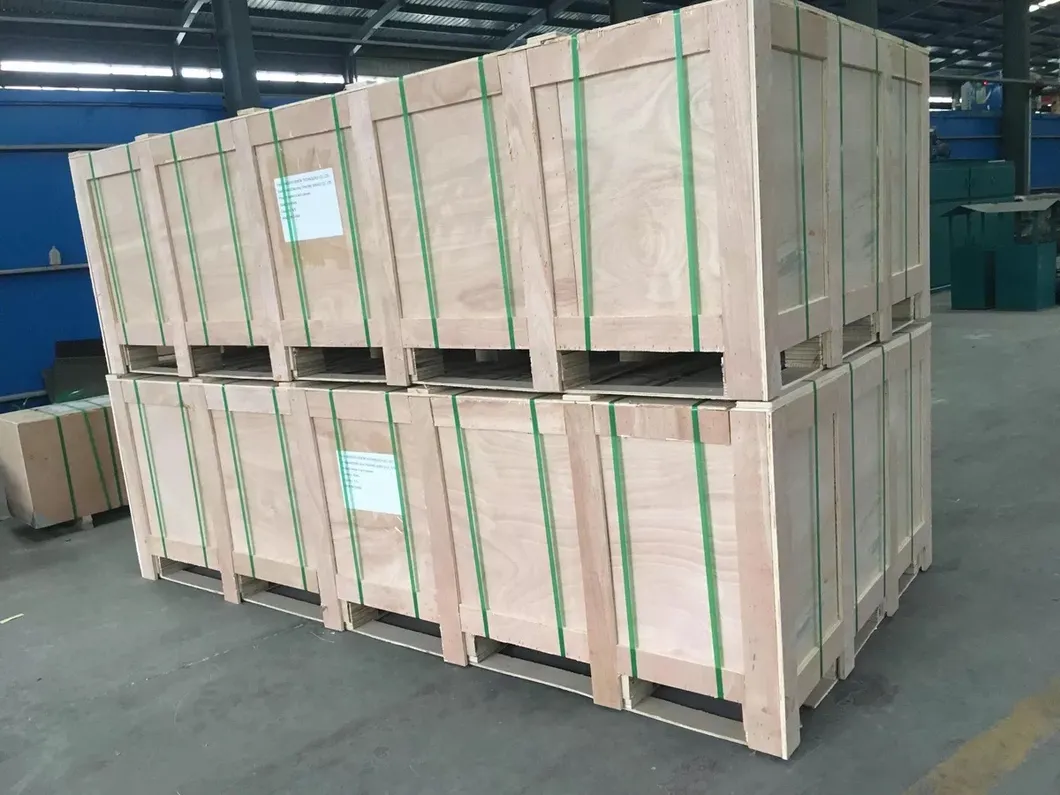

Standard export packing: Plywood pallets (no wood, no fumigation required).

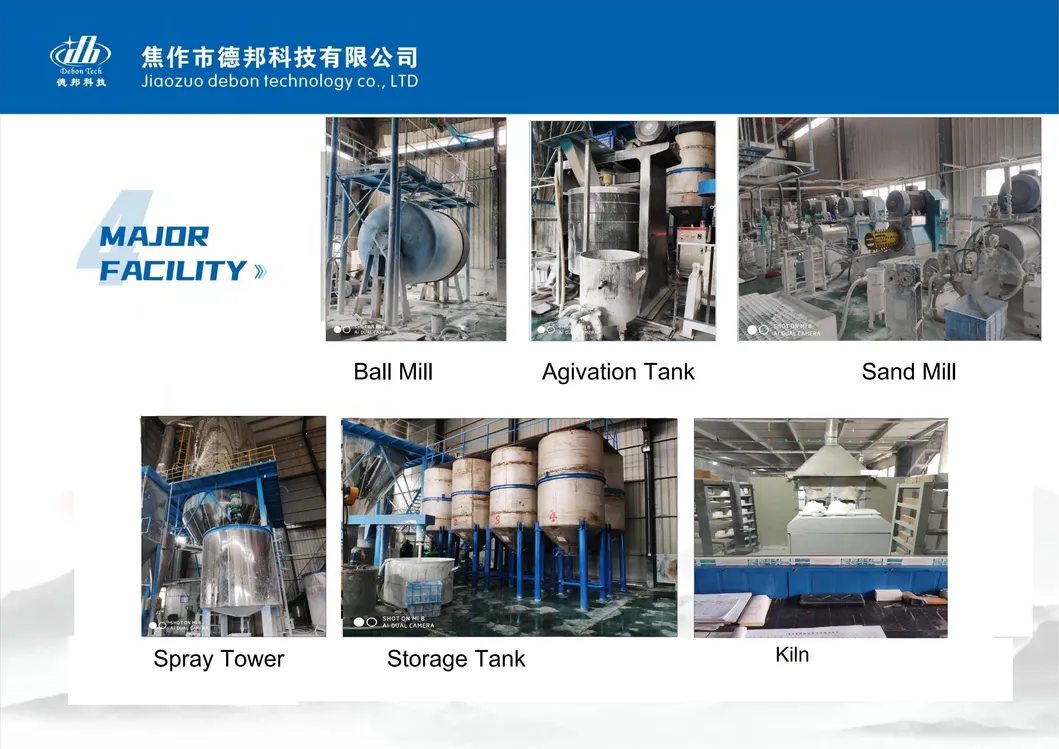

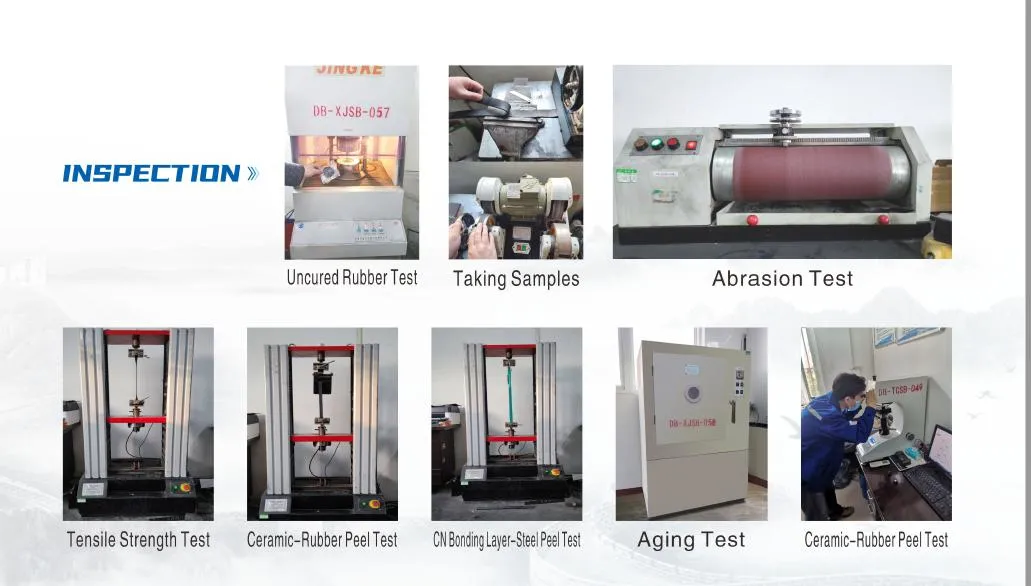

Factory Testing & Quality Control
Frequently Asked Questions (FAQ)
What materials are used in the composite wear liner?
Our liners are a combination of high alumina ceramic tiles (92%, 95%, or ZTA), natural rubber (NR) or SBR, and optional steel backing plates with studs.
How are the liners installed?
They can be fixed using steel plates and studs for mechanical fastening, or with a CN bonding layer for cold vulcanization.

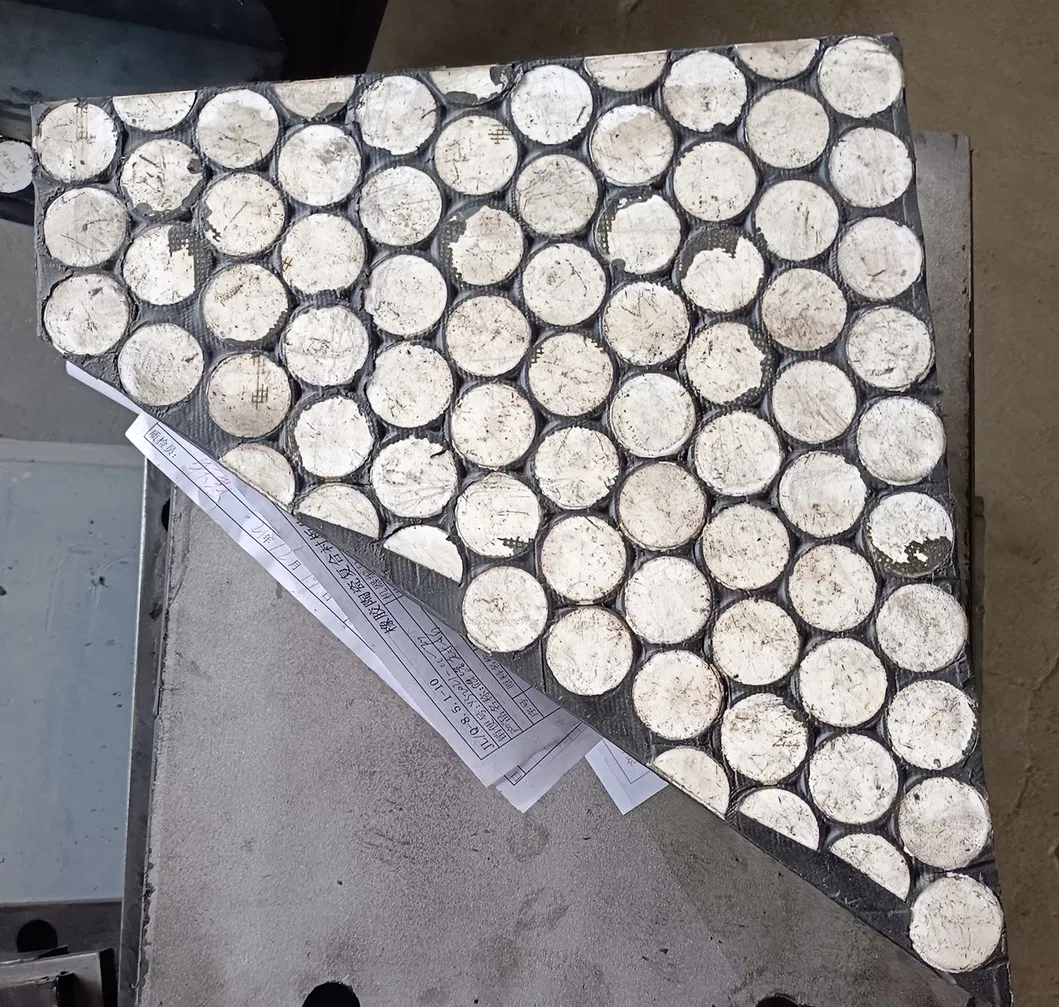

Can you provide customized sizes?

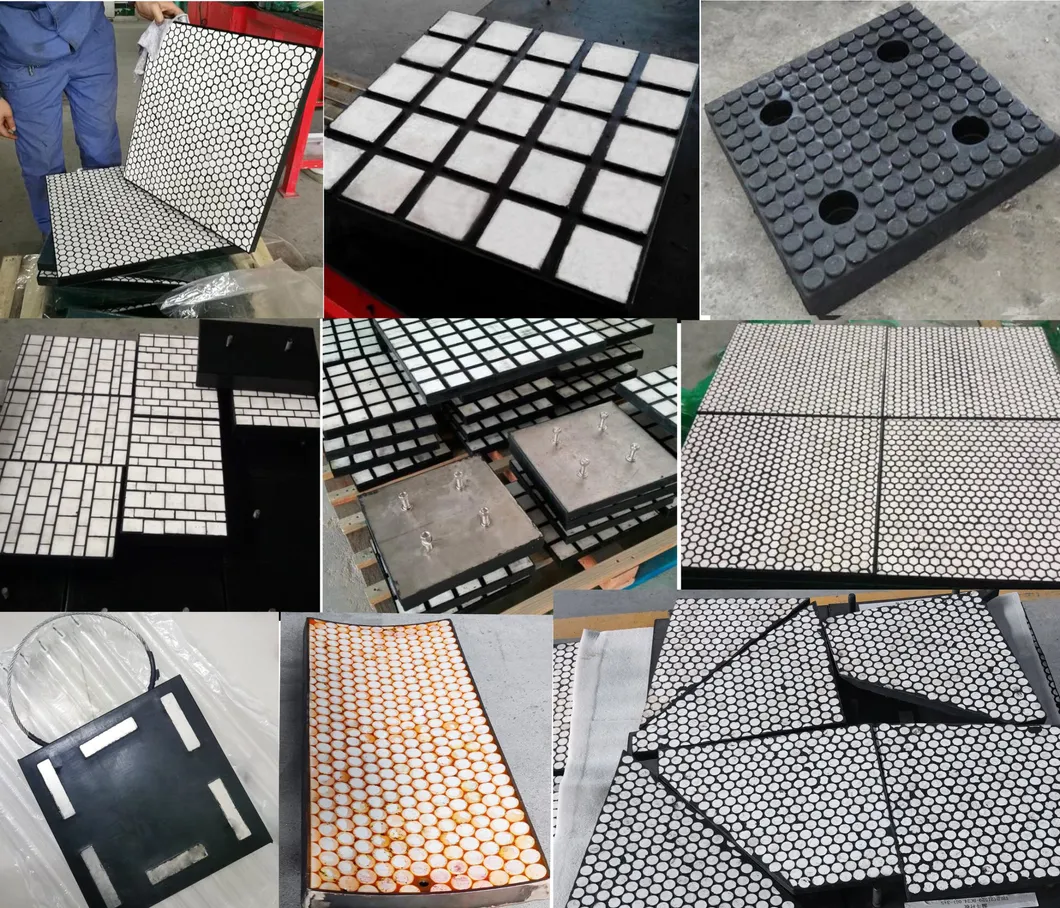

Yes, we offer both standard sizes (like 300x300mm) and fully customized shapes and sizes to fit your specific application requirements.
What is the advantage of adding rubber to ceramic?
The elastic rubber matrix absorbs impact energy, which prevents the brittle ceramic tiles from cracking under heavy material flow.
What certifications does the factory hold?
The facility is ISO9001, ISO14001, and ISO45001 certified, and is an SGS audited supplier.
What is the typical production capacity?
Our current production capacity is approximately 5000 pieces per month.
