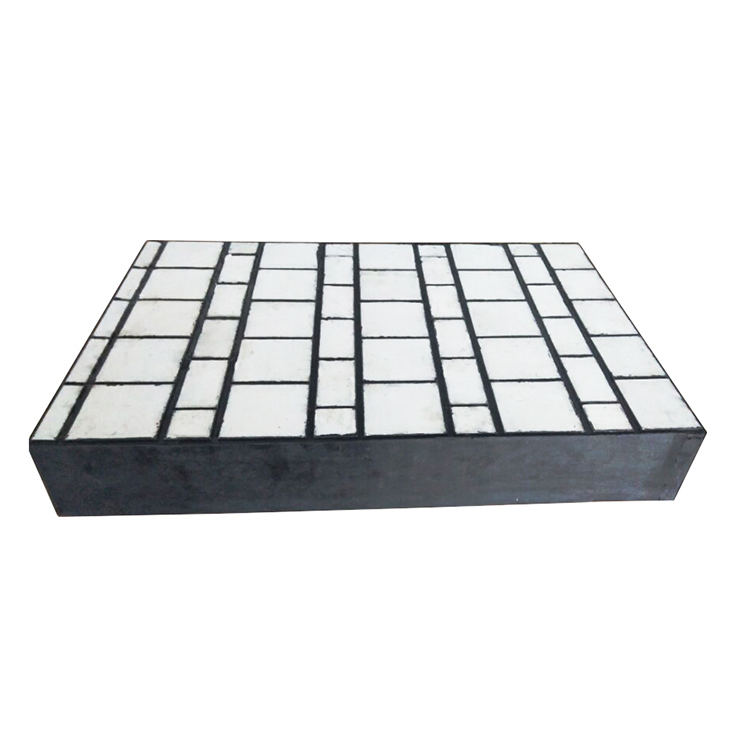

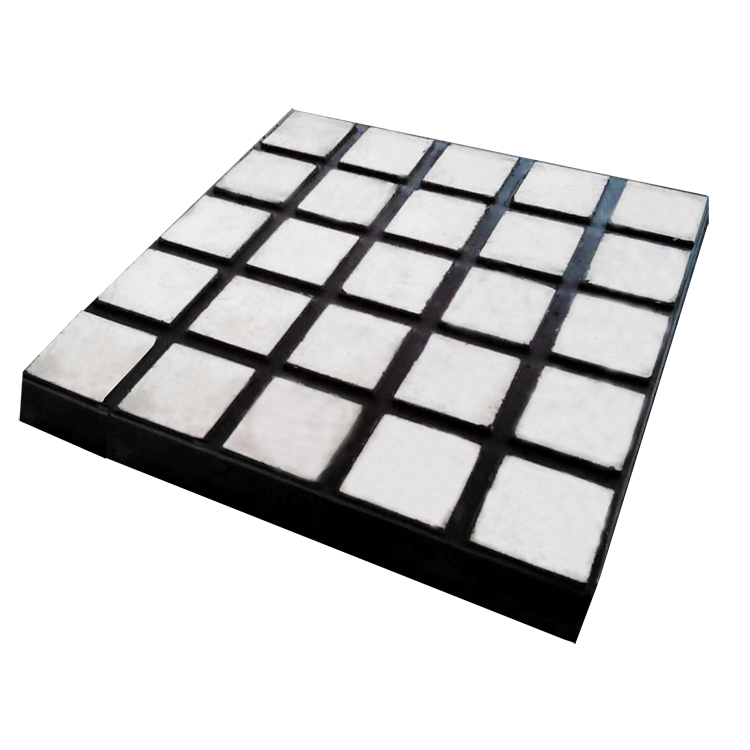

Hot Sale Wear Liner Composite Lining Rubber Ceramic

1 / 5

Hot Sale Wear Liner Composite Lining Rubber Ceramic

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

DB-TCM-I, DB-TCM-II, DB-TCM-III

Material

High Alumina Ceramic, Rubber, Metal Base

Type

Belt Conveyor Chute Liner

Commodity

Ceramic Rubber Lining

Ceramic

Al2O3 92% or 95% Al2O3 High Alumina Ceramic

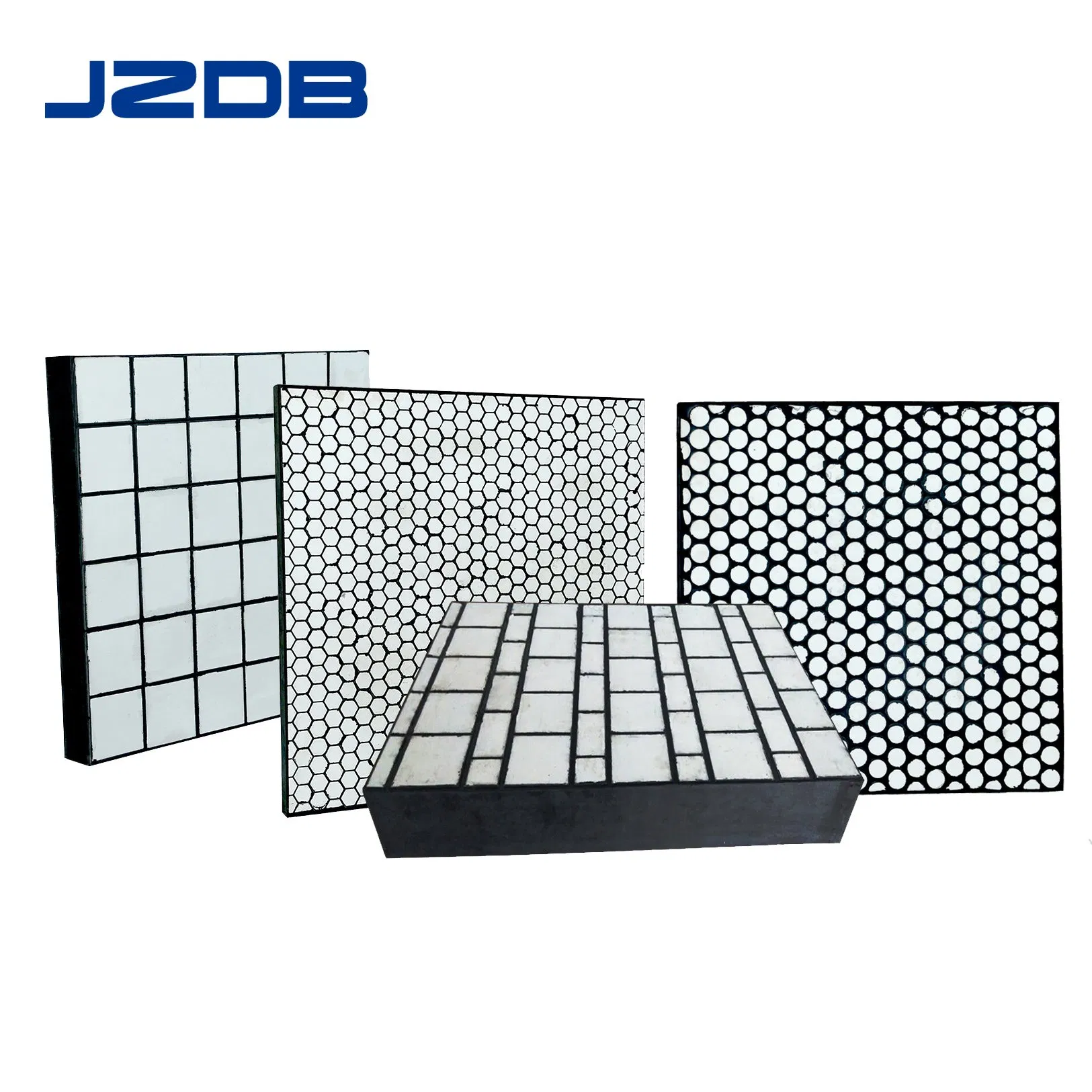

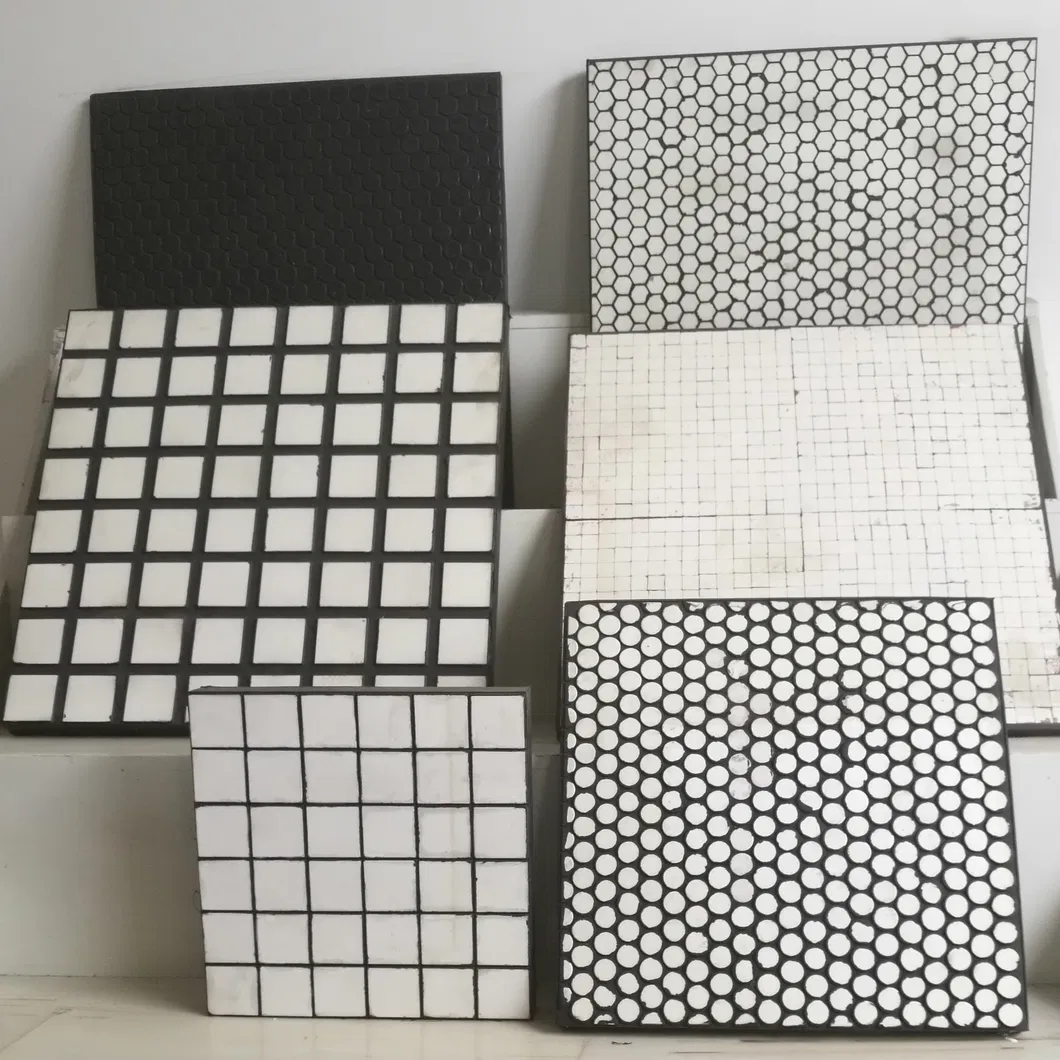

Ceramic Shape

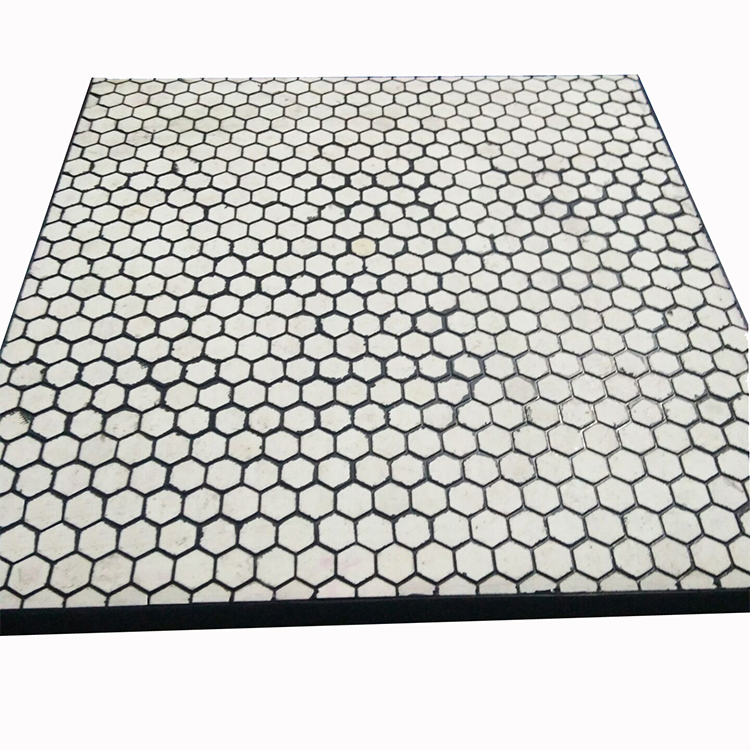

Hexagonal, Cylindrical or Square

Rubber

Natural Rubber

Fixing Method

with Steel Plate and Studs, or Bonding Layer.

Our Advantage

Reliable Factory, High Quality and Consistency

Sample

Free Sample.

Use

to Offer Wear, Abrasion and Impact Protection.

Custom

Customized Size and Shapes.

Certificate

ISO9001:2008, SGS

HS Code

6909120000

Capacity

2000PCS/Month

Origin

Jiaozuo, Henan, China

Product Description

Hot Sale Wear Liner Composite Lining Rubber Ceramic

Our advantages:

Ceramic rubber lining factory, rich experience in producing ceramic rubber lining products.
Custom ceramic rubber lining are possible as per your drawing and samples.
Excellent bonding between ceramic and rubber.
Strict control in QC

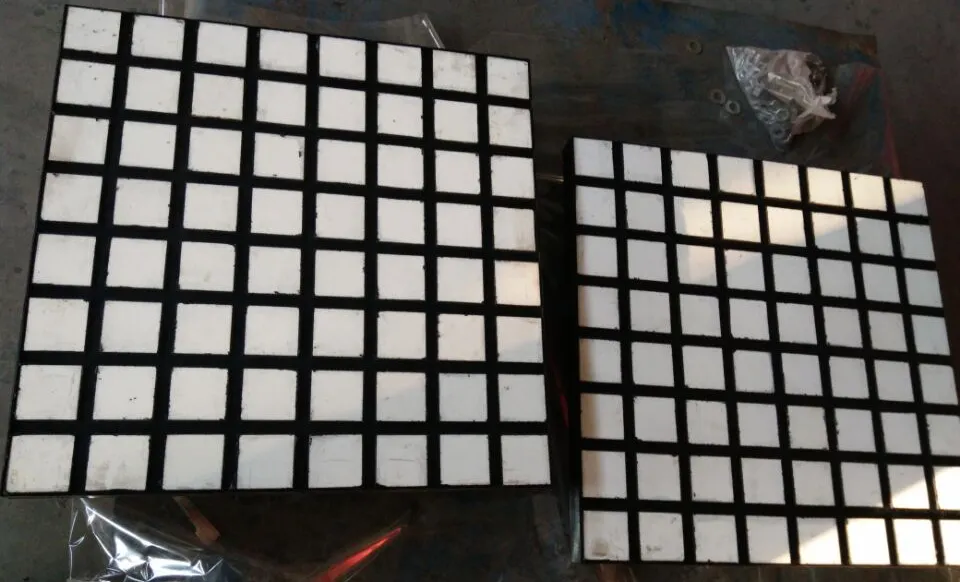

1. About Ceramic Rubber Lining

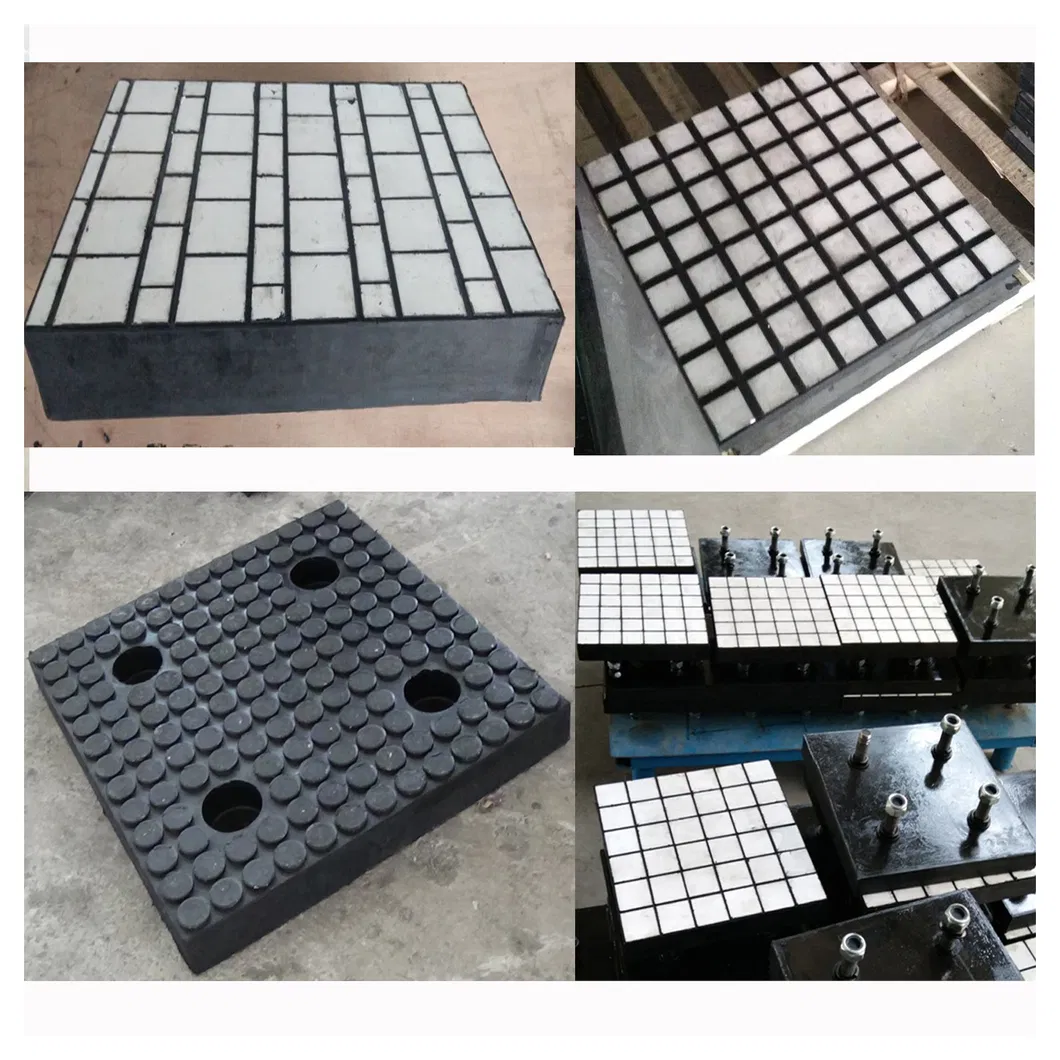

Ceramic rubber lining, also called ceramic-rubber liner, ceramic rubber wear plate, is a combination of high alumina ceramic tiles, elastic rubber and steel backing plate. The high alumina ceramic tiles are vulcanized in rubber matrix. Steel backing plate with studs is easy for installation. Also ceramic rubber liner without steel backing plate, but with cn bonding layer is also available.

Elastic rubber matrix prevents ceramic tiles breakage.

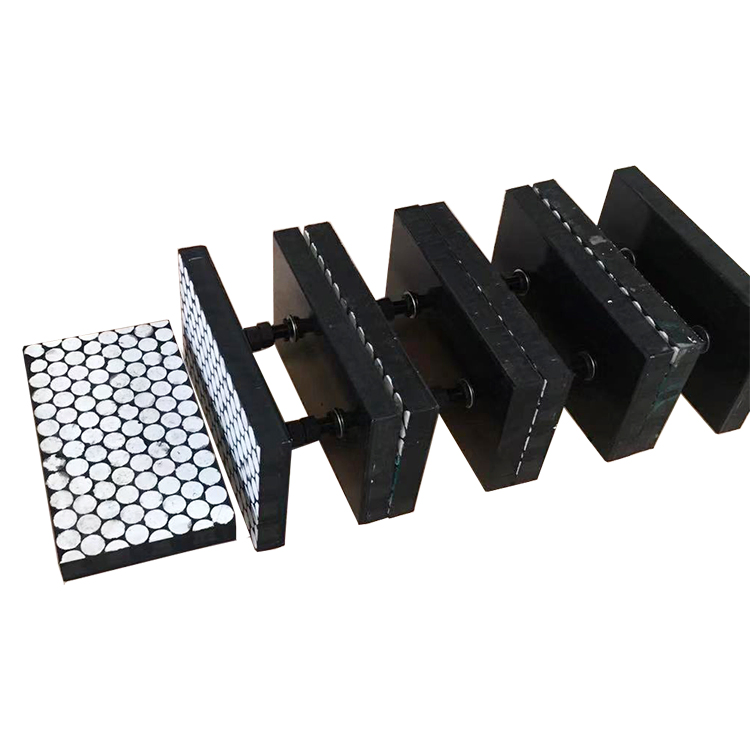

Steel backing plate with studs for easy installation.
Ceramic rubber lining with cn bonding layer is also available.

2. Specifications of ceramic rubber wear lining:

Item	Description	Unit	Result
Alumina Ceramic
Alumina(Al2O3)	92, 95	%	92, 95
Density	3.64	g/cm3	3.64
Hardness	Mohs	9	9
Rubber
Material	NR or SBR	-	NR or SBR
Tensile Strength	15 min.	MPa	15 min.
Hardness	55±5	Shore A	55±5
Abrasion Loss	≤90	mm3	≤90

3. Application of rubber ceramic wear liner:

Rubber ceramic wear liners are designed for applications in areas of severe impact and areas of high abrasion. High alumina ceramic tiles deliver extra abrasion resistance and extend wear life.

Conveyor chutes
Reflectors and impact plate
Bins, hoppers
Conveyor skirt liners
Stackers and reclaimers

4. Abrasion resistant rubber ceramic wear liner selection chart:

Size (mm)	Ceramic (mm)	Rubber (mm)	Steel Plate	Total Thickness
300x300x36	Φ21x21	9	6	36
300x300x50	Φ31x31	13	6	50
250x250x36	Φ21x21	9	6	36
250x250x50	Φ31x31	13	6	50

Our Services

Manufacture with extensive experiences, high quality and consistency.
Reasonable price, good delivery time.
Our products have been exporting to many countries.

Frequently Asked Questions

Q1: What materials are used in the composite lining?

The lining is a combination of 92% or 95% Al2O3 high alumina ceramic tiles, natural rubber (NR) or SBR, and a metal steel backing plate.

Q2: How is the ceramic rubber lining installed?

It can be fixed using a steel backing plate with studs for mechanical fastening, or via a CN bonding layer for cold vulcanized adhesion.

Q3: Can I get customized sizes for my conveyor chute?

Yes, we specialize in custom manufacturing and can produce specific sizes and shapes based on your technical drawings or samples.

Q4: What is the main benefit of the rubber matrix?

The elastic rubber matrix acts as a cushion, absorbing impact energy and preventing the brittle ceramic tiles from breaking under heavy material flow.

Q5: Do you provide samples for quality testing?

Yes, we offer free samples so you can verify the bonding strength and material quality before placing a bulk order.

Q6: What are the typical applications for these liners?

They are ideal for conveyor chutes, bins, hoppers, stackers, reclaimers, and any area subject to severe abrasion and high impact in mining or material handling.
