Xingli Industrial Ceramics
1 / 5
| Basic Info. | |
|---|---|
| Model NO. | Ceramic Lined Pipe |
| Material | Stainless steel |
| Type | Wear Resistant Pipe |
| Capabilities | ODM, OEM |
| Hardness (hvkgf/mm2) | 1100-1400 |
| Crush Strength | 350-400 MPa |
| Shear Strength | 15 MPa |
| Steel Pipe Diameter | 68-630 mm |
| Steel Pipe Wall Thickness | 8-14 mm |
| Wear Layer Thickness | 4-6 mm |
| Transport Package | Wooden Box |
Composite ceramic steel pipe is a high-tech composite material manufactured by the self-propagating high-temperature synthesis method (SHS). This process uses an aluminothermic reaction to melt reactants, separating Al2O3 and Fe under centrifugal force.

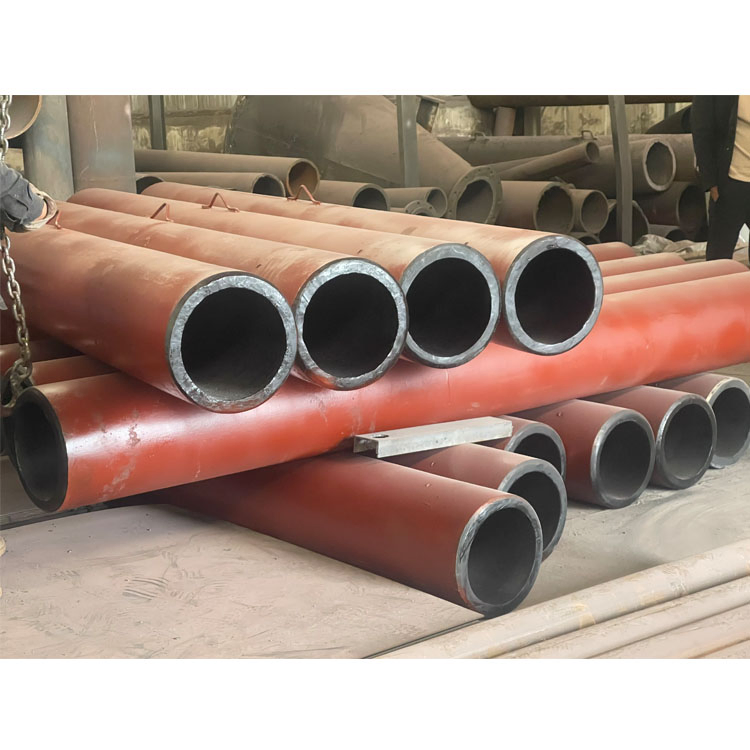

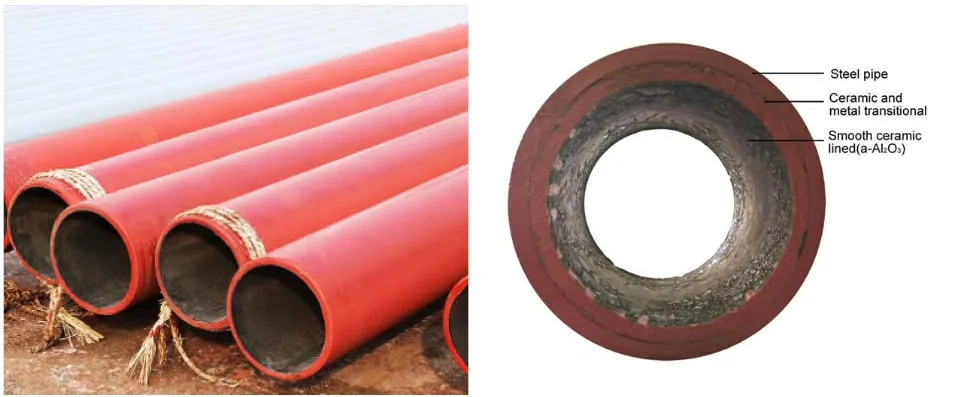

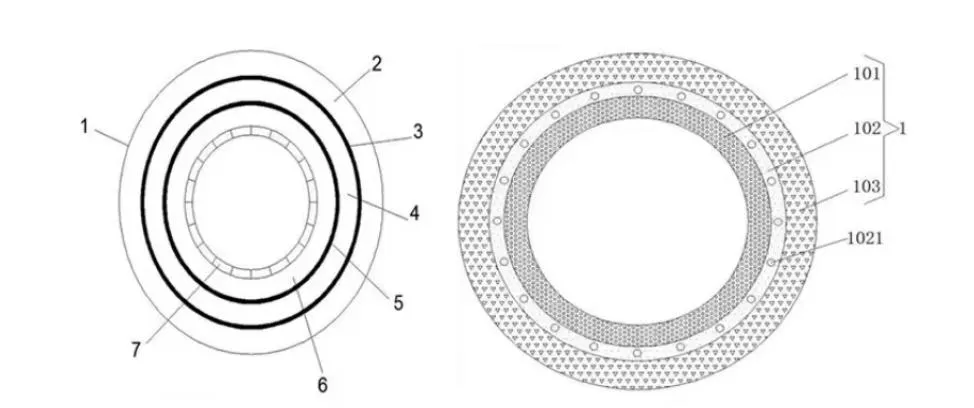

The tube consists of three distinct layers:
Key Features:
Excellent corrosion resistance, superior wear resistance, high strength, and exceptional toughness. It maintains strong resistance to mechanical and thermal shocks and supports standard processing such as turning, grinding, and welding.
| Pipe Diameter (mm) | Wall Thickness (mm) | Wear Layer (mm) | Pipe Diameter (mm) | Wall Thickness (mm) | Wear Layer (mm) |
|---|---|---|---|---|---|
| 68 - 83 | 8 - 10 | 4 | 168 - 194 | 8 - 10 | 4 |
| 89 - 114 | 8 - 10 | 4 | 203 - 245 | 10 - 12 | 4-5 |
| 121 - 159 | 8 - 10 | 4 | 273 - 351 | 10 - 14 | 4-6 |
| 402 - 500 | 12 - 14 | 5 - 6 | 530 - 630 | 12 - 14 | 5-6 |
Exceptional durability in abrasive environments and anti-scaling properties for fluid transport.
Lightweight design reduces support/hanger costs and handling expenses. Engineering costs are 20-30% lower than standard wear-resistant steel pipes.
Operates normally within -50 ~ 900 °C with low linear expansion coefficients.

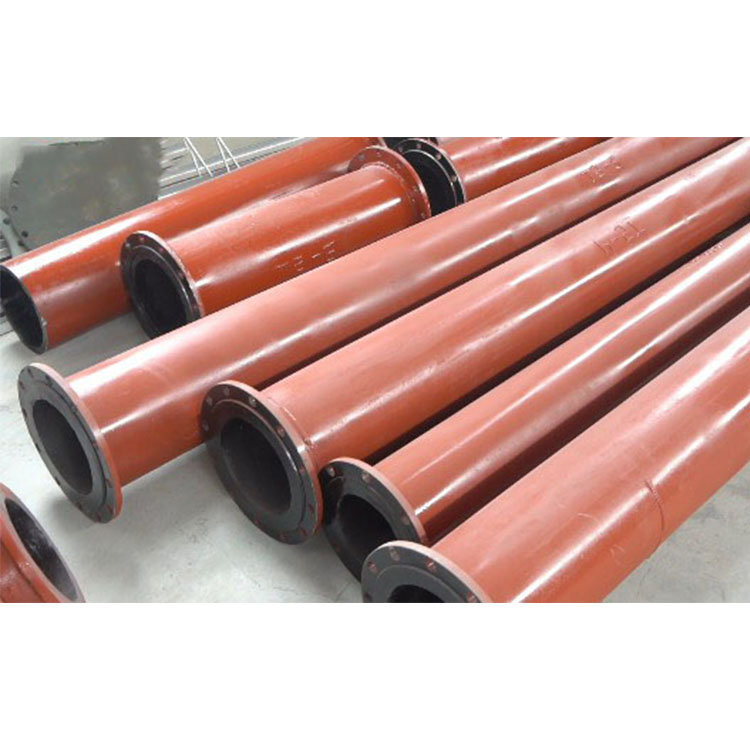

Can be connected via welding or flanges, saving 20-30% of steel compared to traditional pipes.
Ceramic lined pipes are essential in industrial environments where pipelines face extreme abrasion and corrosion, including:
