Ceramic Rubber Wear Lining Plate Rubber Ceramic Composite Wear Liner

Customization:	Available
Standard:	JIS, GB, DIN, BS, ASTM, AISI
Application:	Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Chemical Plant, Steel and Iron Plant, Coal Fired

Send Inquiry

Product Description

Basic Specifications

Material:

Alumina Ceramic + Rubber + Cn Layer / Steel Plate

Type:

Wear Resistant Liner

Suitable:

Conveyor, Chute, Hopper, Bin, Pipe, Mine, Quarry

Function:

Wear, Abrasion and Impact Protection

Tile Shape:

Cylindrical, Hexagonal, Square, Spherical, etc.

Install Method:

Steel Plate/Studs or Bonding Layer

Certificate:

ISO9001, SGS, CE

Custom:

Customized Size and Shapes

Process:

Hot Vulcanizing

Alumina Content:

92% / 95%

Why Choose Us

We are a dedicated manufacturer of wear-resistant rubber ceramic liners, mats, plates, and panels. We produce various configurations to meet diverse industrial applications with custom sizes available.

Over 20 years experience in wear products and conveyor accessories.
Over 10 years experience in exporting to UK, France, Chile, Canada, USA, Australia, Russia, etc.
SGS audited supplier and ISO9001:2015 certified factory.
Strict QC/QA ensures high quality and consistency.

Product Overview

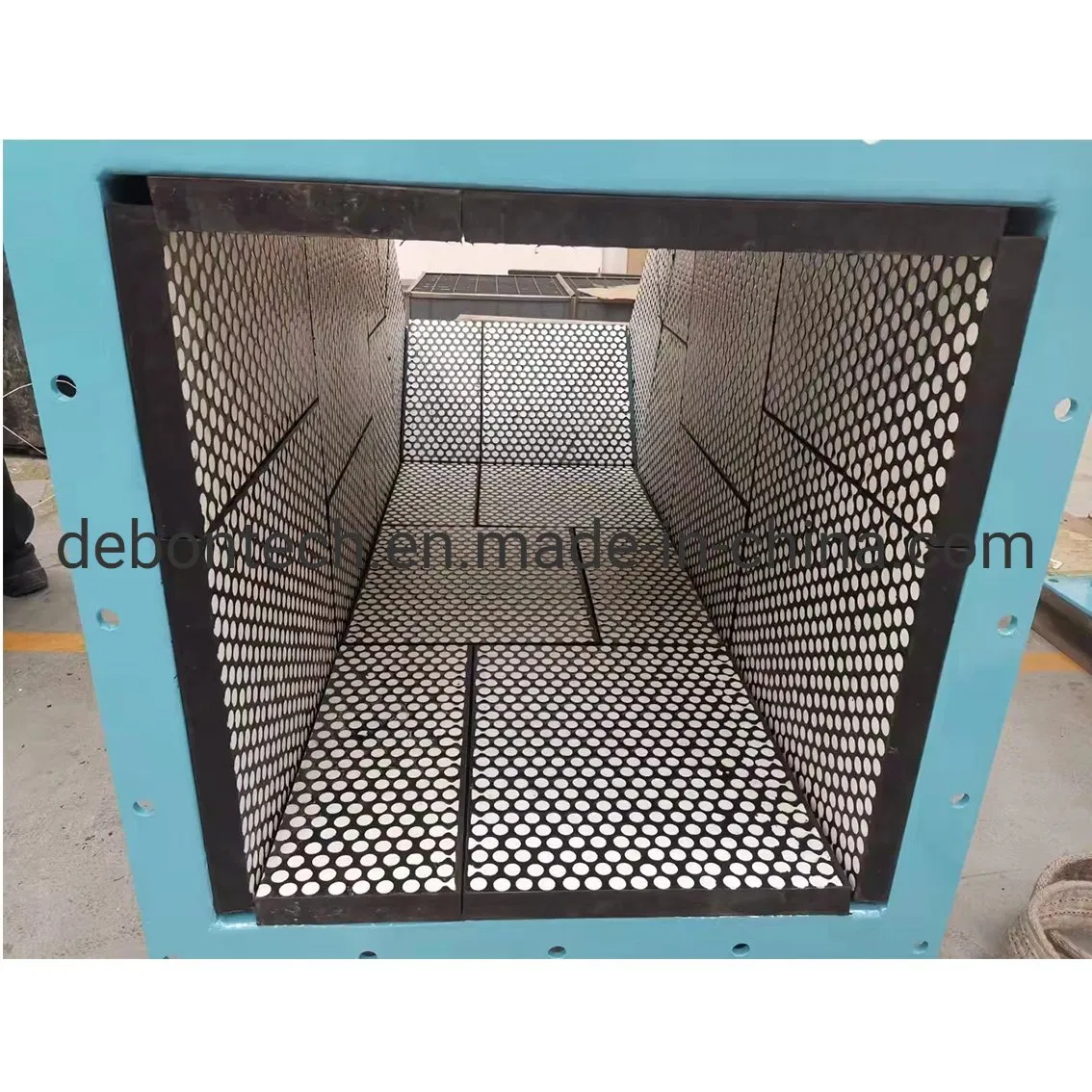

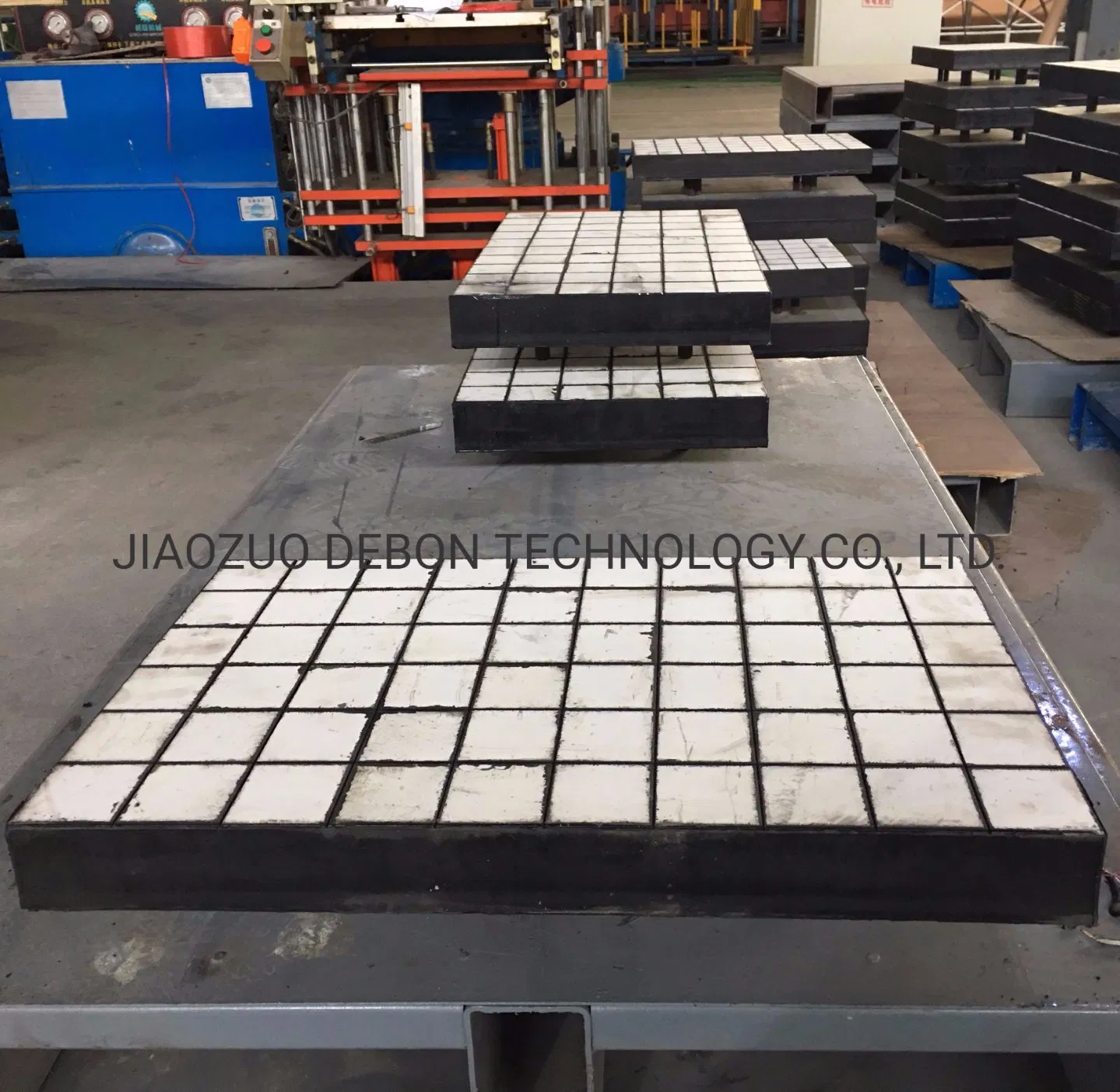

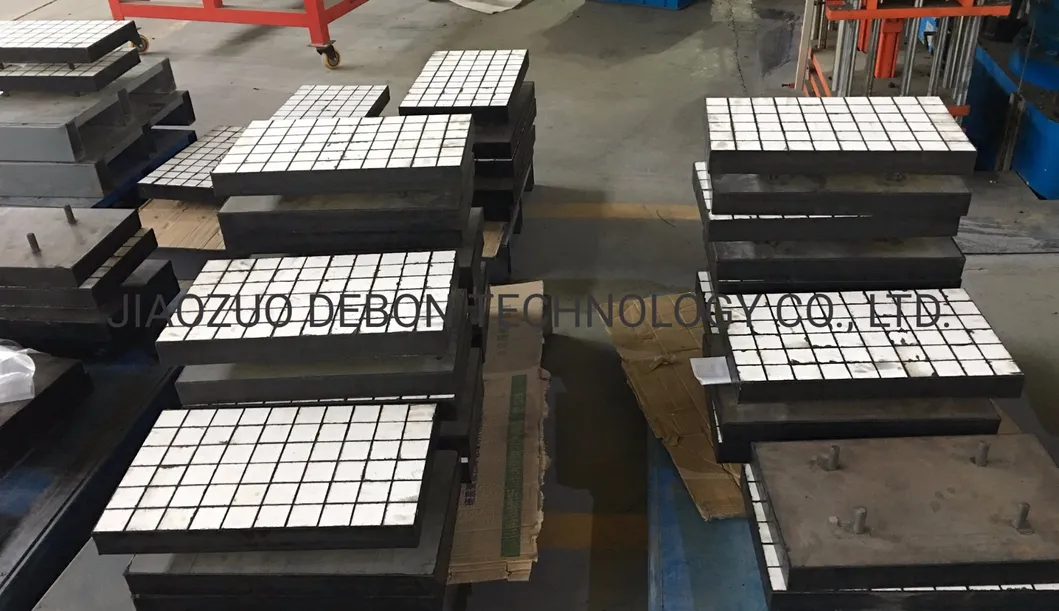

Ceramic Rubber Wear Lining Plate embeds high alumina tiles into rubber via vulcanization. The rubber cushion prevents ceramic tiles from breaking while providing excellent wear resistance. This composite solution effectively solves both wear and impact issues in heavy industries.

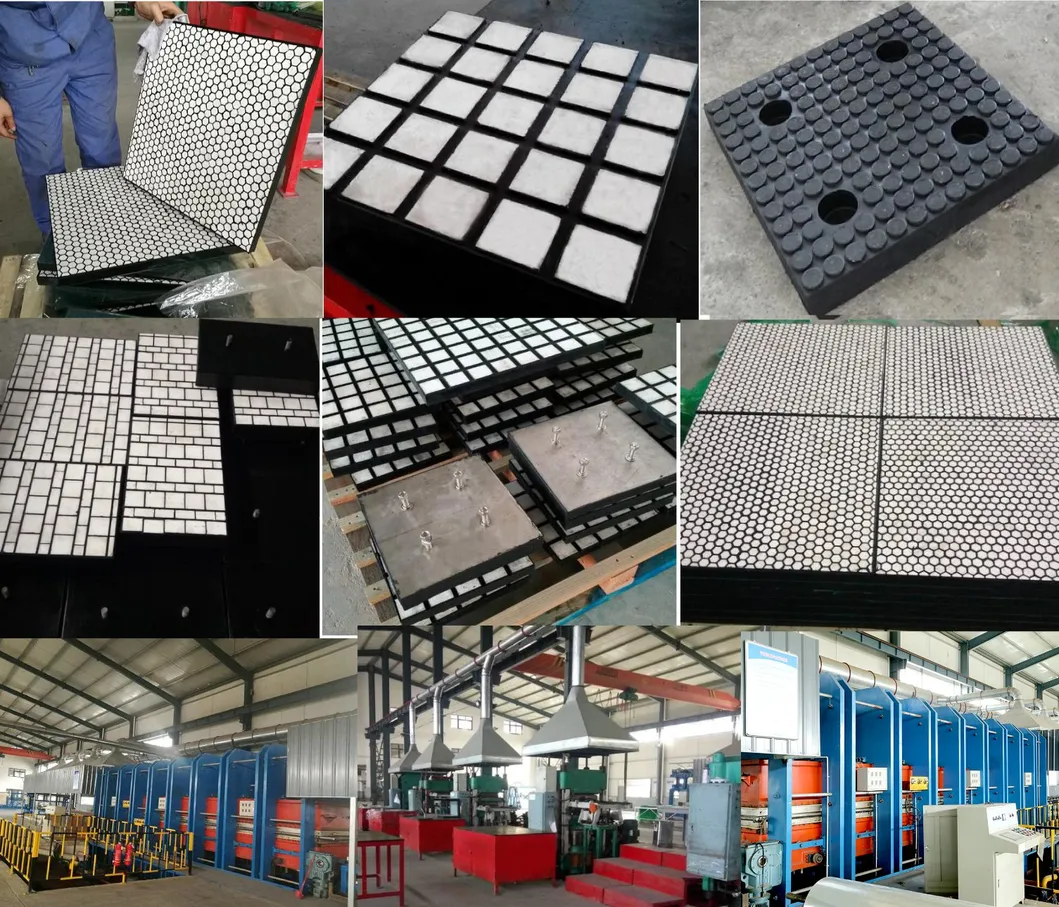

Structure & Types

Type 1: Ceramic + Rubber + Steel back plate + Studs (Welded mounting studs).
Type 2: Ceramic + Rubber + CN bonding layer (Cold vulcanization).
Type 3: Ceramic + Rubber + Countersunk (Install by bolts).

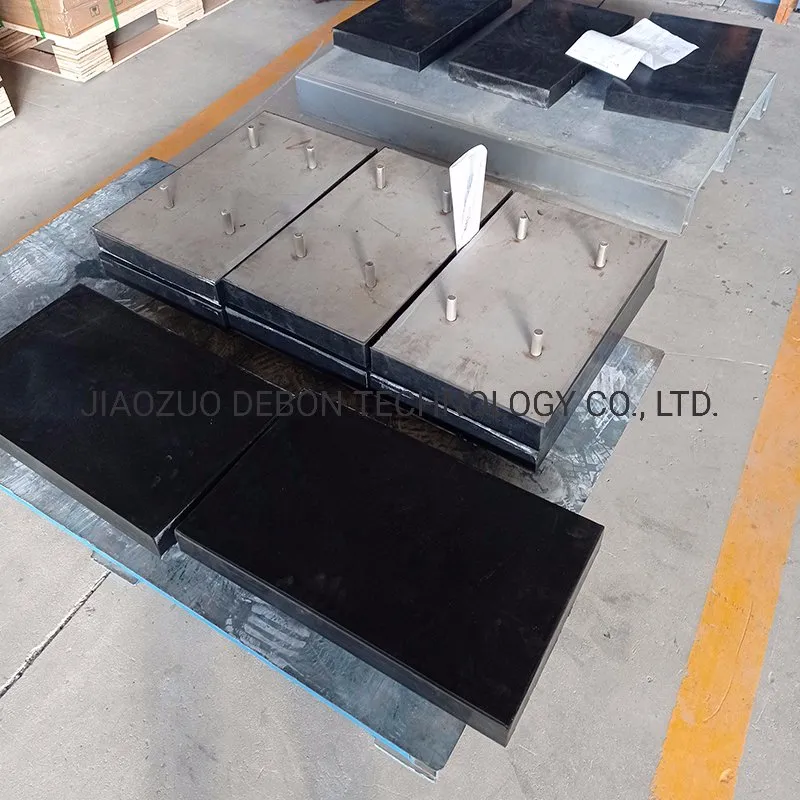

Type 4: Rubber + Steel backing plate + Studs.

Key Features & Benefits

✓ Excellent impact and wear resistance

✓ Superior sound and noise reduction

✓ Extends equipment service life

✓ Cost-effective with reduced maintenance

✓ Easy installation and replacement

✓ Full customization accepted

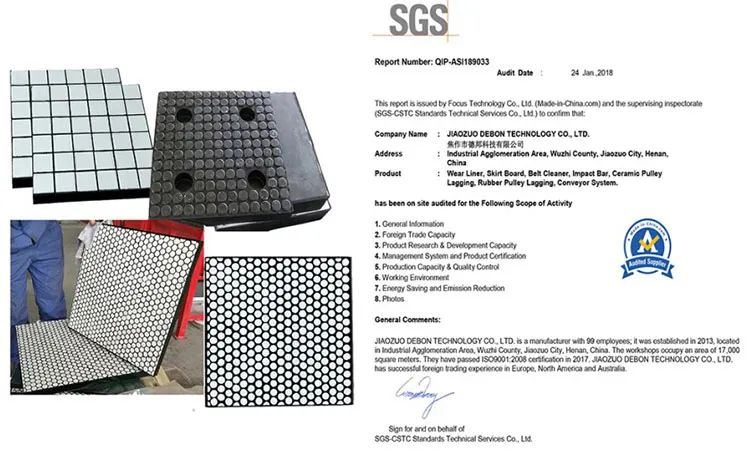

Quality Certifications

Frequently Asked Questions

What materials are used in the wear liners?

Our liners are composed of high alumina ceramics (92% or 95% content), high-elasticity rubber, and either a CN bonding layer or steel backing plates with studs.

In which industries can these liners be used?

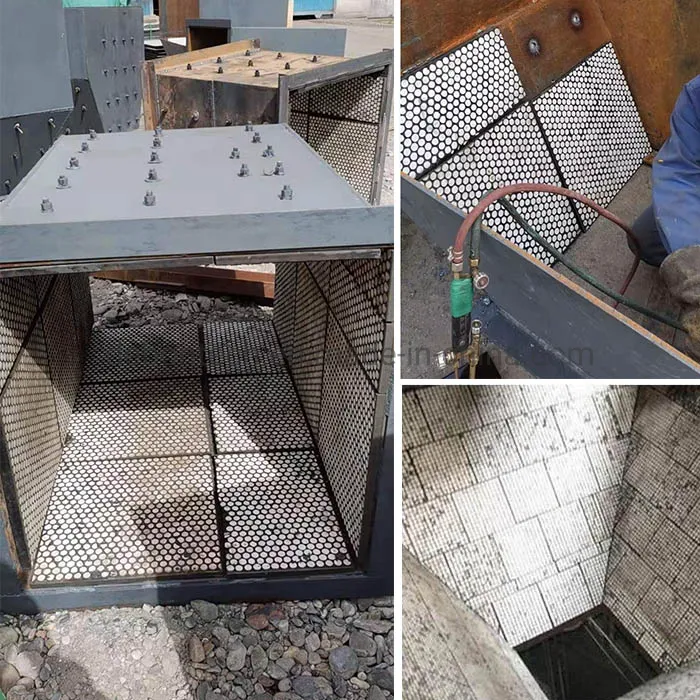

They are ideal for mining, quarrying, steel plants, and power stations, specifically for equipment like conveyors, chutes, hoppers, bins, and pipes.

How are the ceramic liners installed?

Installation depends on the type: Type 1 uses welded mounting studs, Type 2 uses cold vulcanization bonding, and Type 3 uses bolts and countersunk holes.

Can I request custom sizes and shapes?

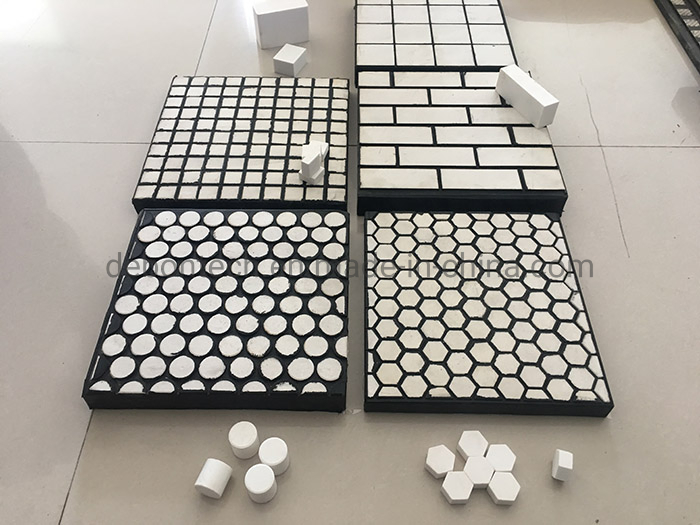

Yes, we specialize in customized sizes and ceramic shapes, including cylindrical, hexagonal, square, and spherical tiles to fit your specific equipment.

What is the advantage of adding rubber to ceramic?

The rubber acts as a cushion that absorbs impact forces, preventing the brittle ceramic tiles from cracking while also significantly reducing noise levels during operation.

What is your production capacity?

We have a monthly production capacity of 5,000 pieces, ensuring timely delivery for both large-scale projects and replacement orders.
