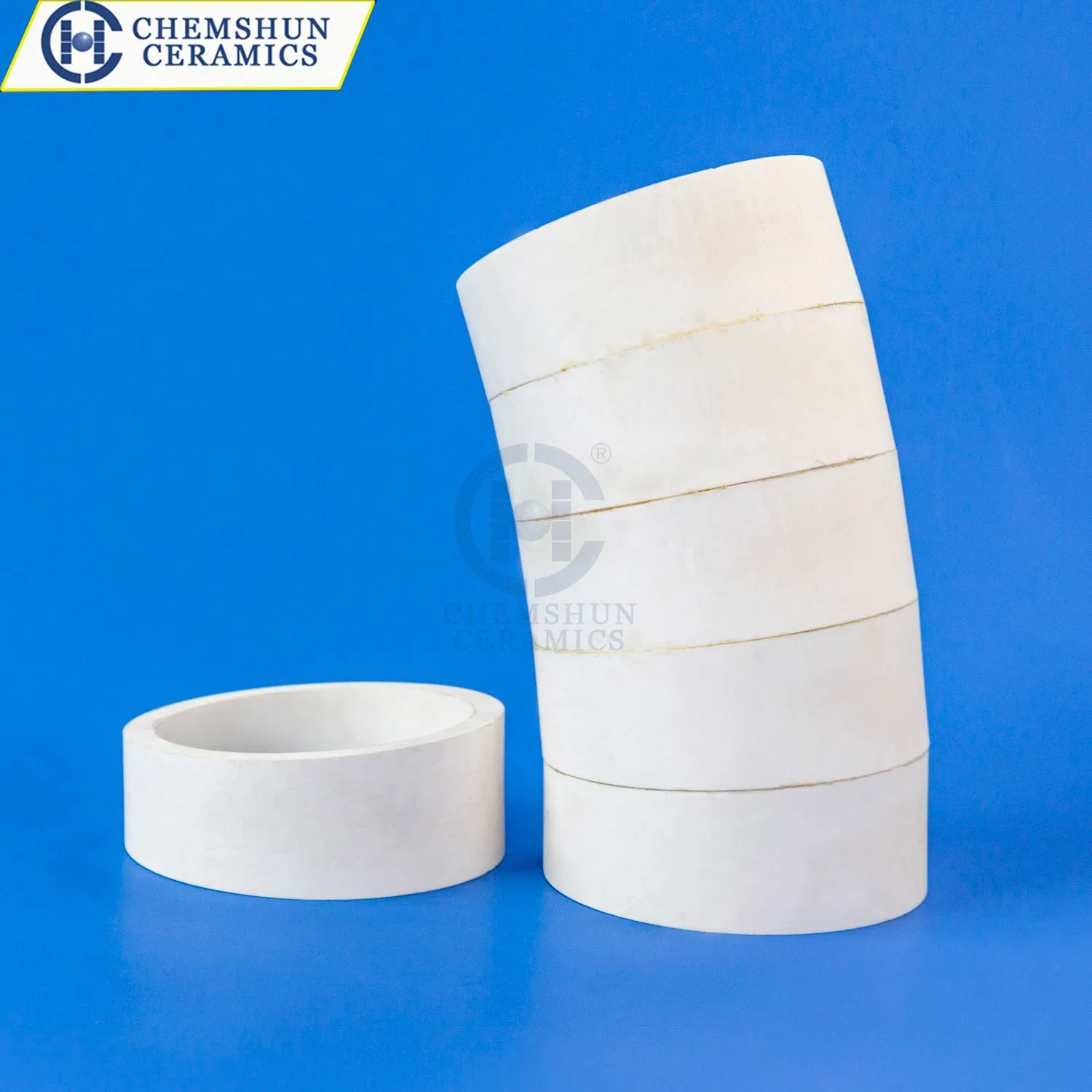

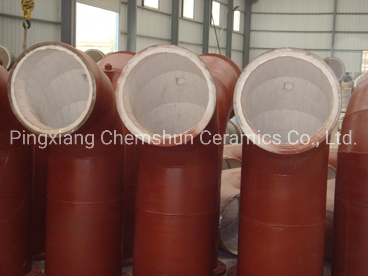

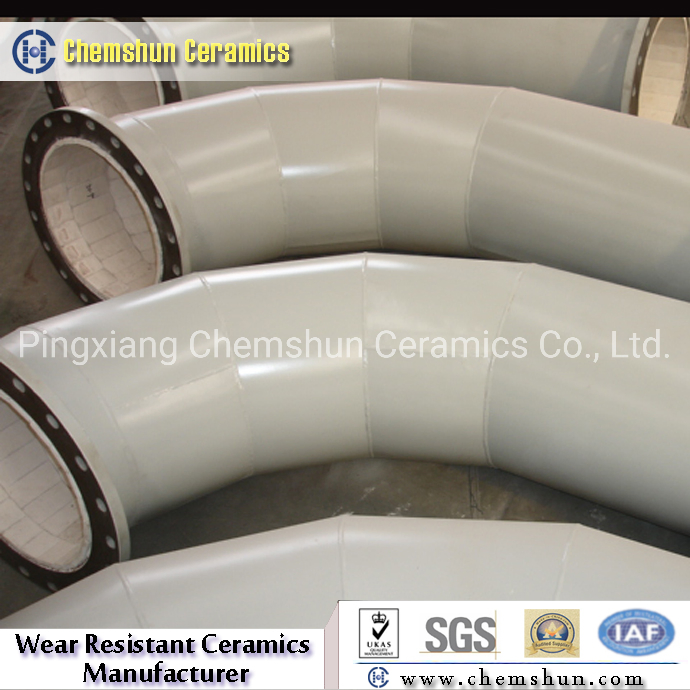

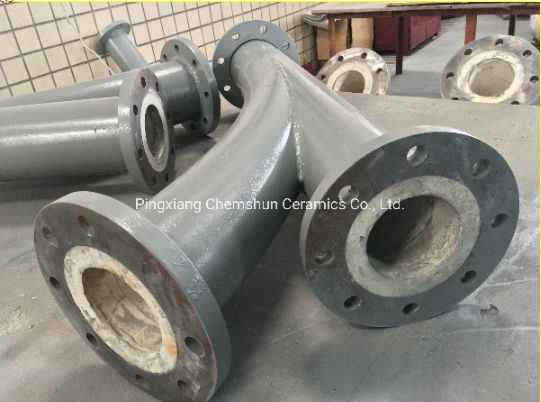

Ceramic-Cylindrical Tube-Liner Ceramic Lined Elbows and Bends are specifically engineered for superior resistance in high-wear environments such as slurry conveying and ash-piping systems. These composite pipes consist of precision-formed single ceramic tubes bonded into steel pipes using high-strength epoxy resin adhesive.

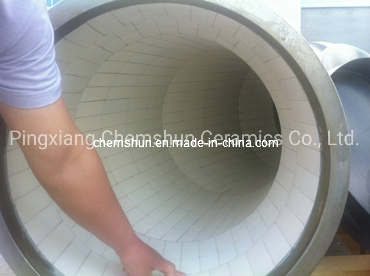

The single-piece ceramic pipe design is a critical innovation that eliminates potential erosion points and failure zones typically associated with manually assembled tiled ceramic fittings. This leads to significantly reduced maintenance requirements and lower overall life-cycle costs for industrial piping systems.

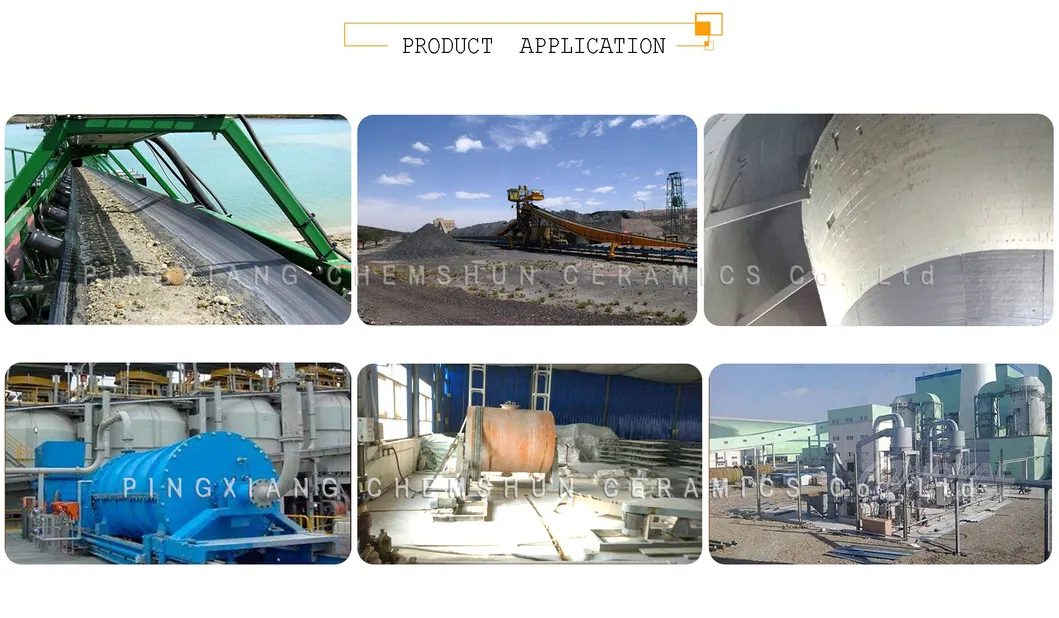

| Industry | System | Application Components |
|---|---|---|
| Cement | Raw mill & Sintering system | Chute, bunker, fan casing, cyclone, circular duct, conveyer, dust collector's pipe |
| Steel | Dedusting & Ash discharge | Dedusting pipeline, bend, y-piece, Mixing bunker, mixing barrel |
| Thermal power | Coal handling & Ash discharge | Separator's pipe, elbow and cone, coal mill body, fan duster's shell |
| Mining | Transporting material | Hopper, silo, tailings pipeline, slurry transport |
| Chemical | Processing equipment | Vibromill liner, dedusting pipeline and elbow |
| Properties | Unit | 92% Al2O3 Series | 95% Al2O3 Series |
|---|---|---|---|
| Al2O3 Content | % | 92.00 | 95.00 |
| Water Absorption | % | 0.00 | 0.00 |
| Density | g/cm³ | ≥3.60 | ≥3.65 |
| Flexural Strength | Mpa | 270.00 | 320.00 |
| Moh's Hardness | Grade | 9 | 9 |
| Vickers Hardness (HV10) | Kg/mm² | 1000 | 1200 |
| Max. Operation Temp | ºC | 1450 | 1500 |
