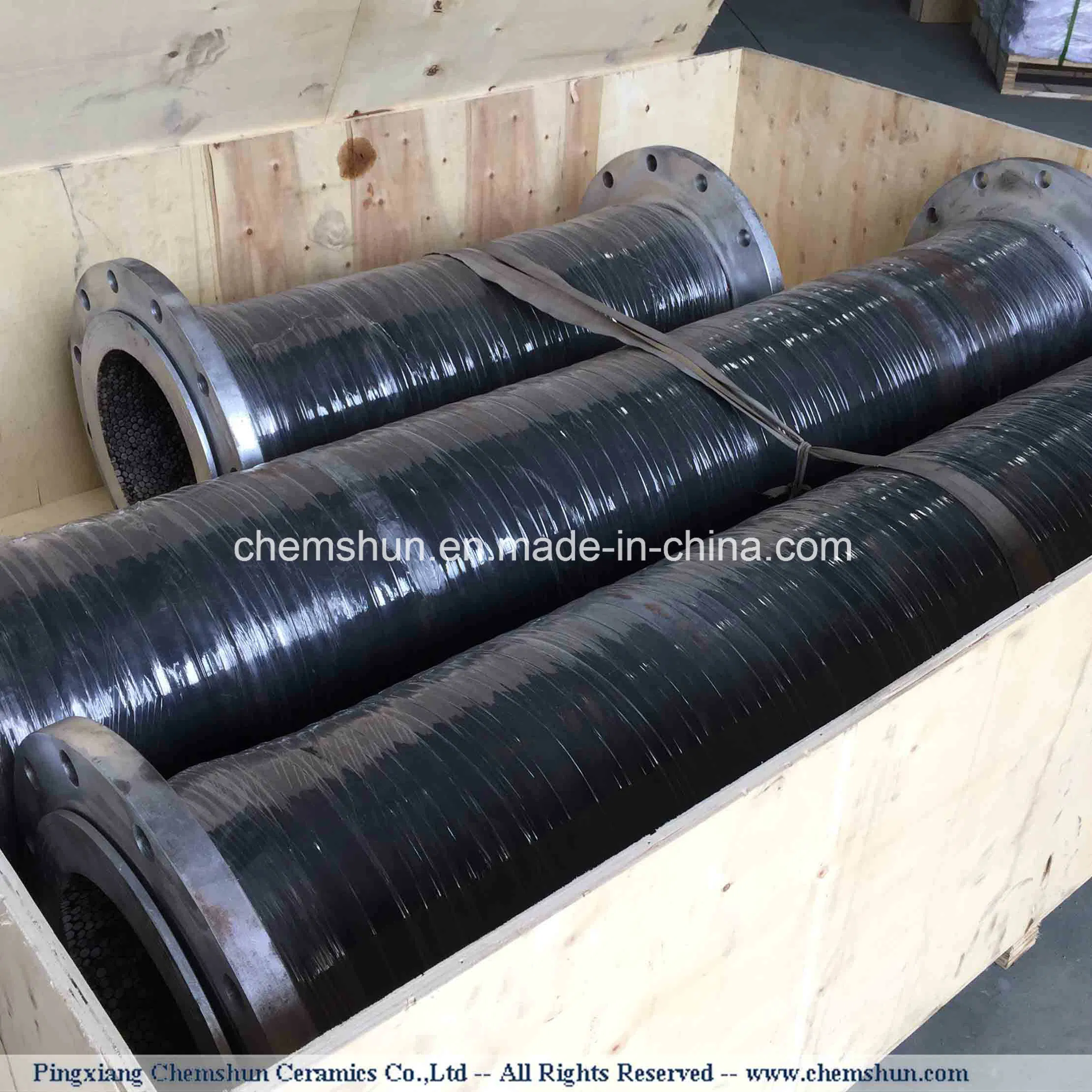

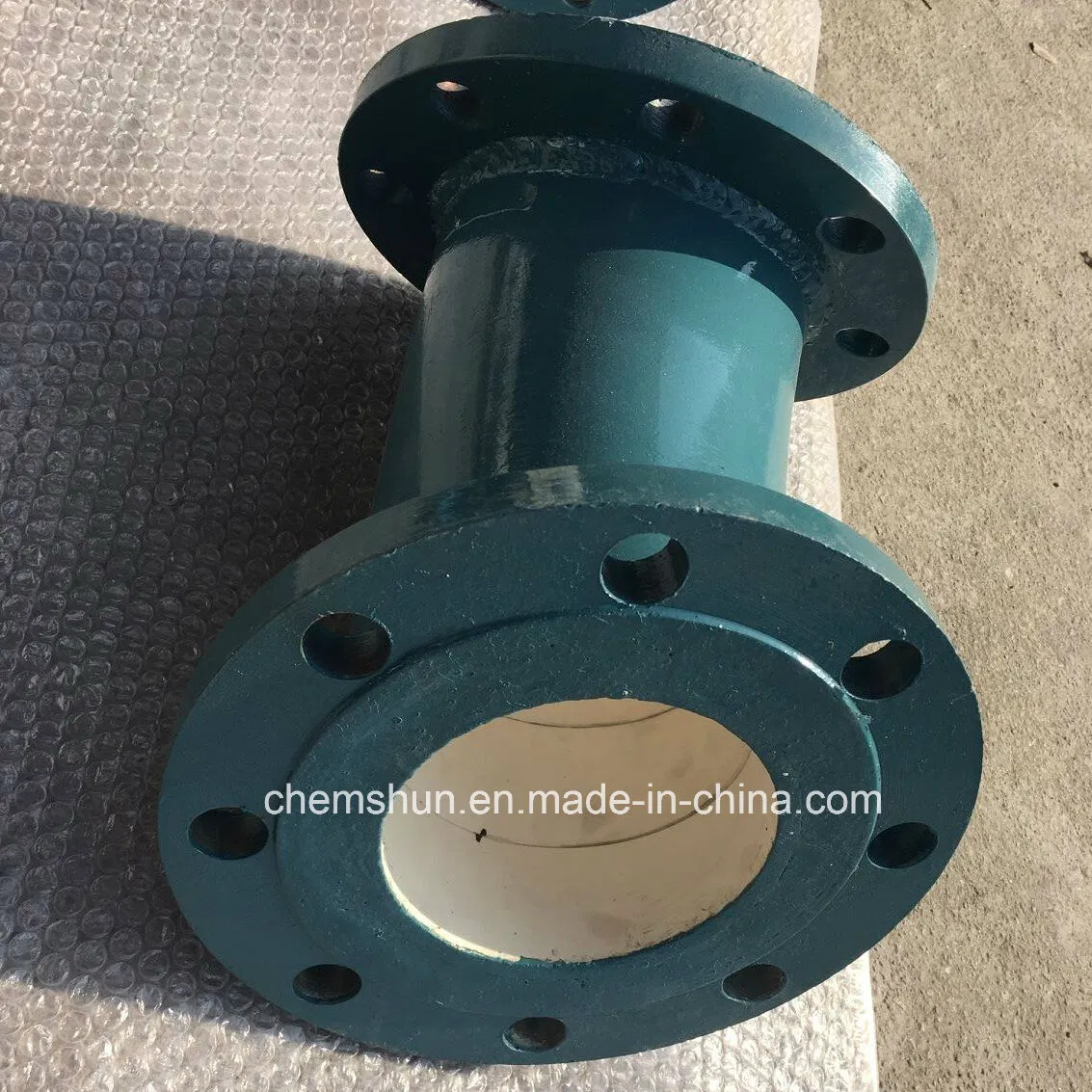

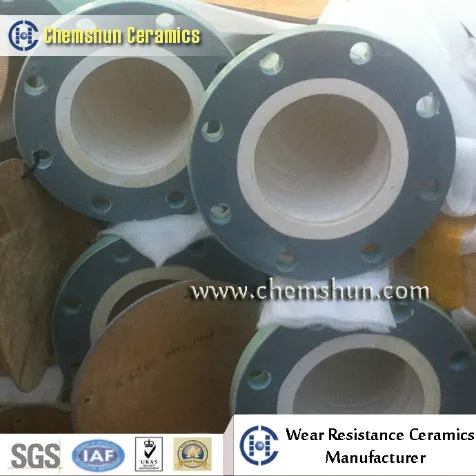

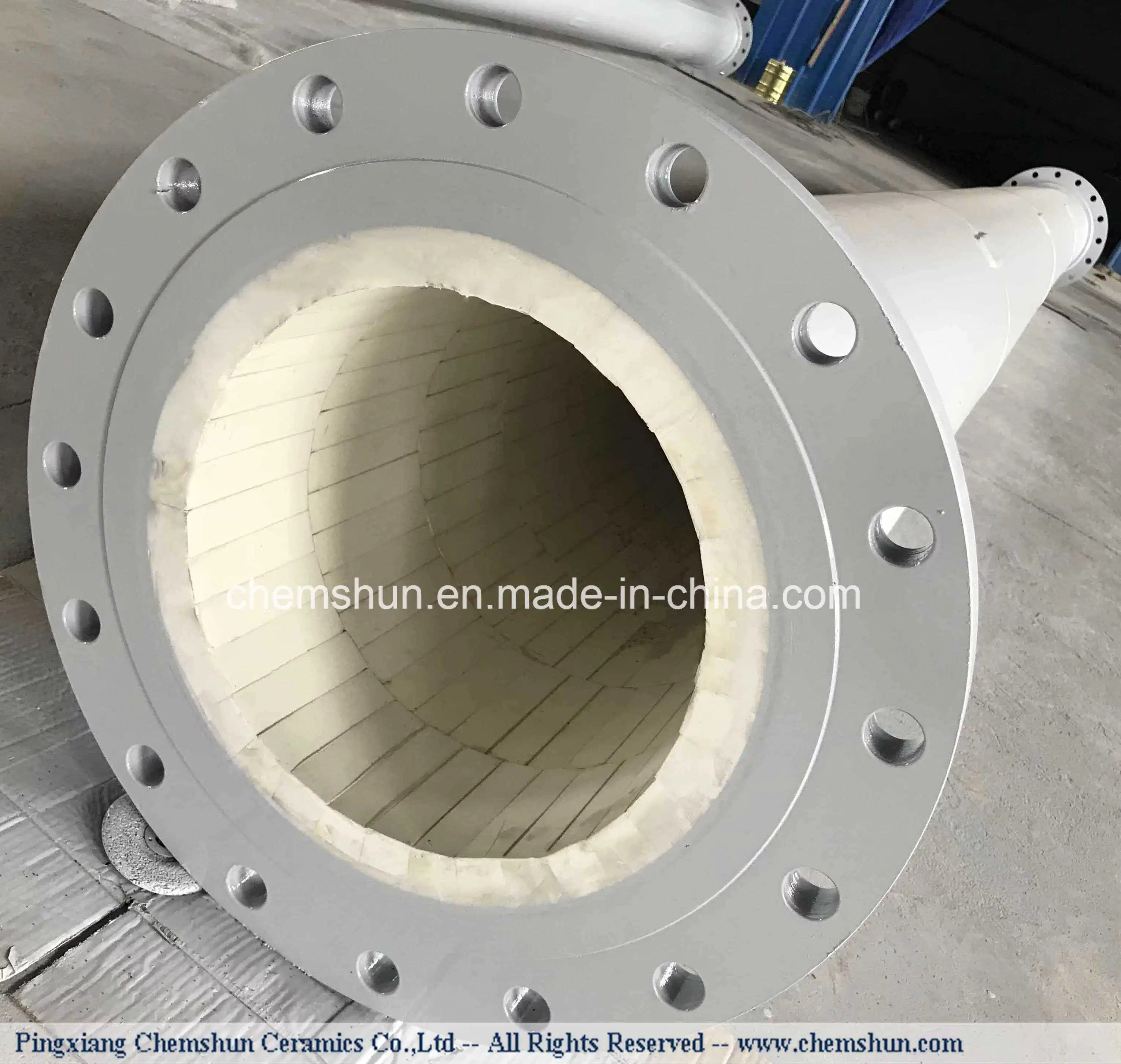

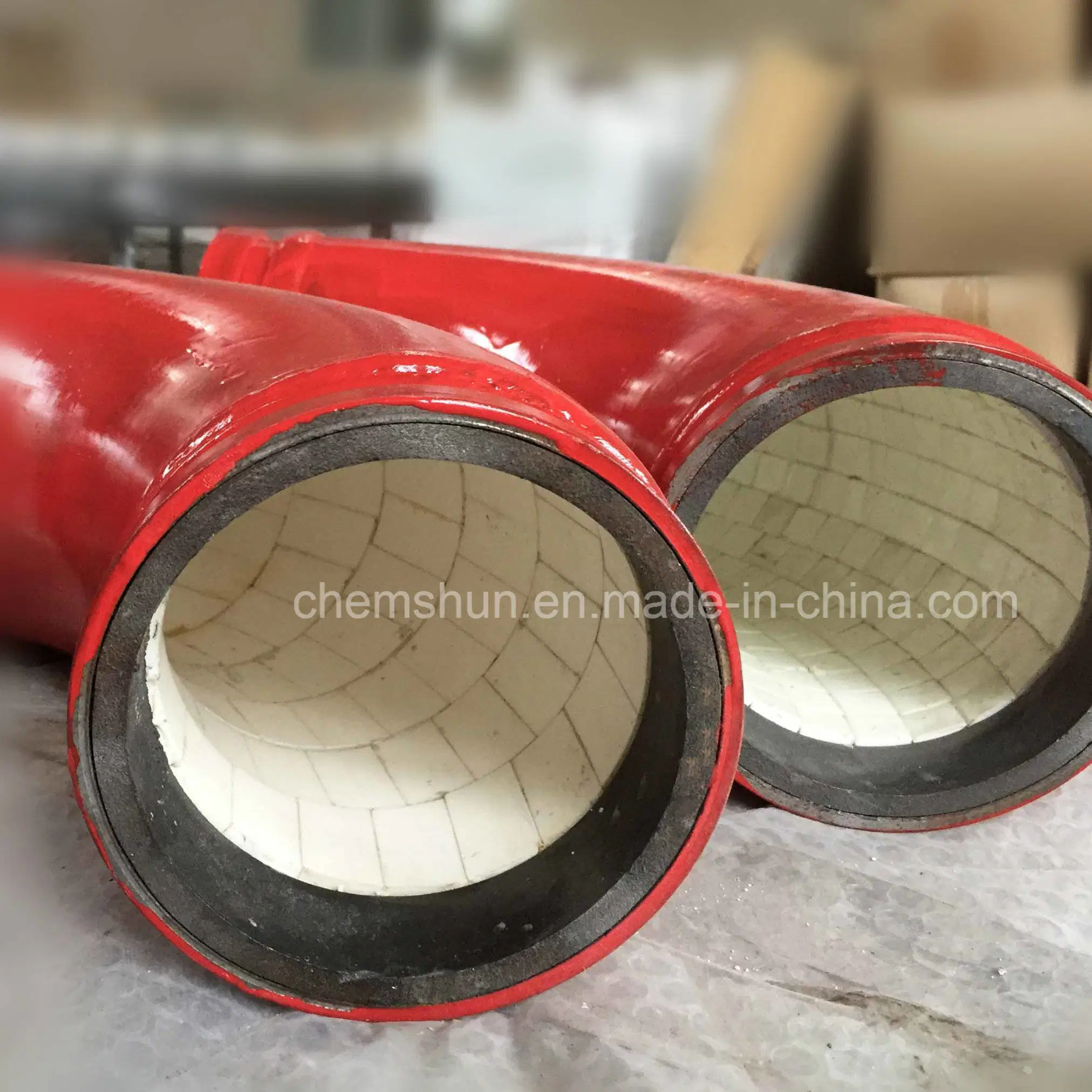

Aluminium Oxide Ceramic Lined Elbow Pipe Bends

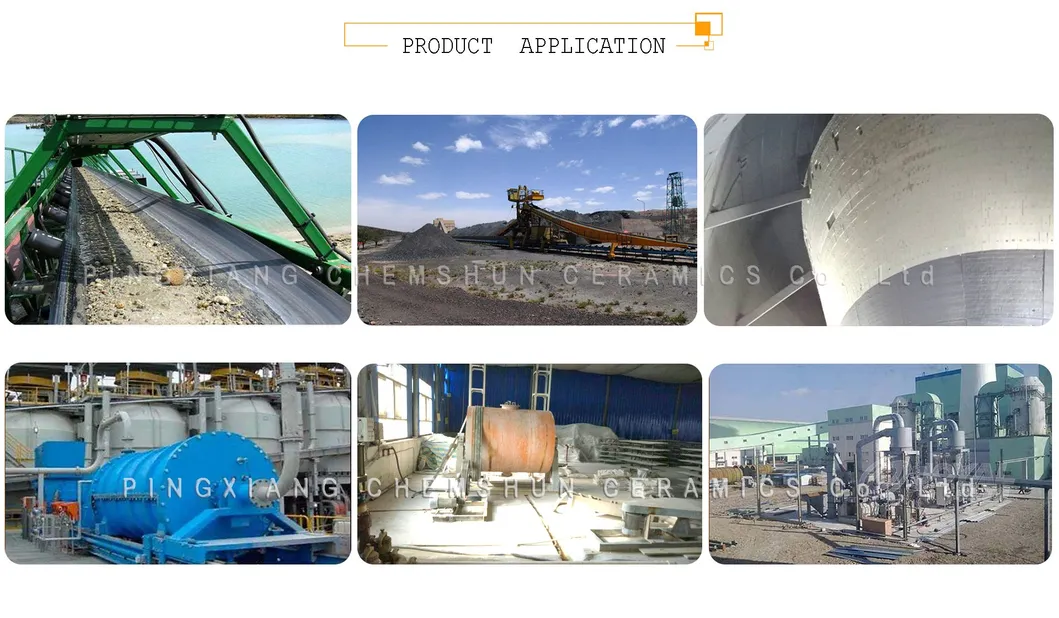

Alumina ceramic lined composite steel pipe combines the high strength, toughness, and weldability of steel with the extreme hardness and wear resistance of corundum ceramics. This advanced composite overcomes the traditional weaknesses of steel pipes in abrasive environments, offering a comprehensive solution for conveying sand, coal, ash, and molten aluminum.
| Product | ID(mm) | OD(mm) | Thickness | R(mm) | Degree |
|---|---|---|---|---|---|
| Straight Tube | 76 | 106 | 15 | / | / |
| Straight Tube | 100 | 140 | 20 | / | / |
| Straight Tube | 150 | 185 | 17.5 | / | / |
| Bend | 76 | 106 | 15 | 400 | 7.5 |
| Bend | 150 | 185 | 17.5 | 1500 | 3 |
| Attributes | Unit | 92% Alumina | 95% Alumina |
|---|---|---|---|
| Alumina Content | % | 92 | 95 |
| Density | g/cc | ≥3.60 | >3.65 |
| Flexural Strength | Mpa | 270-300 | 320 |
| Rock Well Hardness | HRA | 80-85 | 87 |
| Max Operation Temp | ºC | 1450 | 1500 |
