Basic Info
Model NO.Abrasion Resistant Steel Pipe, Elbows and Bends
InstallationAdhesive Bonding
MaterialAlumina Ceramic, Aluminum
ShapeCylinder
Surface FinishSmooth
Alumina Content92%
ApplicationIndustrial Ceramic, Mining, Power Plant
OEMAccept
FeatureWear Resistant
HS Code69091200
Capacity5000ton/Year
Abrasion Resistant Ceramic Steel Pipe Elbows and Bends
Technical Details:
- 🔹 Size: DN40-DN600
- 🔹 Wall Thickness: 3-10mm
- 🔹 Housing Material: Seamless Carbon Steel
- 🔹 Inner Material: 95% Alumina Ceramic
- 🔹 Ceramic Thickness: 3 to 6 mm
- 🔹 Operation Velocity: 20-35m/s
- 🔹 Temperature Range: -50 to 800 degree
Product Features
- Excellent wear protection
- Corrosion resistance
- Heat resistance
- Impact resistance
- High hardness
- Light weight
- Adhesive firmly
- Low cost
Application Industries
Mining, Mineral processing, Power generation, Cement, Petro-Chemical Refining, Coal washery, Steel, and Defense.
Equipment Covered: Agitators, Bends, Branches, Chutes, Classifiers, Cones, Cyclones, Fans, Feeders, Hoppers, Mills, Pipes, Tanks, T-Pieces, and more.

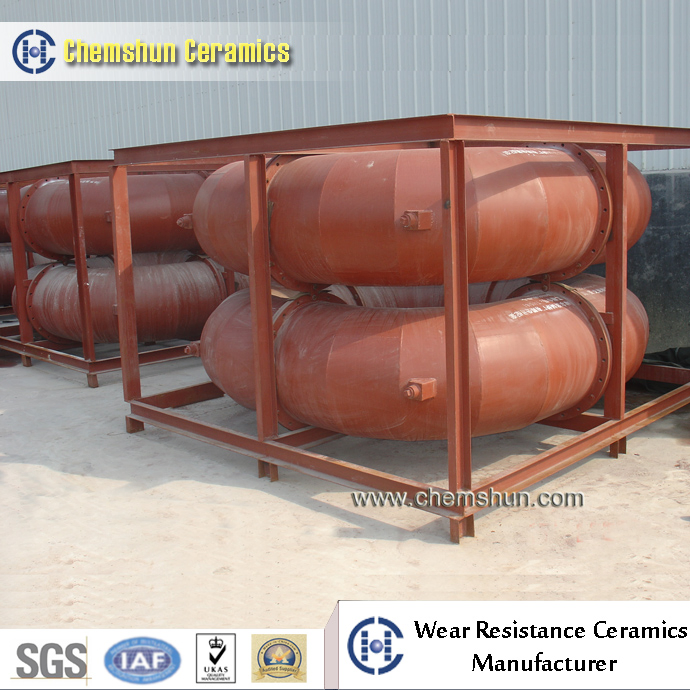

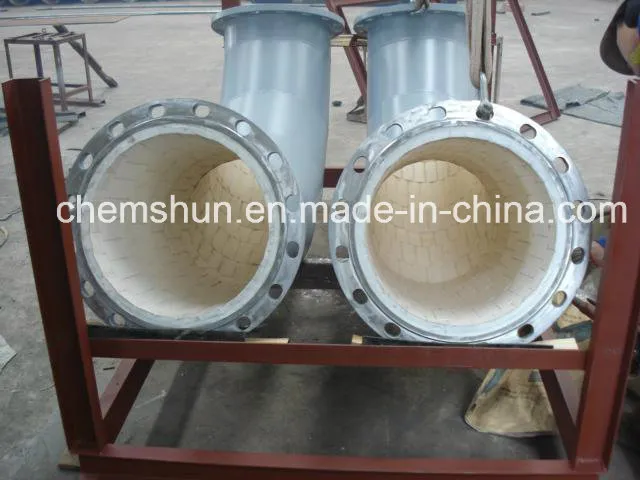

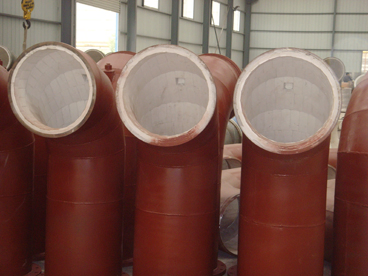

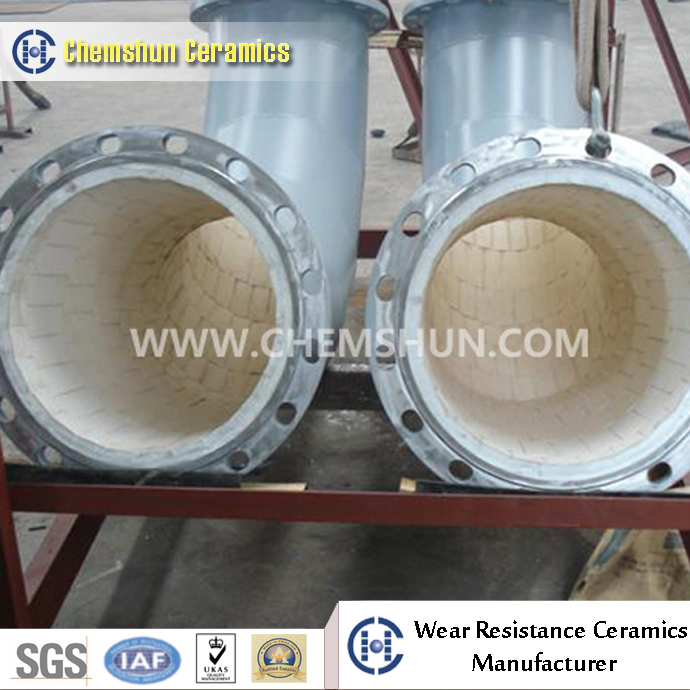

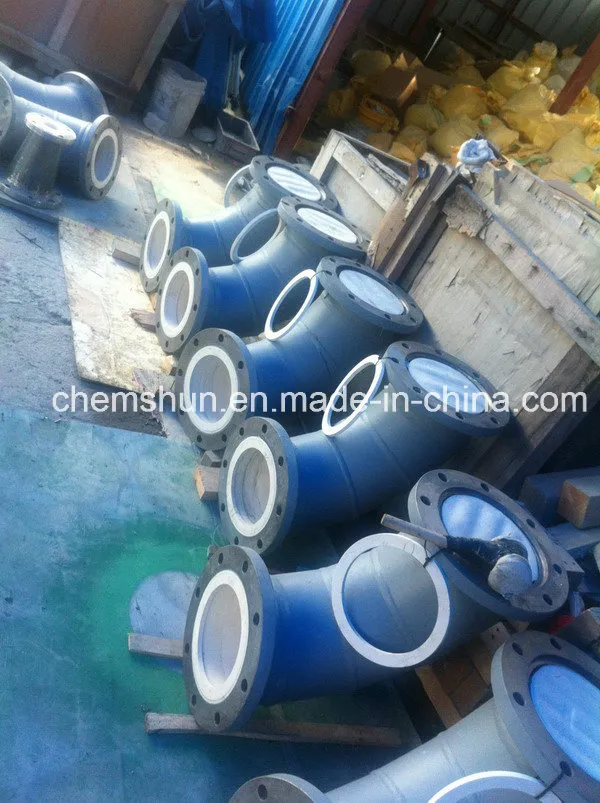

Appearance of Wear-Resistant Elbows
Technical Data
| Al2O3 |
SiO2 |
CaO |
MgO |
Na2O |
| 92~93% |
3~6% |
1~1.6% |
0.2~0.8% |
0.1% |
Physical Properties
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (Mpa) | 334 |
| Compressive strength (Mpa) | 1770 |
| Rockwell hardness (kg/mm²) | 918 |
| Moh's hardness (scale) | ≥9 |
Frequently Asked Questions
Q1: What is the main material used in these pipes?
A1: The inner lining is made of 92-95% Alumina Ceramic, which provides superior abrasion resistance, while the outer housing is seamless carbon steel.
Q2: Can these ceramic elbows withstand high temperatures?
A2: Yes, they are designed to operate efficiently in temperatures ranging from -50 up to 800 degrees centigrade.
Q3: What industries benefit most from ceramic lined pipes?
A3: Key industries include mining, mineral processing, power generation (coal-fired plants), cement production, and steel manufacturing.
Q4: Are the sizes and shapes customizable?
A4: Absolutely. We provide customized sizes (DN40-DN600) and various shapes including elbows, bends, Y-pieces, and T-pieces based on specific project demands.
Q5: How is the ceramic lining attached to the steel pipe?
A5: The ceramics are typically attached using high-strength adhesive bonding, ensuring they remain firmly in place even under high velocity (20-35m/s).
