Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline inner diameters.

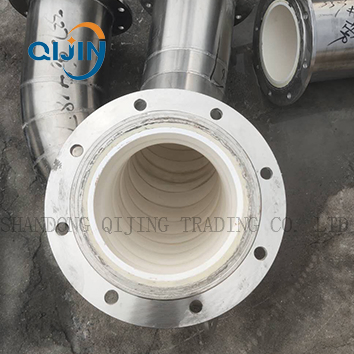

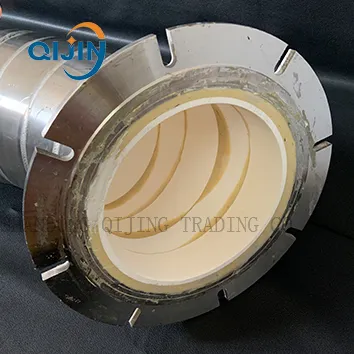

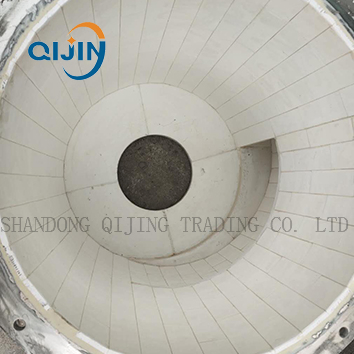

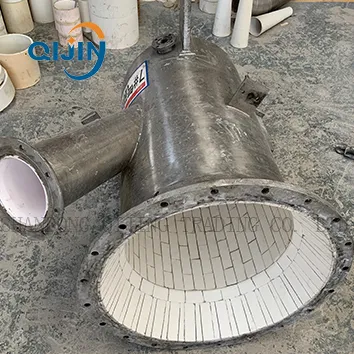

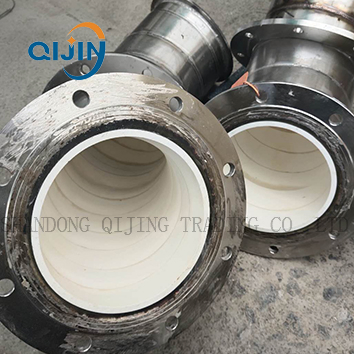

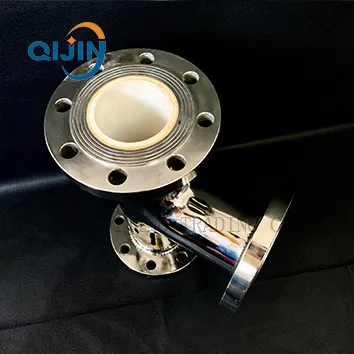

Ceramic-lined wear-resistant steel pipes are widely used in:

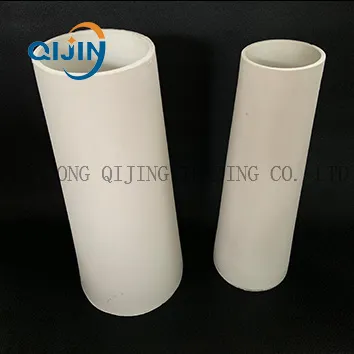

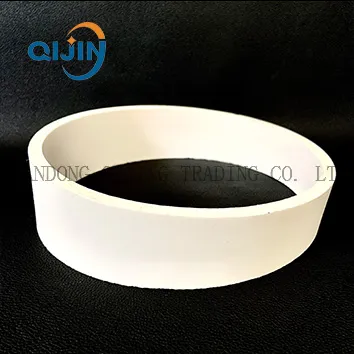

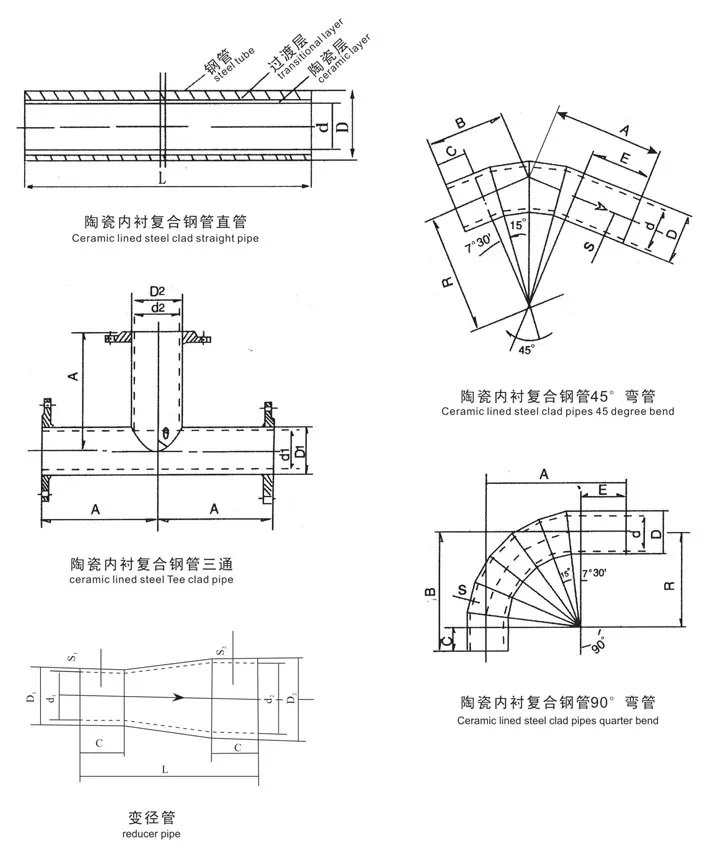

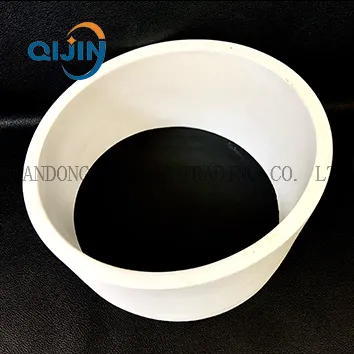

| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
|---|---|---|---|---|---|---|

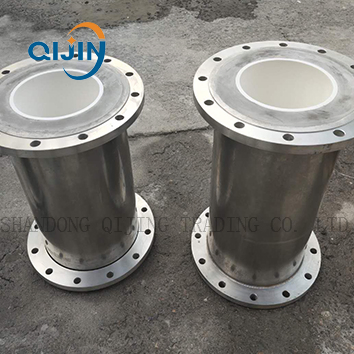

| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 152 | 182 | 15 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 101 | 131 | 15 | / | 500 | 5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Bend | 151 | 181 | 15 | / | 750 | 7.5 |

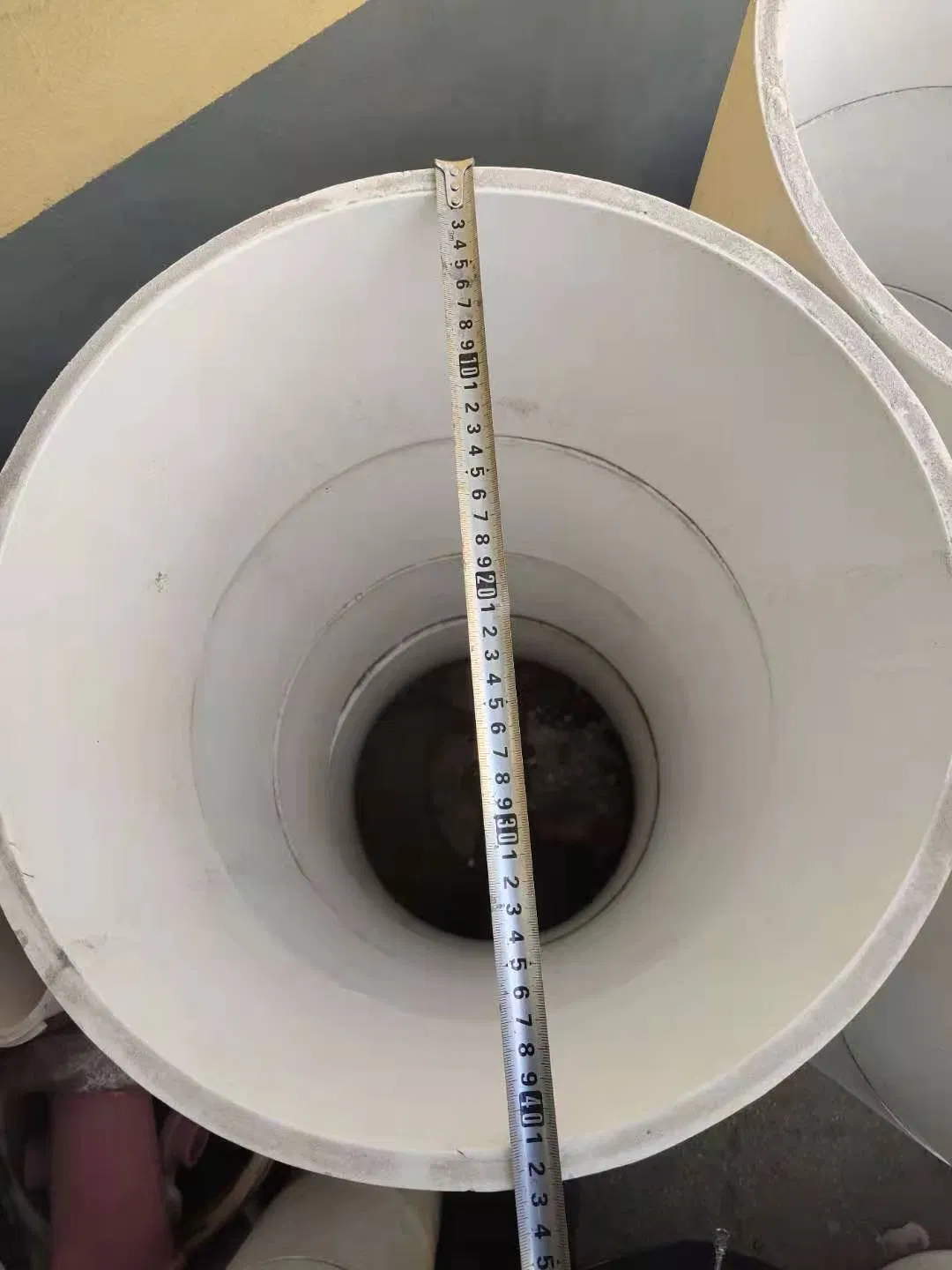

| Ceramic pipe sizes range: 10~500 mm | ||||||
1. Put gently during transportation to avoid serious collision, especially avoiding direct contact with metal instruments on the ceramic layer.
2. Installation is directional. Follow the arrow direction indicated on the surface consistent with the medium flow.
3. Align with the center line; displacement should be controlled within 1.0mm.
4. For flexible joints, adjust inserted lengths symmetrically. Expansion clearance can be reduced by 3-5mm.
5. Flange ends must be flush with the composite pipe end.
6. Welding is possible: 45°-60° "V" type slope angle (2-4mm) and gap (0.8-1.2mm).
