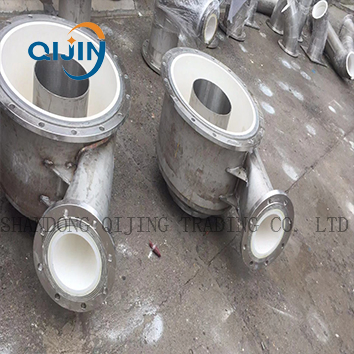

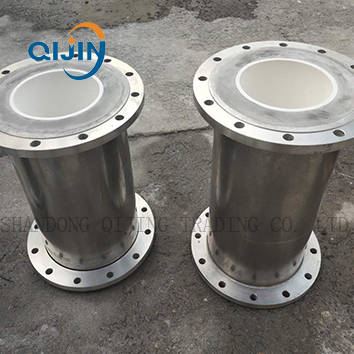

High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
1 / 5
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System
High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System

High Purified Alumina Ceramic Lined Steel Pipe for Abrasive Resistant Conveying System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
ceramic liner
Material
Alumina Ceramic, Zta, Zironia, Sic
Type
Straight Pipe, Elbow, Tee, Reducer etc
Lining Hardness
900-1500hv
Lining Thickness
3-50mm
Delivery
25 Days
Metal Casing
Carbon Steel, Stainless Steel
Transport Package
Wooden Box
Specification
customizable
Production Capacity
50000 Pieces a Year
Product Description
Industrial Ceramics are ideal wear-resistant and corrosion-resistant pipelines, used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline inner diameters.

Common Applications:
  • Coal-fired power plants: Ash removal, slag discharge, powder feeding and returning pipes.
  • Mining Industry: Coal water slurry, coal washing slime, mine filler, pulverized coal.
  • Metal Mines: Pipeline transportation of concentrates and tailings.
  • Metallurgy: Blast furnace coal injection and slag conveying pipelines.
  • Steel-making: Conveying ferroalloys and refining outside the furnace.
  • Cement plants.

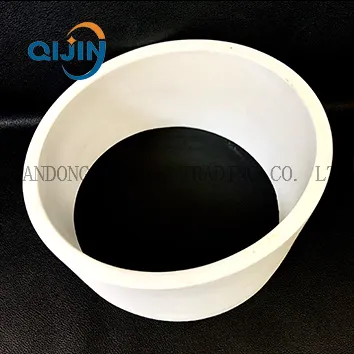

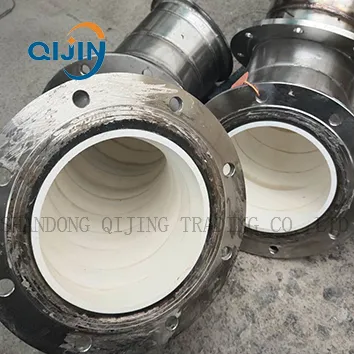

Ceramic Lined Steel Pipe High Purified Alumina Ceramic
Available Pipe Sizes
ProductID(mm)OD(mm)Thickness(mm)Length(mm)R(mm)Degree
Straight Tube7610615150-250//
Straight Tube10014020305//
Straight Tube15018517.5150-250//
Bend7610615/4007.5
Bend15018517.5/15003
Ceramic Pipe Advantages:
✔ High hardness
✔ Superior abrasion
✔ Chemical resistance
✔ Light weight
✔ Low maintenance
✔ Good fluidity

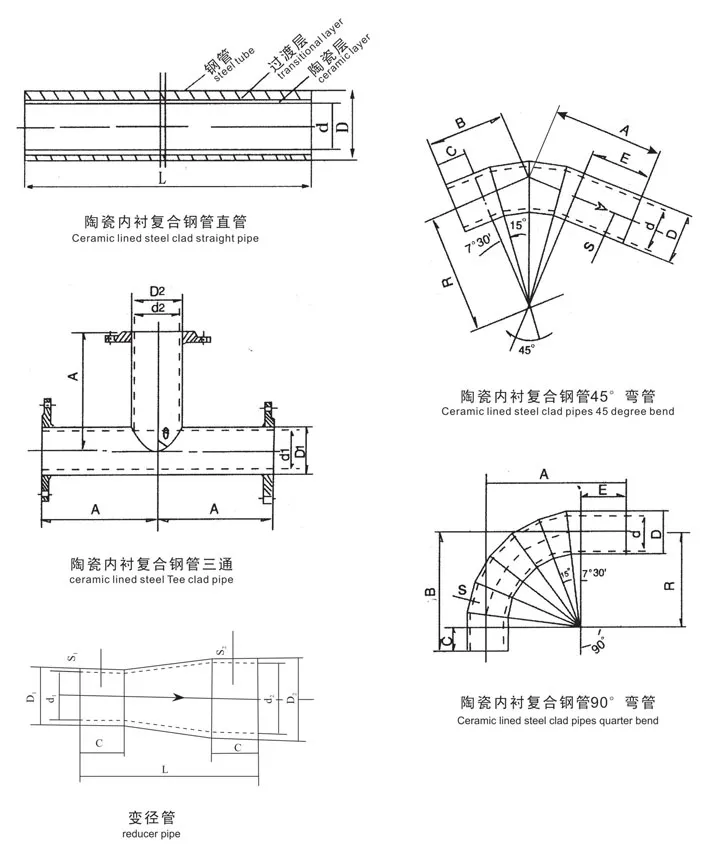

Product Detail
Transport and Installation
  1. Handle gently to avoid serious collision or impact on the ceramic layer.
  2. Follow direction arrows consistent with medium flow.
  3. Align with center line; displacement should be within 1.0mm.
  4. Adjust flexible pipe joints symmetrically for thermal expansion.
  5. Flange ends must be flush with the composite pipe end.
  6. Standard welding: 45°-60° V-type slope, 0.8-1.2mm gap.
Packaging Details

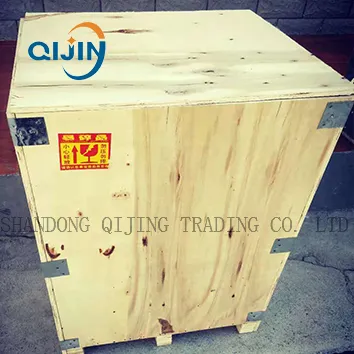

Wooden Box Packaging

Standard fumigated wooden box for export. PE film protection available.

Secure Loading

Weight capacity: 500KG - 1.2T per unit based on order requirements.

Frequently Asked Questions
Are you a manufacturer or trading company?
We are a specialized factory focused on industrial ceramic production.
How long is the typical delivery time?
Generally, it is 15 days for stock mould sizes and 25 days for custom sizes, depending on the order quantity.
Do you provide samples? Is there a cost?
Yes, we offer stock samples free of charge, although customers are responsible for the freight cost.
What are your payment terms?
For new customers, 100% T/T in advance. For regular clients, 30% T/T in advance and the balance against the B/L copy.
What is the range of ceramic pipe sizes available?
Our ceramic pipe sizes range from 10mm up to 500mm in diameter, with customizable lengths.
What materials are used for the outer casing?
We typically use Carbon Steel or Stainless Steel for the metal casing to provide high structural integrity.
