Main business: industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment and accessories, pulping equipment and accessories, papermaking dewatering equipment and accessories, pulping equipment and accessories, papermaking dewatering equipment and accessories, slag removal Equipment and accessories, wear-resistant pipes, mining equipment and accessories, alumina ceramic parts, thermocouple protection tubes, special-shaped fittings, pipe liner patch, pipe liner pipe, wear-resistant refractory ceramic parts, elbows, tees, Production and sales of electronic insulation materials.
Customer first, quality first! Your satisfaction is our unremitting pursuit! As long as you request, we will complete the rest. Hand in hand with you to create brilliant!
1. Handling: The ceramic composite pipe has high hardness and good toughness, but it should be put gently during transportation to avoid serious collision, especially avoiding direct impact on the ceramic layer.

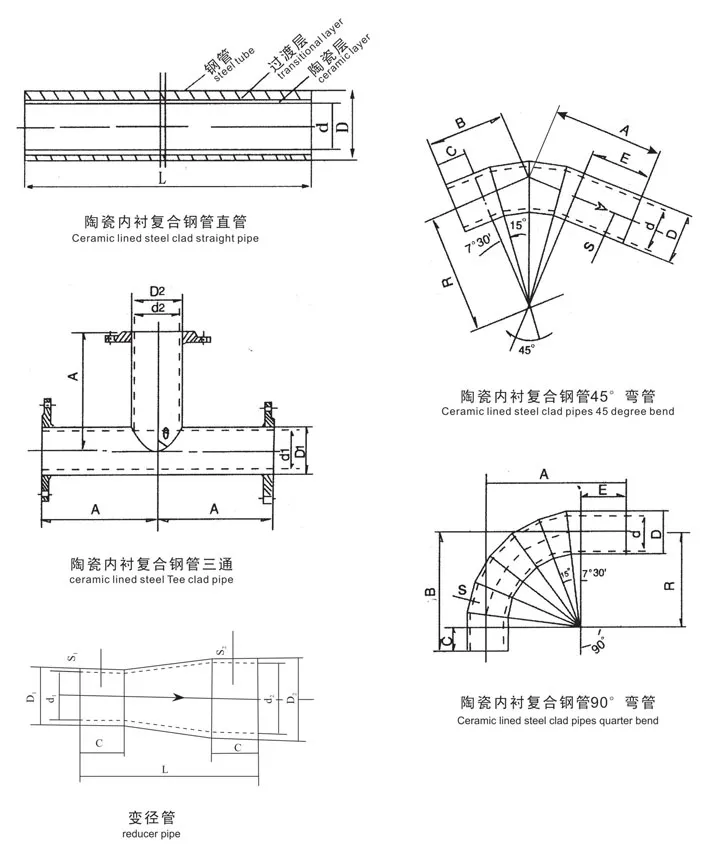

2. Directivity: The bending pipe is installed with directivity. The arrow on the surface should be consistent with the flow direction of the medium.
3. Alignment: Pipes should be aligned with the center line and level adjusted. Displacement should be controlled within 1.0mm.
4. Flexible Joints: When using flexible joints, inserted lengths should be adjusted symmetrically. Expansion clearance can be reduced by 3-5mm due to low thermal expansion.

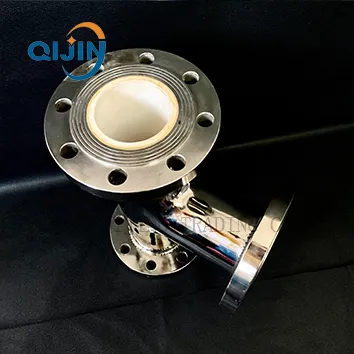

5. Flange Connection: The flange end shall be flush with the end of the composite pipe.
6. Welding: For pipe connection by welding, use a 45°-60° "V" type slope angle of 2-4mm and a gap of 0.8-1.2mm.
