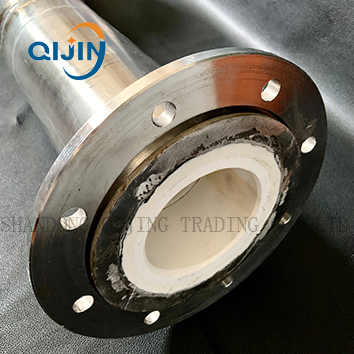

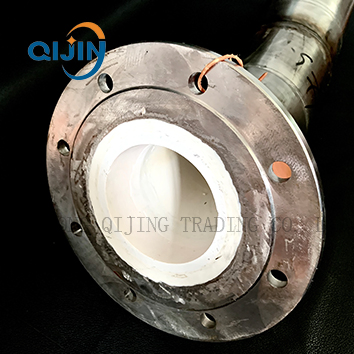

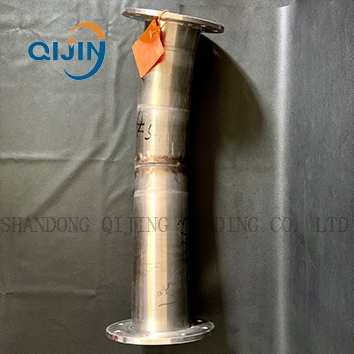

China Factory Wear Ceramic Lined Seamless Steel Pipe and Fittings

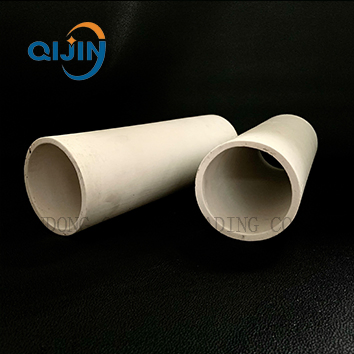

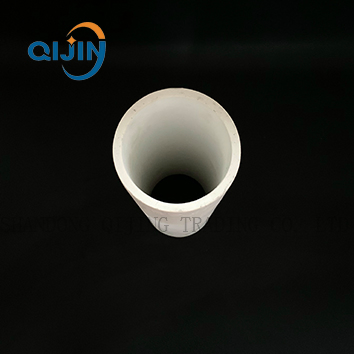

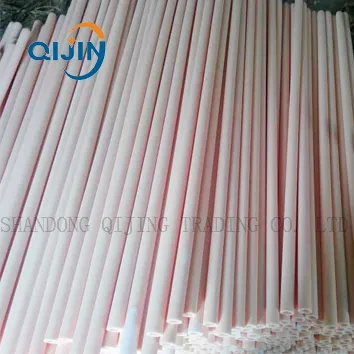

The aluminum oxide profile has excellent electrical insulation, high mechanical strength and super wear resistance, chemical corrosion resistance and high temperature resistance. It is widely used in power industry, coal industry, metallurgy industry, chemical industry, etc. As abrasive particle materials and corrosive medium for transporting sand, coal, ash, aluminum liquid, etc., it is an ideal wear-resistant corrosion-corroded pipeline and suitable for different high-temperature pipe inner diameter.

1. The ceramic composite pipe should be put gently during transportation to avoid serious collision or impact on the ceramic layer.
2. Installation is directional; follow the arrow indicating the flow direction of the conveying medium.
3. Align with the center line and adjust levels precisely; displacement should be within 1.0mm.
4. For flexible joints, adjust inserted lengths symmetrically. Expansion clearance can be reduced by 3-5mm.
5. Flange ends must be flush with the composite pipe end.
6. Pipe connection can be conducted by welding. Use 45°-60° "V" type slope angle (2-4mm) and 0.8-1.2mm gap.
