Wear Resistant Ceramic Lined Pipe Fittings for Pneumatic Conveying Powder Handling

Basic Information

Model NO.:pipe

Length:Custom

Temp Resistance:<260 degree C

Lining Material:Alumina Ceramic, Zta, Zirconia, Sic

Industries:Thermal Power, Mineral, Steel Plant etc

Transport Package:Wooden Box

Specification:ID15-540

Trademark:QIJING

HS Code:6909120000

Production Cap.:50000 Pieces/Year

Product Description

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline inner diameters.

Commonly used in:

Mine: Coal water slurry, coal washing slime, mine filler, pulverized coal.
Metal mines: Pipeline transportation of concentrates and tailings.
Metallurgy: Blast furnace coal injection and slag conveying pipelines.
Steel Plants: Conveying ferroalloys and refining outside the furnace.
Cement plants: Ash removal and powder feeding systems.

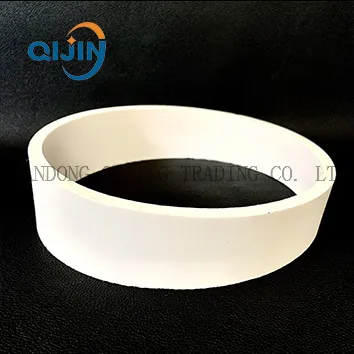

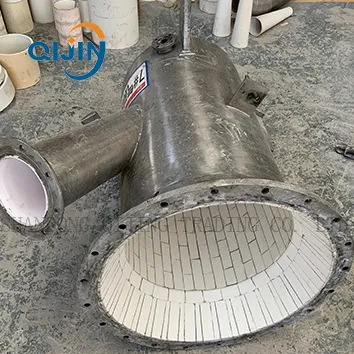

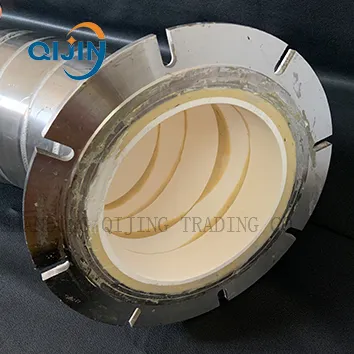

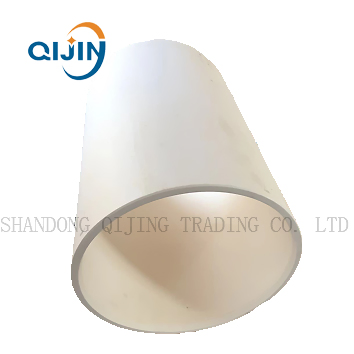

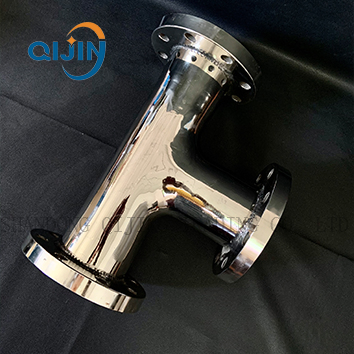

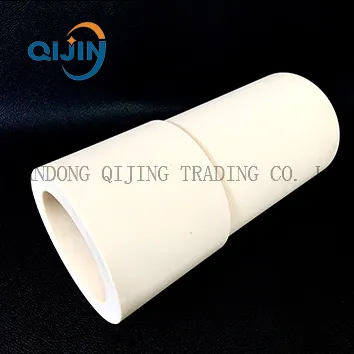

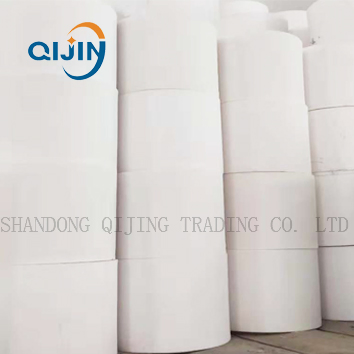

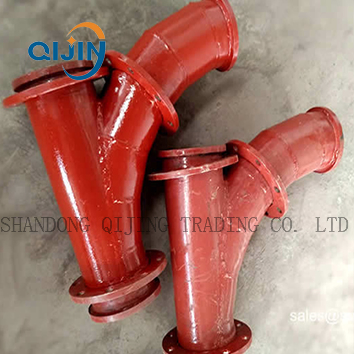

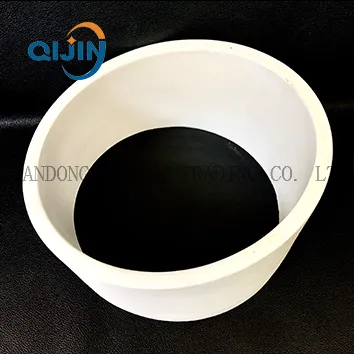

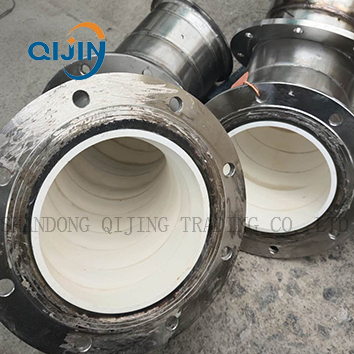

Photo Display

Ceramic Pipe Advantages

High hardness and superior abrasion resistance.
Corrosion and chemical resistance.
Light weight for easier handling.
Low maintenance cost due to high durability.
Good fluidity: Smooth surface ensures free flow without blocking.

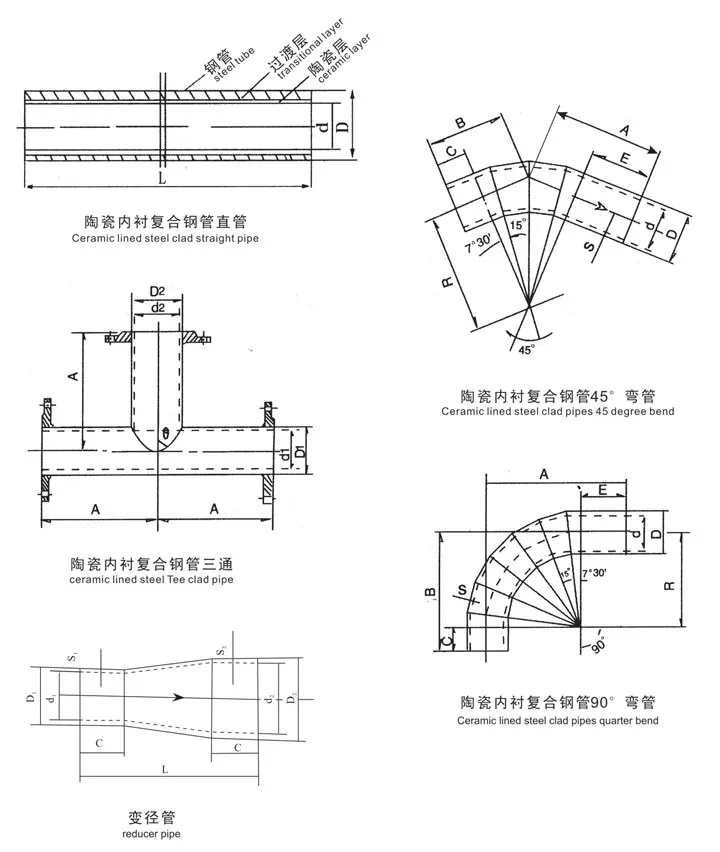

Pipe Sizes & Specifications

Product	ID(mm)	OD(mm)	Thickness(mm)	Length(mm)	Degree
Straight Tube	76	106	15	150-250	/
Straight Tube	100	140	20	305	/
Straight Tube	150	185	17.5	150-250	/
Bend	76	106	15	/	7.5
Bend	150	185	17.5	/	3

* Size range: 10mm ~ 500mm available.

Material Specifications

Alumina Content (%)	≥92	≥95	≥97	≥99
Fe2O3 (%)	≤0.2	≤0.15	≤0.15	≤0.1
Hardness (Mohs)	≥8	≥9	≥9	≥9
Density (g/cm3)	≥3.60	≥3.65	≥3.75	≥3.9

Installation Precautions

1. Handle gently to avoid collision and damage to the internal ceramic layer.
2. Bending pipes are directional; follow the arrow for flow direction.
3. Alignment: Ensure center lines are adjusted; displacement should be within 1.0mm.
4. Welding: Connection can be conducted by welding with 45°-60° V-type slope angles.

Packaging & Delivery

The normal package is a fumigated wooden box for export. Special PE film packing is available upon request.

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer? A: We are a specialized manufacturing factory for industrial ceramics.

Q2: How long is the delivery time? A: Generally 15 days for in-stock sizes, or 25 days for custom production depending on quantity.

Q3: Do you provide samples for testing? A: Yes, we offer stock samples for free, though freight costs are the responsibility of the requester.

Q4: What are the primary industries using your products? A: Our products are widely used in thermal power plants, mineral processing, steel plants, and cement industries.

Q5: Can the pipes handle high-temperature environments? A: Yes, our ceramic lined pipes are designed for temperature resistance up to 260°C.

Q6: What are your standard terms of payment? A: For new orders, 50% T/T in advance; for regular customers, 30% T/T in advance with balance against B/L copy.
