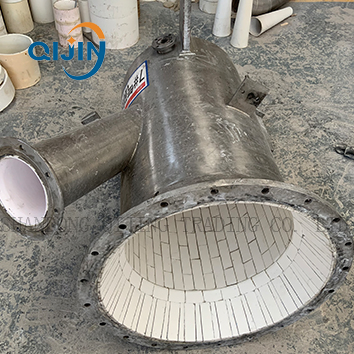

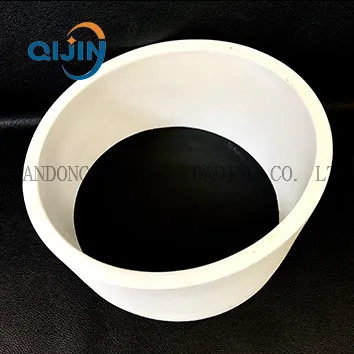

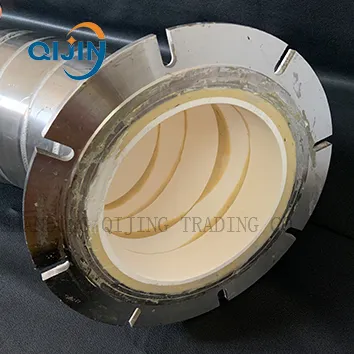

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline inner diameters.
Commonly used in:

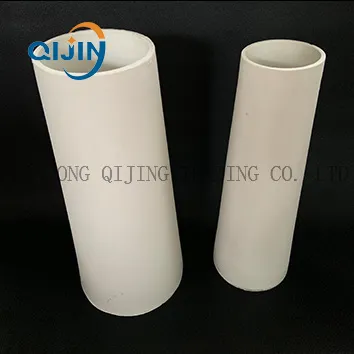

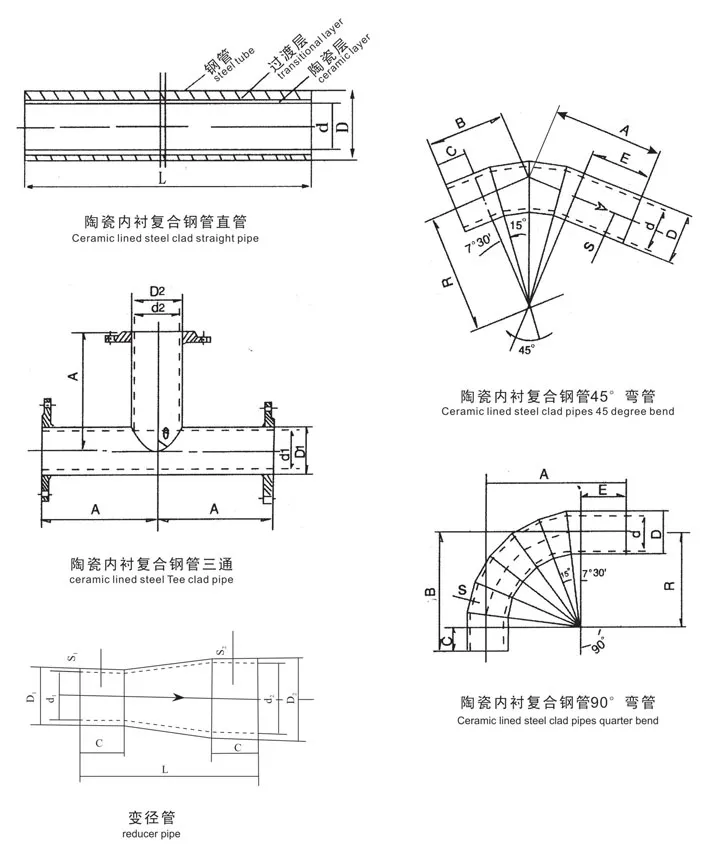

| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
|---|---|---|---|---|---|---|
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Ceramic pipe sizes range: 10~500 mm | ||||||
1. Handle gently during transportation to avoid serious collision or direct contact with metal instruments.
2. Directional installation: Follow the arrow direction on the surface for medium flow.
3. Alignment: Ensure center line alignment; displacement should be within 1.0mm.
4. Flexible joints: Adjust symmetrically; expansion clearance can be 3-5mm.
5. Flange connection: Flange end must be flush with the composite pipe end.
6. Welding: Can be conducted using "V" type slope angle 45°-60°.
