Basic Info.
Installation Method
Adhesive Bonding
Lining Hardness
900-1200hv
Transport Package
Wooden Box
Specification
customizable
Production Capacity
5000000
Packaging & Delivery
Package Size
150.00cm * 100.00cm * 800.00cm
Package Gross Weight
1000.000kg
Product Description
Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as an abrasive material and corrosive medium.
It is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, and is suitable for different high-temperature pipeline inner diameters.
Ceramic pipes includes:

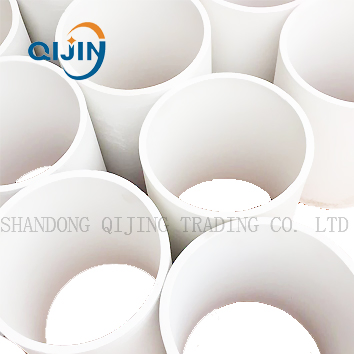

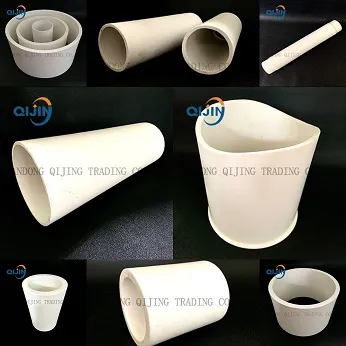

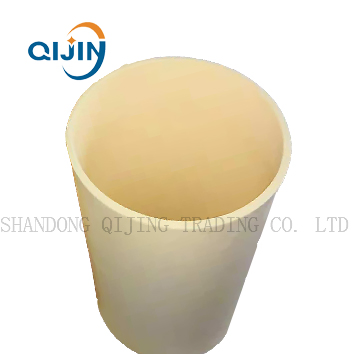

- alumina ceramic straight pipe
- ceramic pipe cone

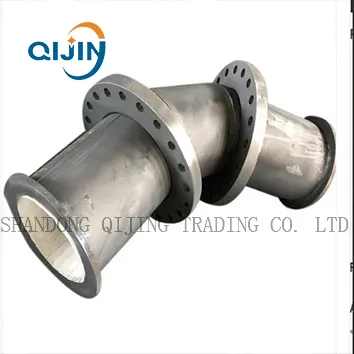

- ceramic bend elbow pipe liner

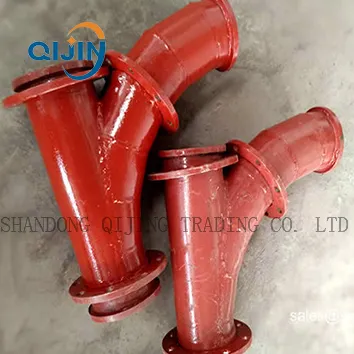

- ceramic Y-shape pipe

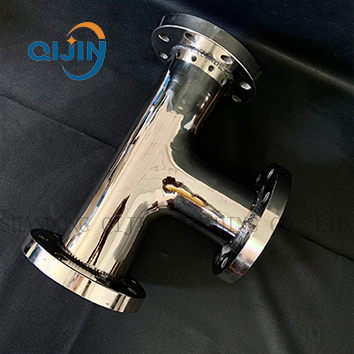

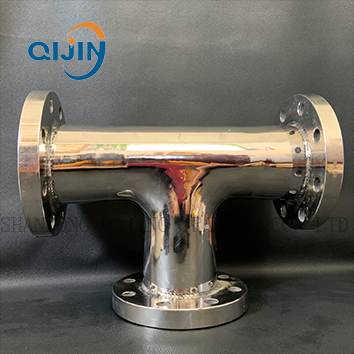

- ceramic T-shape pipe
- ceramic curved pipe tile liner
- ceramic arc pipe tile liner

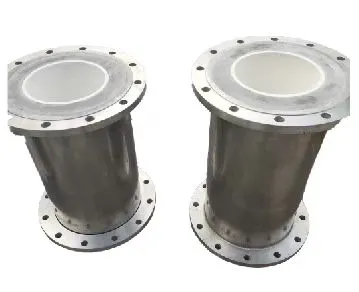

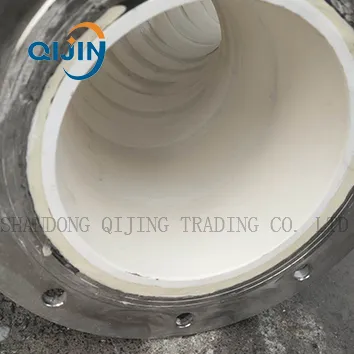

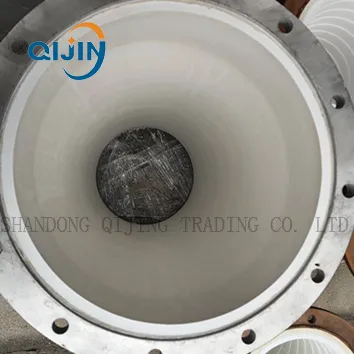

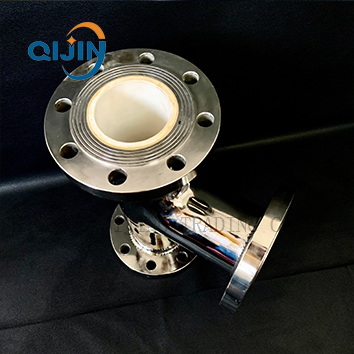

- ceramic lined steel pipeline
- custom ceramic pipe
Ceramic Pipe Advantages
- High hardness: Exceptional resistance to surface deformation.
- Superior abrasion: Long-lasting performance in abrasive environments.
- Corrosion and chemical resistance: Ideal for harsh chemical media.
- Light weight: Easier handling and installation compared to pure steel.
- Low maintenance cost: Super wear-resistance reduces maintenance frequency.
- Good fluidity: Smooth surface ensures free flow of material without blocking.
Pipe Sizes Table:
| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 152 | 182 | 15 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 101 | 131 | 15 | / | 500 | 5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Bend | 151 | 181 | 15 | / | 750 | 7.5 |
Ceramic pipe sizes range: 10 ~ 500 mm
Application:
- Mining industry
- Cement industry
- Coal handling industry
- Steel industry
- Port industry
- Power plant
Performance Index
| Performance Index | 92 Series | 95 Series |
|---|
| Al2O3 (%) | ≥ 92 | ≥ 95 |
| Moh's Hardness | 9 | 9 |
| Water Absorption Rate(%) | < 0.01 | < 0.01 |
| Flexural strength, 20C, Mpa | 275 | 290 |
| Bending strength(Mpa) | 255 | 275 |
| Bulk density(g/cm³) | ≥ 3.60 | ≥ 3.65 |
Transport and Installation Precautions
1. The ceramic composite pipe should be put gently during transportation and installation to avoid serious collision, especially direct contact with metal instruments or impact on the ceramic layer.
2. The bending pipe is installed with directivity; the arrow on the surface should be consistent with the flow direction of the medium.
3. Pipes should be aligned with the center line. Displacement of both ends should be controlled within 1.0mm.
4. For flexible pipe joints, inserted lengths shall be adjusted symmetrically. Expansion clearance can be reduced by 3-5mm.
5. For flange connections, the flange end shall be flush with the end of the composite pipe.
6. Pipe connection can be conducted by welding. Use 45°-60° "V" type slope angle (2-4mm) and gap (0.8-1.2mm).
FAQ
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 15 days if the mould sizes are in stock. If not, it is 25 days, according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer stock samples for free, but do not pay the cost of freight.
Q: What are your terms of payment?
A: For new customers, 100% T/T in advance. For regular customers, 30% T/T in advance, balance after receiving the B/L copy.
Q: What is the maximum size of the ceramic pipe?
A: Our ceramic pipe sizes range up to 500 mm in diameter.
Q: Can the ceramic shapes be customized?
A: Yes, we provide custom shapes and specifications to meet specific industrial requirements.
