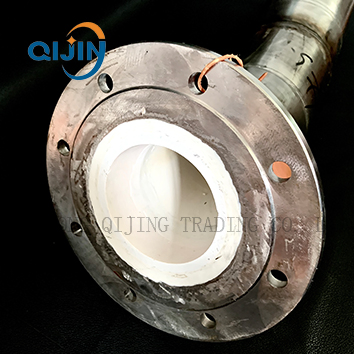

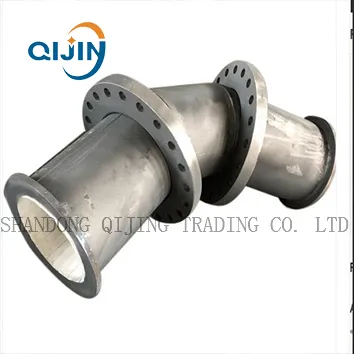

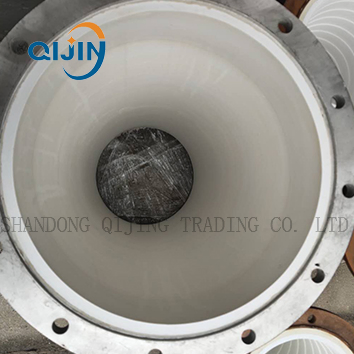

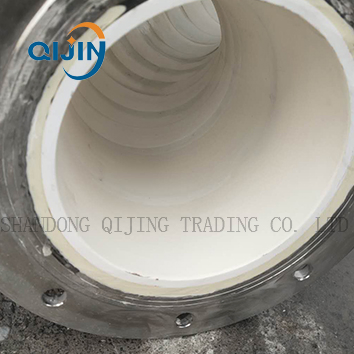

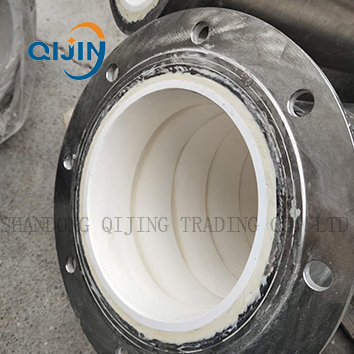

Factory Custom Ceramic Lined Bending Pipe for Limestone Conveying System

Still deciding? Get samples of $ !
Request Sample

Product Description

Product Overview

Main business: industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment and accessories, pulping equipment and accessories, papermaking dewatering equipment and accessories, slag removal Equipment and accessories, wear-resistant pipes, mining equipment and accessories, alumina ceramic parts, thermocouple protection tubes, special-shaped fittings, pipe liner patch, pipe liner pipe, wear-resistant refractory ceramic parts, elbows, tees, production and sales of electronic insulation materials.

Customer first, quality first! Your satisfaction is our unremitting pursuit! As long as you request, we will complete the rest. Hand in hand with you to create brilliant!

Basic Information
Model NO.:Alumina ceramic
Material:Alumina Ceramic

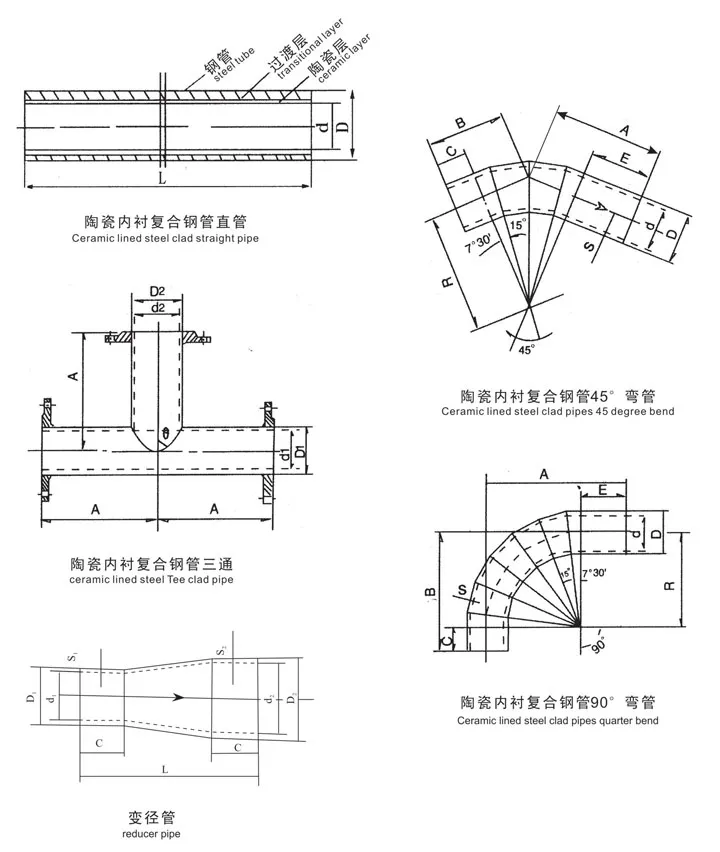

Type:Straight, Bends, Tee, Reducer
Lining Thickness:5-30mm
Alumina Content:95% Alumina
Lining Hardness:900-1200hv
HS Code:6909120000
Density:3.6 - 5.9 g/cm3
Technical Specifications
Property Value Property Value
Thickness 3~50mm or as Request Content 92% Alumina, 95% Alumina, T95, Zta
Compressive Strength More Than 1050 MPa Capacity 15,000 Tons
Delivery Time 25-40 Days Samples Free Samples Available
Industry Applications
Industry Equipment System Equipment Parts
Cement Raw mill & Sintering system Chute, bunker, fan vane wheel, cyclone, circular duct
Steel Feeding & Batching system Hopper, silo, mixing barrel, disk pelletizer
Thermal Power Coal handling & Dedusting Coal mill elbow, straight tube, fan duster shell
Mining Transporting material system Hopper, silo
Installation Precautions
Avoid serious collision during transportation to protect the end surface ceramic layer.
Bending pipes must be installed following the direction arrow consistent with medium flow.
Align pipes with the center line; displacement should be controlled within 1.0mm.
For welding, use 45°-60° "V" type slope angle (2-4mm) and 0.8-1.2mm gap.
Packaging
Frequently Asked Questions
Q: Are you a trading company or a manufacturer? A: We are a factory.
Q: How long is the delivery time? A: Generally 15 days if mould sizes are in stock, or 25 days if not, depending on the quantity.
Q: Do you provide samples? Is it free? A: Yes, we offer stock samples for free, but freight costs are not included.
Q: What are your terms of payment? A: New customers: 100% T/T in advance. Regular customers: 30% T/T in advance, balance against B/L copy.
Q: What is the main material of the lining? A: We primarily use 92% to 95% Alumina Ceramic for high wear resistance.
Q: Can the pipe specifications be customized? A: Yes, the thickness and dimensions are fully customizable based on your request.
