Xingli Industrial Ceramics
1 / 5

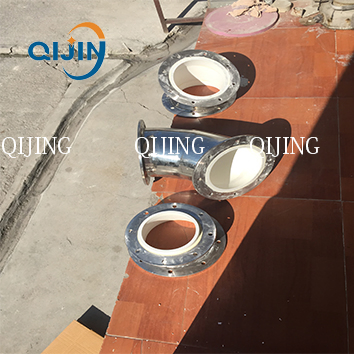

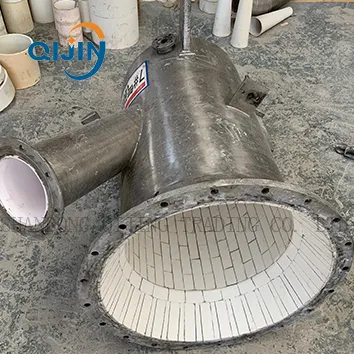

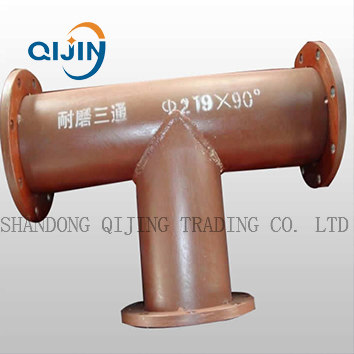

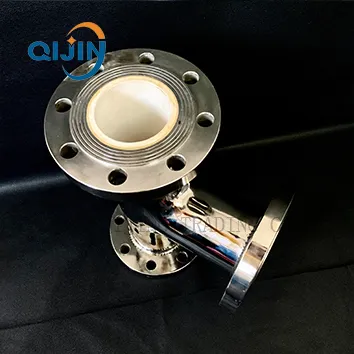

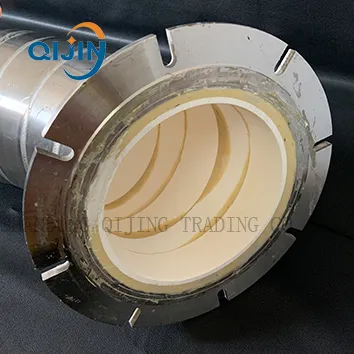

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as an abrasive material and corrosive medium. These ceramics provide an ideal wear-resistant and corrosion-resistant pipeline solution for transporting sand, coal, ash, and aluminum liquid, suitable for various high-temperature pipeline diameters.
Primary Applications:

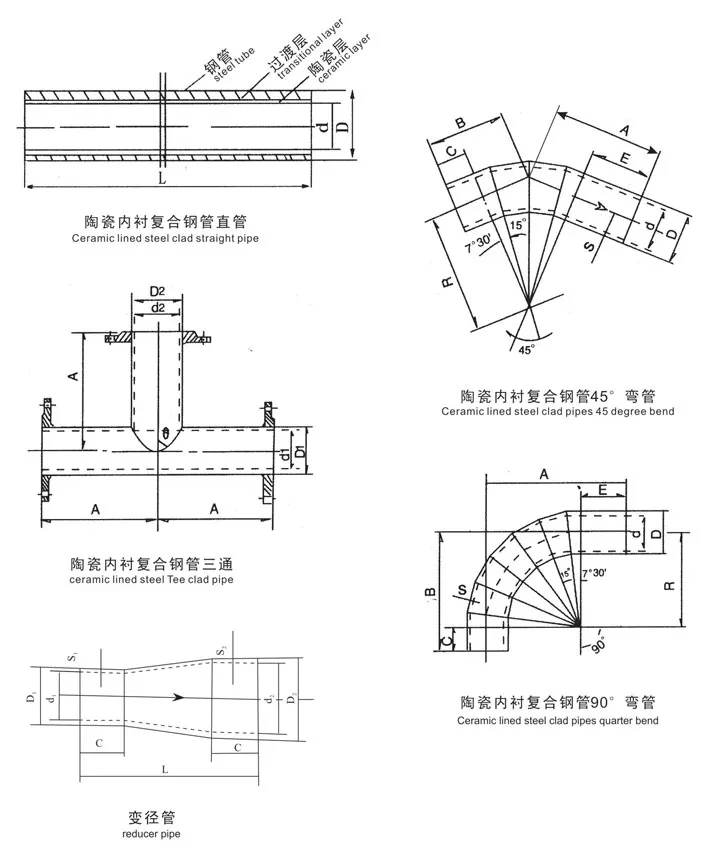

| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
|---|---|---|---|---|---|---|

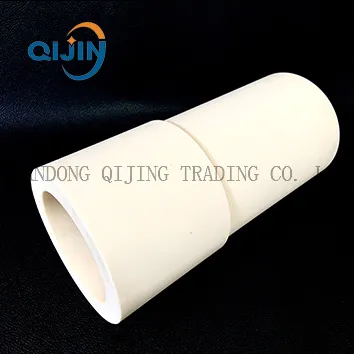

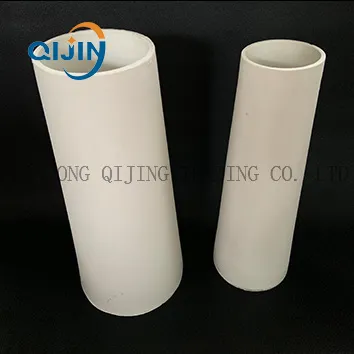

| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Alumina Content (%) | 92 | 95 | 97 | 99 |
|---|---|---|---|---|
| Al2O3(%) | ≥92 | ≥95 | ≥97 | ≥99 |
| Hardness | ≥8 | ≥9 | ≥9 | ≥9 |
| Density (g/cm3) | ≥3.60 | ≥3.65 | ≥3.75 | ≥3.9 |
1. Handle gently during transportation to avoid serious collision or impact on the ceramic layer.
2. Bending pipes must follow the direction indicated by the arrow on the surface.
3. Align pipes with the center line and adjust levels precisely (displacement within 1.0mm).
4. When welding, use a 45°-60° "V" type slope angle.
Normal packaging consists of fumigated wooden boxes. PE film may be used for tight container packing or according to special customer requests.
