Basic Information
Material
Alumina Ceramic, Carbon Steel, Stainless Steel
Temperature Rating
< 800 Degree C.
Lining Hardness
900-1200hv
Application Field
Power Plant, Steel Plant, Mineral, Powder Handling
Transport Package
Wooden Box
Product Description

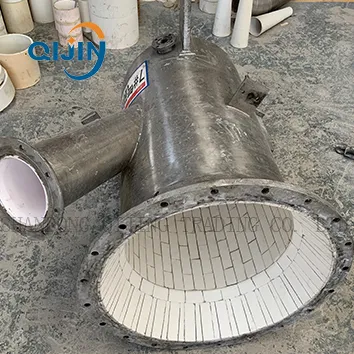

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, and is suitable for different high-temperature pipeline inner diameters.
Main Application Areas:
- Mine: Coal water slurry, coal washing slime, mine filler, pulverized coal. Metal mines: pipeline transportation of concentrates and tailings.
- Metallurgy: Blast furnace coal injection and slag conveying pipelines in iron and steel plants; refining outside the furnace.
- Cement Plant: Various abrasive material handling.
Ceramic Pipe Advantages
High Hardness
Superior Abrasion Resistance
Corrosion and Chemical Resistance
Light Weight
Low Maintenance Cost
Good Fluidity & Smooth Surface
Pipe Sizes & Specifications
| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Bend | 101 | 131 | 15 | / | 500 | 5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
Alumina Content Specifications
| Al2O3(%) | ≥92 | ≥95 | ≥97 | ≥99 |
| Hardness | ≥8 | ≥9 | ≥9 | ≥9 |
| Density(g/cm3) | ≥3.60 | ≥3.65 | ≥3.75 | ≥3.9 |
Transport and Installation Precautions
- Handle gently during transportation to avoid serious collision, especially avoiding direct contact with metal instruments on the ceramic layer.
- Bending pipes should be installed according to the flow direction indicated by the arrow.
- Pipes should be aligned with the center line; displacement should be controlled within 1.0mm.
- For flexible pipe joints, adjust inserted lengths symmetrically. Expansion clearance can be reduced by 3-5mm.
Packaging Details
Normal packaging is wooden box. For export to European countries, wooden boxes will be fumigated. PE film may be used for tight container packing or per customer request.
Frequently Asked Questions (FAQ)
Are you a trading company or a manufacturer?
We are a professional factory specializing in industrial ceramics.
How long is your delivery time?
Generally it is 15 days if mould sizes are in stock, or 25 days if not in stock, depending on the quantity.
Do you provide samples? Is it free?
Yes, we can offer stock samples for free, however, the cost of freight is not included.
What are your terms of payment?
For new customers, 50% T/T in advance. For regular customers, 30% T/T in advance and balance after receiving the B/L copy.
What is the hardness of the ceramic lining?
The lining hardness ranges from 900 to 1200HV, providing superior wear resistance.
Can the pipes handle high temperatures?
Yes, these pipes are classified for high-temperature piping with a rating of up to 800 Degrees C.
