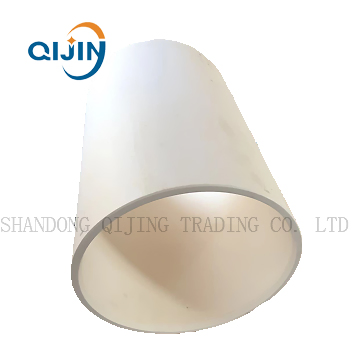

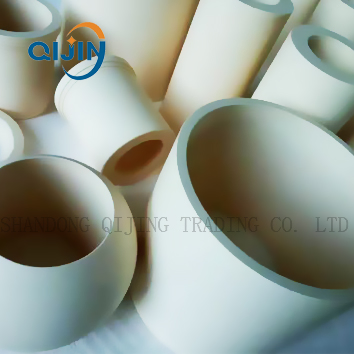

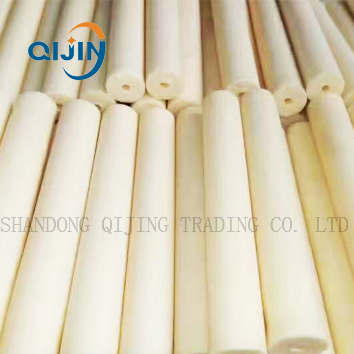

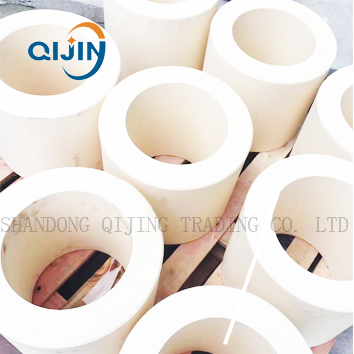

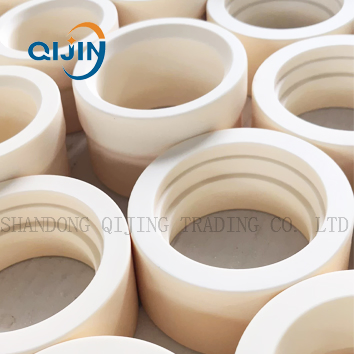

95% Alumina Ceramic Cylinder Liner for Mineral Processing Ore Pulp Transport

1 / 5

95% Alumina Ceramic Cylinder Liner for Mineral Processing Ore Pulp Transport

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:ID250

Material:Alumina Ceramic, Zta, Zironia, Sic

Type:Wear Resistant Ceramic

Hardness:1000~1500hv

Thickness:5-30mm

Pipe Type:Elbow, Tee, Reducers, Straight etc

Temperature:<260 Degree C.

Industries:Chemical, Mineral, Power Plant, Steel Plant, etc

Package:Wooden Box

Specification:ID30-450mm

HS Code:6914100000

Capacity:50000

Product Description

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline inner diameters.

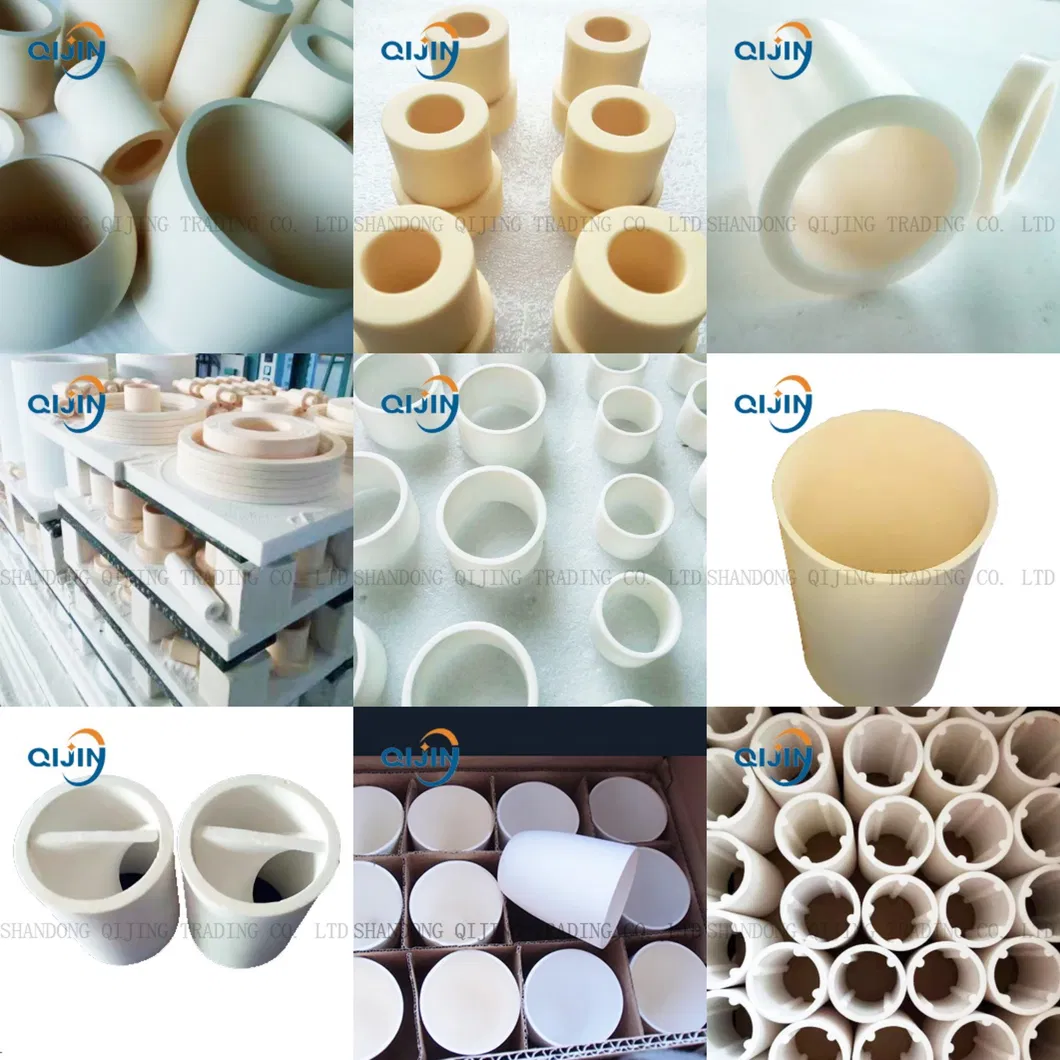

Ceramic Pipes Range

Alumina ceramic straight pipe
Ceramic pipe cone
Ceramic bend elbow pipe liner
Ceramic Y-shape pipe
Ceramic T-shape pipe
Ceramic curved pipe tile liner
Ceramic arc pipe tile liner
Ceramic lined steel pipeline
Custom ceramic pipe

Key Advantages

High hardness: Exceptional resistance to surface deformation.
Superior abrasion: Long-lasting performance in high-friction environments.
Chemical resistance: Excellent stability against corrosion.
Light weight: Easier handling and installation.
Low maintenance: Reduces frequency and operational costs.
Good fluidity: Smooth surface ensures free material flow without blocking.

Technical Specifications

Product	ID(mm)	OD(mm)	Thickness	Length	R(mm)	Degree
Straight Tube	76	106	15	150-250	/	/
Straight Tube	100	140	20	305	/	/
Straight Tube	150	185	17.5	150-250	/	/
Straight Tube	200	240	20	305	/	/
Bend	76	106	15	/	400	7.5
Bend	150	185	17.5	/	1500	3

Performance Index

Performance Index	92 Series	95 Series
Al2O3 (%)	≥ 92	≥ 95
Moh's Hardness	9	9
Water Absorption Rate	< 0.01%	< 0.01%
Bulk Density (g/cm³)	≥ 3.60	≥ 3.65

Application Industries

Mining Industry
Cement Industry
Coal Handling Industry
Steel Industry
Port Industry
Power Plants

Transport and Installation Notes

1. Handle gently to avoid serious collision, especially with metal instruments.

2. Pay attention to directivity: align arrows with the flow direction of the conveying medium.

3. Ensure center line alignment; displacement should be controlled within 1.0mm.

4. For flange connections, ensures the flange end is flush with the composite pipe end.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a factory.

Q: How long is your delivery time? A: Generally it is 15 days if the mould sizes are in stock, or 25 days if not in stock, depending on the quantity.

Q: Do you provide samples? Is it free? A: Yes, we offer stock samples for free, though freight costs are not included.

Q: What are your terms of payment? A: For new customers, 100% T/T in advance. For regular customers, 30% T/T in advance and balance after receiving the B/L copy.

Q: Can ceramic pipes be welded? A: Yes, due to excellent welding performance, pipe connection can be conducted by welding with a 45°-60° "V" type slope.

Q: What is the maximum working temperature for these pipes? A: The standard working temperature is less than 260 Degrees Celsius.
