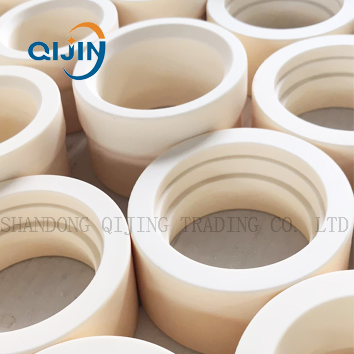

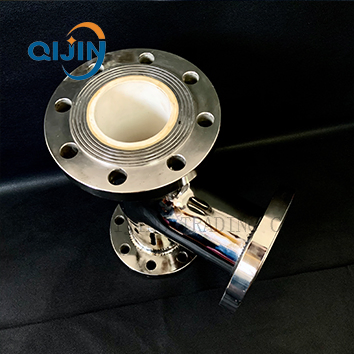

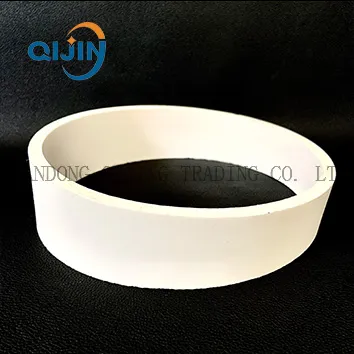

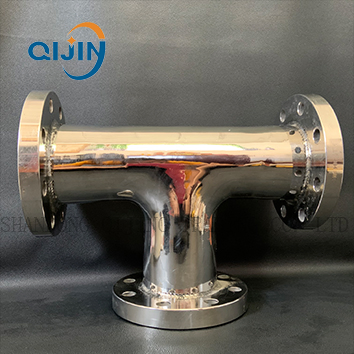

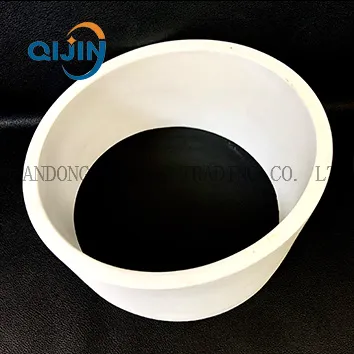

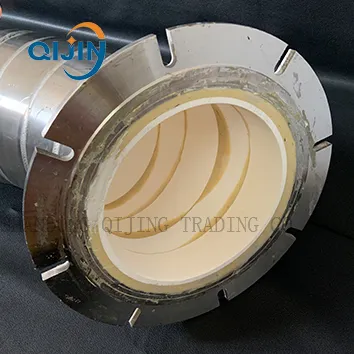

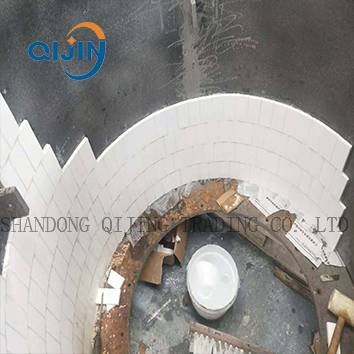

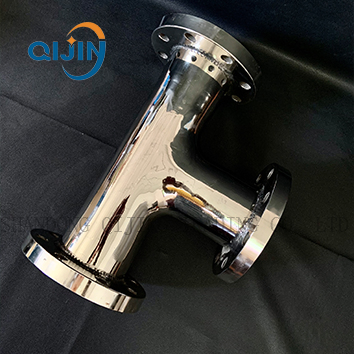

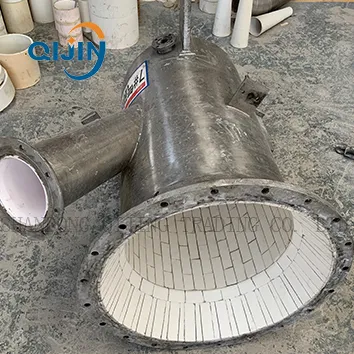

Abrasion Resistant Alumina Ceramic Lined Pipe and Fittings

ℹ️

Basic Specifications

Model NO.

Alumina ceramic

Installation

Flange Connection

Material

Alumina Ceramic, Zta, Zironia, Sic

Shape

Straight, Elbow, Tee, Reducer

Thickness

5-30mm

Standard

ISO9001

Hardness

900-1500hv

HS Code

6909120000

📘

Product Description

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline used to transport sand, coal, ash and aluminum liquid.

Key Applications:

Mine: Coal water slurry, coal washing slime, mine filler, pulverized coal.
Metal mines: Pipeline transportation of concentrates and tailings.
Metallurgy: Blast furnace coal injection and slag conveying pipelines.
Cement plants: Slag discharge and powder feeding.

Ceramic Pipe Advantages:

High hardness & Superior abrasion resistance
Corrosion and chemical resistance
Light weight & Low maintenance cost
Smooth surface ensuring good fluidity

📏

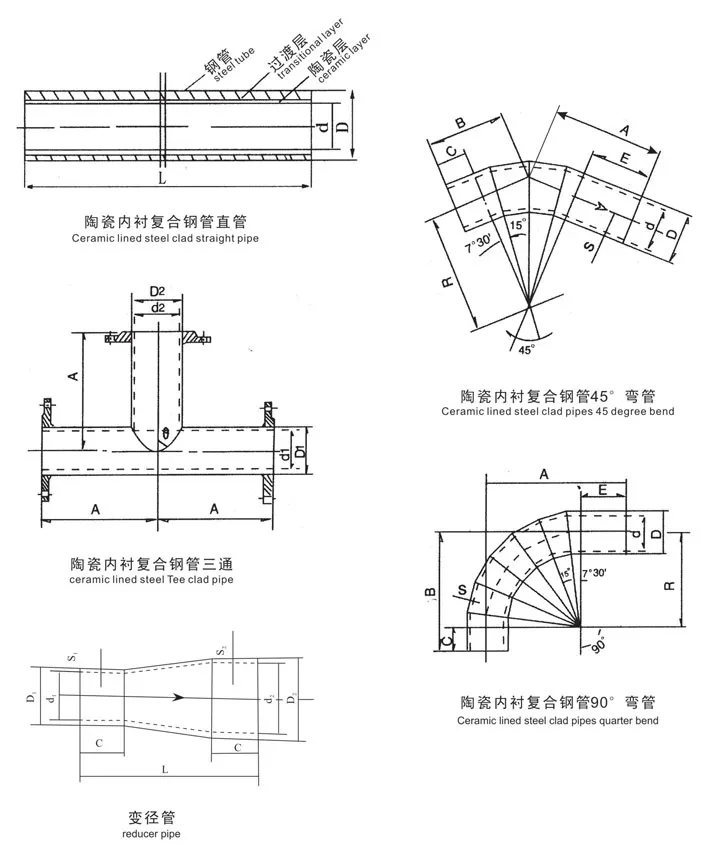

Pipe Size Specifications

Product	ID(mm)	OD(mm)	Thickness(mm)	Length(mm)	R(mm)	Degree
Straight Tube	76	106	15	150-250	/	/
Straight Tube	100	140	20	305	/	/
Straight Tube	150	185	17.5	150-250	/	/
Bend	76	106	15	/	400	7.5
Bend	150	185	17.5	/	1500	3

⚠️

Transport & Installation

1. Handle gently during transportation to avoid serious collisions with metal instruments.

2. Directional installation: Follow the arrow indicating the medium flow direction.

3. Alignment: Both ends should be aligned with a displacement control within 1.0mm.

4. Welding: Due to excellent performance, welding is possible using 45°-60° "V" type slope angles.

❓

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a professional factory specializing in industrial ceramics.

Q: How long is the delivery time? A: Generally 15 days if mould sizes are in stock; 25 days if custom sizes are required, depending on quantity.

Q: Do you provide samples? A: Yes, we offer stock samples for free (freight cost not included).

Q: What are your terms of payment? A: New customers: 100% T/T in advance. Regular customers: 30% T/T advance, balance upon B/L copy.

Q: Can the pipe sizes be customized? A: Yes, the size range typically covers 10mm to 500mm and is customizable.
