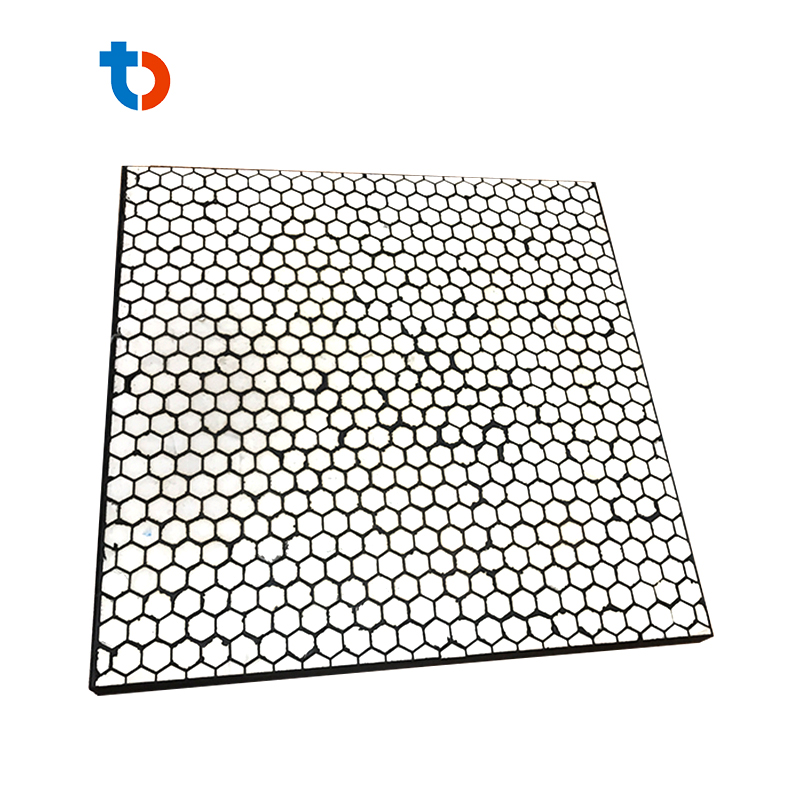

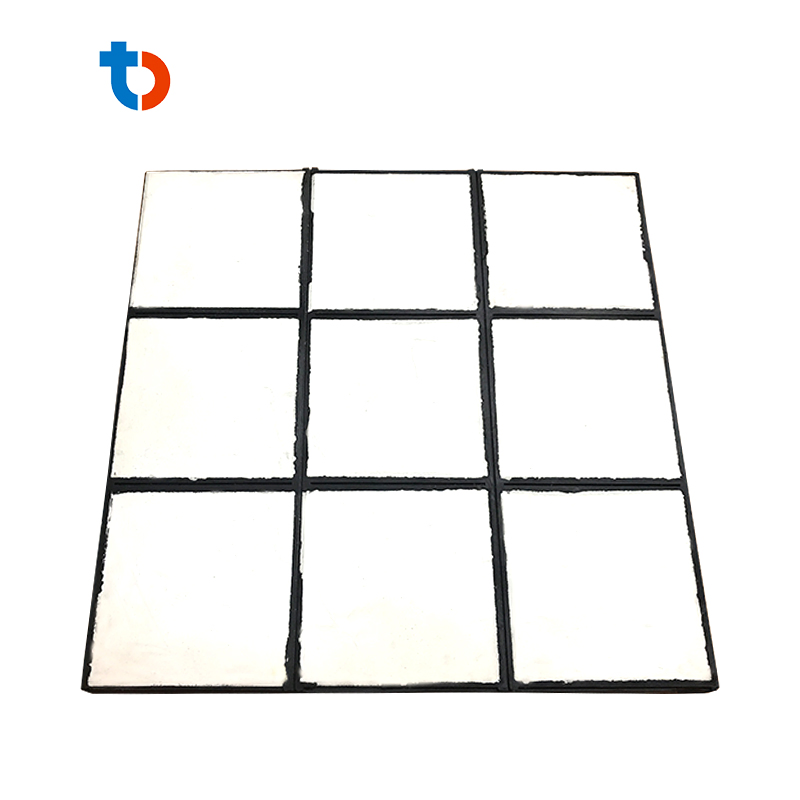

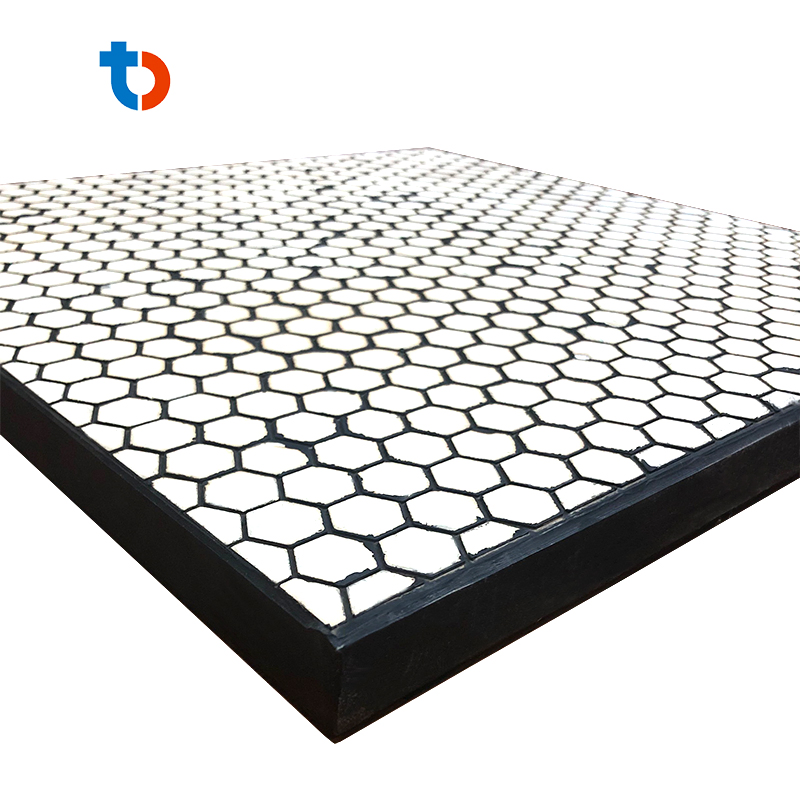

Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
1 / 5
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate
Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate

Wear Resistant Alumina Ceramic Block with Rubber Compound Lining Plate

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:2722300
Feature:Wear-resistant, Impact-resistant, Heat-resistant, Corrosion-resistant, Insulating
Raw Materials:Natural Rubber, Alumina Ceramic
Tear Strength:≥520kn
Process:Hot Vulcanizing Process
Alumina Content:95%
Size:Customizable
Application:Mining, Steel, Cement, Power Plants
Product Description
Rubber and Ceramic Composite

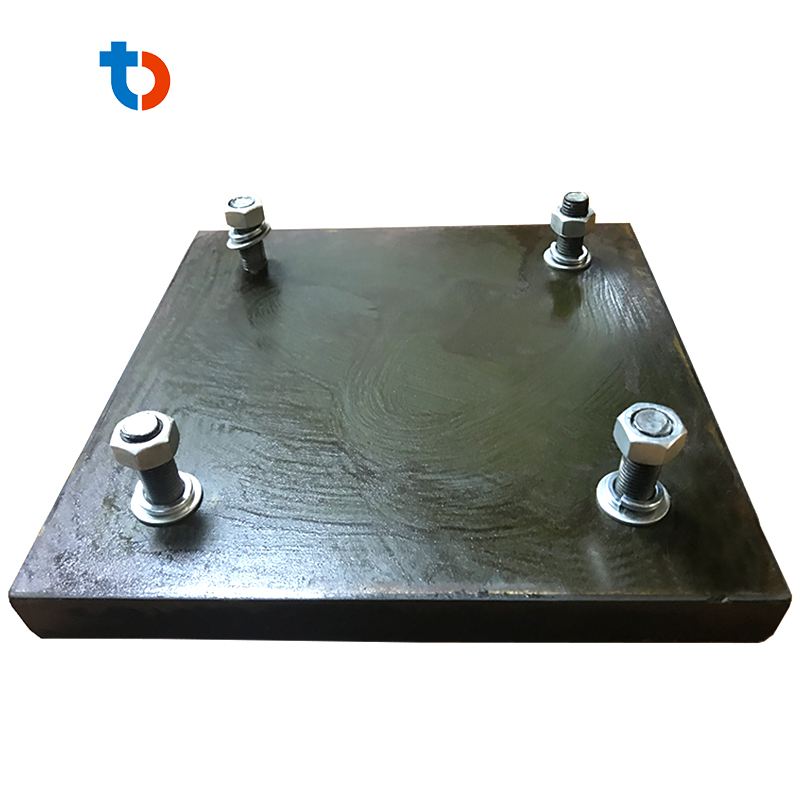

RUBBER AND CERAMIC COMPOSITE WEAR-RESISTANT PRODUCTS utilize a hot vulcanization process to integrate toughened ceramic sheets into a special rubber-lined steel plate groove. This structure is typically secured using countersunk bolts for maximum stability.

Production Process

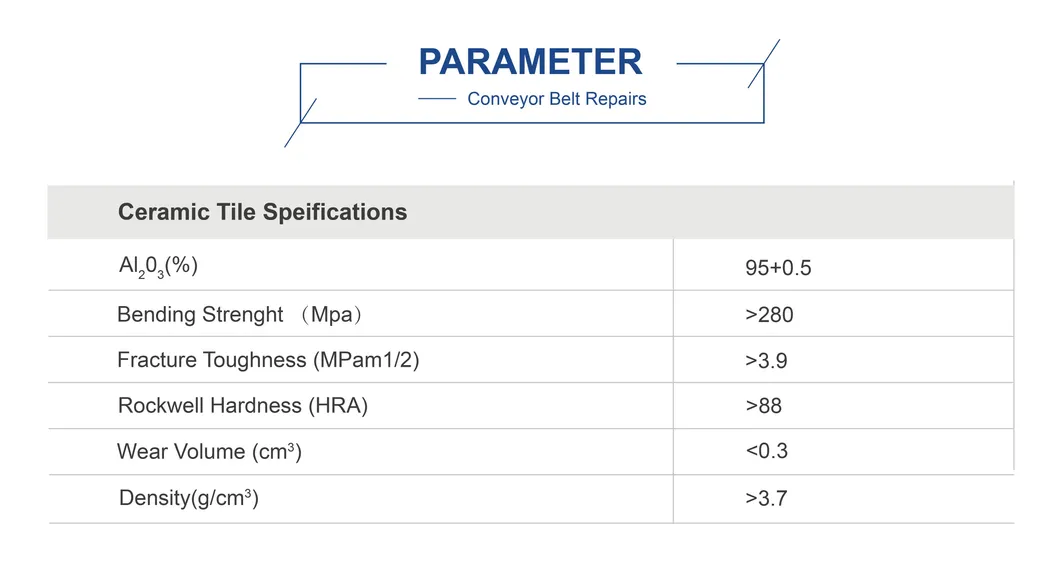

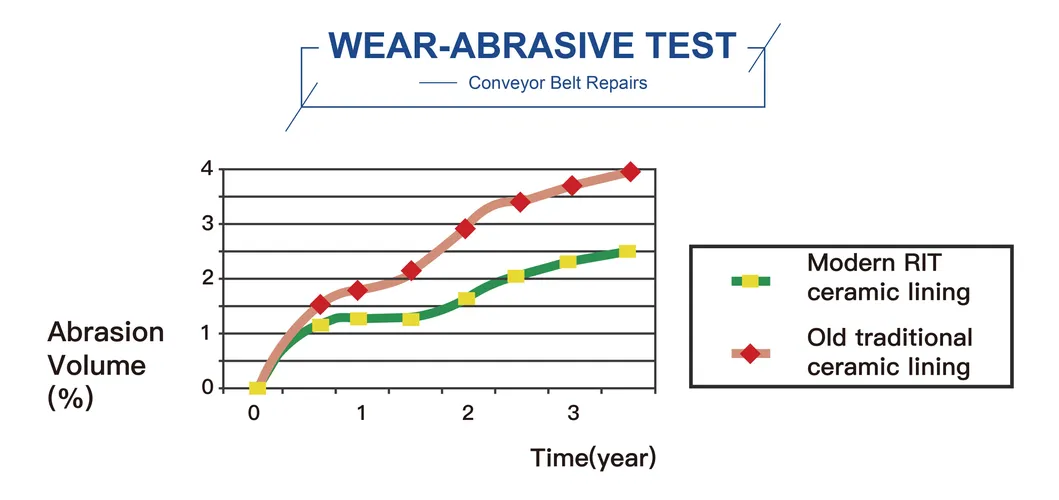

Durability Test

The unique toughening formula forms a strong crystal bond, enhancing the impact resistance of alumina ceramics by 3 to 5 times compared to standard wear-resistant ceramics. Implementing these liners can increase equipment service life by more than 10 times.

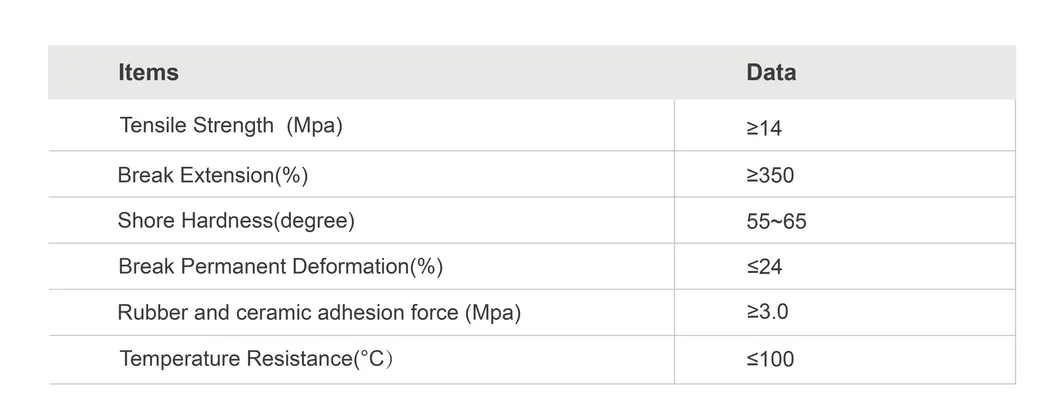

Alumina Quality

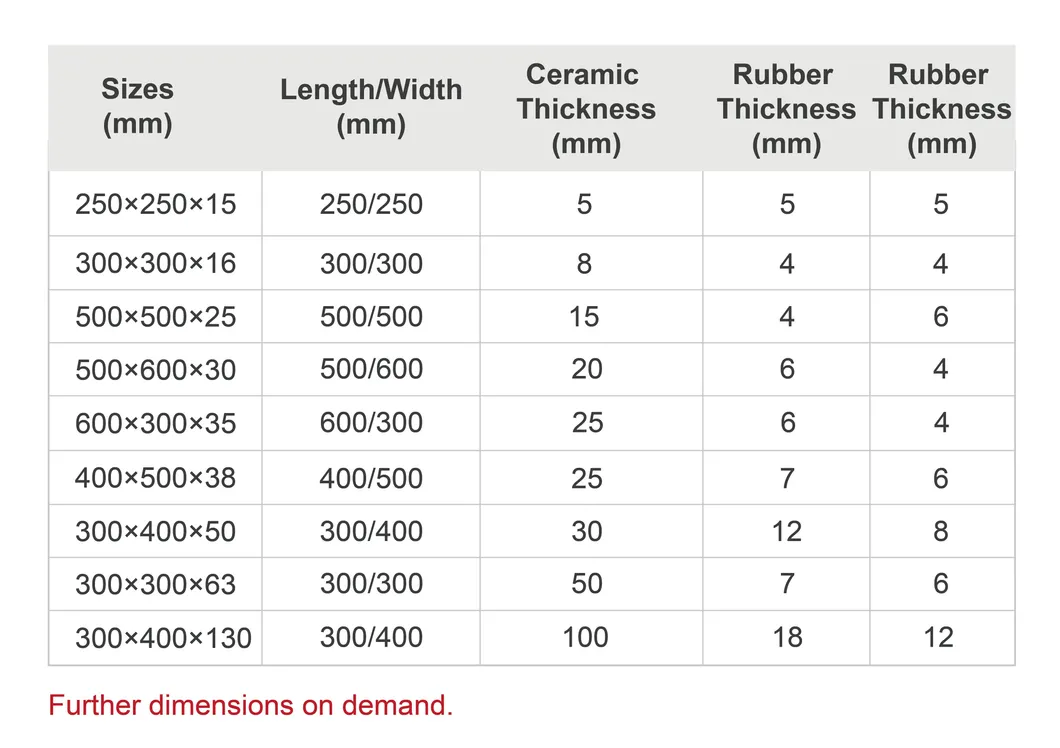

Raw Materials
Available Specifications
  • Square bricks: 10x10x2~10mm to 33x33x7~25mm
  • Ceramic plate: 100x100x6~50mm, 150x100X6~50mm
  • Hexagonal tiles: S12xT3~20mm, S19xT6~25mm
  • Ceramic tiles: 40x40x40mm, 32x32x22mm
  • Cylinders/Rods: 6x6mm to 50x50mm

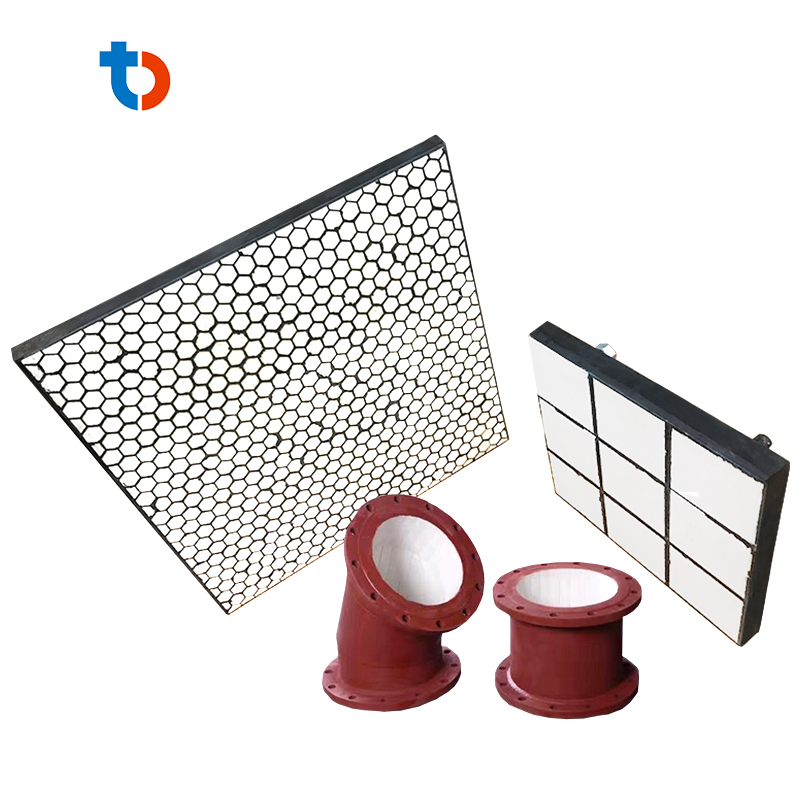

Product Shapes
Application Case 1
Application Case 2
Industrial Applications

Widely used in coal handling, material conveying systems, pulverizing systems, ash discharge, and dust removal systems. Ideal for industries such as thermal power, steel, smelting, mining, chemical, and port wharf enterprises.

Industry Use 1
Industry Use 2
Industry Use 3
Large Scale Installation
Frequently Asked Questions
What is the alumina content in your ceramic liners?
Our high-performance wear-resistant ceramic liners feature a 95% Alumina (Al2O3) content, ensuring superior hardness and durability.
How does the rubber composite improve performance?
The rubber acts as a cushion, absorbing the energy of high-impact materials, which prevents the ceramic from cracking and reduces noise.
Can the liners be customized for specific shapes?
Yes, we provide customizable shapes including square, hexagonal, cylindrical, and rectangular tiles to fit any equipment geometry.
What industries benefit most from these products?
Industries handling abrasive materials like mining, coal power, steel smelting, and cement manufacturing benefit significantly from reduced maintenance.
What is the standard tear strength of the rubber?
The rubber component in our composite products maintains a high tear strength of ≥520kn for long-term structural integrity.
What installation methods are available?
The products are designed for durability and typically involve hot vulcanization with steel backing and countersunk bolt mounting for secure attachment.
