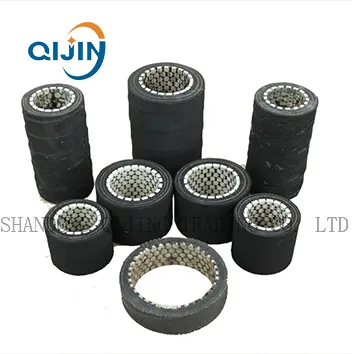

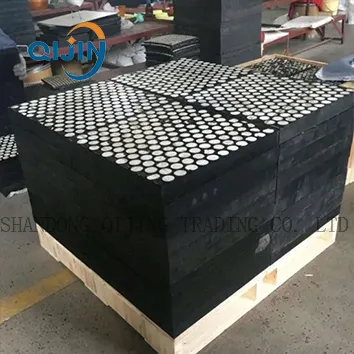

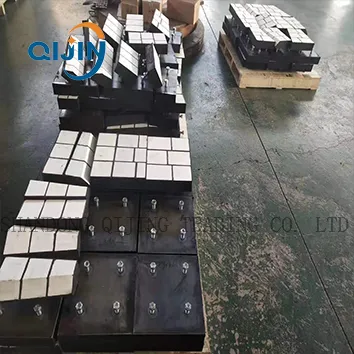

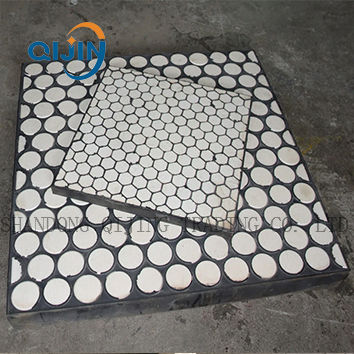

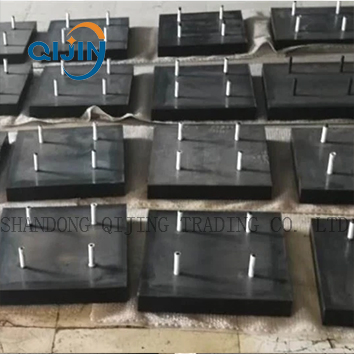

Ceramic Rubber compound lining plate is compounded by high alumina ceramics and excellent natural rubber through special process. The excellent damping performance of natural rubber greatly lowers the noise generated in the transportation, which fully settled a series of issues such as impact, abrasion and noise.
| Item | Content / Index |
|---|---|
| Alumina content | 92% |
| Density | ≥ 3.62g/cm3 |
| Abrasion loss | 0.014cm3/10minutes |
| Rockwell A hardness | ≥87 HRA |
| Moh' s hardness | 9 grade |
| Impact strength | ≥850 Mpa |
| Bending strength | ≥ 290 Mpa |
| Tensile strength (Rubber) | >12MPA |
| Break extension (Rubber) | >250% |
| Rubber aging life | >15 years |

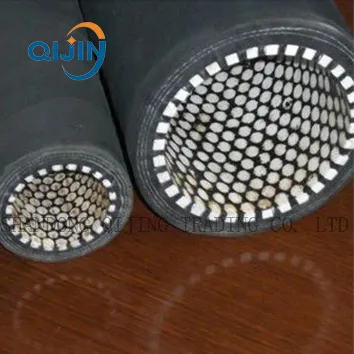

1. Handle with Care: Ceramic composite pipe has high hardness but should be put gently to avoid serious collision or impact on the ceramic layer.
2. Directivity: Install bending pipes according to the arrow direction on the surface to match medium flow.
3. Alignment: Align with the center line and adjust levels. Displacement should be within 1.0mm.
4. Thermal Expansion: Adjust flexible joints symmetrically; expansion clearance can be reduced by 3-5mm.
5. Welding: Connection can be conducted by welding with 45°-60° "V" type slope Angle (2-4mm) and 0.8-1.2mm gap.

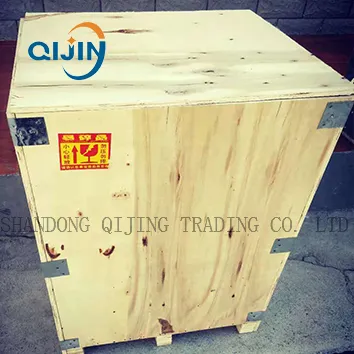

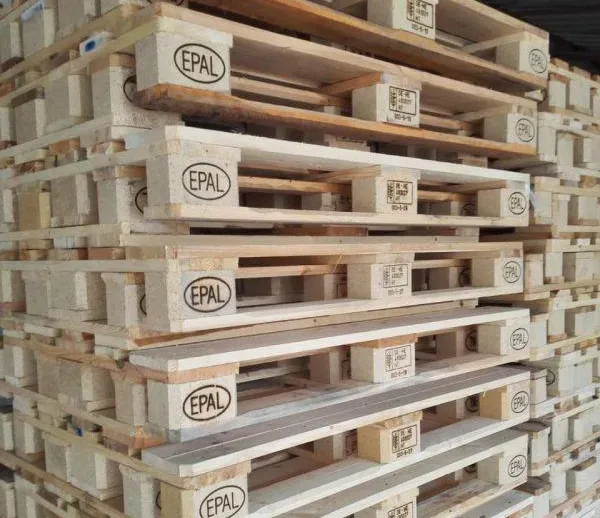

Packaging Details: The normal package is wooden box. For export to European countries, wooden boxes will be fumigated. PE film is used for tight container packing or per special customer requests.
