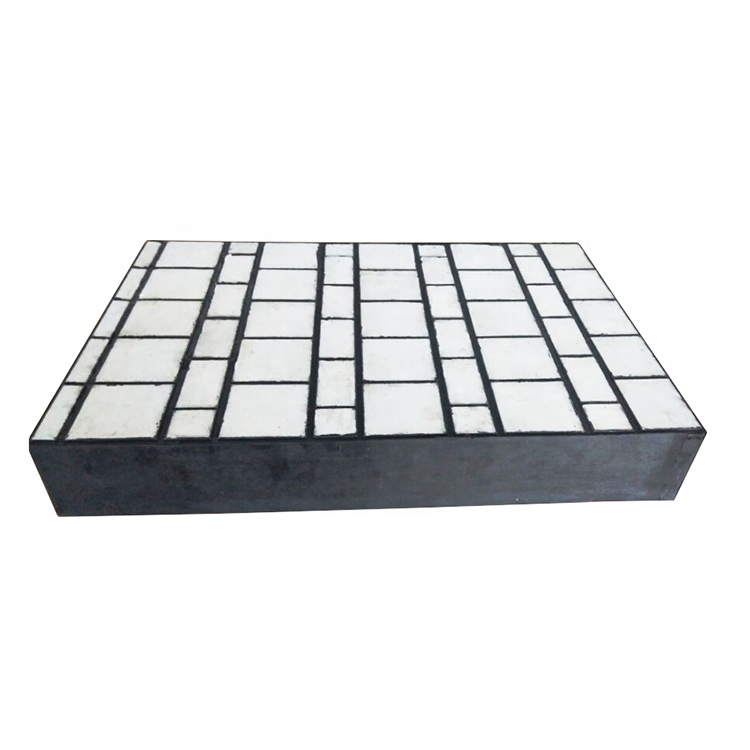

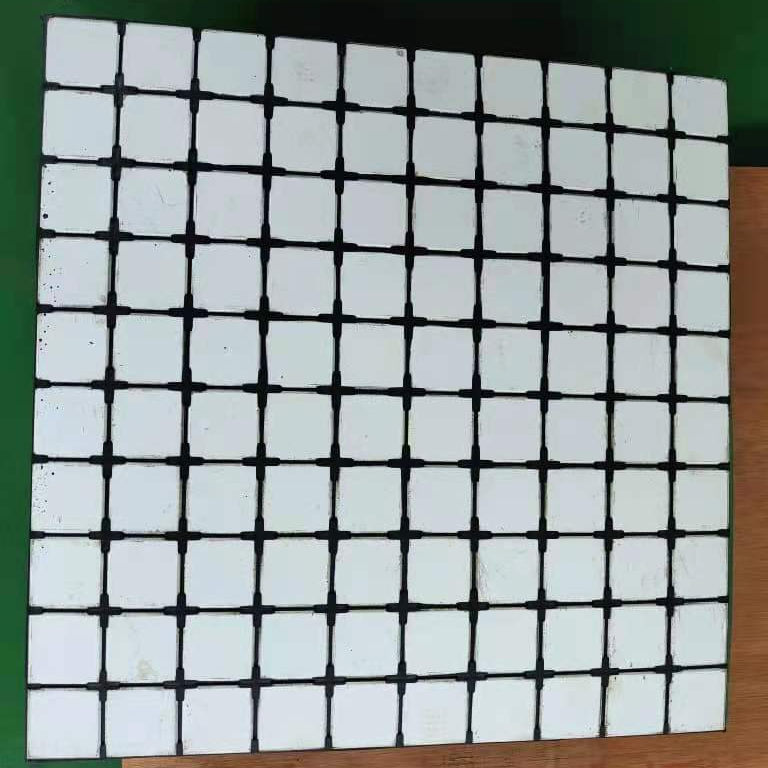

Conveyor Chute Wear Liner, Steel Backed Rubber Ceramic Composite Plate

1 / 5

Conveyor Chute Wear Liner, Steel Backed Rubber Ceramic Composite Plate

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

500*500mm

Type

Wear Resistant Plate

Transport Package

Carton

Trademark

HUAO

Origin

Shanxi Province, China

🛠️ Product Description

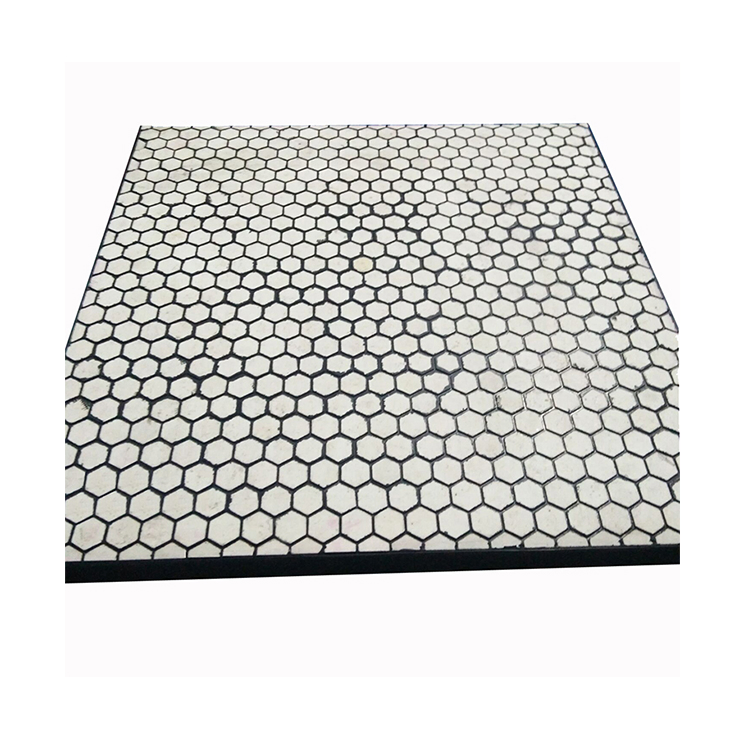

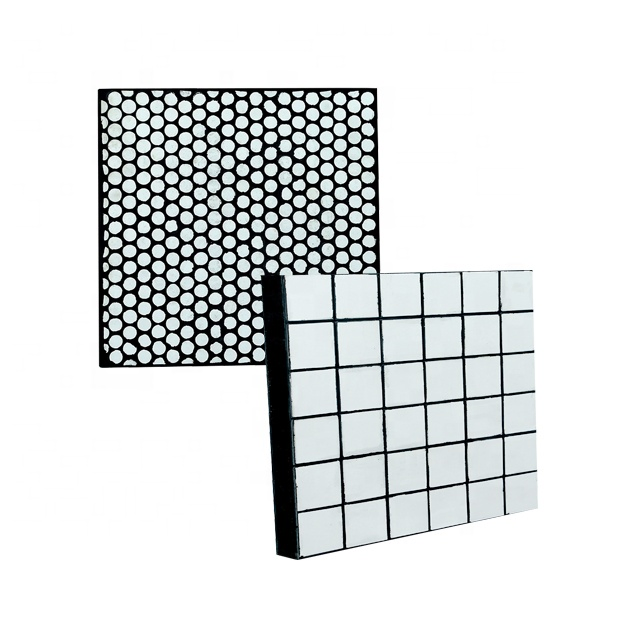

CERAMIC WEAR PLATE / CERAMIC WEAR LINER

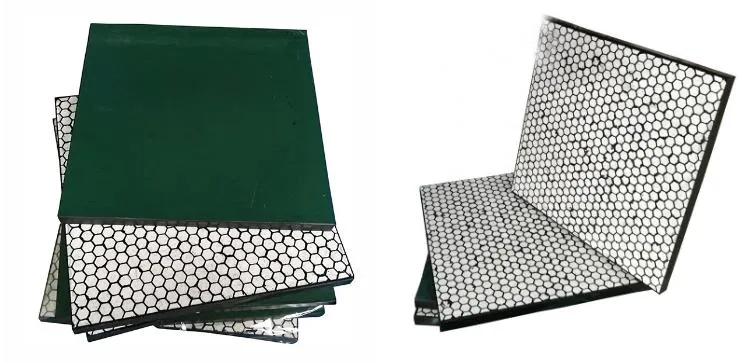

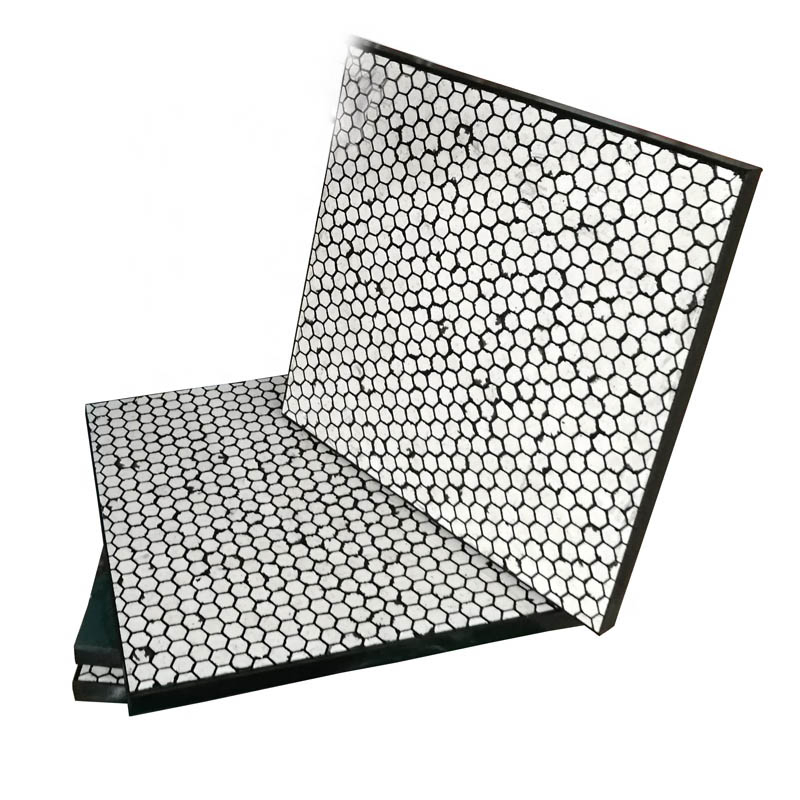

Ceramic wear liners are made of extremely hard ceramics that provide unsurpassed resistance to abrasive wear while the rubber effectively dampens the impact forces that can crack the ceramic rods. The resilient rubber matrix that surrounds the ceramic rods is hot vulcanized for superior adhesion.

Ceramic rubber lining is mainly used in the mining and quarrying industries, where severe abrasion occurs and the angles of impact are low (e.g., conveyor chutes, bins, hoppers, etc.).

⭐ Key Features

High abrasion resistance
Superior Impact resistance
Excellent Anti-corrosion properties
Significant Noise reduction

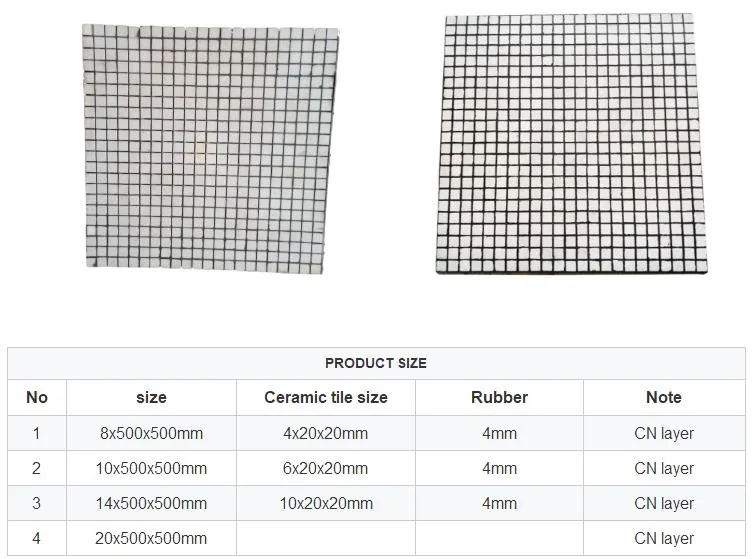

📊 Technical Specifications

No	Overall Size	Ceramic Tile Thickness	Rubber Thickness	Note
1	8x500x500mm	4mm	4mm	CN layer
2	10x500x500mm	6mm	4mm	CN layer
3	14x500x500mm	10mm	4mm	CN layer
4	20x500x500mm	12/13/15mm	8/7/5mm	CN layer
5	25x500x500mm	20mm	5mm	CN layer
6	30x500x500mm	25mm	5mm	CN layer

📸 Product Gallery

❓ Frequently Asked Questions

What are ceramic wear liners primarily used for? They are mainly used in mining and quarrying for high-abrasion areas like conveyor chutes, bins, and hoppers where impact angles are low.

How does the rubber component help the liner? The rubber matrix effectively dampens impact forces, preventing the hard ceramic rods from cracking under heavy stress.

Can these liners resist corrosion? Yes, one of the key features of our ceramic rubber composite plates is high anti-corrosion resistance.

What sizes are available for these wear plates? Standard sizes are 500x500mm with various thicknesses ranging from 8mm to 30mm depending on your specific requirements.

Do the liners help with noise reduction? Yes, the rubber component in the composite plate significantly reduces operating noise compared to pure steel liners.

How is the ceramic attached to the rubber? The ceramic rods are hot vulcanized within the resilient rubber matrix to ensure superior adhesion and durability.
