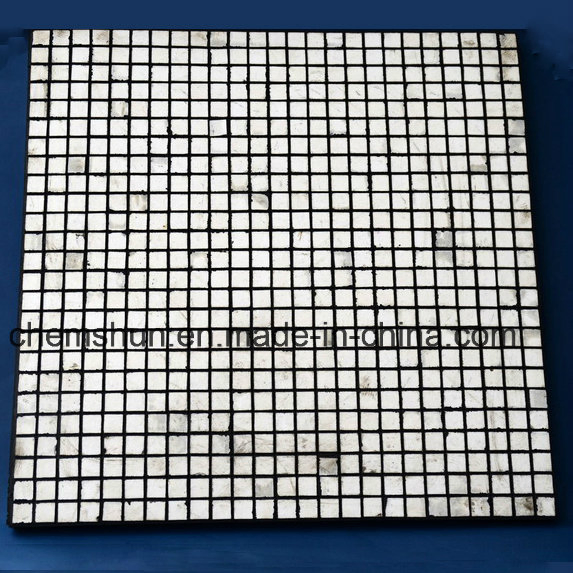

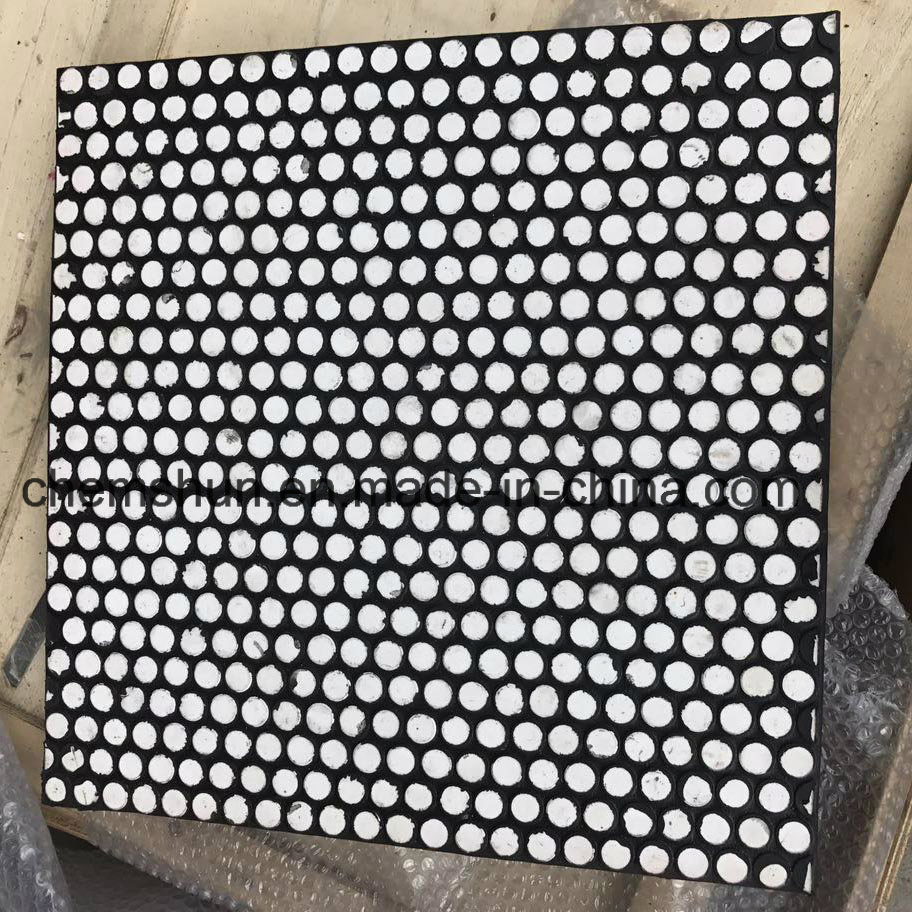

Chemshun Impact Resistant Steel Backed Rubber Ceramic Wear Liner

1 / 5

Chemshun Impact Resistant Steel Backed Rubber Ceramic Wear Liner

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

CERAMIC RUBBER LINER

Certification

ISO, BSI, CE

Material

Aluminum

Feature

Wear Resistant

Alumina Content

92% Al2O3, 95% Al2O3, ZTA

Applied Industry

Mining, Power Plant, Steel Plant

Composite

Ceramic/Rubber, Ceramic/Rubber/Steel

HS Code

69091900

Product Overview

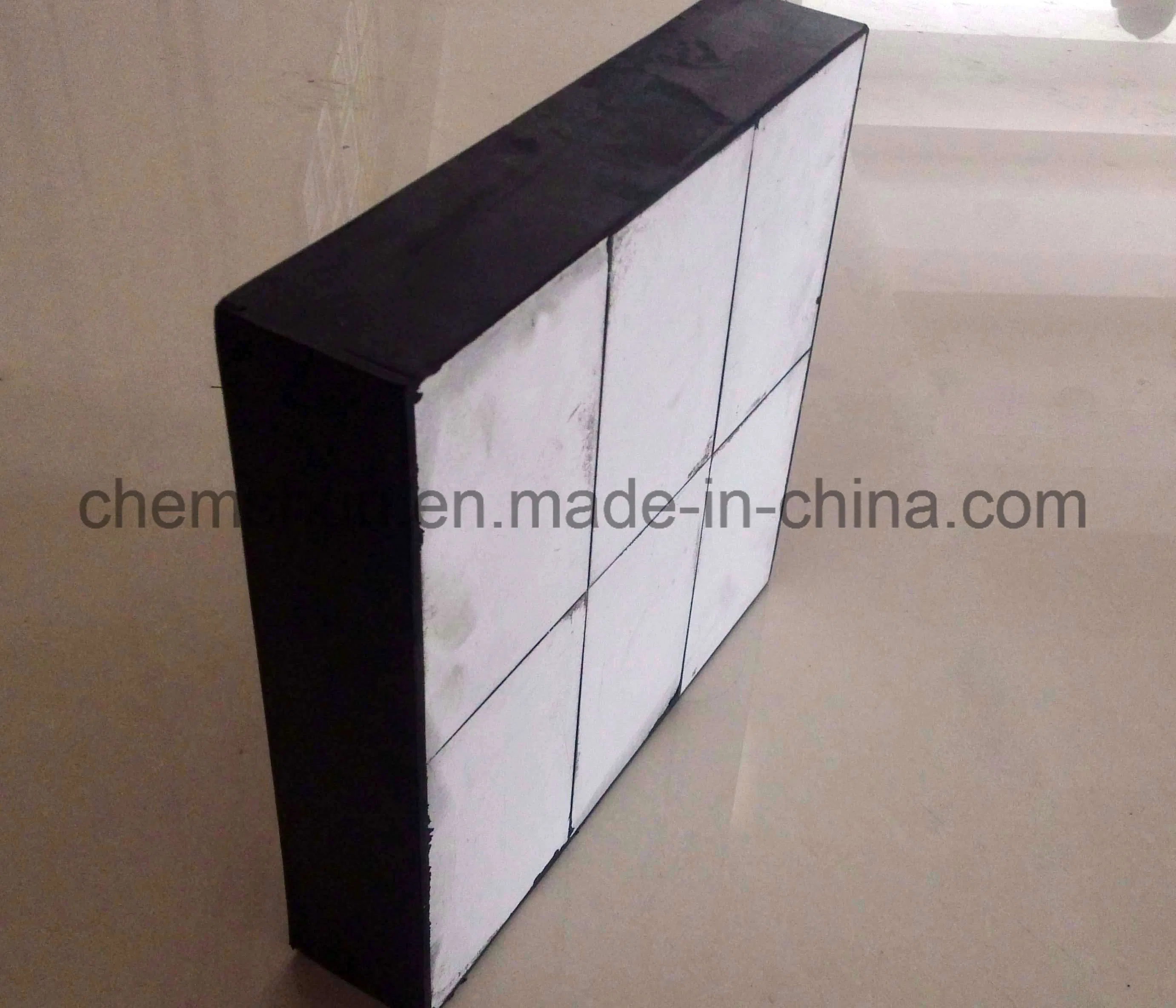

Impact Resistant Steel Backed Rubber Ceramic Wear Liner is compounded by high alumina ceramics and excellent natural rubber through a special process. The excellent damping performance of natural rubber greatly lowers the noise generated in transportation, effectively settling issues such as impact, abrasion, and noise.

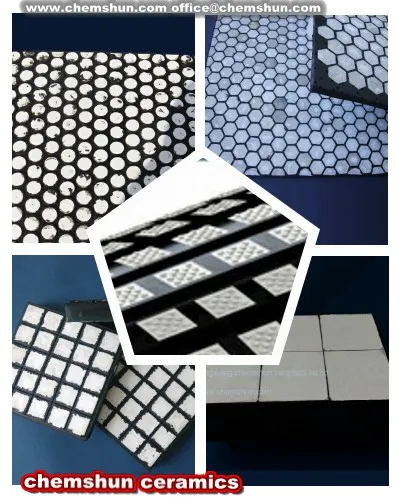

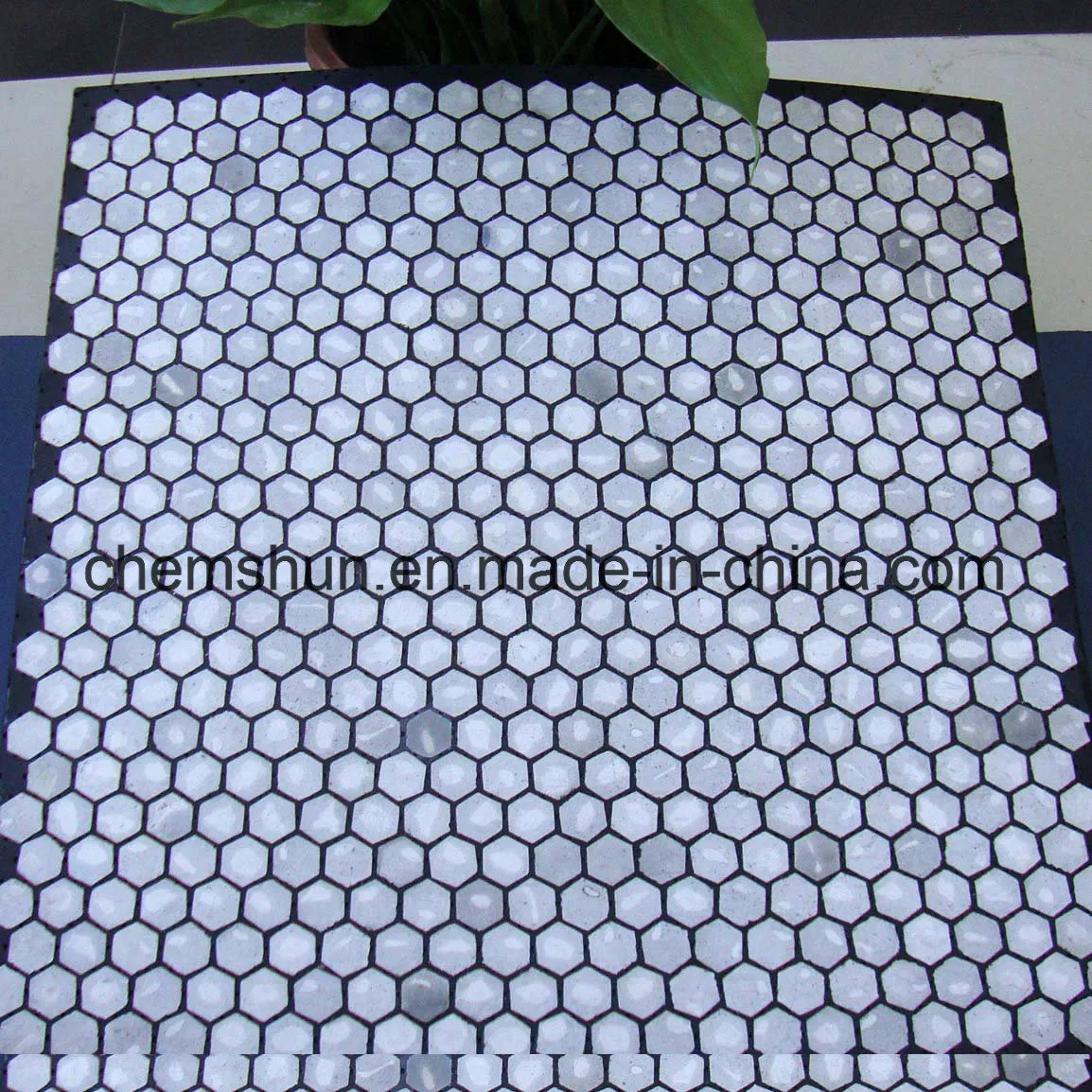

Ceramic hex tiles, square tiles, and bricks are available in sizes from 10x10mm up to 100x150mm, with thicknesses ranging from 2mm to 63mm.

Key Features

Superior Wear Resistance
High Impact Resistance
Easy & Fast Installation
High Hardness
Corrosion & Chemical Resistance
Lightweight Design
Low Maintenance Cost
Good Fluidity (Anti-Blocking)

Dimensions & Specifications

TYPE	SIZE (mm)	CERAMIC TYPE	CERAMIC (mm)	RUBBER (mm)	STEEL (mm)
CERAMIC WEAR LINER	300 x 300 x 25	Cylinder/Hex/Block	13	6	6
CERAMIC WEAR LINER	300 x 300 x 37	Cylinder/Hex/Block	25	6	6
CERAMIC WEAR LINER	300 x 300 x 50	Cylinder/Hex/Block	38	6	6
CERAMIC WEAR LINER	300 x 300 x 63	Cylinder/Hex/Block	50	7	6
CERAMIC WEAR LINER	510 x 510 x 30	Cylinder/Hex/Block	20	5	5
CERAMIC WEAR LINER	600 x 600 x 25	Cylinder/Hex/Block	20	5	0

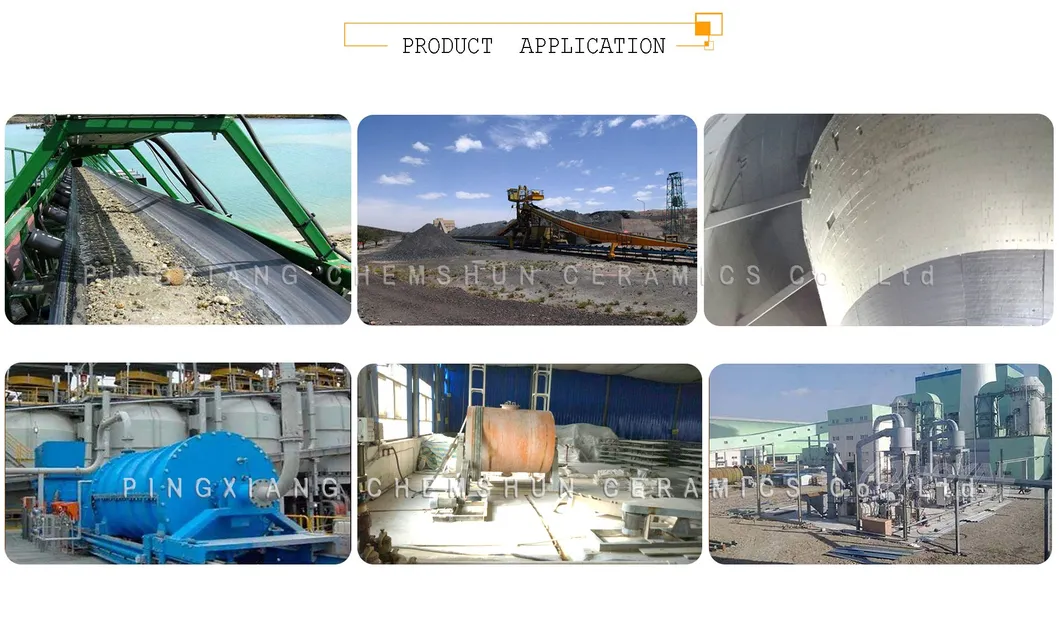

Industrial Applications

Suitable for feeders, chutes, bins, transfer points, conveyor systems, screen feed plates, and more. Applicable industries include:

Coal Fired Power Plants
Cement & Steel Plants
Mining & Smelting
Port Material Handling
Chemical Industry

Product Gallery

Frequently Asked Questions (FAQ)

What materials are used in these wear liners?

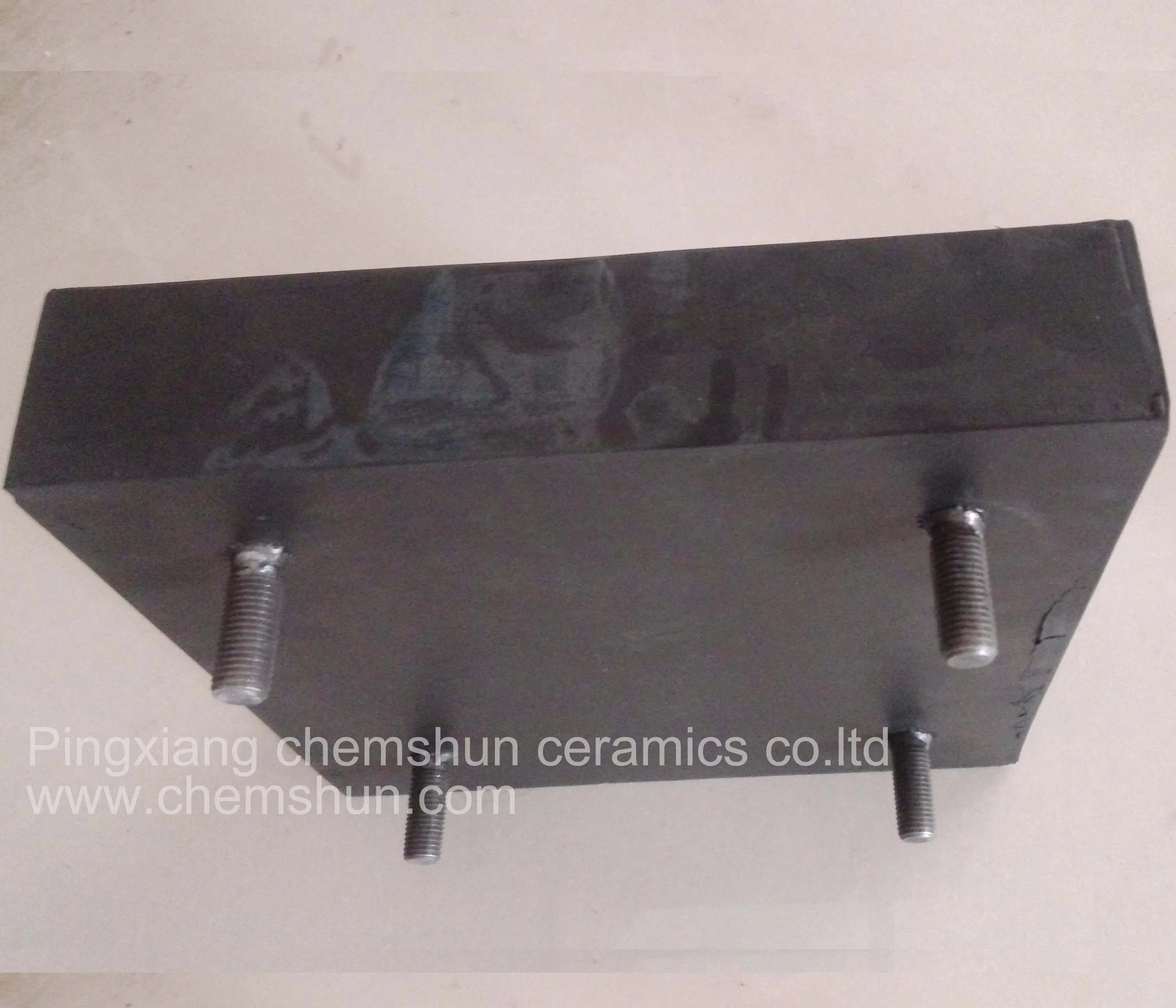

The liners are a composite of high alumina ceramics (92%, 95%, or ZTA) vulcanized in a resilient natural rubber base, often with a steel backing for easy installation.

How does the rubber component help in mining applications?

The elastic property of the rubber dampens impact forces that could otherwise crack the ceramic tiles, and it significantly reduces vibration and noise during material transport.

Can these liners be customized?

Yes, we provide custom shapes and sizes to meet specific industrial requirements, including various thicknesses and ceramic shapes like cylinders, hex tiles, and cubes.

What is the main advantage of using ZTA ceramics?

ZTA (Zirconia Toughened Alumina) offers even higher fracture toughness and wear resistance compared to standard alumina, making it ideal for extremely high-impact zones.

What industries benefit most from ceramic rubber liners?

They are widely used in coal-fired power plants, cement plants, mining operations, and steel mills, particularly in chutes, hoppers, and bunkers where high abrasion occurs.

Are these liners resistant to chemicals?

Yes, the high alumina ceramic material provides excellent corrosion and chemical resistance, ensuring longevity in harsh industrial environments.
