Our main business covers industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment and accessories, pulping equipment and accessories, papermaking dewatering equipment, slag removal equipment, wear-resistant pipes, alumina ceramic parts, and electronic insulation materials.

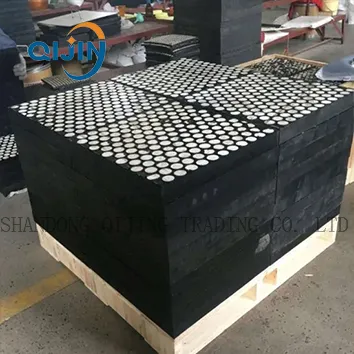

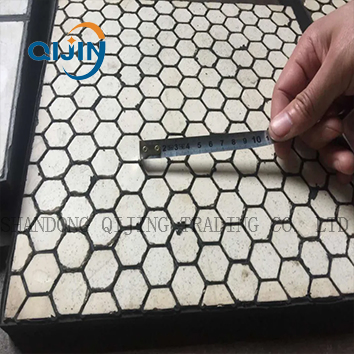

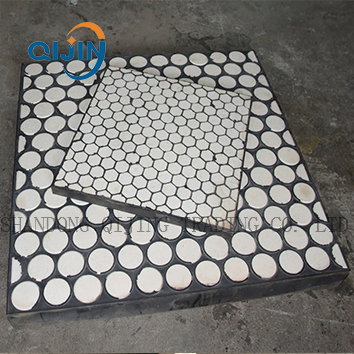

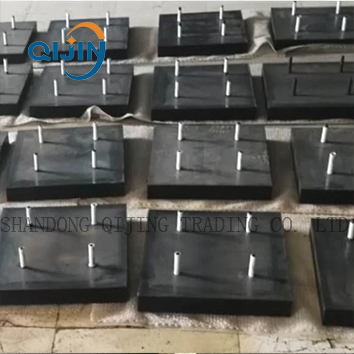

Ceramic Rubber compound lining plate is compounded by high alumina ceramics and excellent natural rubber through a special process. The excellent damping performance of natural rubber greatly lowers the noise generated in transportation, resolving issues such as impact, abrasion, and noise.
Ceramics can be vulcanized in rubber sheet:

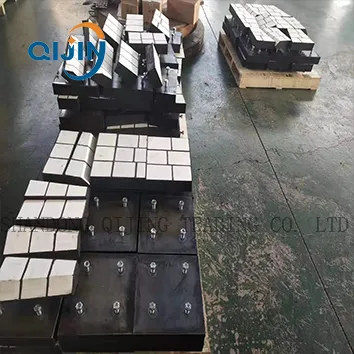

Ceramic rubber wear liner with angle can be custom produced by our facility.
| Item | Content / Specification |
|---|---|
| Alumina content | 92% |
| Density | ≥ 3.62g/cm3 |
| Abrasion loss | 0.014cm3/10minutes |
| Rockwell A hardness | ≥87 HRA |
| Moh's hardness | 9 grade |
| Impact strength | ≥850 Mpa |
| Bending strength | ≥ 290 Mpa |
| Thermal conductivity | 20 W/m.K |
| Water absorption | None |
| Surface | Smooth, clear, pure white |
| Item | Index |
|---|---|
| Tensile strength | >12MPA |
| Break extension | >250% |
| Shore hardness | 55-65 |
| Tear Strength | <24% |
| Rubber and ceramic adhesion | >3.0Mpa |
| Temperature Resistance | <100℃ |
| Rubber aging life | >15 years |

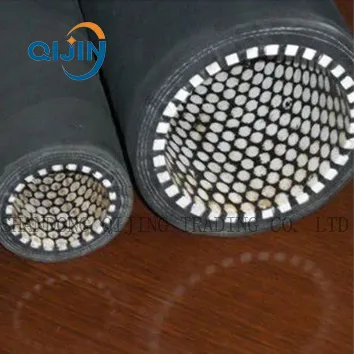

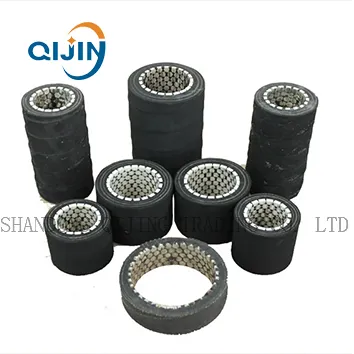

1. Handle gently to avoid serious collision and direct contact with metal instruments on the ceramic layer.
2. Directional installation: Follow the arrow on the surface for medium flow direction.
3. Alignment: Both ends should meet accurately with displacement controlled within 1.0mm.
4. Flexible joints: Adjust symmetrically; expansion clearance can be reduced by 3-5mm due to low thermal expansion.
5. Flange connection: Ensure the flange end is flush with the composite pipe end.
6. Welding: Can be conducted using 45°-60° "V" type slope angle (2-4mm) and 0.8-1.2mm gap.
