Abrasion Resistant Alumina Ceramic Rubber Backed Steel Wear Liner for Mineral Protective

1 / 5

Abrasion Resistant Alumina Ceramic Rubber Backed Steel Wear Liner for Mineral Protective

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Rubber Composites Ceramic Liner

Square Tile

10X10X3~10mm, 17.5X17.5X3~15mm, 20X20X3~15mm, etc.

Ceramic Plate

100X100X6~50mm, 150X100X6~50mm, etc.

Hexagonal Tile

S12.5xt3~20mm, S23.5xt6-25mm

Dimple Tiles

20X20X4-10+1, 20X30X5~15+1

Ceramic Block

40X40X40mm, 45X45X50mm, 32X32X22mm

Production Capacity

400t/Month

HS Code

6909120000

Product Description

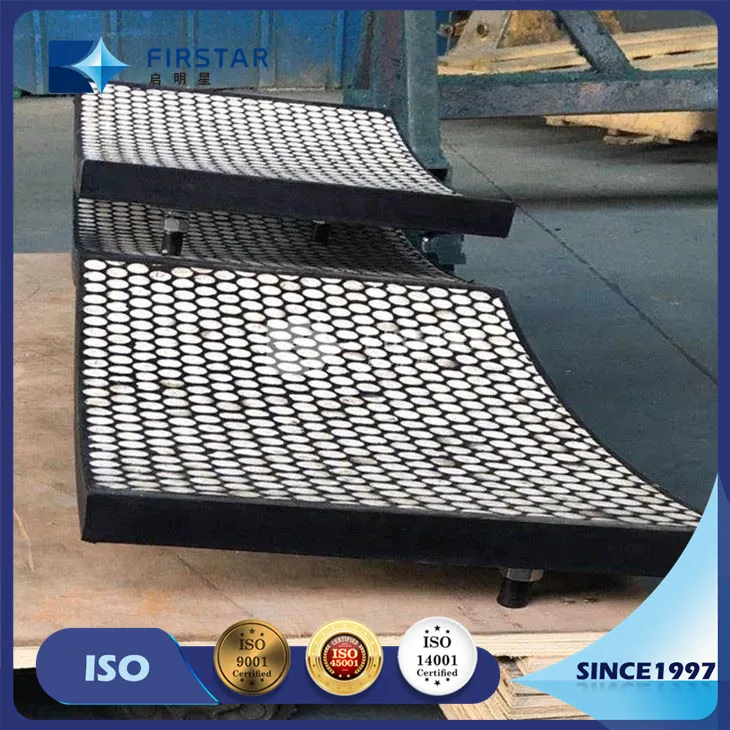

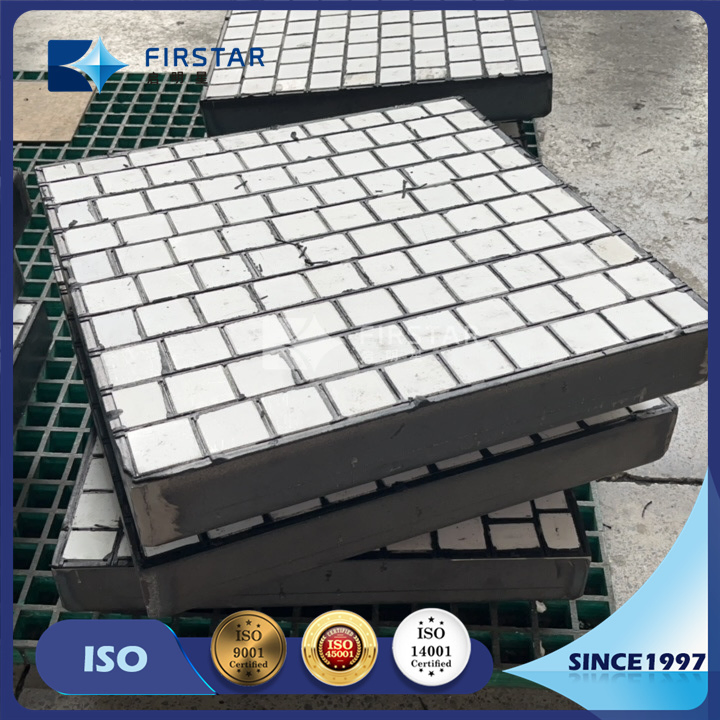

Abrasion Resistant Alumina Ceramic Rubber Backed Steel Wear Liner is made by a combination of wear-resistant alumina ceramics (cylinders, hexagons, plates) vulcanized in a resistant rubber base, some rubber plates can selectively with steel backing.

The alumina ceramic liner provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces. Rubber also helps to substantially reduce vibrations and sounds generated from impacting rocks.

Main Applications

Raw material feeding system: belt head hopper, trolley tee bucket, and feed hopper.
Batching system: mixing silo, primary/secondary mixing cylinder, pelletizing disc.
Sintering material conveying system: beneficiation hopper, vibrating screen silo.
Dust removal and ash discharge system: pipes, elbows, tees.
Coking system: coke hopper.
Iron-spraying coal injection system: cone bucket, separation baffle, burner cone.
Steel ball mill: outlet pipe, powder separator, inner shell.

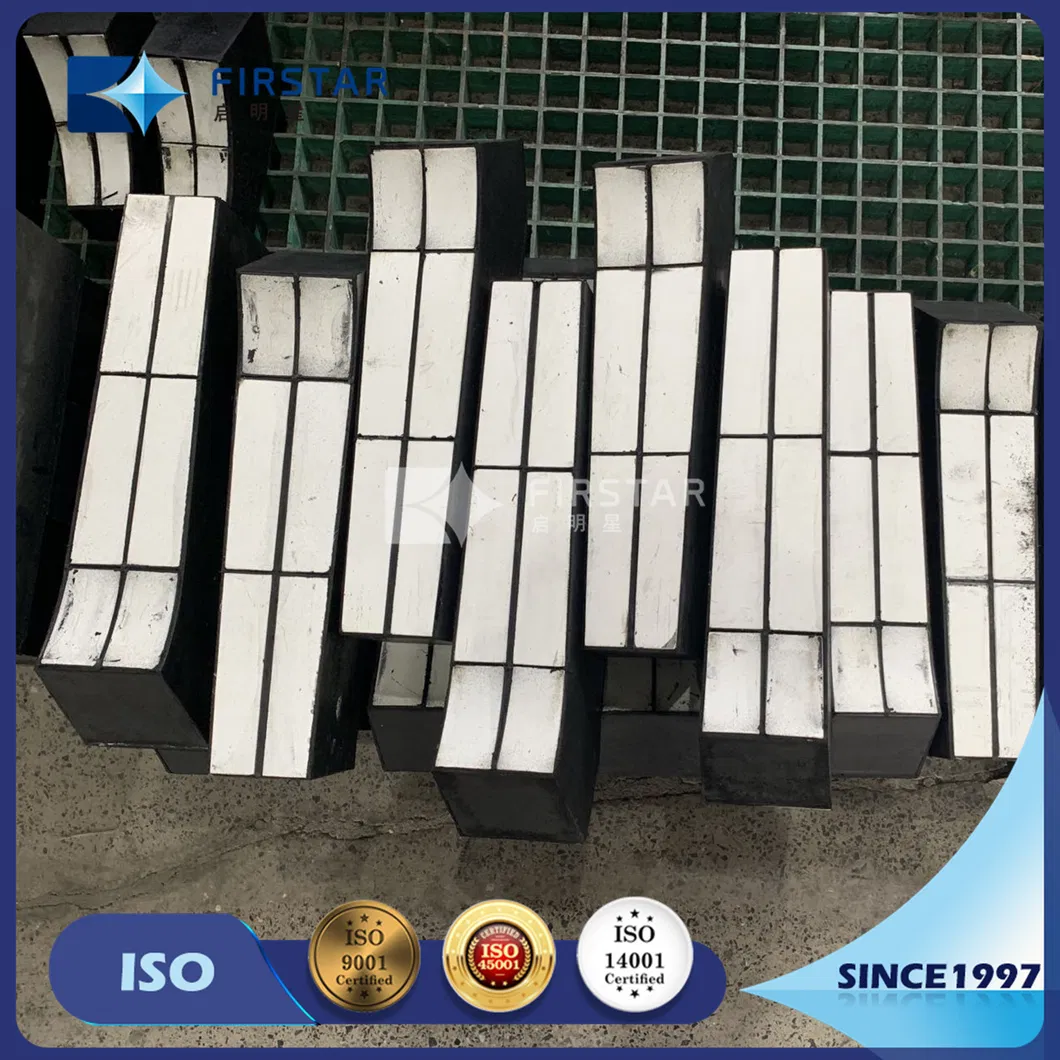

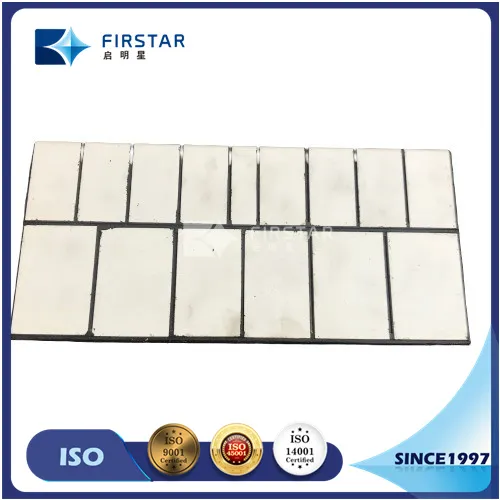

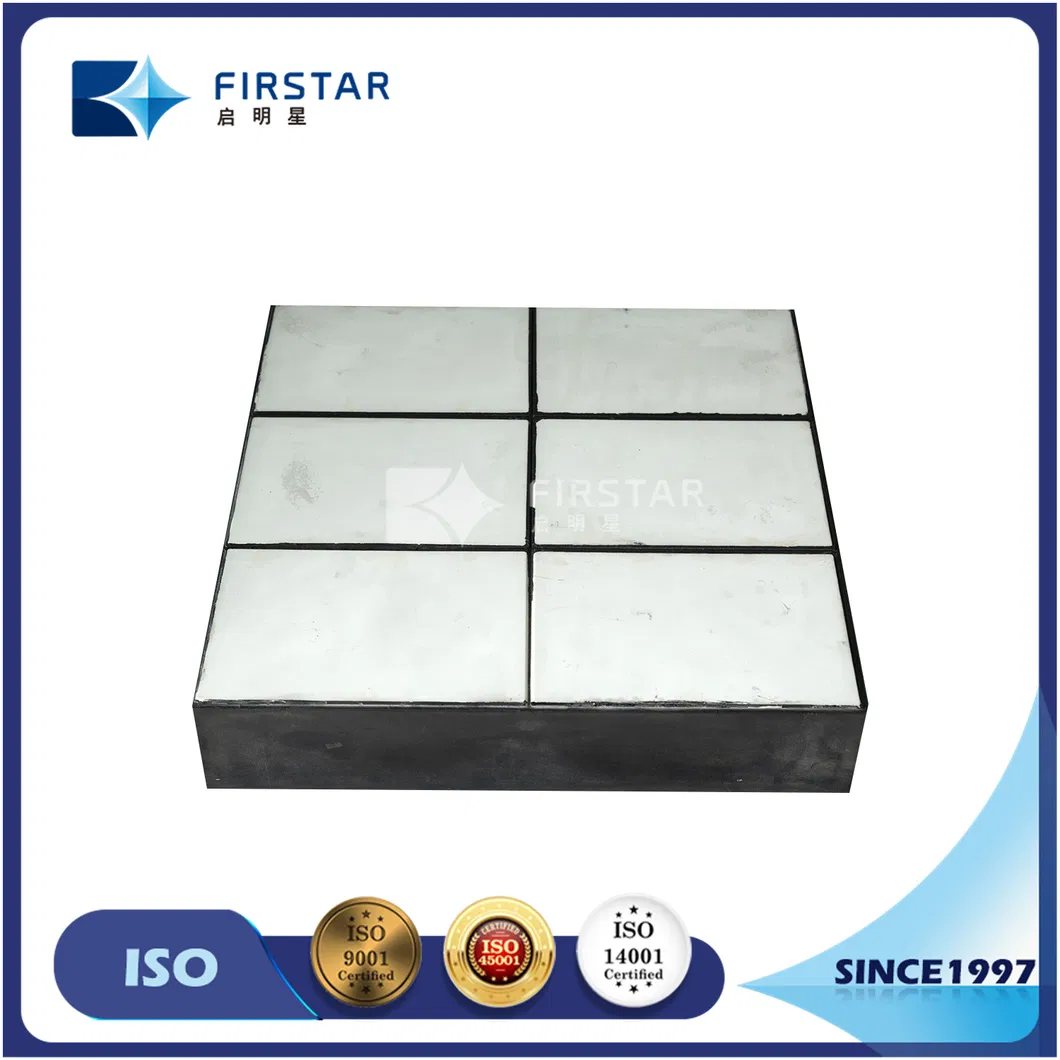

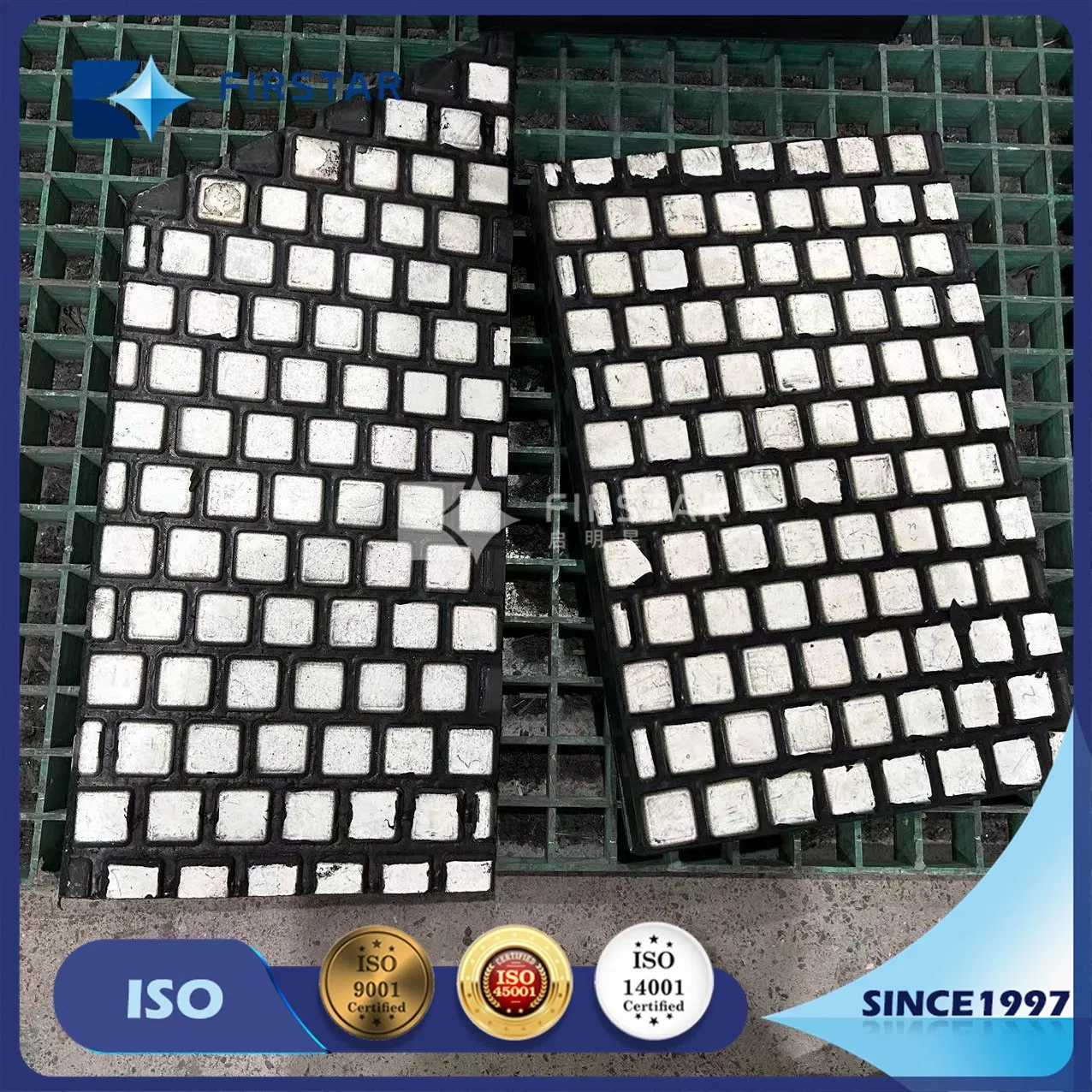

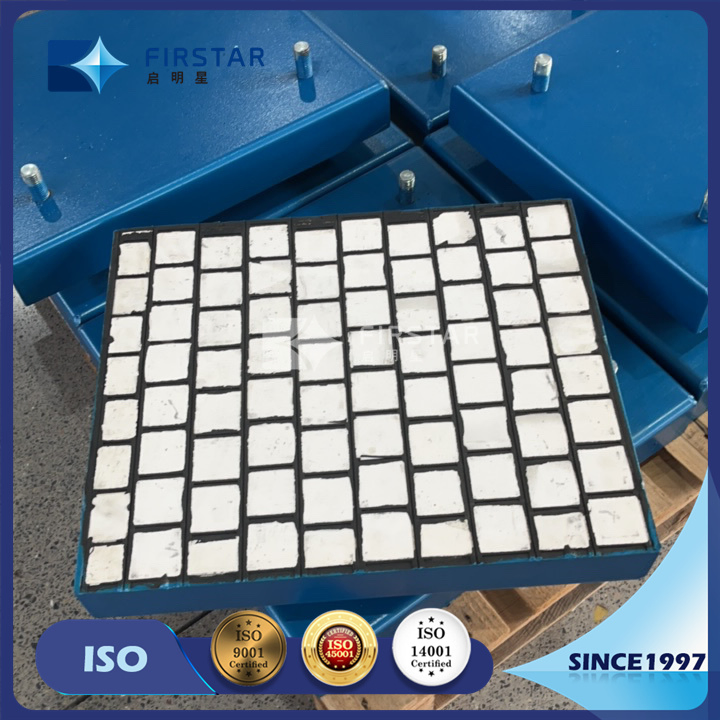

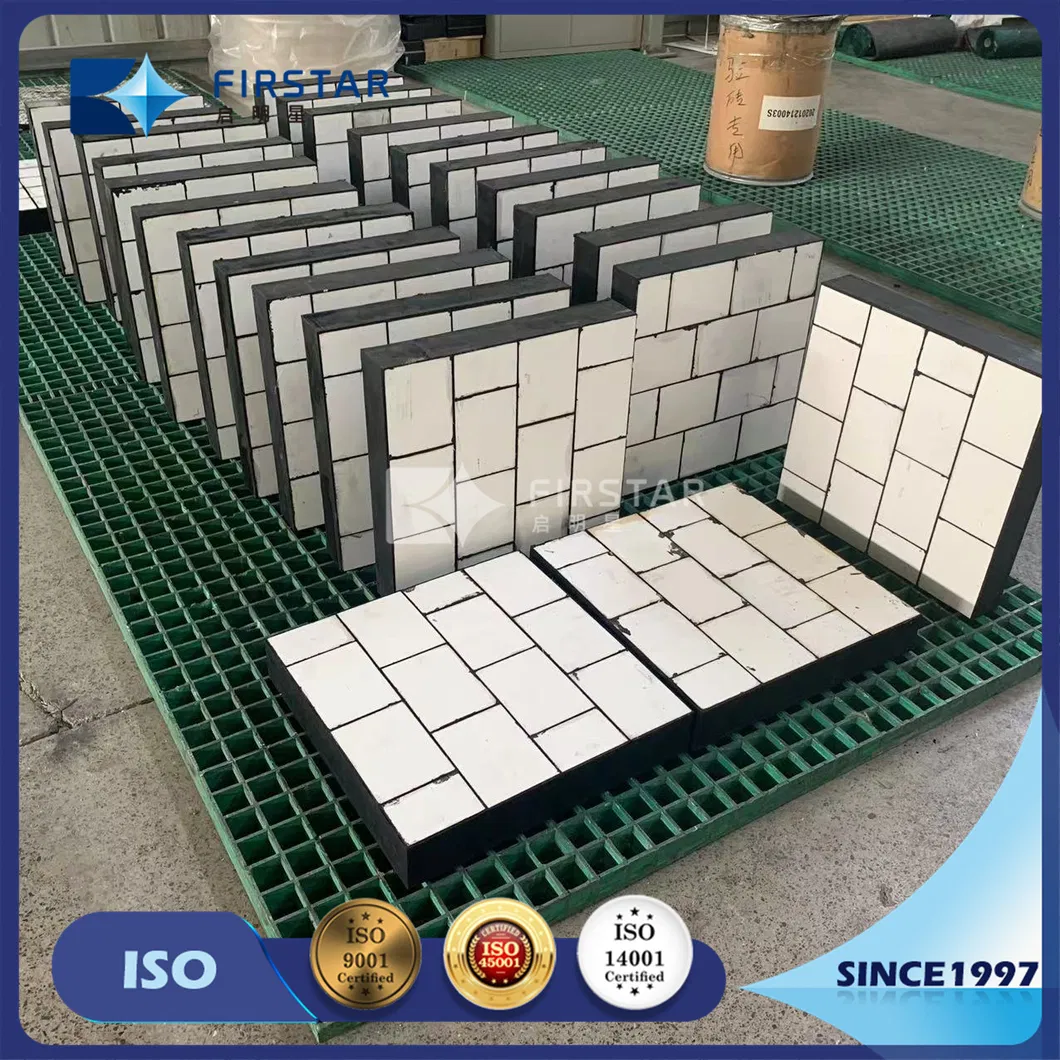

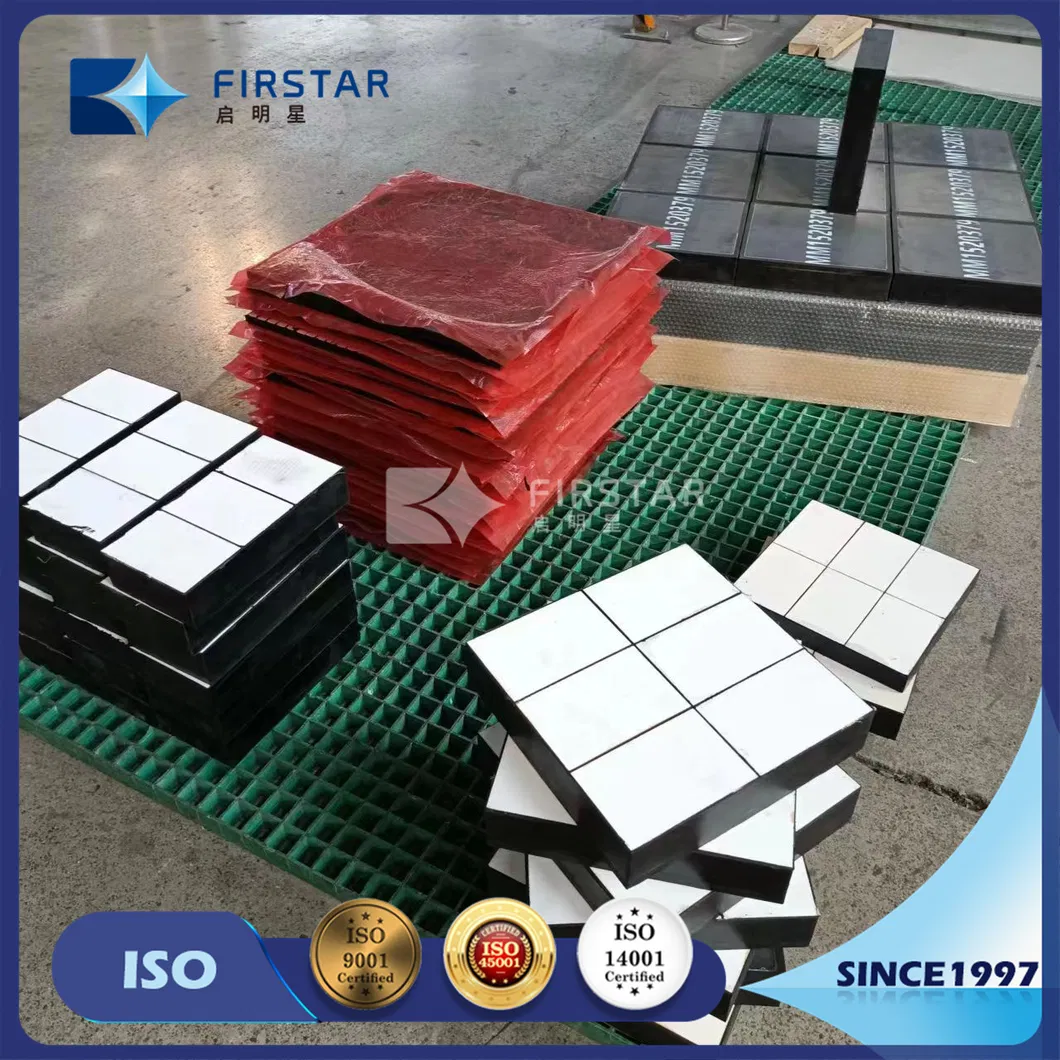

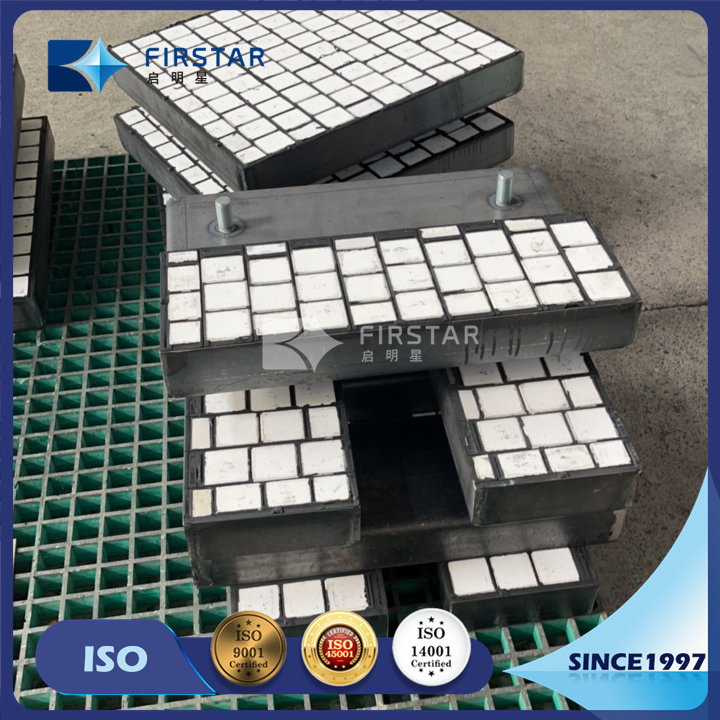

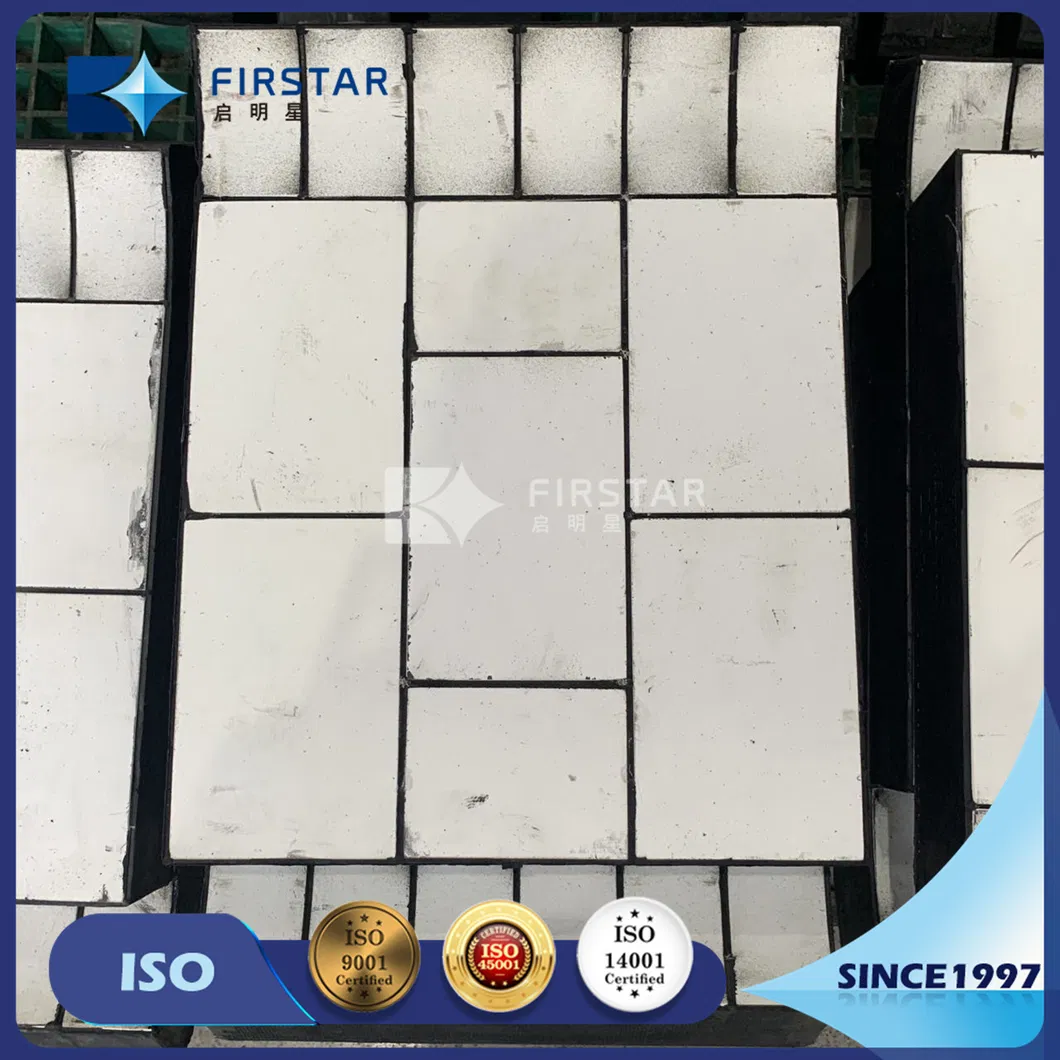

Detailed Photos

Product Parameters

Component	Property	Specification
Ceramic	Material	92%, 95%, T95%, 96%, ZTA Alumina
Rubber	Density	~1.4g/cm³
Rubber	Tensile Strength	≥15Mpa
Rubber	Shore Hardness	45-65
Rubber	Working Temp	-50ºC - 200ºC
Steel Plate	Material	Q235A
Adhesive	Peel Strength	≥120 N/2.5cm

Expertise & Quality

We offer quality wear and Anti-impact ceramics to ensure the increased efficiency and service life of equipment. Our focus includes:

Packaging & Certifications

FAQ

What is your experience in these products?

We have 22 years of experience in this industry line as a professional manufacturer.

What is the Minimum Order Quantity (MOQ)?

The MOQ varies by product; for example, it is 1 Ton for ceramic balls.

Can you provide samples before mass production?

Yes, we can offer samples for your testing. Samples within 1kg are provided free of charge.

What is the typical production lead time?

We maintain a large stock for standard products. Delivery is normally within 7-10 days after receipt of deposit.

What are your accepted payment terms?

We accept T/T, L/C, and Western Union.

What are the main benefits of ceramic rubber composites?

They offer excellent wear resistance, superior anti-impact properties due to rubber elasticity, easy installation to reduce downtime, and noise reduction.
