Basic Information
Type
Wear Resistant Ceramic
Ceramic Material
92/95/99/Zta/Rbsic
Function
Wear Abrasion Resistant
Key Words
Rubber Ceramic Wear Liner
Production Capacity
5000PCS/Month
Product Description

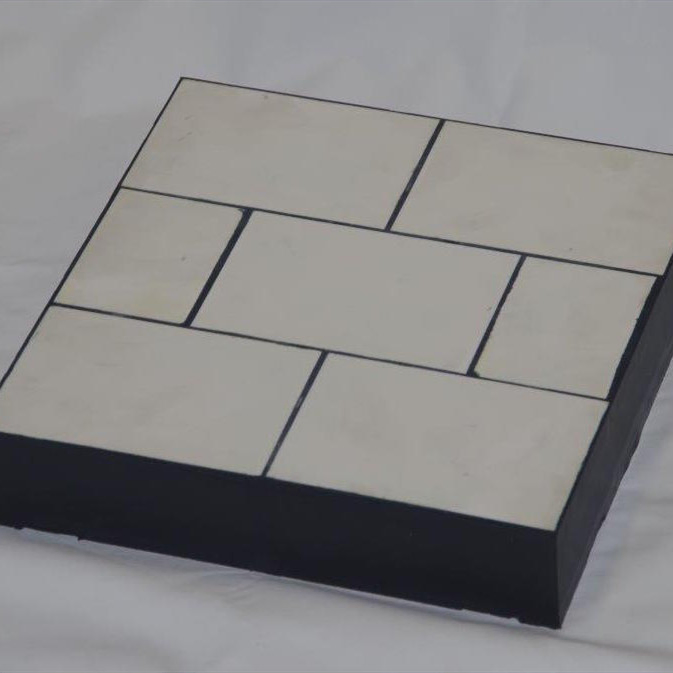

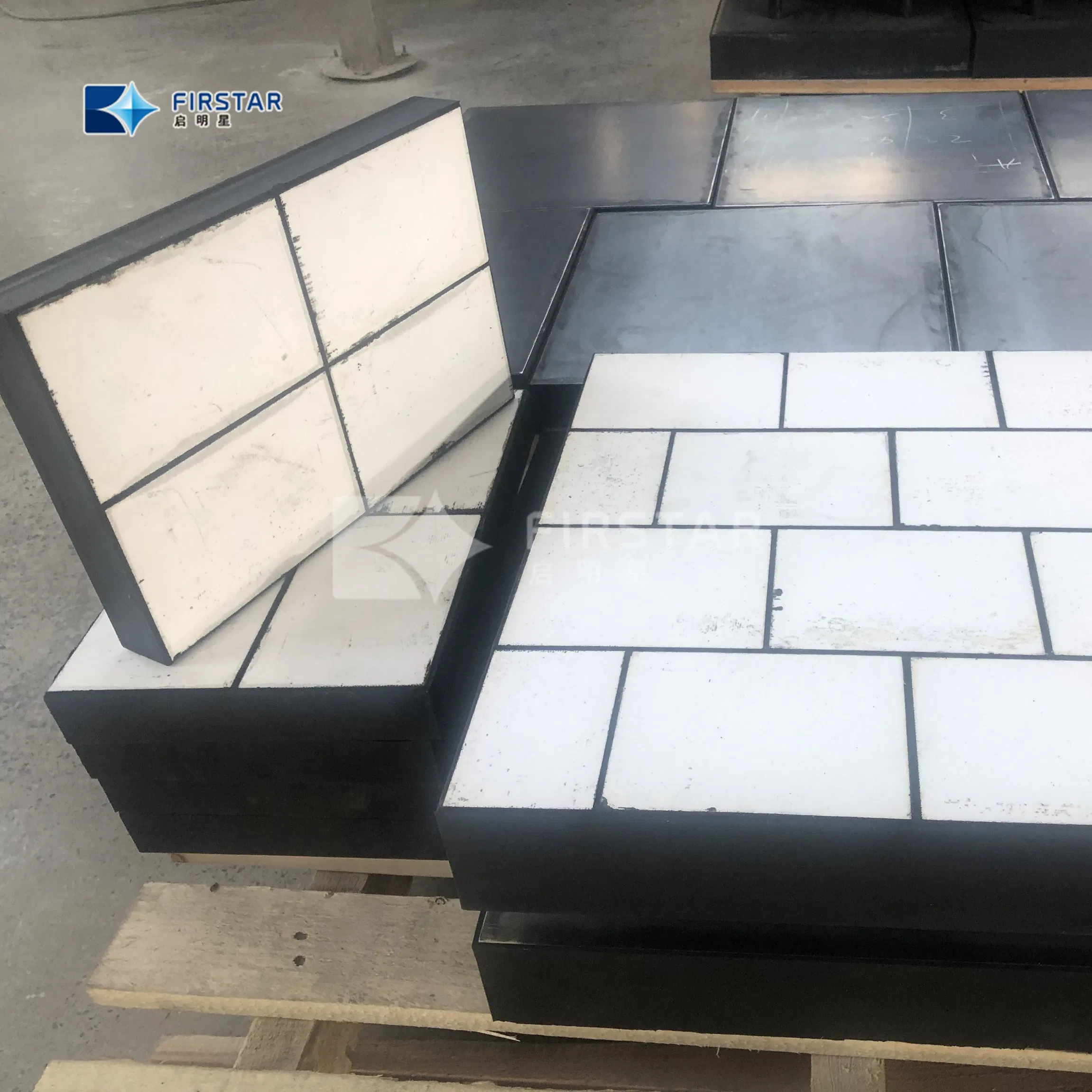

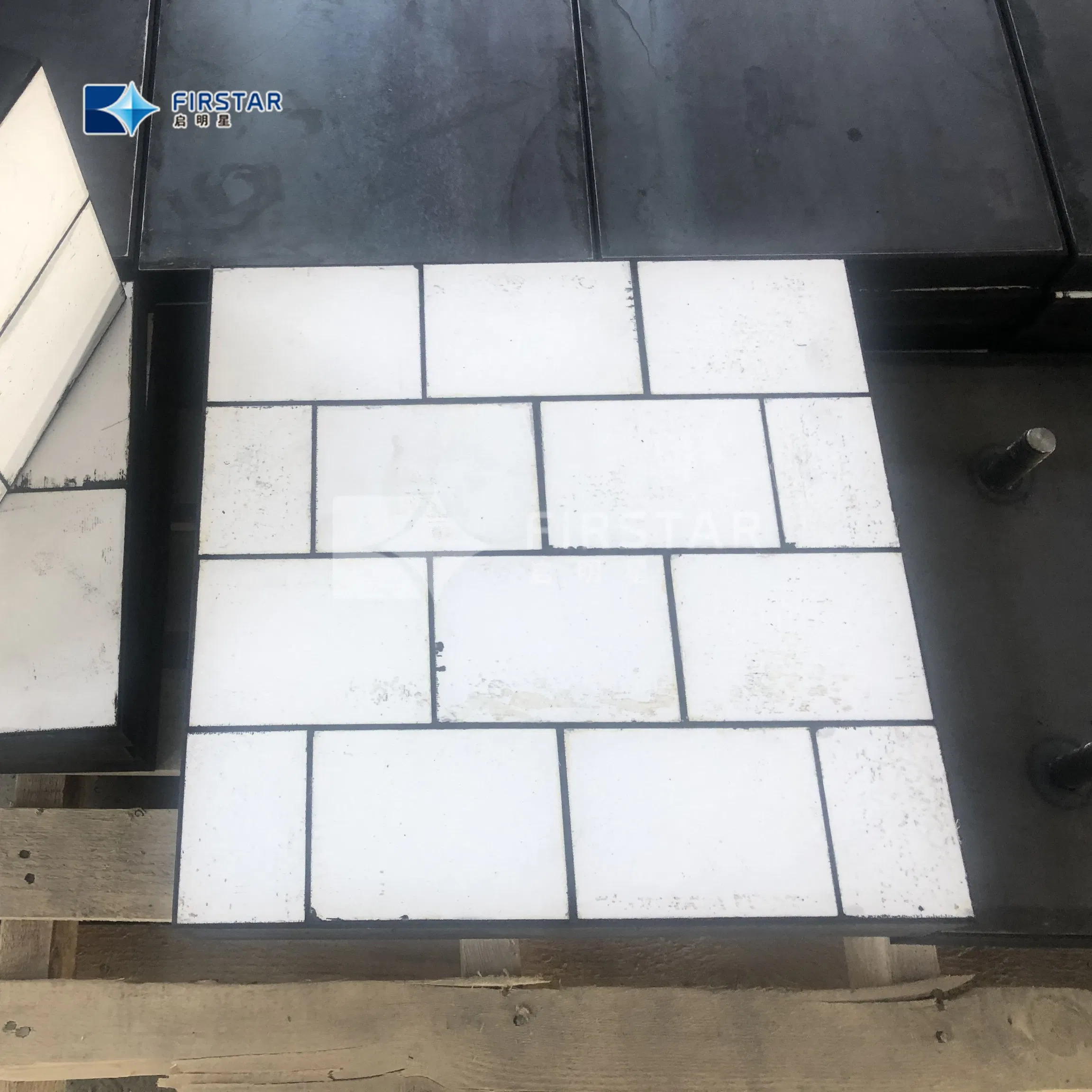

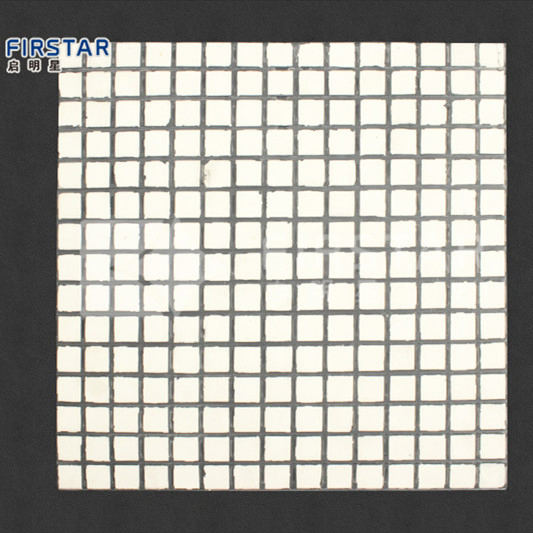

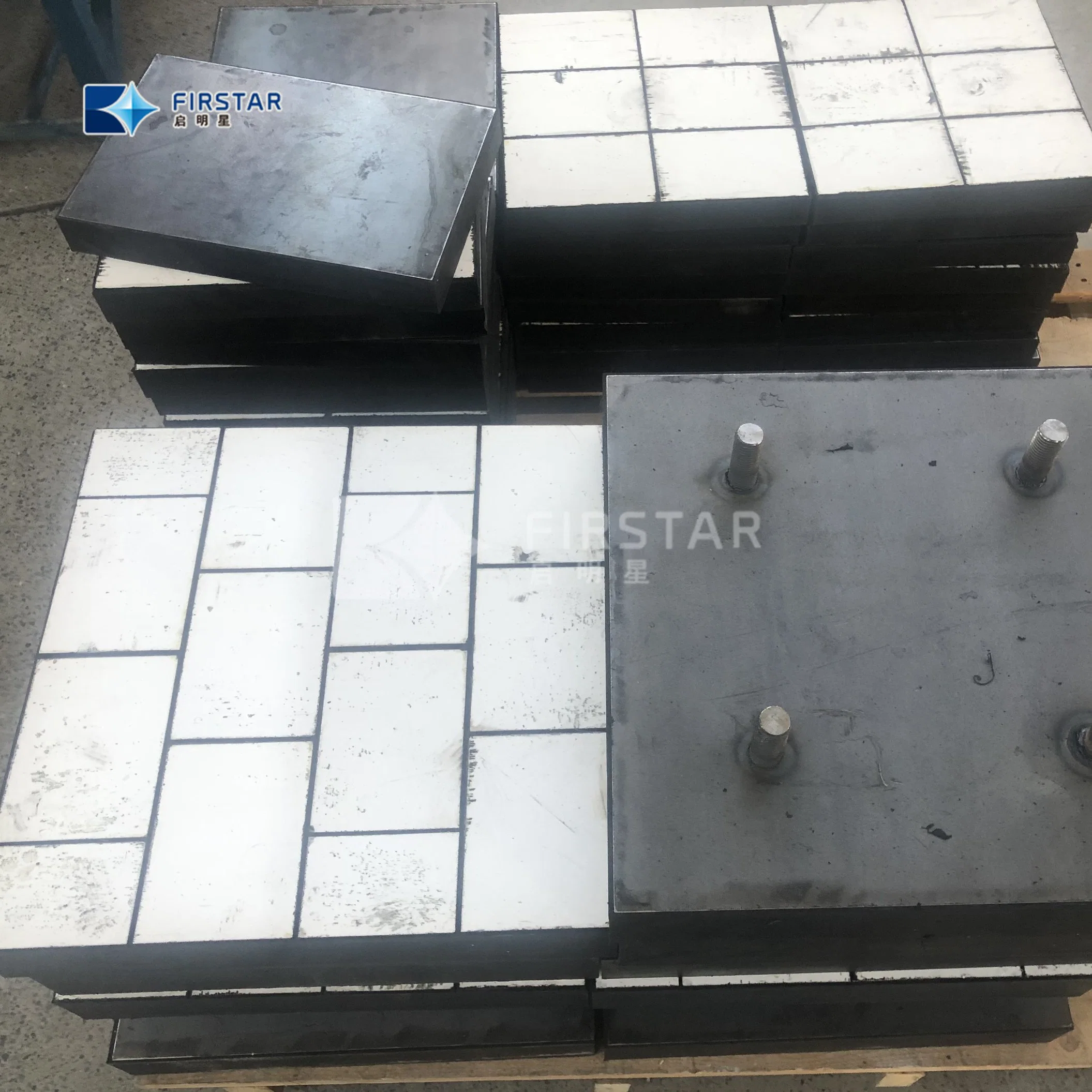

Hot Vulcanized Ceramic Wear Liner Backed Steel Plates and Rubber Matrix

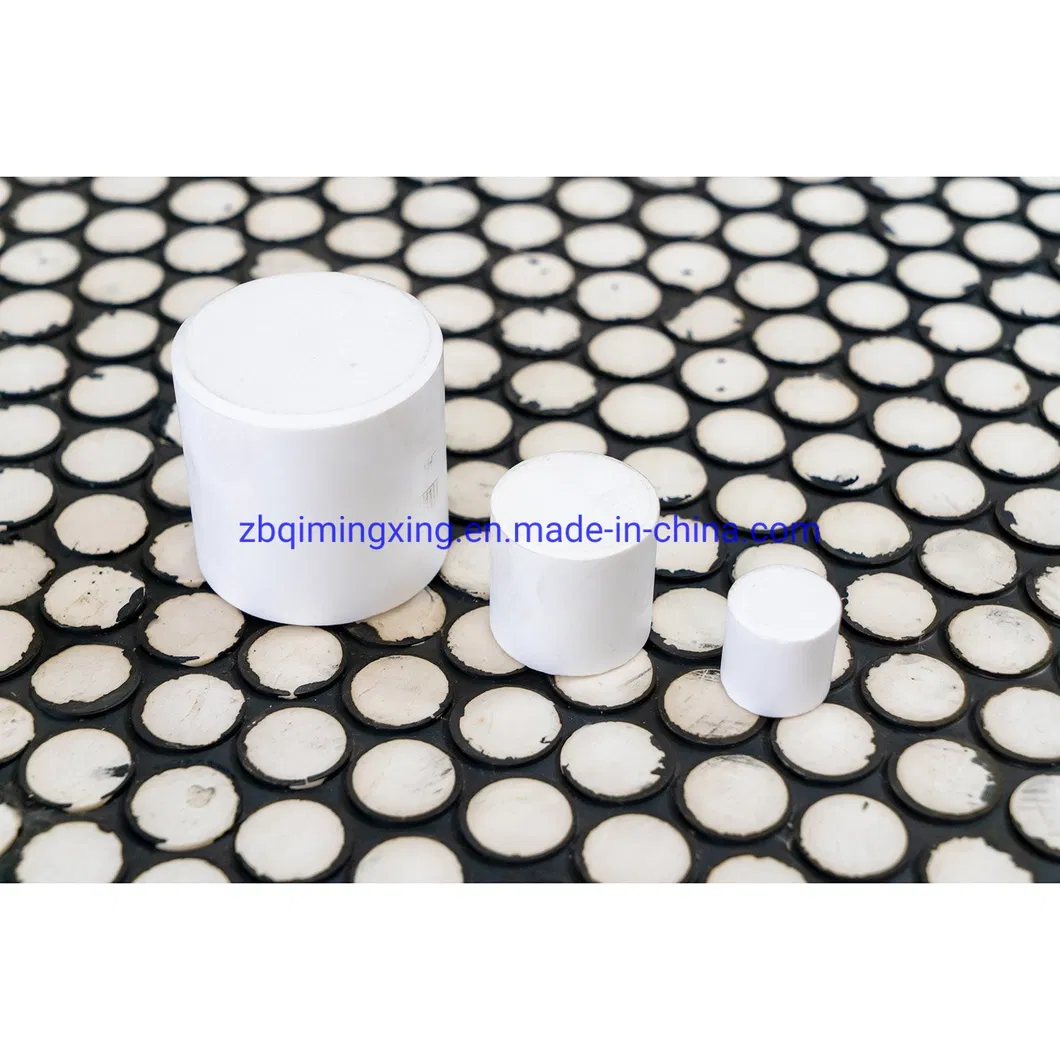

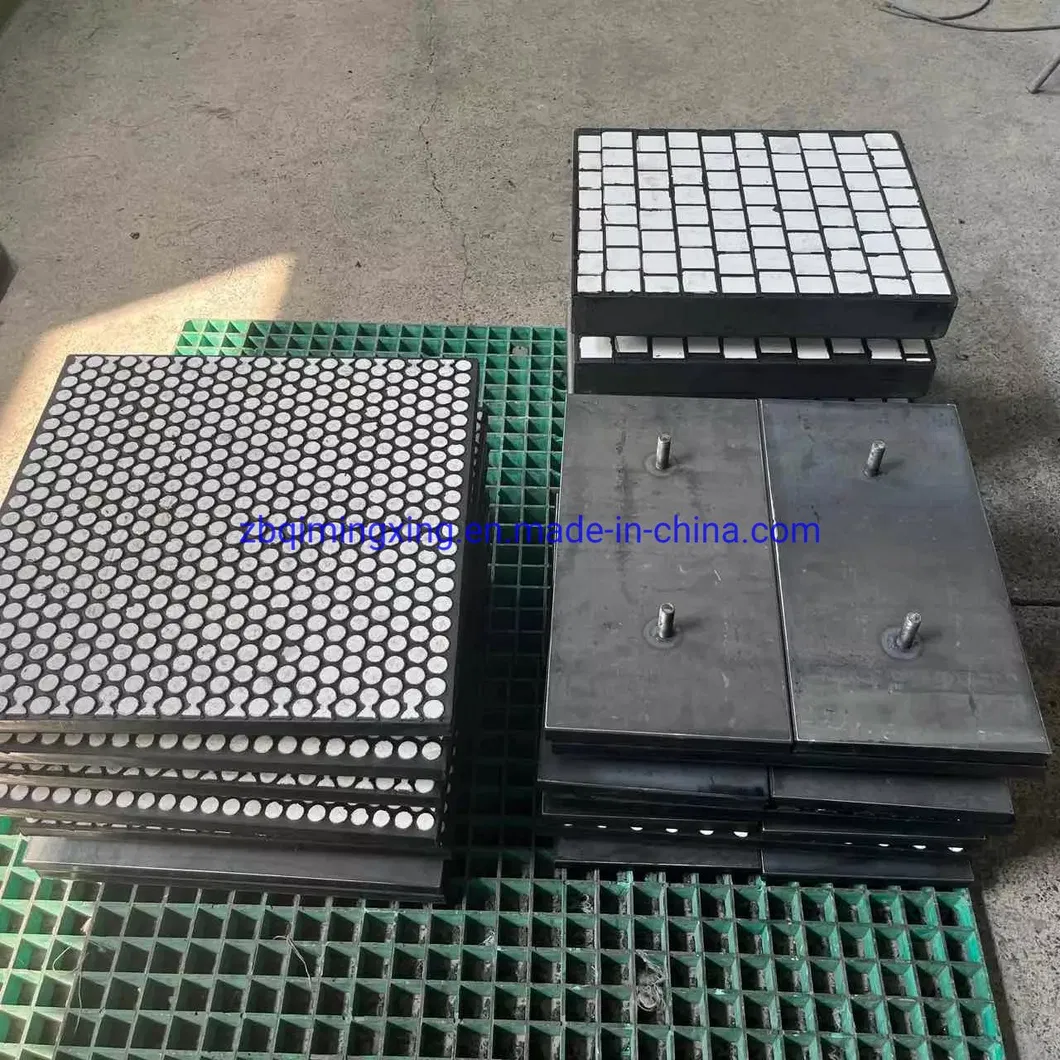

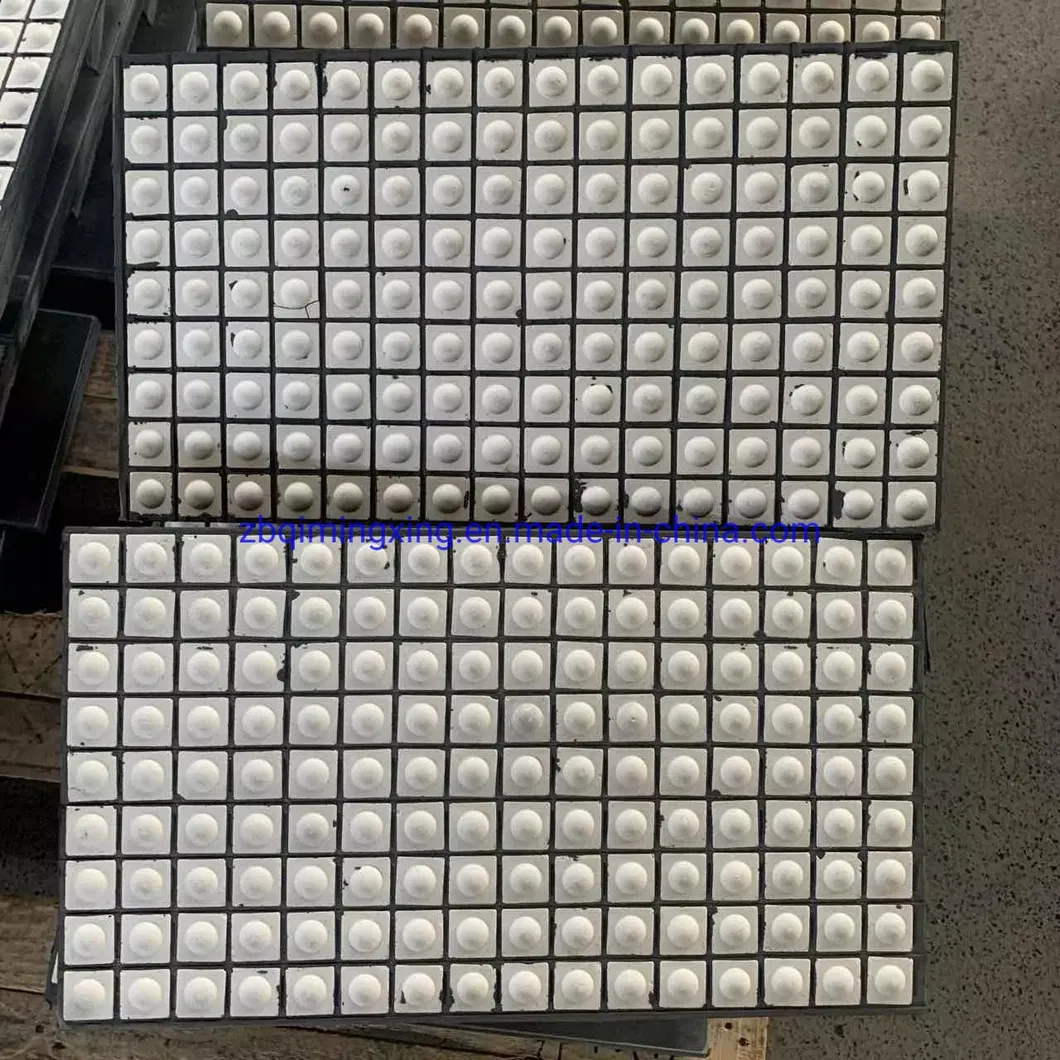

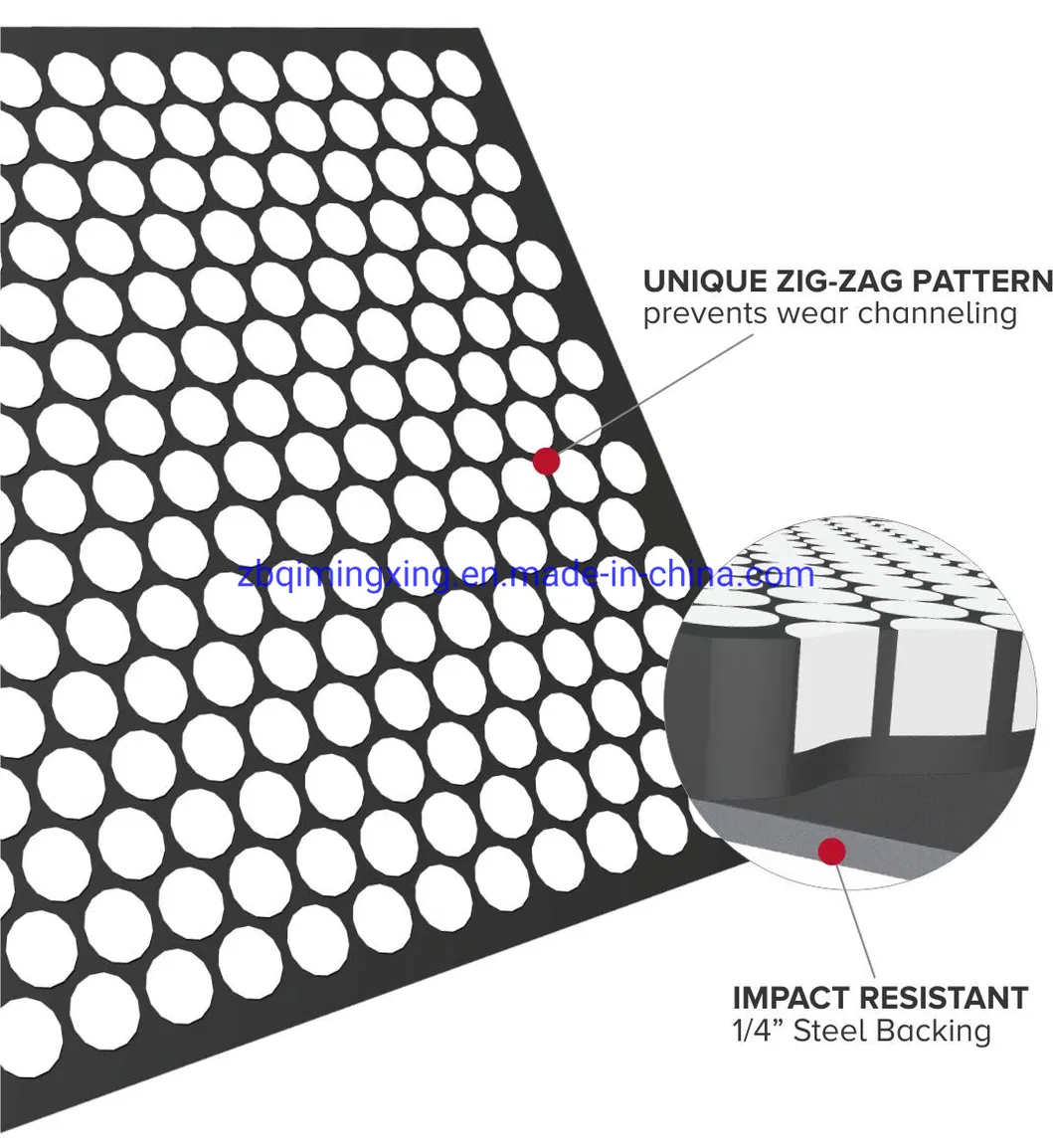

The rubber ceramic liner is made of excellent hot vulcanized rubber processing technology. The square or hemispherical wear-resistant ceramic liner and the vulcanized rubber are combined to produce a porcelain-vulcanized rubber composite wear-resistant ceramic vulcanized rubber sandwich panel. It combines high toughness of porcelain with the high buffering and fatigue-relieving characteristics of vulcanized rubber.
| 92 Alumina Ceramic Liners |
Wear Plate Backing Materials |
Mild Steel Backing Plate |
Al2O3: ≥92%
Density: ≥3.6g/cm³
Compressive strength: ≥1050Mpa
Rockwell Hardness: ≥85.5HRA
Wear Volume: ≤0.25cm3
|
Rubber: Natural
Tensile strength: ≥15Mpa
Shore A Hardness: 55-60
Adhesive Strength: 3.8Mpa
Elongation: 468%
|
Steel: Q235A or Q235B
|
Properties & Applications
Key Properties
- Fast and longlasting adhesion
- Highest abrasion resistance
- Reduces operating costs
- Long service life increases efficiency
- Good weather resistance
Area of Application
- Mining, gravel, sand and stone breaking mills
- Pipelines and vibratory feeders
- Cyclones, skips, bunkers, and chutes
- Loading points, hoppers, and silos

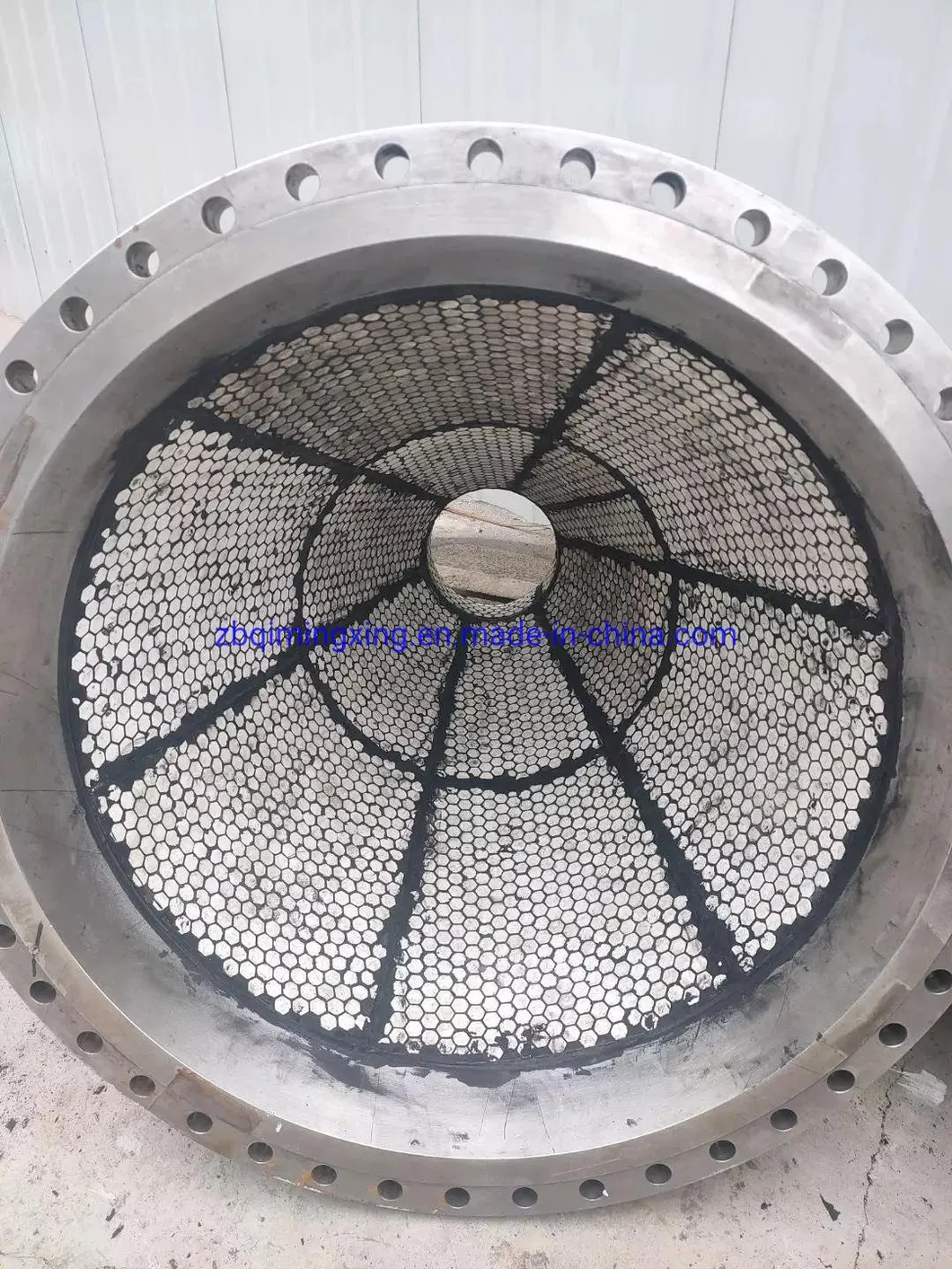

Wear Protection ceramic Linings are used throughout Mineral Processing to protect steel surfaces from wear and corrosion. They are crucial for equipment like pipes, tanks, chutes, and pumps where slurry flow causes high abrasion.
Packaging & Shipping

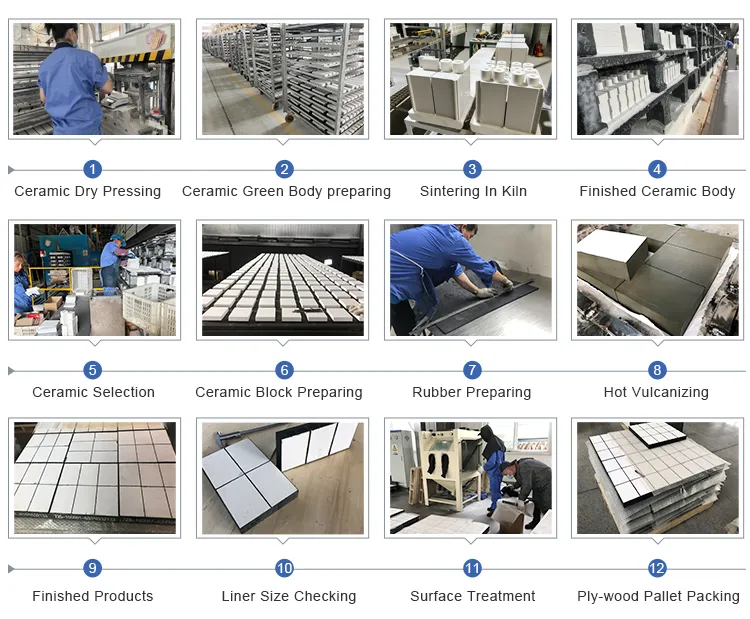

Workshop & Production
Expertise in HC series wear-resistant ceramic liners, alumina balls, zirconia toughened alumina, and vulcanized ceramic sheets.
Certifications
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a professional factory with over 20 years of experience in wear solution products.
Q: Is the sample free?
A: Yes, we offer free samples. The sample air shipping fee will be returned when the bulk order is placed.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. For non-stock items, it typically takes 15-30 days depending on the quantity.
Q: What are your terms of payment?
A: Our standard terms are T/T 30% as deposit, with the balance paid against the copy of B/L after shipment.
Q: Do you accept customized orders?
A: Yes, we accept customized sizes and specifications to meet specific industrial requirements, with a maximum size up to 900*900mm.
Q: What is the main function of the rubber ceramic liner?
A: It is primarily used for wear and abrasion resistance in heavy-duty mining and industrial equipment like chutes, hoppers, and pipelines.
