Super Wear Resistance Reaction Bonded Silicon Carbide (RBSiC) Liner Solutions
Reaction bonded silicon carbide is a multi-phased material typically containing 7-15% silicon metal, some minor amount of unreacted carbon, with the remaining body being SiC. RBSiC materials are manufactured utilizing a variety of processes depending on desired final product geometry, configuration, and required tolerances.
Reaction bonded silicon carbide has proven to be an excellent material choice for wear applications such as pipe liners, flow control chokes and larger wear components in the mining and other industrial sectors. RBSiC offers an economical and reliable material option for many applications where corrosion resistance or high wear resistance is essential.
Typical Properties of Silicon Carbide:
| Character | Technical Data |
|---|---|
| Material | RBSiC Silicon Carbide |
| Color | Black |
| Density | 3.02 g/cm³ |
| Apparent Porocity | <0.1% |
| Hardness | 2400 kg/mm² |
| Temperature | ≤1380 ºC |
| Bending Strength | 250 Mpa (20ºC) |
| Modulus of Elasticity | 330 Gpa (20ºC) |
| Thermal Conductivity | 4.5 K^(-3)*10^(-5) |
| Moh's Hardness | 13 |
Available Shape and Sizes:

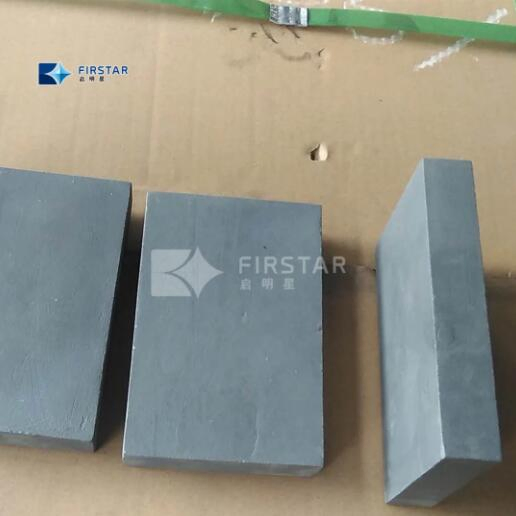

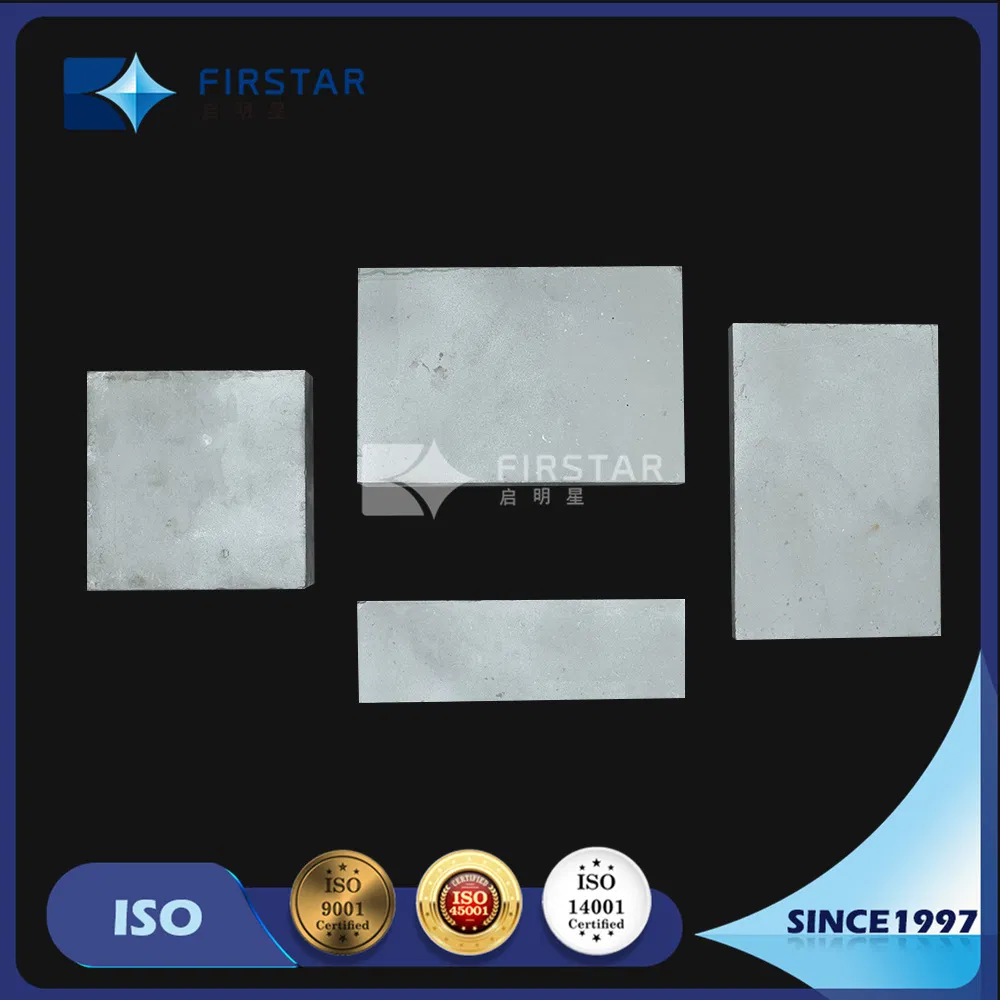

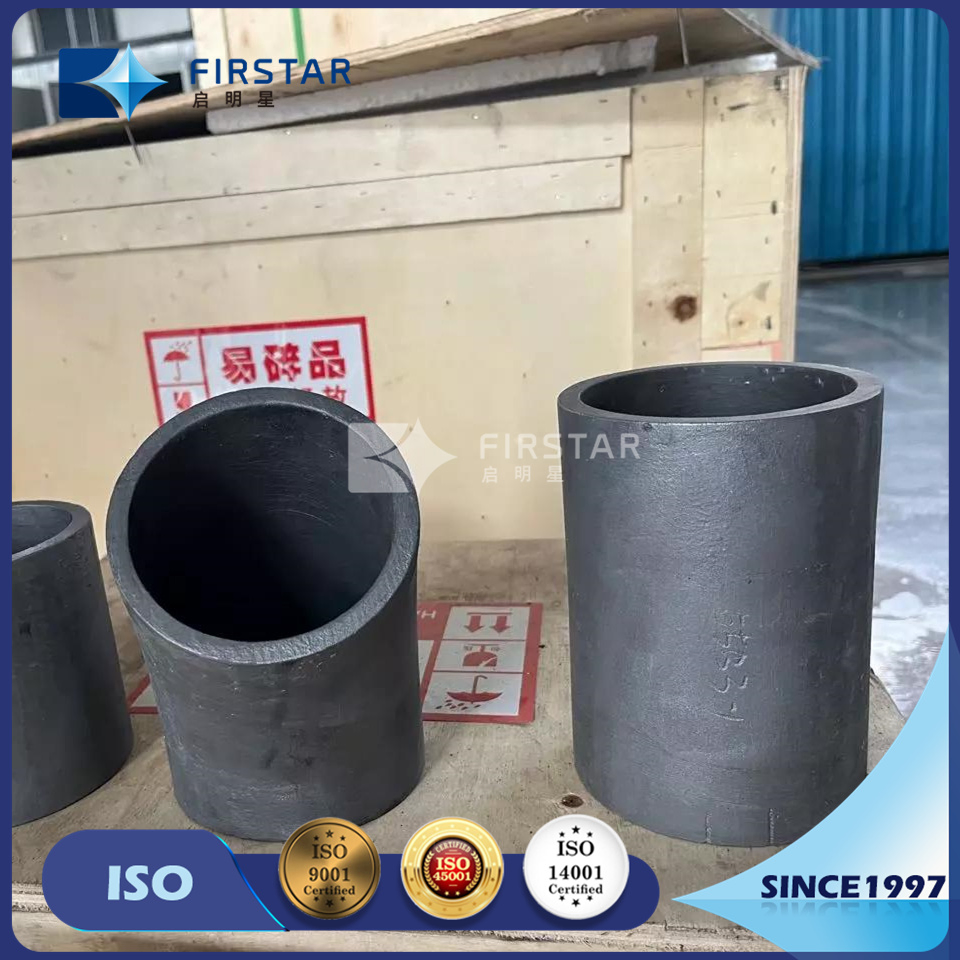

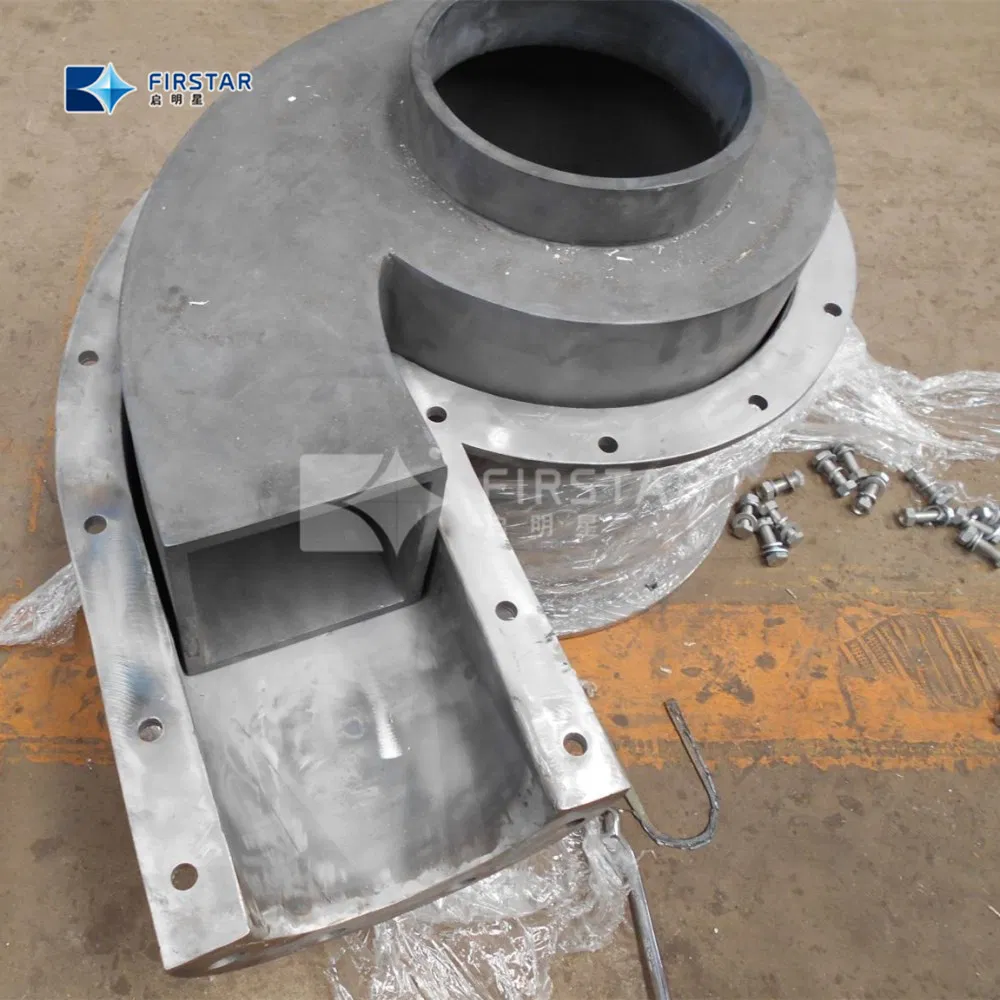

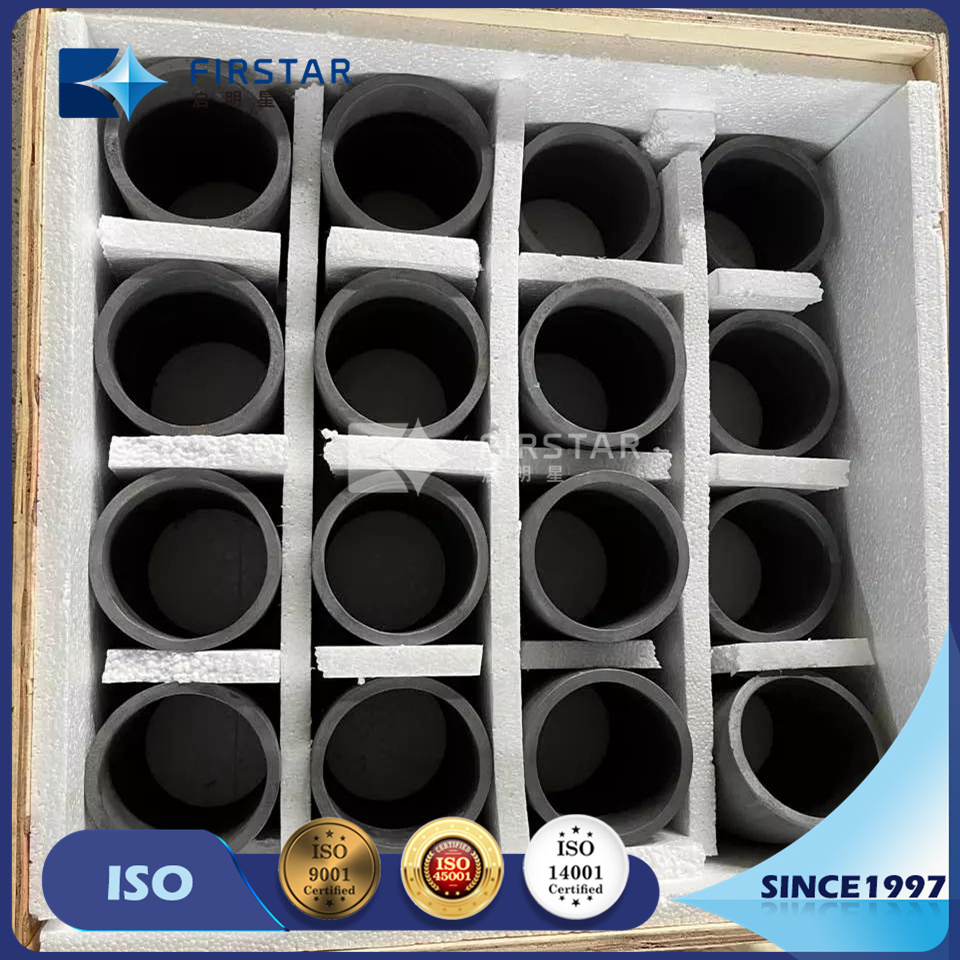

Thickness: from 6mm up to 25mm. Shapes include SiSiC tiles, Pipe tiles, Three Links, Elbows, and Cone Cyclones. Custom sizes available upon request.

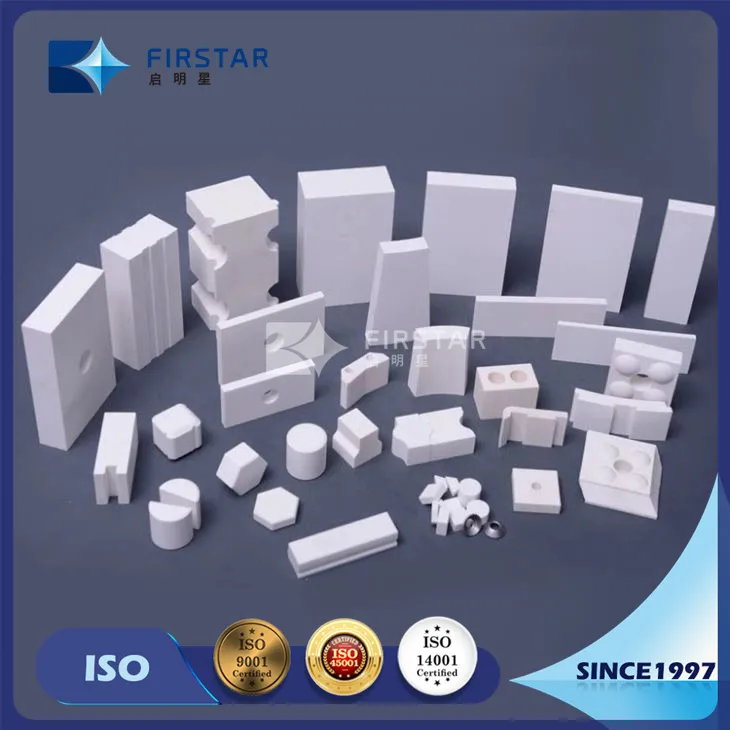

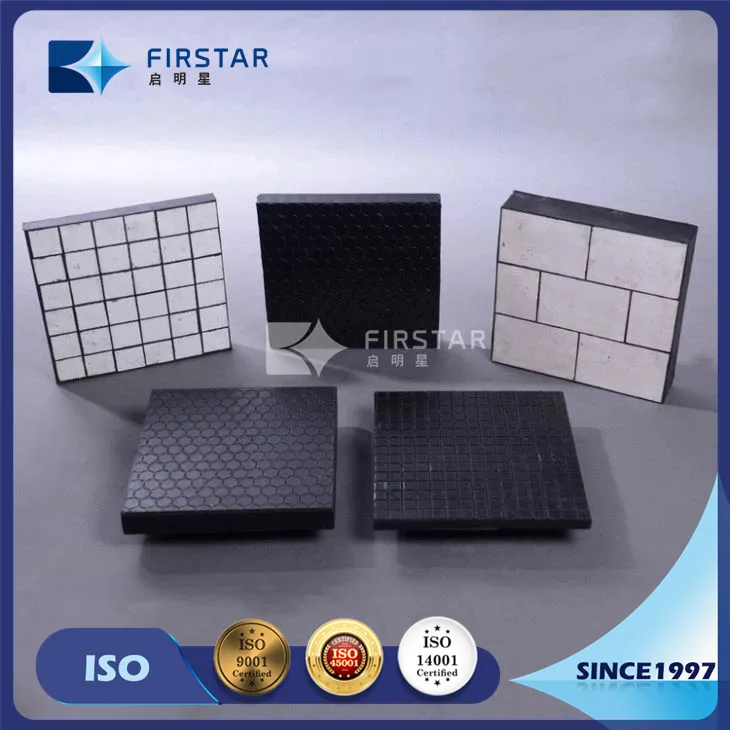

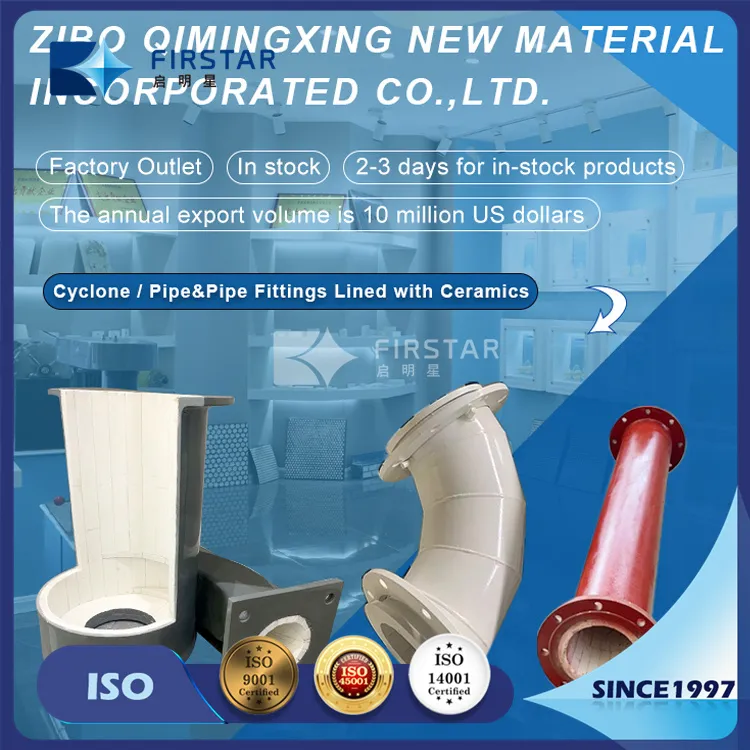

Ceramic Wear Tiles Series: Alumina tiles (92%-99%), ZTA tiles, Ceramic Rubber impact liners, Cyclone tiles, and pipe fittings.

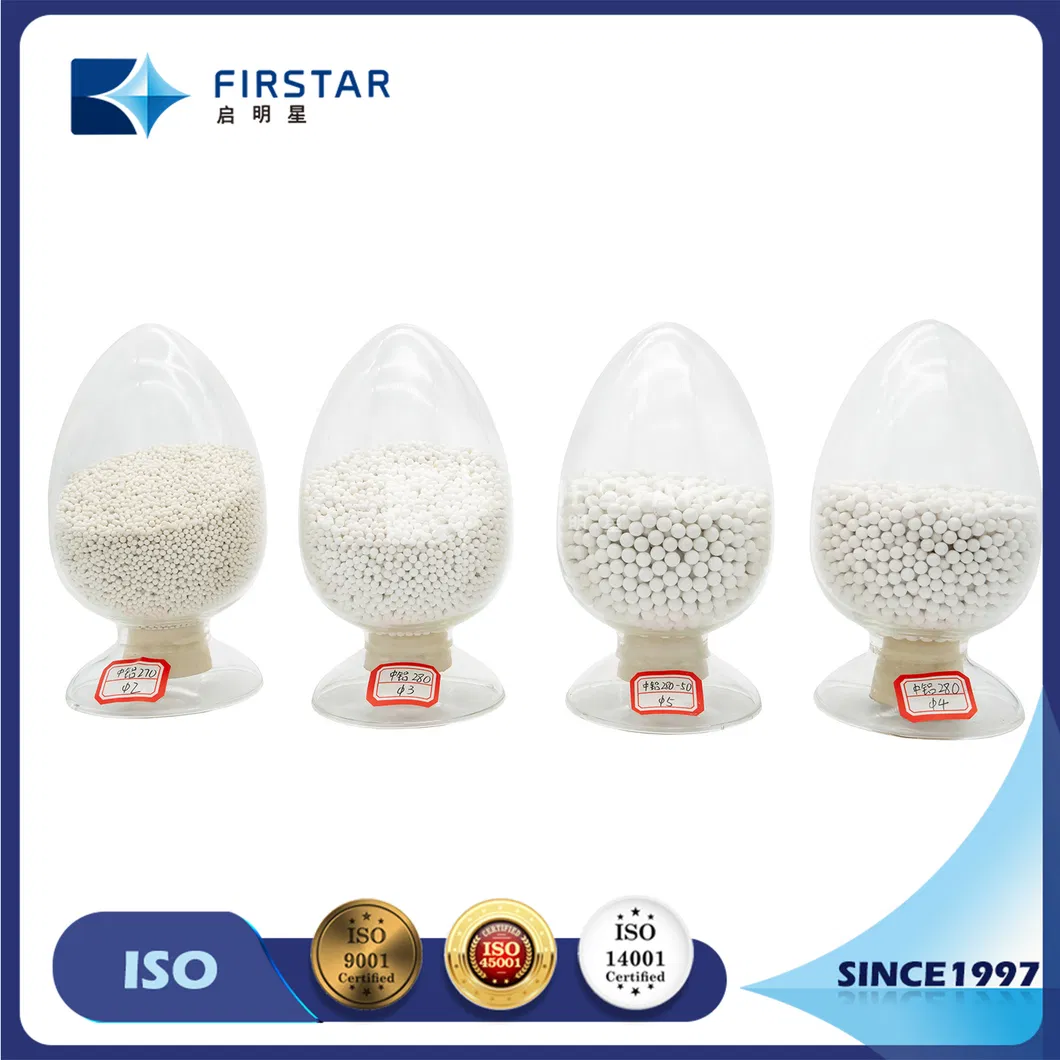

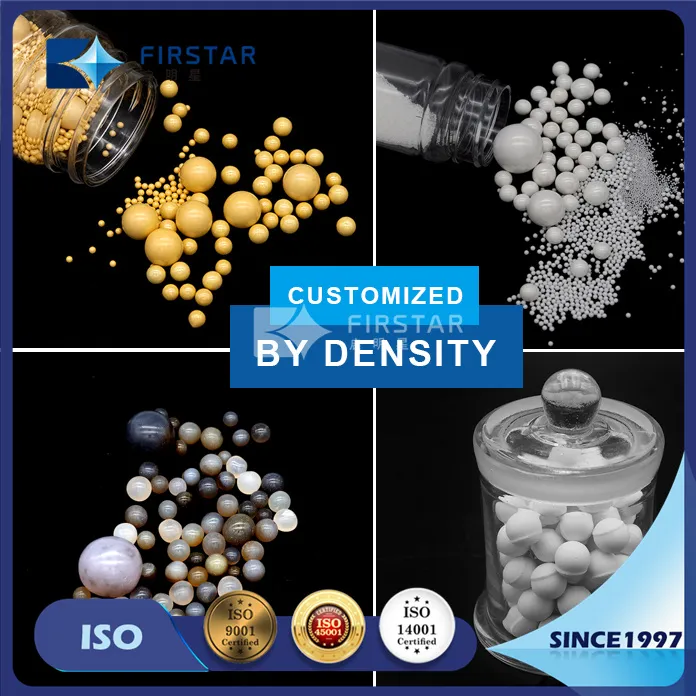

Ceramic Grinding Media Series: Alumina grinding media, Y-TZP zirconia media, ZTA grinding media, and zirconium silicate media.
