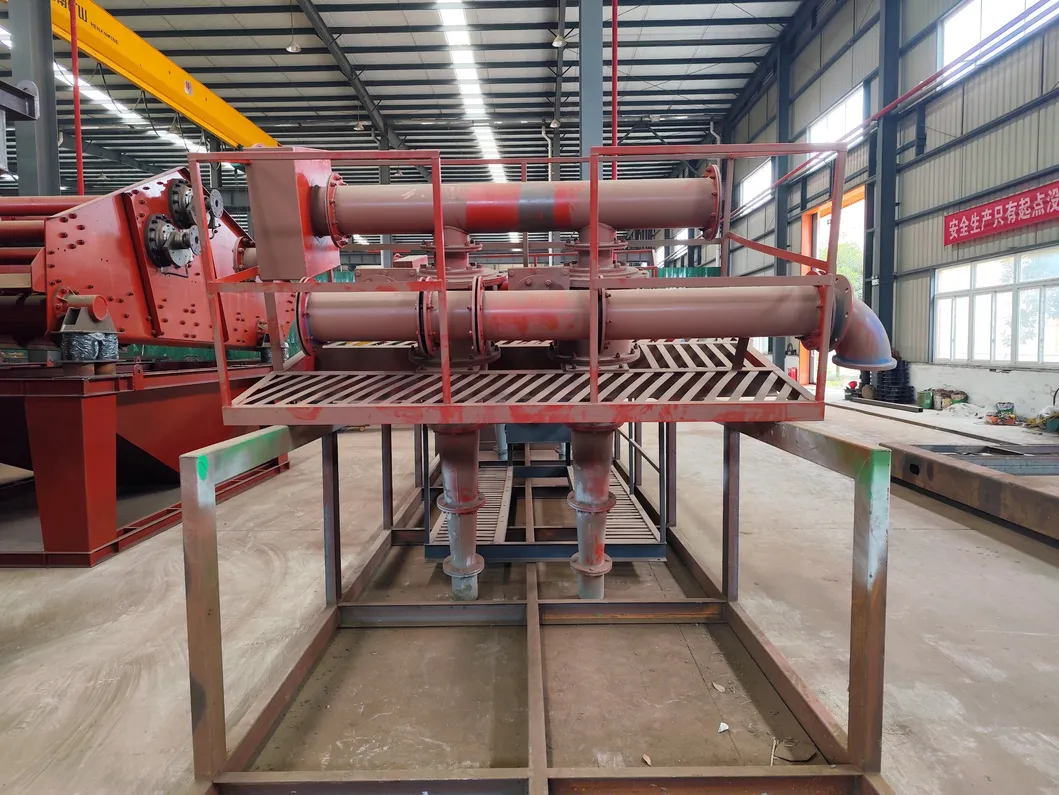

High-efficiency hydrocyclone is a kind of classification equipment which uses centrifugal force to accelerate the sedimentation of ore particles, and is widely used in mining, chemical industry, water treatment and other industries.
1. High efficiency: Features high classification efficiency and large capacity, reaching 80%~90% for fine-grained materials (< 0.1mm).

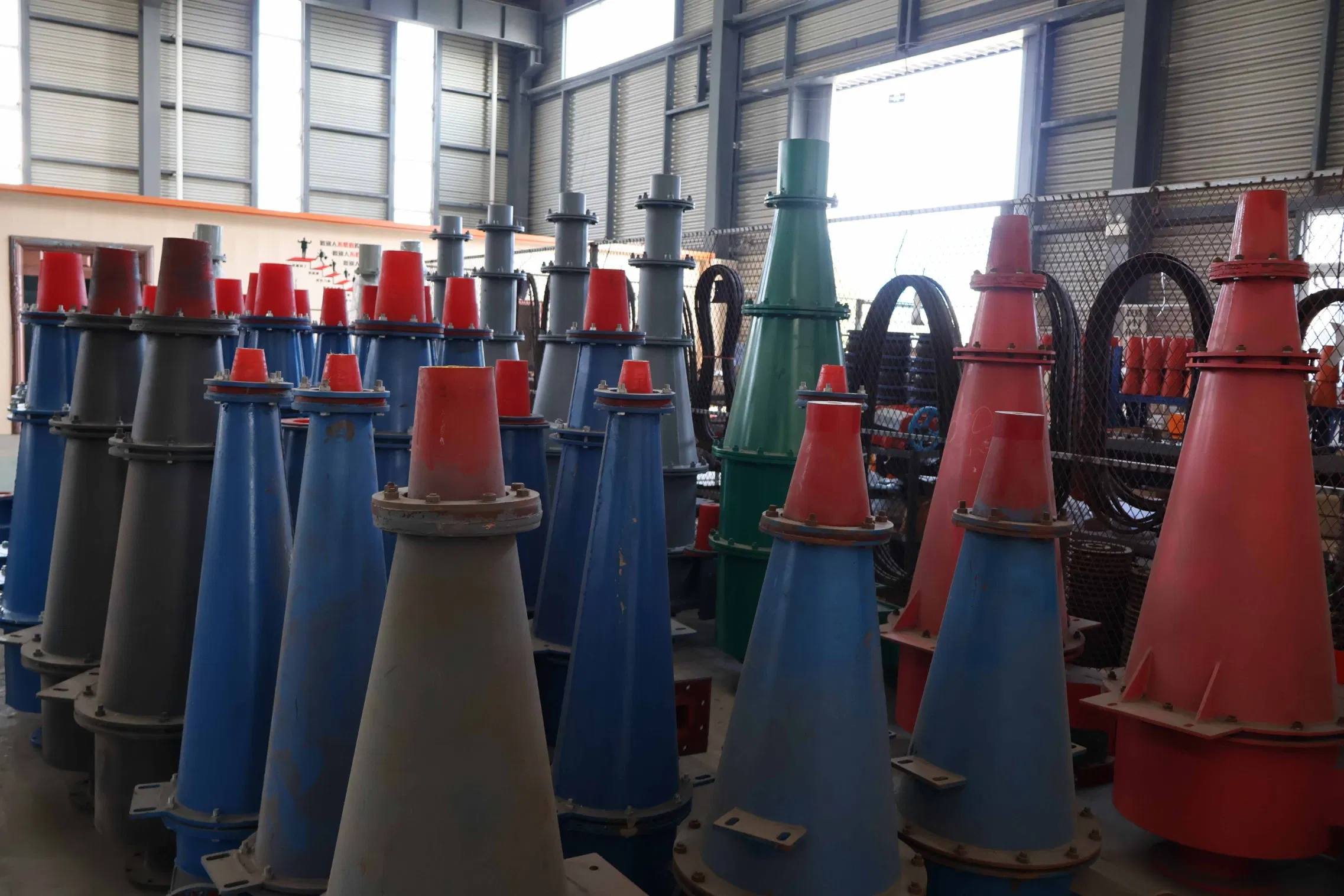

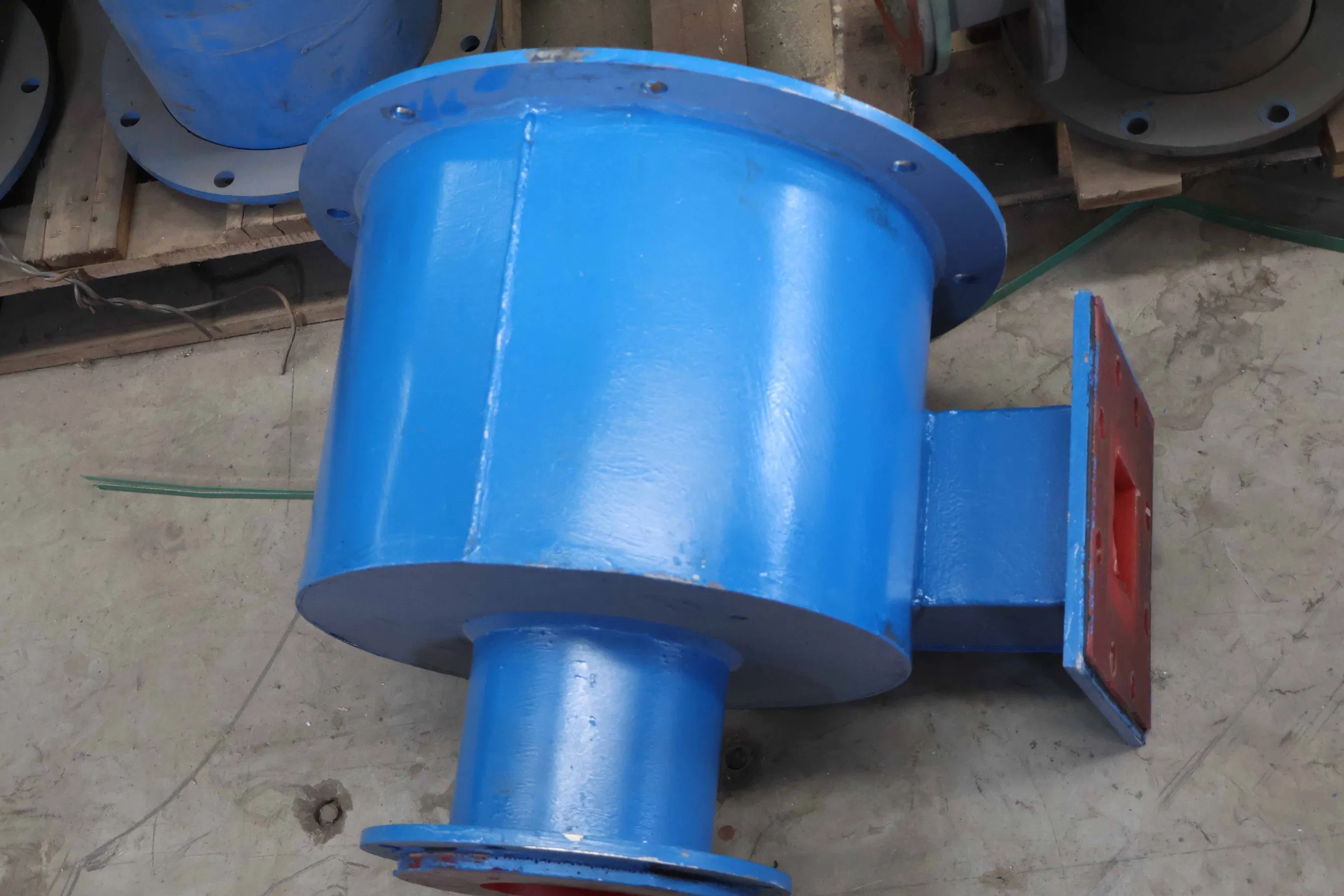

2. Simple structure: Composed of a hollow cylinder and a cone, making it convenient for manufacture and maintenance.
3. Small floor space: Compact structure conducive to saving land resources.
4. Strong adaptability: Adapts to changes in pulp properties such as particle size, density, and concentration.
5. Strong wear resistance: Uses materials like cemented carbide and silicon carbide for high-wear parts to prolong service life.

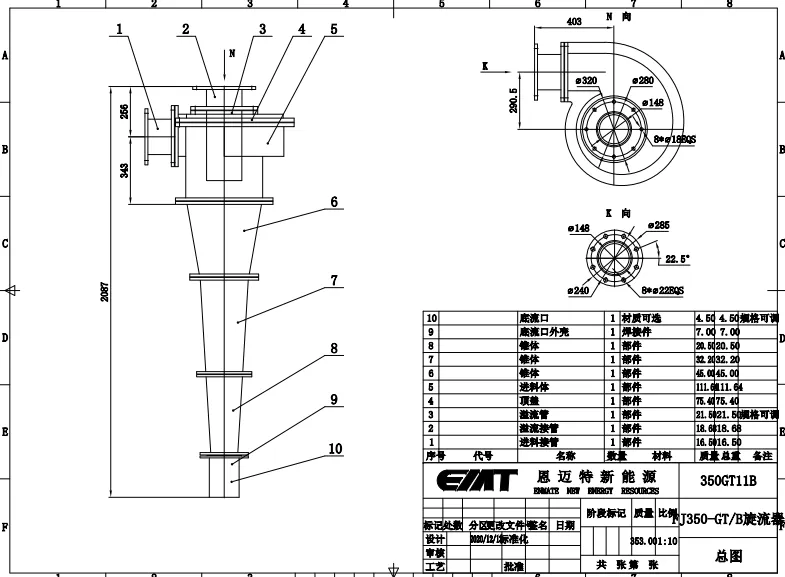

The working principle is based on centrifugal force. Pulp enters the shell tangentially at high speed. Coarse/dense particles are pushed to the periphery and discharged from the bottom, while fine/low-density particles move to the center and exit through the overflow pipe.
| Model | Inner Dia (mm) | Max Feed (mm) | Inlet Pressure (MPa) | Capacity (m³/h) | Separation Size (mm) |
|---|---|---|---|---|---|
| 100 | 100 | 1 | 0.05-0.4 | 1-12 | 10-100 |
| 125 | 125 | 1 | 8-15 | 20-100 | |
| 150 | 150 | 1.5 | 11-20 | 30-74 | |
| 200 | 200 | 2 | 25-40 | 30-100 | |
| 250 | 250 | 3 | 40-65 | 40-100 | |
| 300 | 300 | 5 | 45-90 | 40-150 |

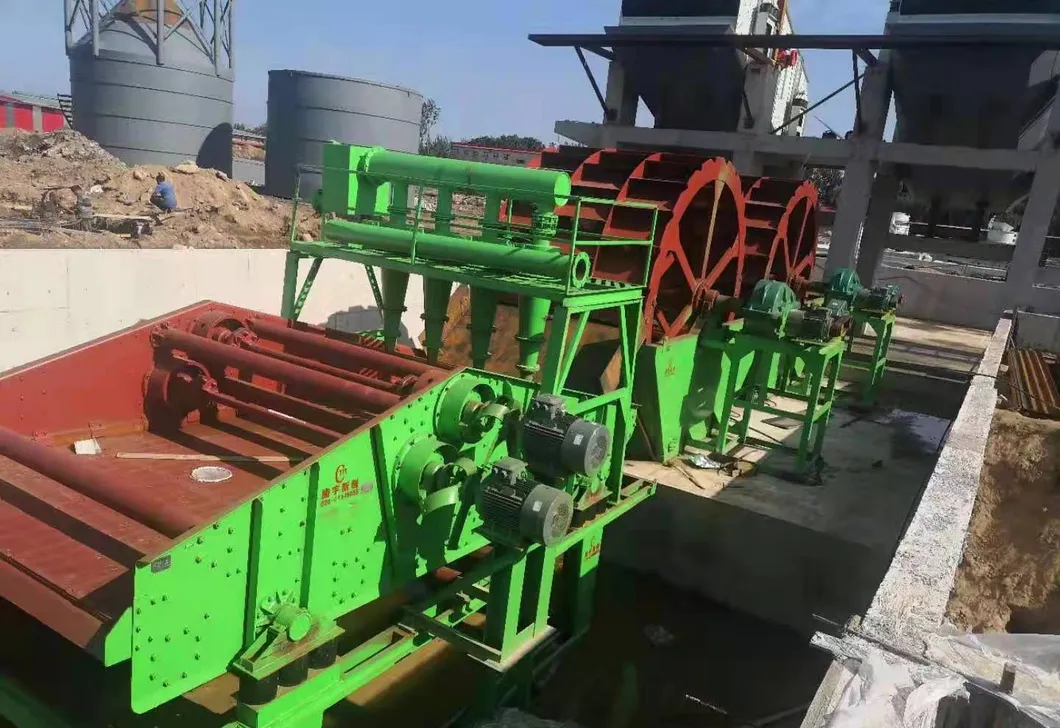

We offer a wide range of products including high-frequency vibrating screens, high-efficiency hydrocyclones, sand washing and recovery integrated machines, linear vibrating dewatering screens, and zero-discharge systems for tailings-water mixtures.
Quality is ensured through comprehensive staff training, rigorous inspection procedures for finished products, cutting-edge technological innovation, and meticulous management protocols.
Our hydrocyclones feature high classification efficiency (up to 80%-90% for fine materials), compact structures that save space, strong wear resistance using cemented carbide, and excellent adaptability to various pulp densities.

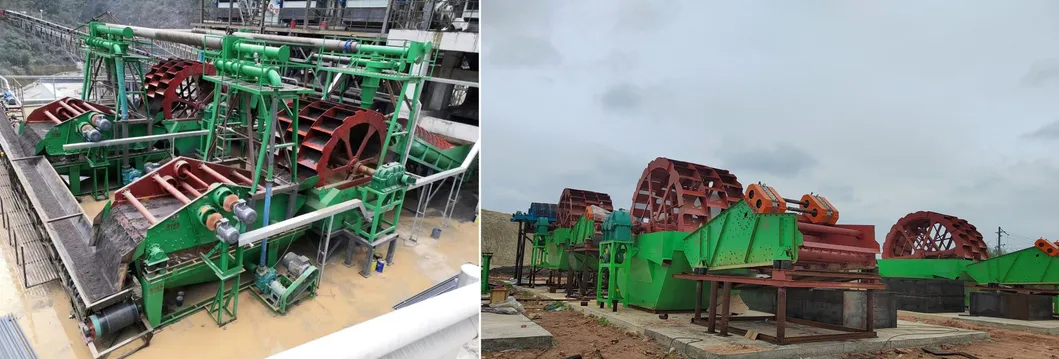

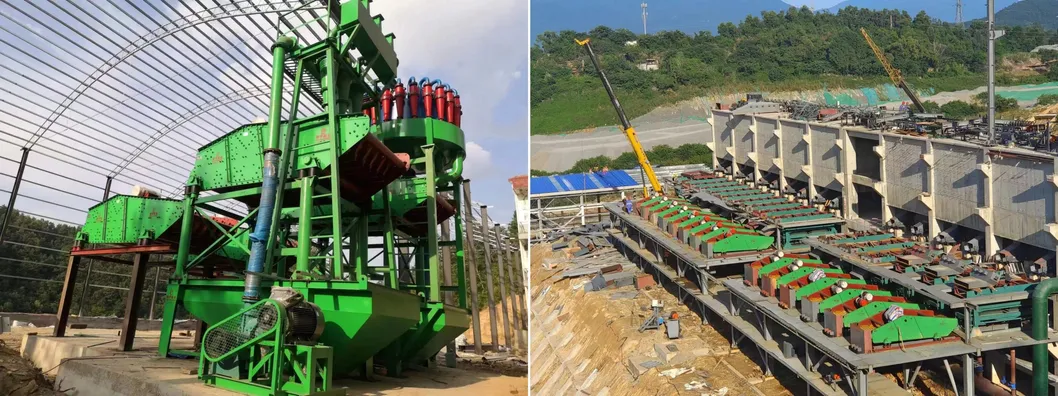

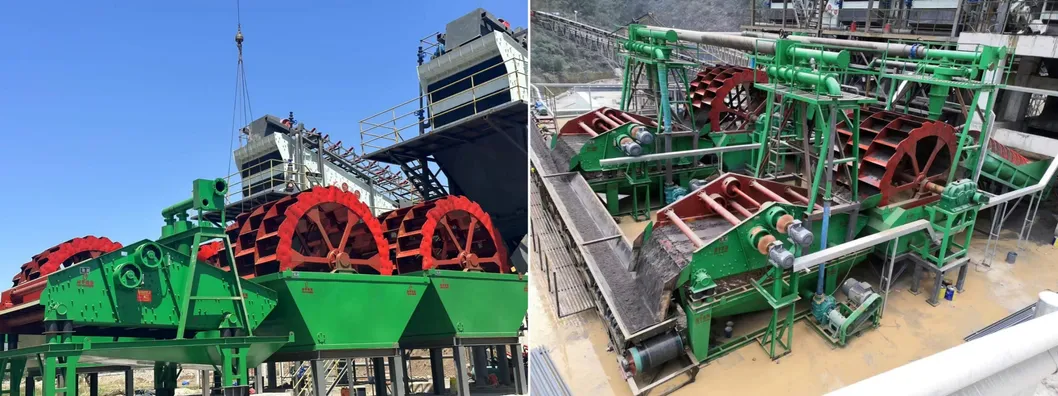

Our equipment is widely used in metal mine processing, coal washing plants, sandstone aggregate plants, chemical industries, and water treatment facilities for efficient material separation.
We accept various delivery conditions including FOB, CIF, EXW, and DDP. Payments can be made in USD, EUR, or RMB via T/T, L/C, Credit Card, or Western Union.
Yes, we focus on providing the most perfect process design schemes and cost-effective equipment tailored to the humidity, silt content, and particle characteristics of your specific raw materials.
