Rubber Composite Liner Wear Plates as Chute Lining

1 / 5

Rubber Composite Liner Wear Plates as Chute Lining

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Chemshun ceramics

Certification

ISO, BSI, CE

Material

Rubber+Ceramic+Steel

Feature

Wear Resistant

Item

Rubber Ceramic Plate

Size

250*250mm, 300*300mm, 500*500mm

Alumina Content

92%, 95%

Application

Chutes/Hoppers, Cyclone Separator

🛠️ Product Description

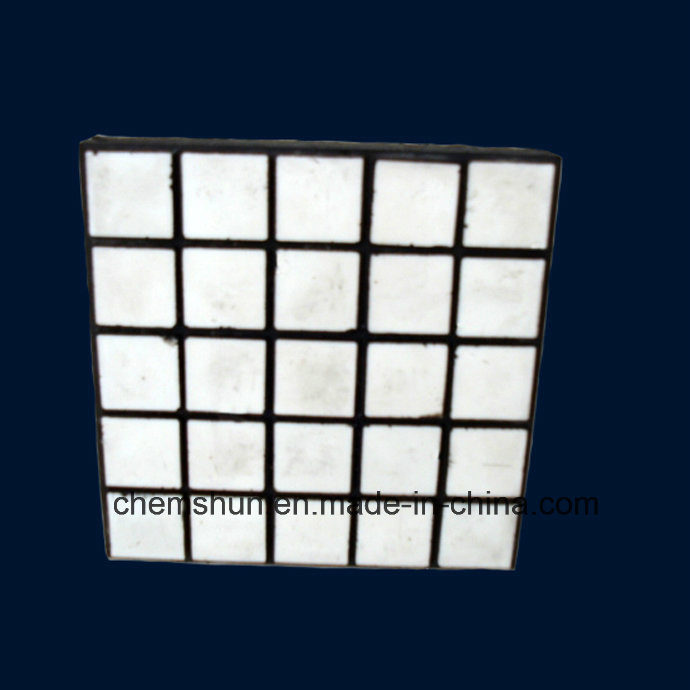

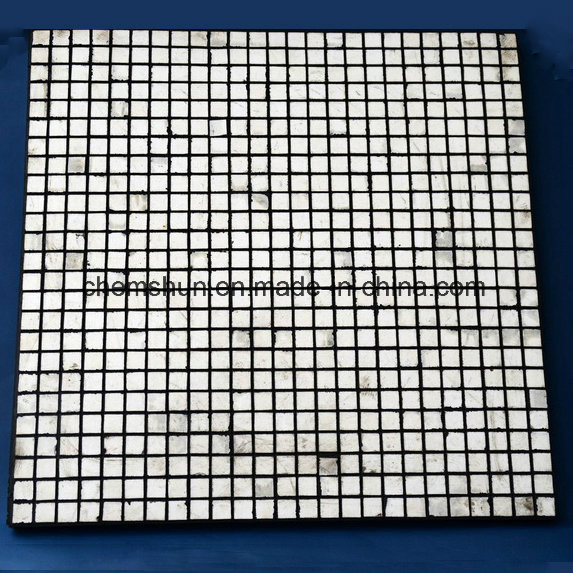

Rubber Composite Liner Wear Plates as Chute Lining

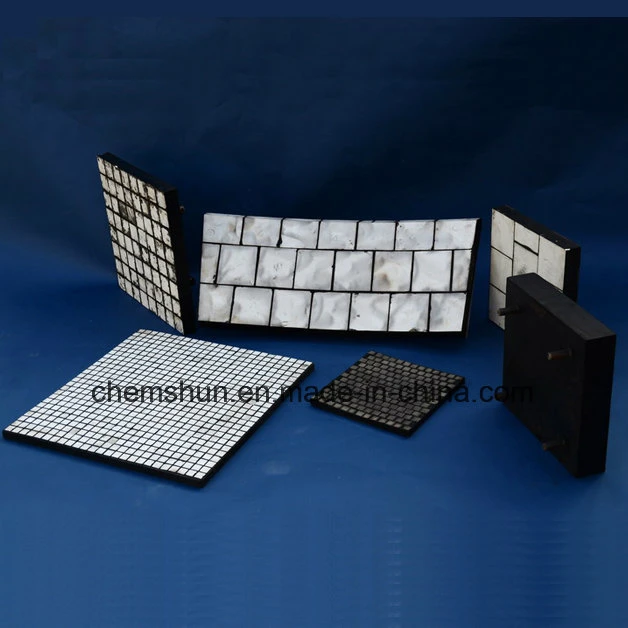

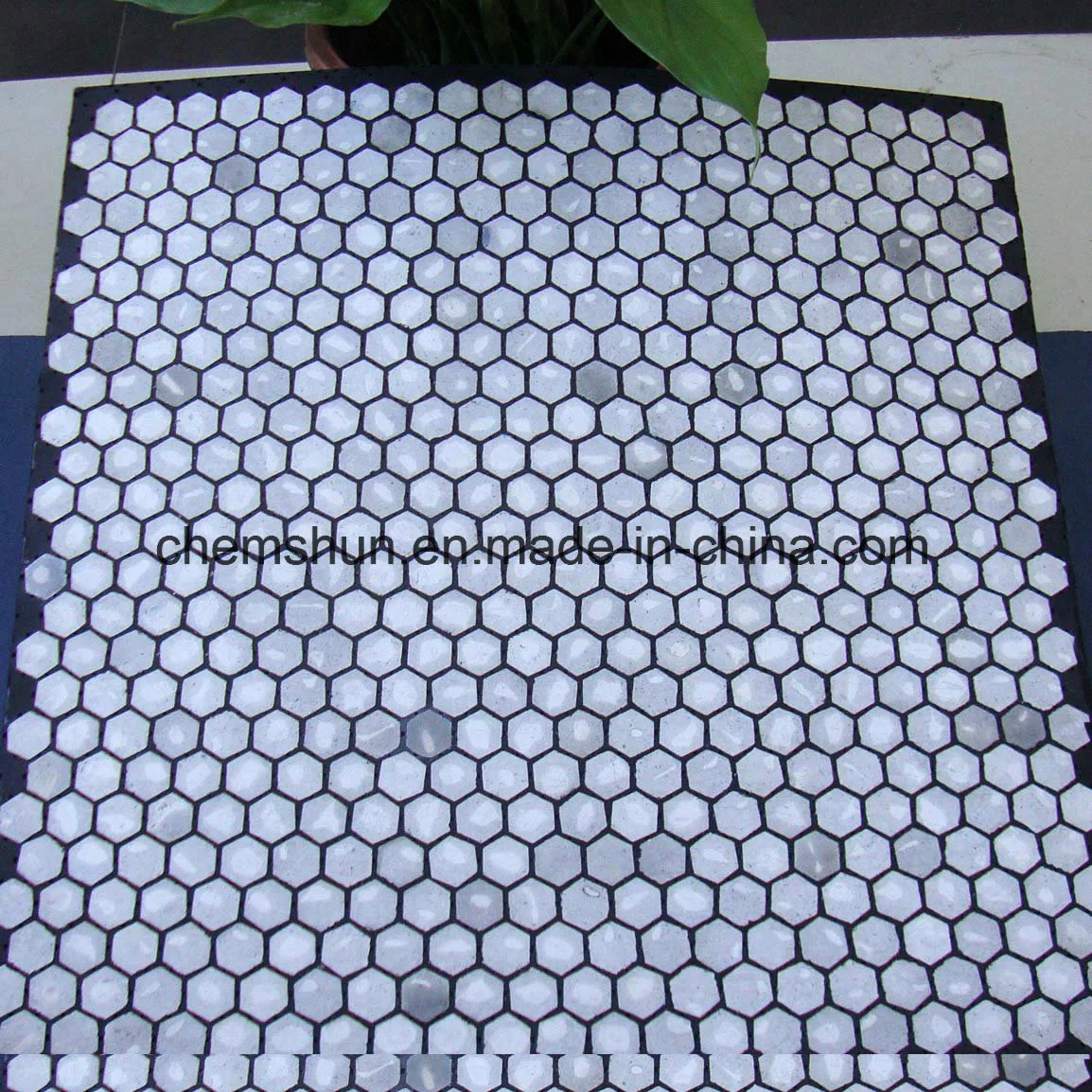

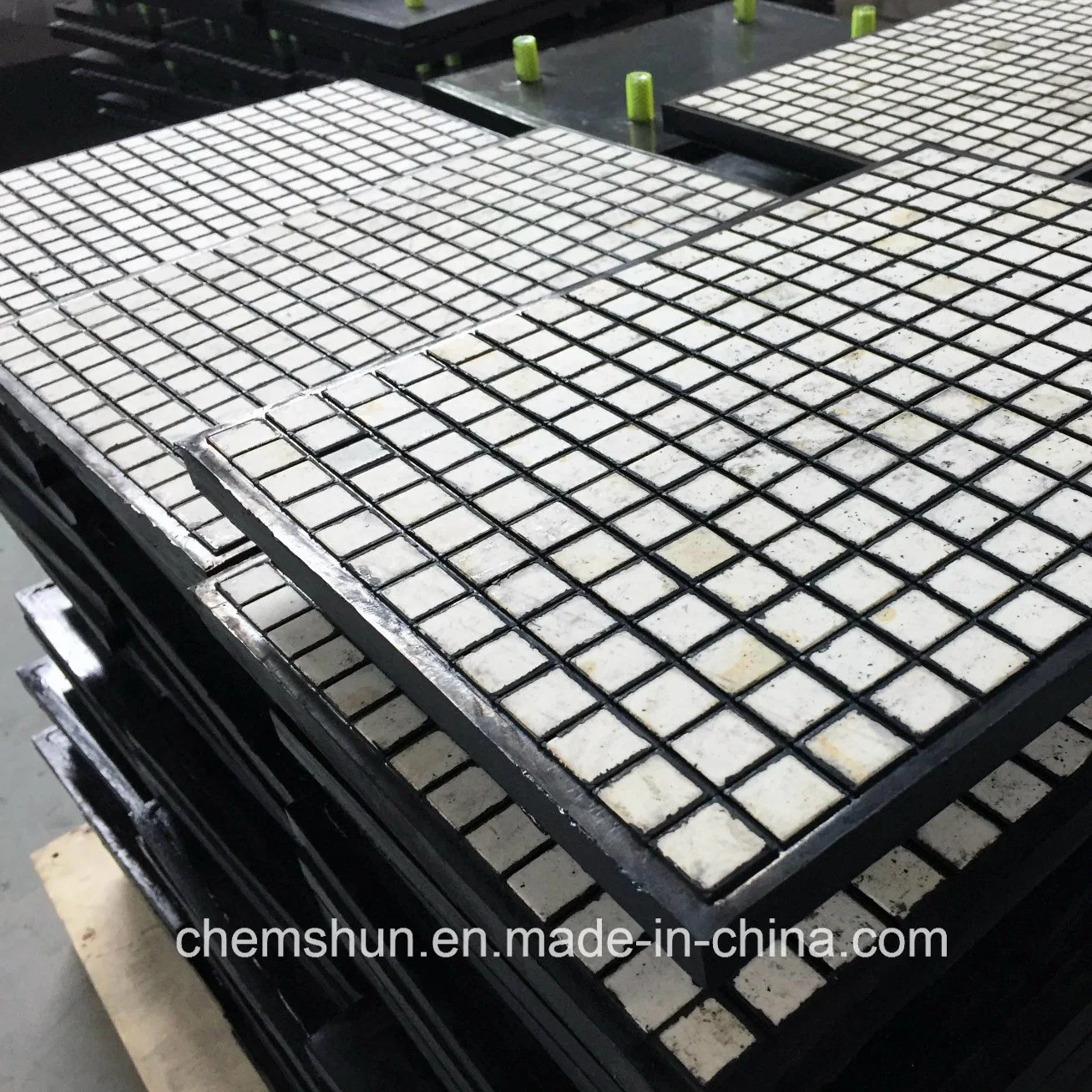

Chemshun Rubber ceramic plate is impact resistant for bulk material handling equipment in coal industry and mining. This wear resistant panel is made by a combination of abrasion resistant alumina ceramics (cylinders, hexagon, plate) vulcanized in a resistance rubber base, often including steel backings.

The alumina ceramic provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens impact forces. This combination substantially reduces vibrations, sounds, and impact shock generated by material flow.

Key Applications: Feeders, chutes, bins, transfer points, conveyor systems, screen feed plates, mill discharge chutes, and bunkers in mining, power plants, and cement industries.

🌟 Product Features

High Hardness: Second only to diamond in wear resistance.

Impact Resistance: 10 times higher than ordinary ceramic tiles due to shock-absorbing rubber.

Noise Reduction: Reduces noise by over 30dB through vibration absorption.

Easy Installation: Can be installed via epoxy resin or integrated bolts.

📊 Technical Specifications

Item	Content
Alumina content	92%
Density	≥ 3.62g/cm3
Abrasion loss	0.014cm3/10minutes
Rockwell A hardness	≥87 HRA
Moh's hardness	9 grade
Impact strength	≥850 Mpa
Bending strength	≥ 290 Mpa
Water absorption	None

🖼️ Product Gallery

❓ Frequently Asked Questions

What are the main components of the rubber ceramic plate?

The plate is a composite made of high-alumina ceramic (92% or 95% Al2O3) vulcanized into a resilient natural rubber base, optionally with a steel backing plate.

How does it improve the working environment?

It significantly reduces noise levels (up to 30dB) and dampens vibrations, which improves safety and comfort for operators near handling equipment.

What industries benefit most from these liners?

Mainly mining, coal-fired power plants, cement manufacturing, and steel plants where high impact and abrasion are common.

Is custom sizing available?

Yes, the thickness of both rubber and ceramic, as well as the overall plate shape, can be adjusted to fit specific equipment requirements.

How are these plates installed?

They are designed for easy installation using either high-strength epoxy resin bonding or mechanical bolting through the steel backing.

What is the typical lead time for orders?

Standard delivery is typically 20-30 working days for large quantities, depending on whether the items are stock or custom-designed.
