Product Description

Basic Specifications

Model NO.

Ceramic Rubber Liner

Material

Alumina Ceramic, Resilient Rubber, Steel

Type

Wear Resistant Ceramic

Density

1.4G/Cm3

Tensile Strength

>14MPa

Elongation at Break

>250%

Shore Hardness

48-65

Thermal Conductivity

2W/M·K

Adhesion (R&C)

>3.5 MPa

Shipping Way

FOB, CIF, DDP, DDU etc

Aging Period

>15 Years

HS Code

6909120000

Production Capacity

17000 Tons Per Year

Customized

Accepted

Product Overview

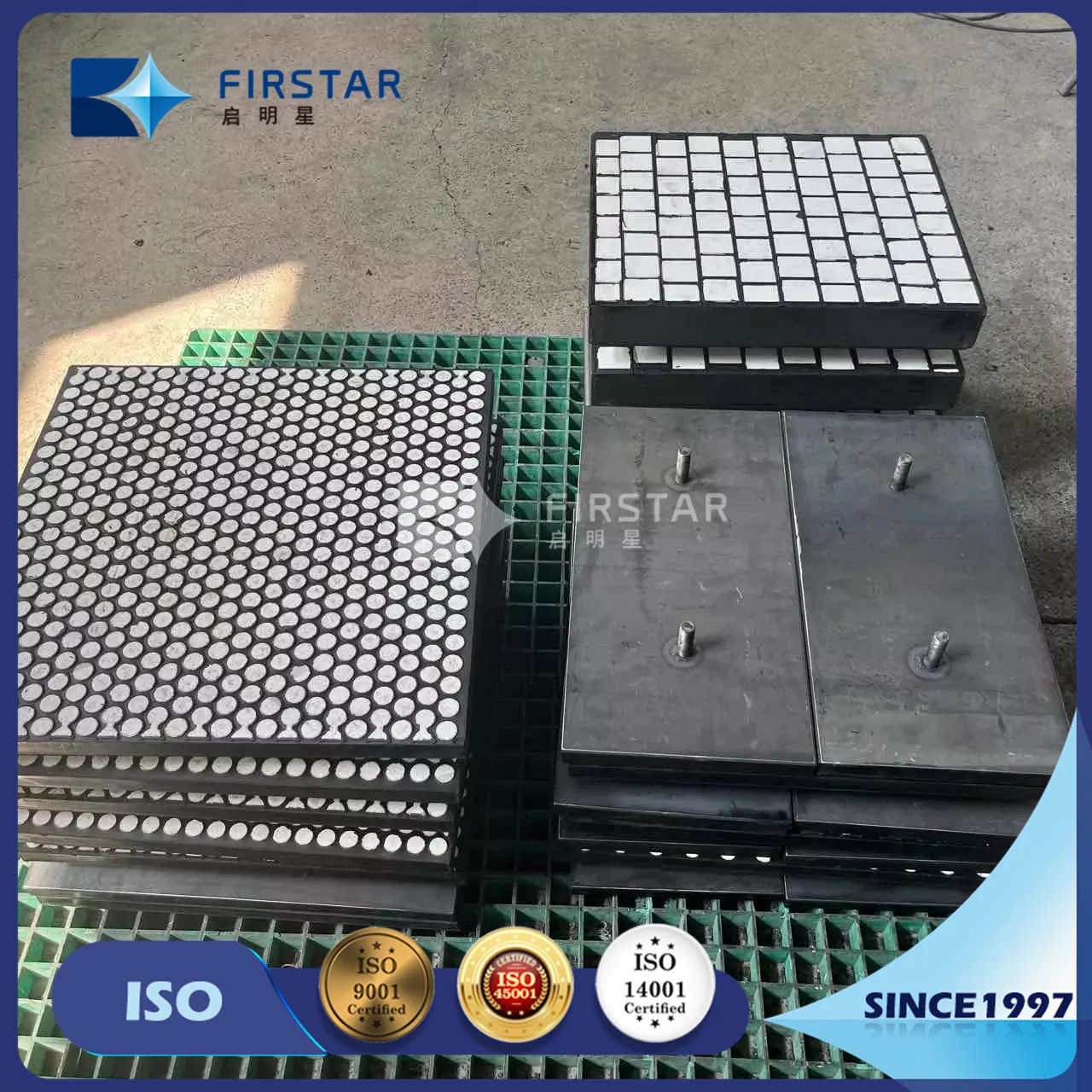

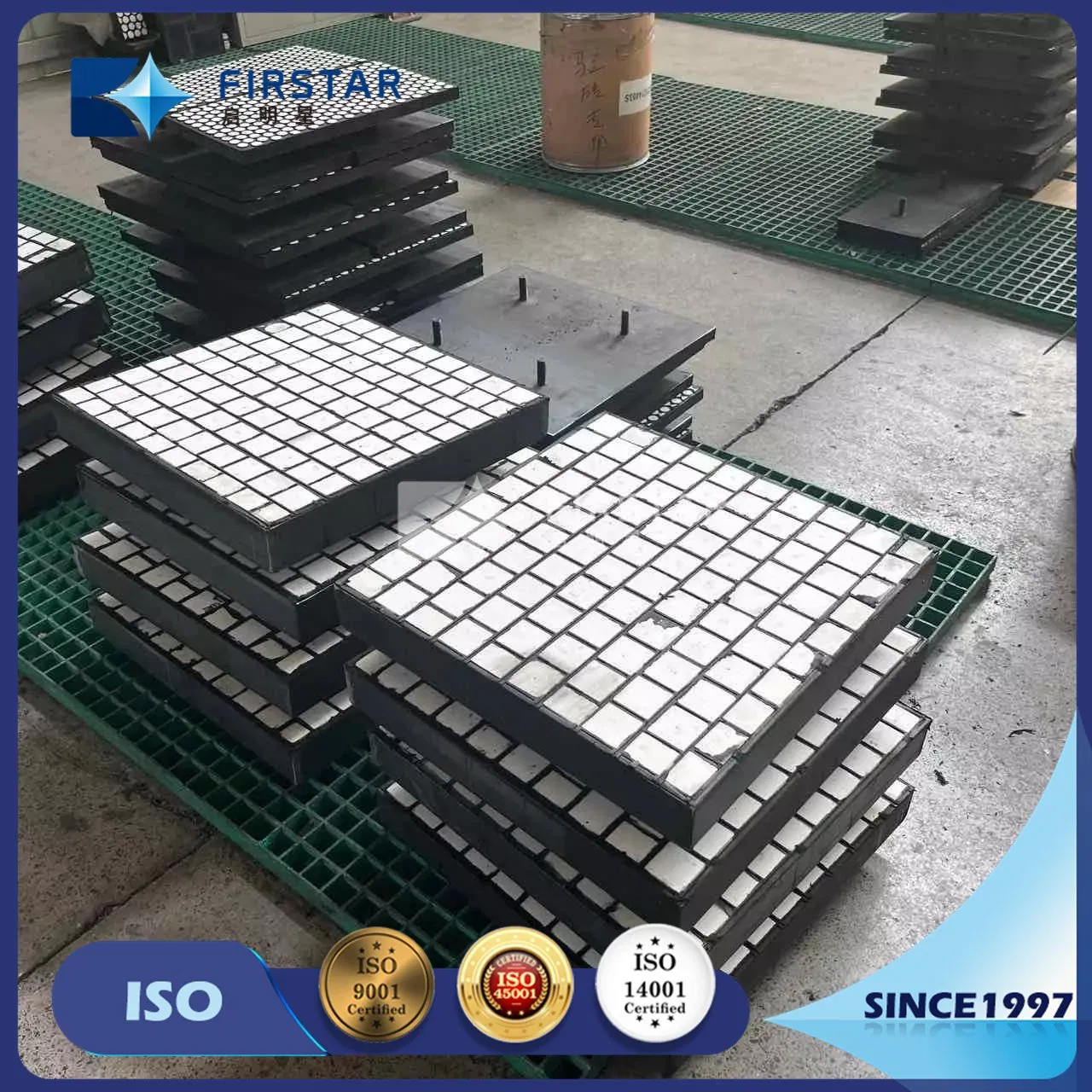

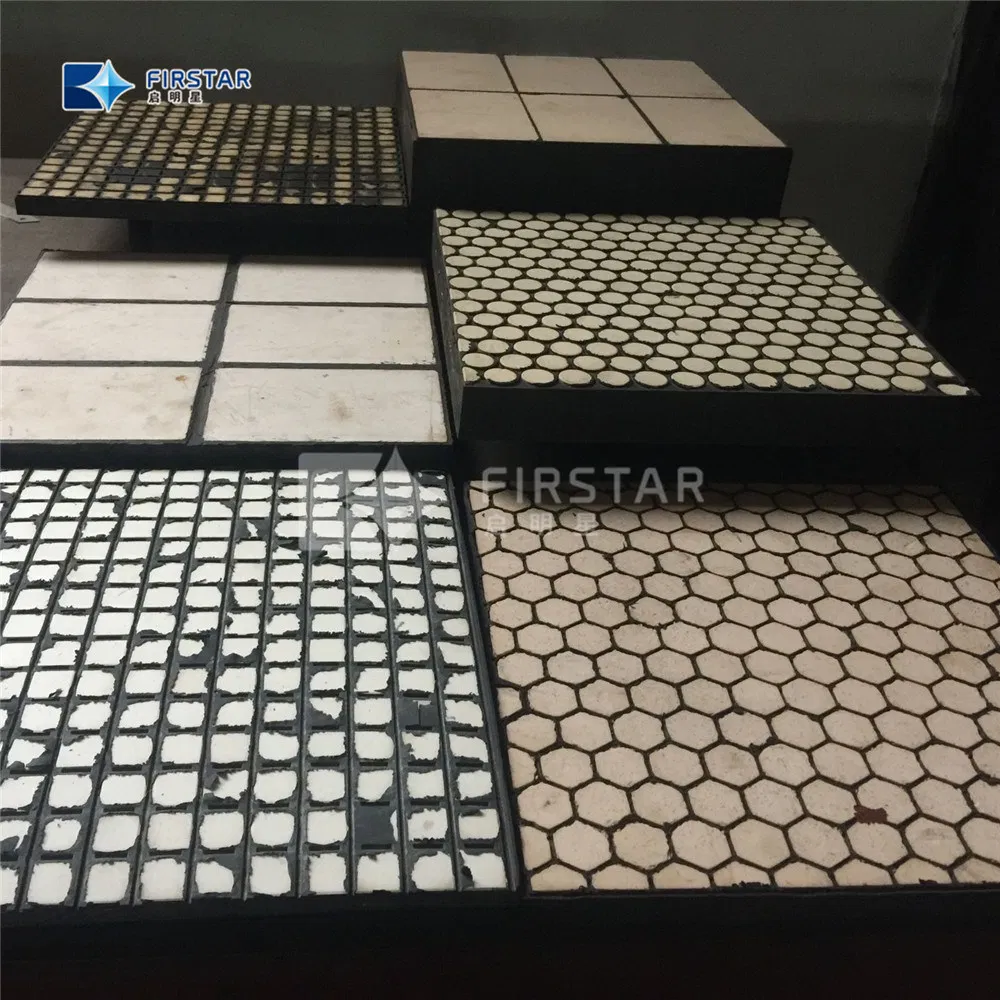

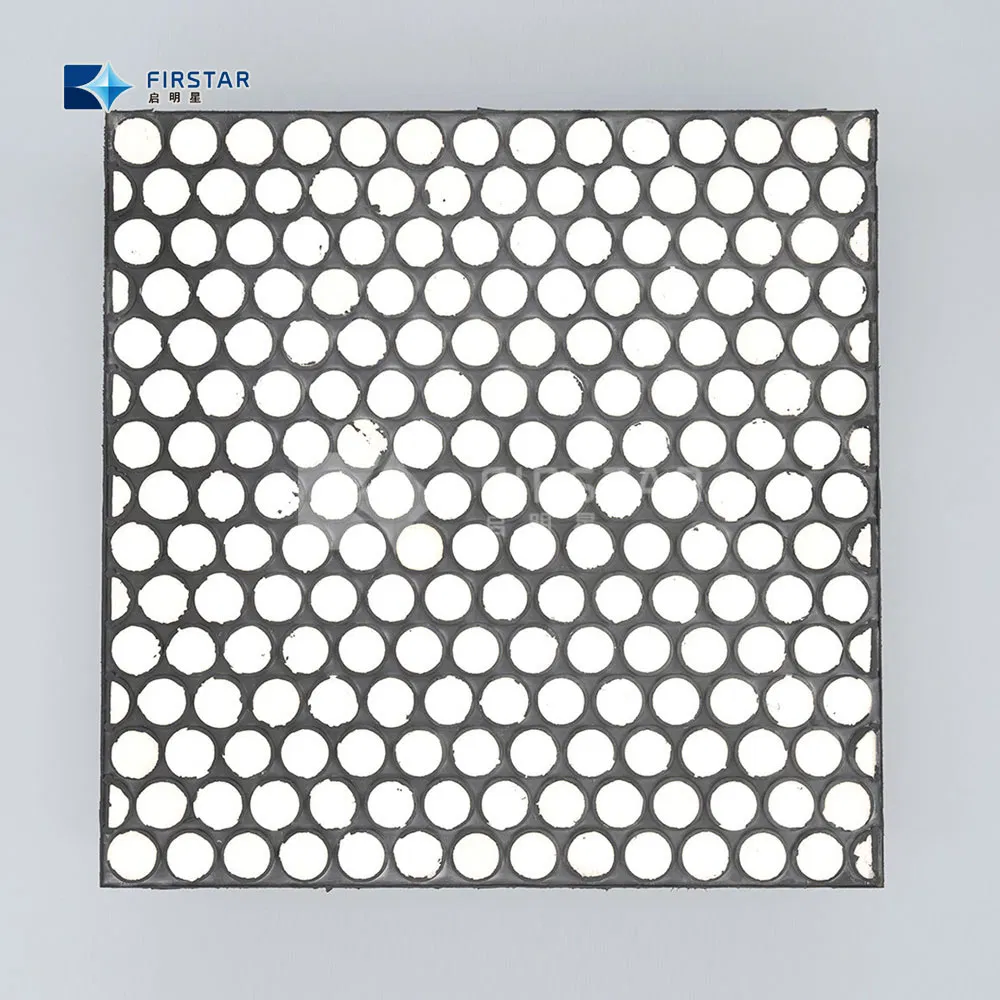

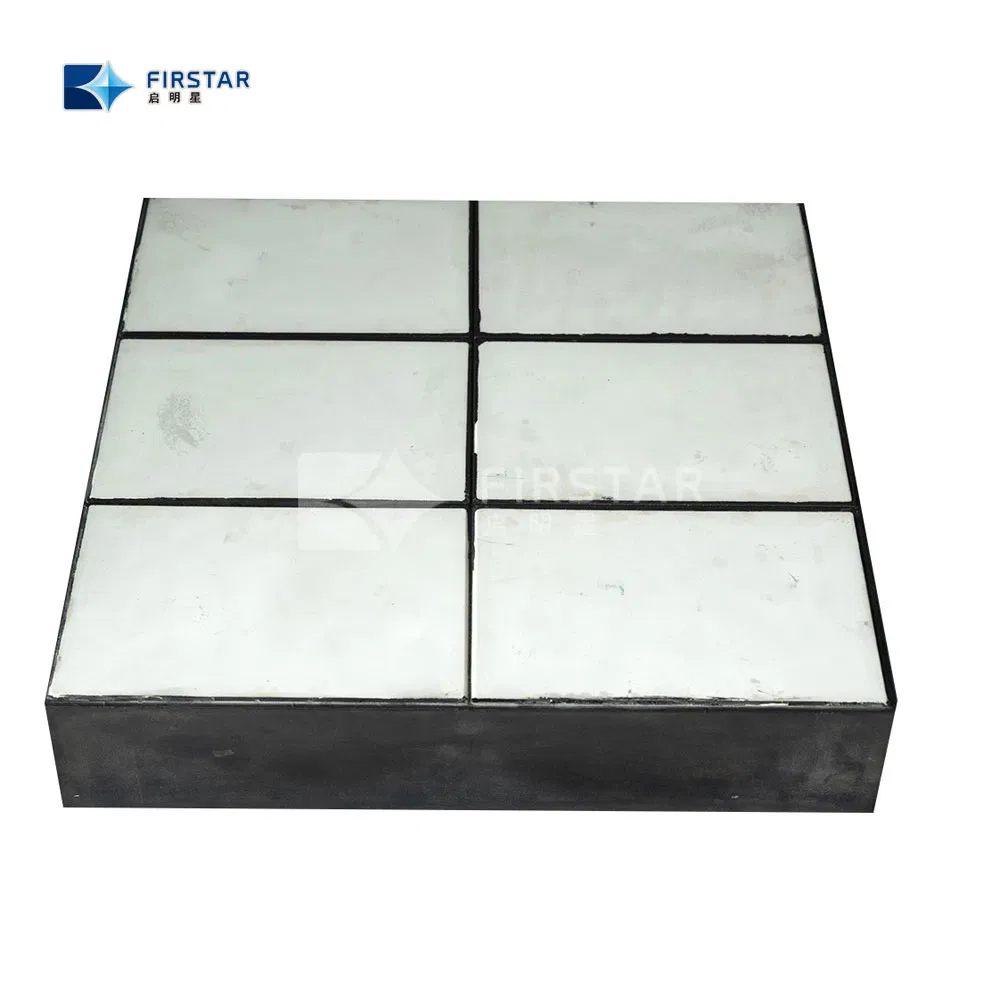

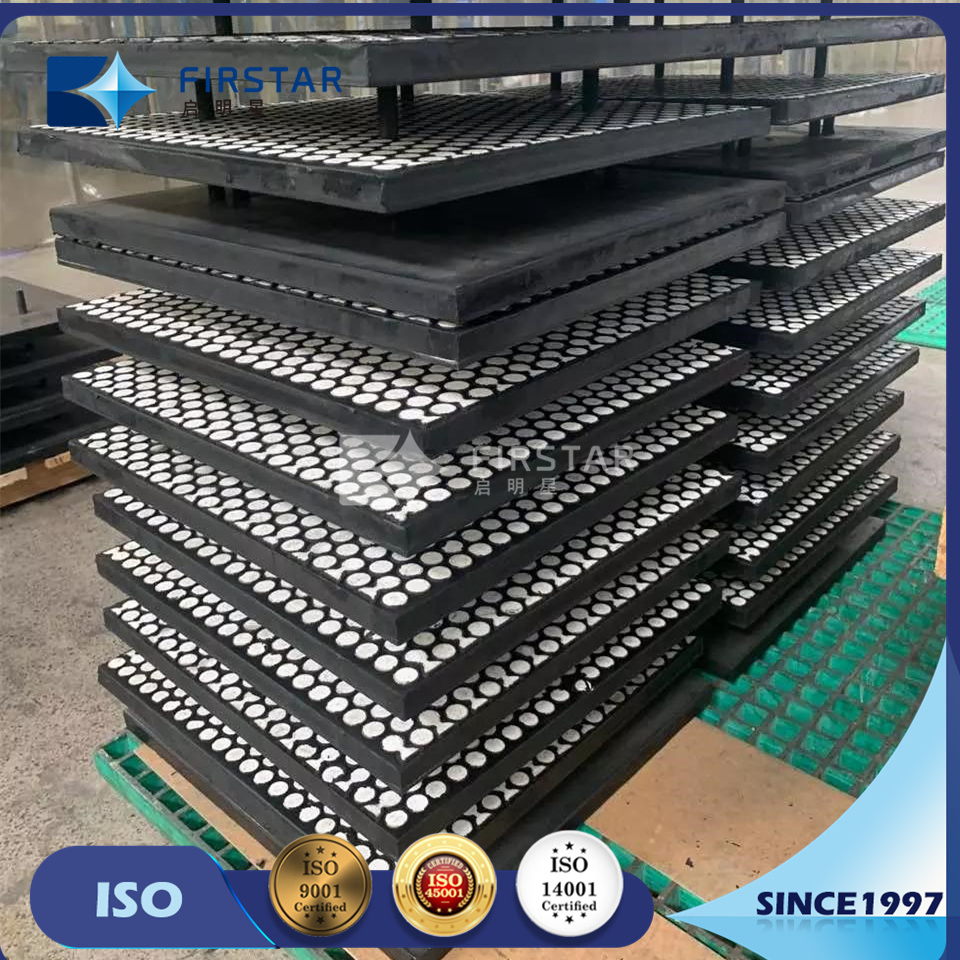

Ceramic Rubber Steel Composite Wear Liner

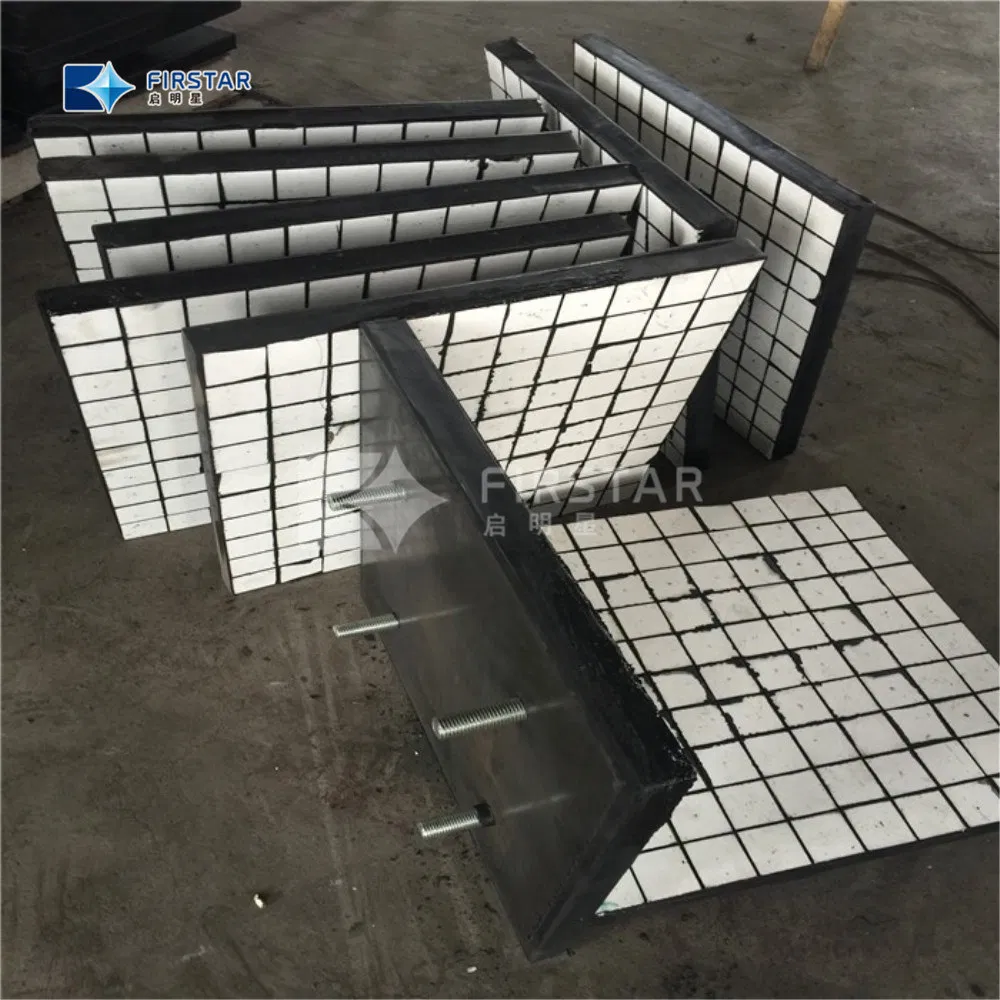

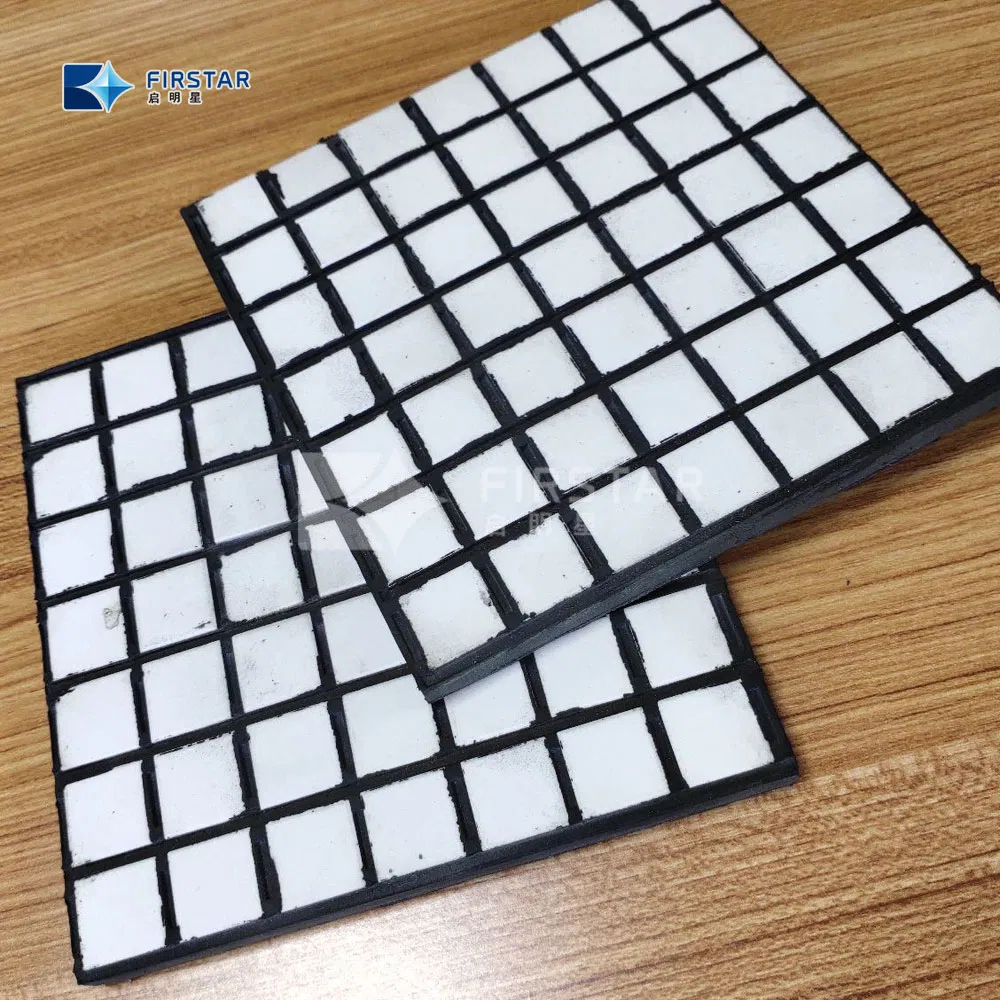

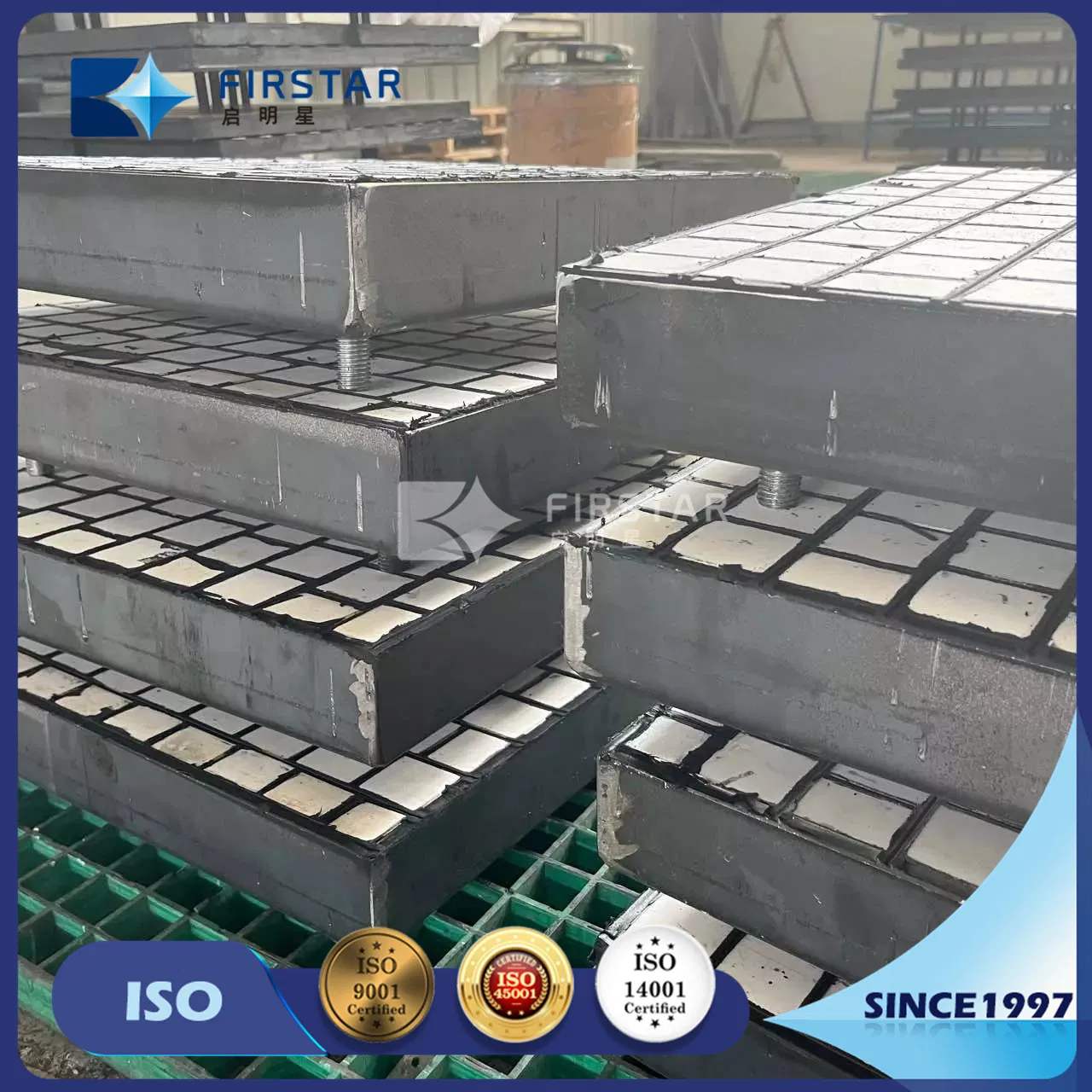

Ceramic rubber composite pads are manufactured using a specialized rubber vulcanization process to embed wear-resistant ceramic tiles into a resilient rubber matrix. These panels can be bonded directly to equipment or vulcanized with a steel backing plate for mechanical fastening with bolts.

Key Features

Combines ceramic hardness with rubber impact resistance
Superior wear resistance for high-abrasion environments
Reduced noise and vibration during operation
Customizable shapes, sizes, and mounting options
Long service life in extreme conveying systems

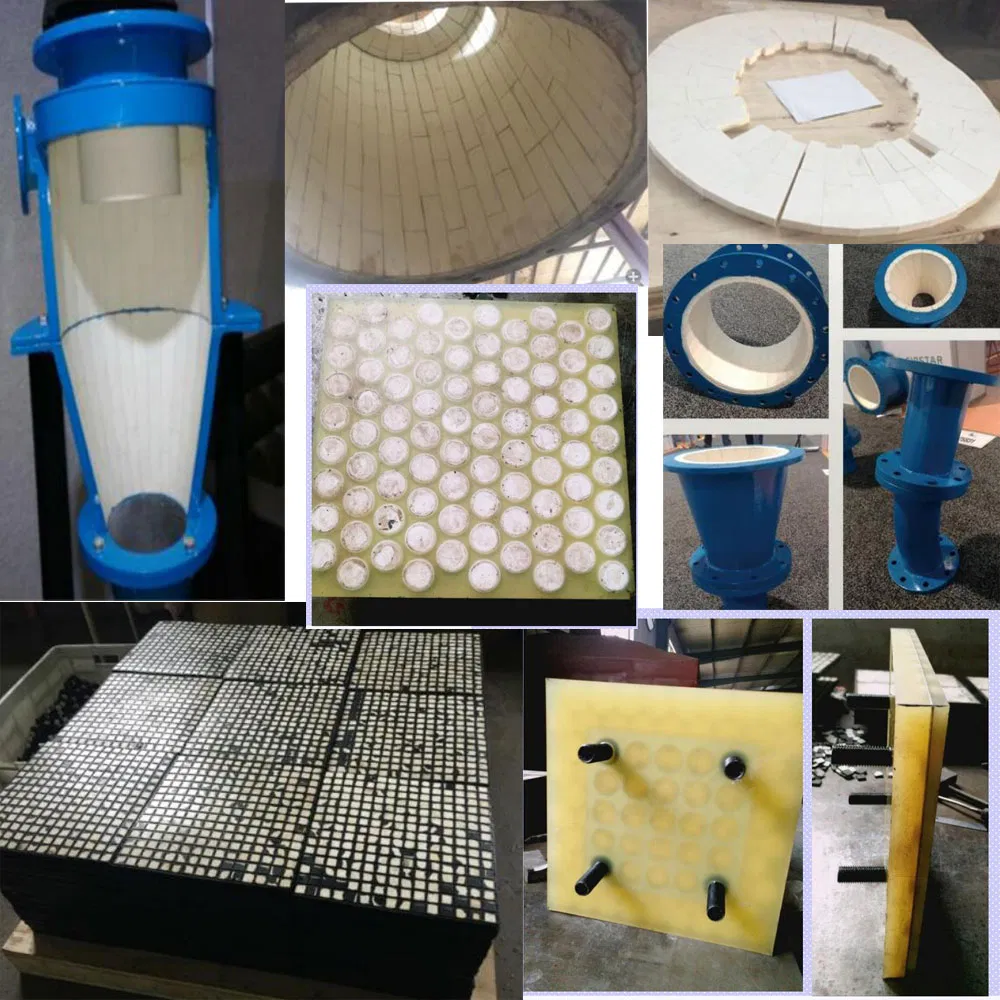

Applications

Chutes, Bins, and Hoppers
Deflectors and Launders
Sloping Walls & Loading Points
Pipes and Tank Linings
Mill Feed Components

Technical Specifications

Material	Attributes	Properties
Ceramic Tiles	Alumina Content	92%, 95%, ZTA
Rubber	Main Components	Natural Rubber / Nitrile-Butadiene
	Density	~1.4g/cm³
	Shore Hardness	45-65
	Aging Period	≥15 Years
Steel Plate	Material	Q235A
Steel Plate	Thickness	5-10mm

Size Options

Whole Plate (mm)	150x300, 300x300, 500x500, 600x450 etc.
Ceramic Thickness	3-75mm
Square Tile Sizes	10x10, 20x20, 50x50, 100x100mm etc.
Hexagonal Tiles	12x3, 19x7, 19x12.5mm etc.

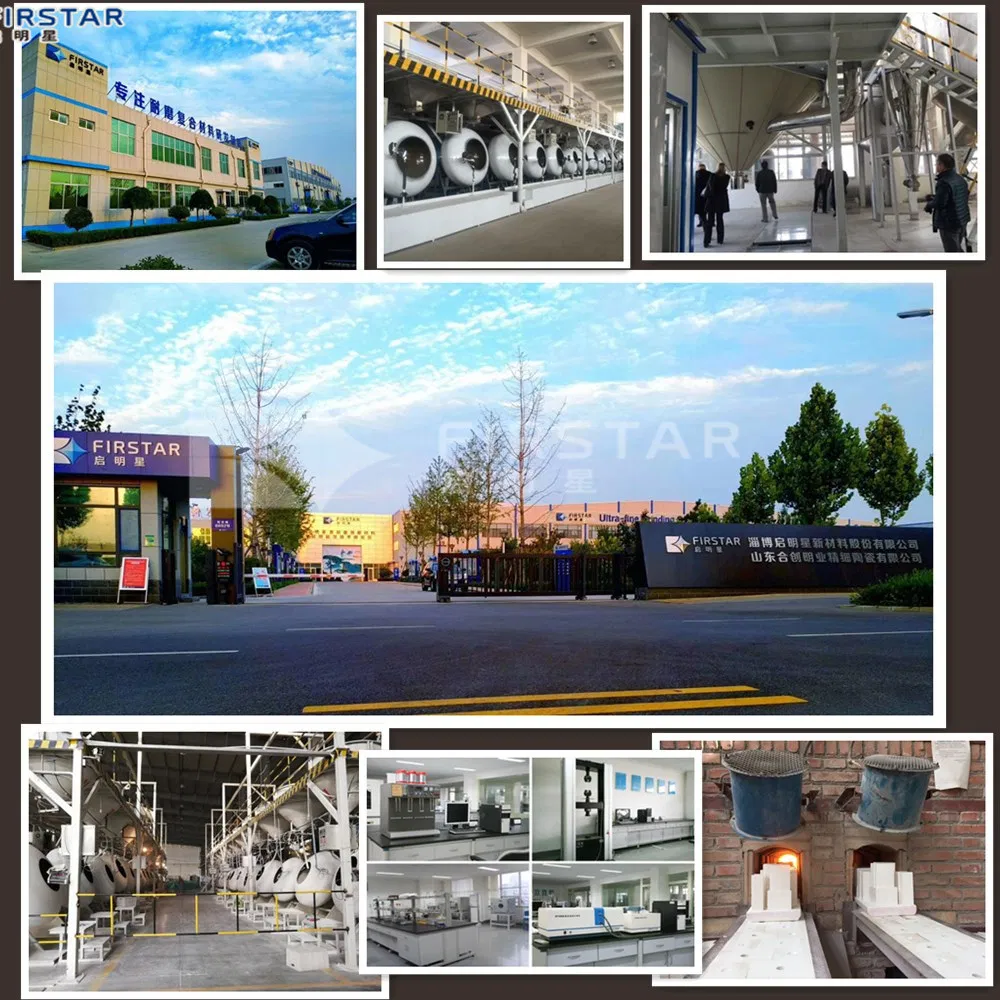

Packaging & Workshop

All products are securely packaged in carton boxes with internal compartments to prevent friction and damage during transit. Custom shipping marks are available upon request.

Frequently Asked Questions

Q: What is a ceramic rubber composite liner? A: It is a wear-resistant solution that combines high-alumina ceramic tiles with a resilient rubber matrix, providing both extreme abrasion resistance and high impact absorption.

Q: Can the liners be customized for specific equipment? A: Yes, we accept customization for size, thickness, and shape. We can also provide liners with or without steel backing plates and mounting bolts.

Q: What is the typical lead time for orders? A: Generally, it is 5-10 days if the goods are in stock, or 15-30 days for bulk orders or customized items depending on the quantity.

Q: Are samples available for quality testing? A: Yes, we offer free samples for inspection. Shipping costs for samples are typically reimbursed upon the placement of a bulk order.

Q: What are the main benefits of using rubber-backed ceramics over steel liners? A: Rubber-backed ceramics are lighter, provide better impact dampening, significantly reduce noise, and offer a much longer service life in high-wear applications.

Q: What are your standard terms of payment? A: Our standard terms are 30% T/T in advance as a deposit, with the remaining balance due before shipment.
