Main Business scope: Industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment and accessories, pulping equipment and accessories, dewatering equipment, slag removal equipment, wear-resistant pipes, mining equipment, alumina ceramic parts, and special-shaped fittings.
📍 Core Philosophy: Customer first, quality first! Your satisfaction is our unremitting pursuit. We handle every detail of your request to create brilliant results together.

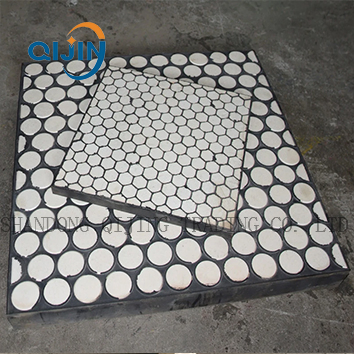

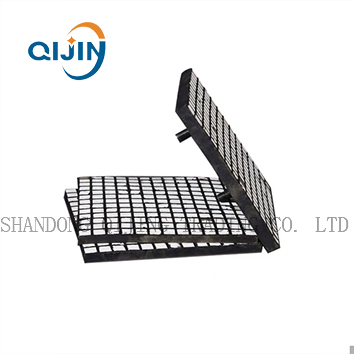

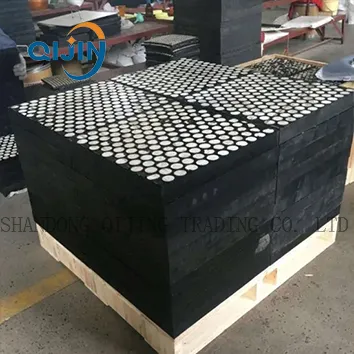

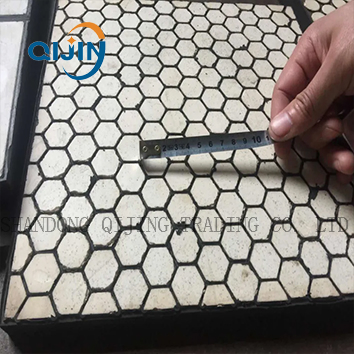

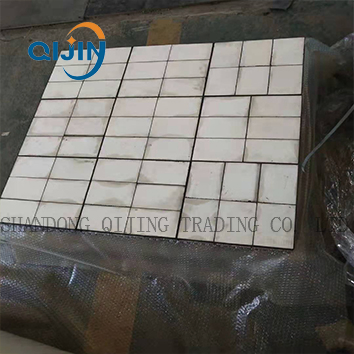

Ceramic Rubber compound lining plate is compounded by high alumina ceramics and excellent natural rubber through a special process. The damping performance of natural rubber greatly lowers transportation noise, effectively solving impact, abrasion, and noise issues.
Ceramics can be vulcanized in rubber sheet:

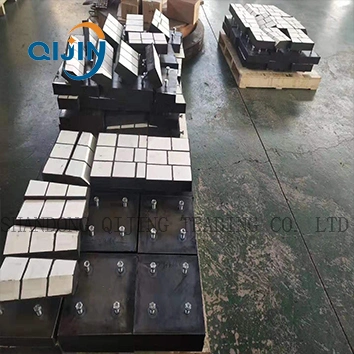

* Ceramic rubber wear liners with specific angles can be custom produced.
| Item | Index / Content |
|---|---|
| Alumina content | 92% |
| Density | ≥ 3.62g/cm3 |
| Abrasion loss | 0.014cm3/10minutes |
| Rockwell A hardness | ≥87 HRA |
| Moh's hardness | 9 grade |
| Impact strength | ≥850 Mpa |
| Bending strength | ≥ 290 Mpa |
| Thermal conductivity | 20 W/m.K |
| Size | Normal and custom-design available |
| Item | Index |
|---|---|
| Tensile strength | >12MPA |
| Break extension | >250% |
| Shore hardness | 55-65 |
| Tear Strength | <24% |
| Rubber and ceramic adhesion | >3.0Mpa |
| Rubber aging life | >15 years |
1. 🛡️ Handling: High hardness but handle gently to avoid serious collision or impact on the ceramic layer.

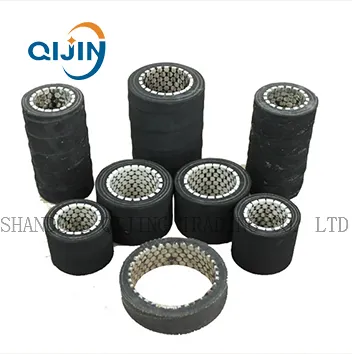

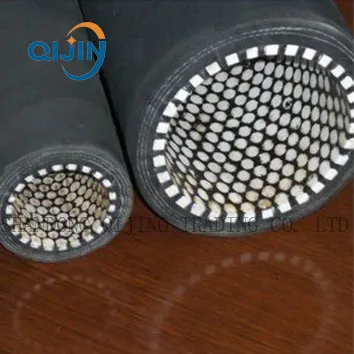

2. ➡️ Direction: Install bending pipes following the arrow direction consistent with medium flow.
3. 📏 Alignment: Align with the center line; displacement should be controlled within 1.0mm.
4. 🔗 Joints: Adjust flexible pipe joints symmetrically. Clearance can be reduced by 3-5mm due to low thermal expansion.
5. 👨🏭 Welding: Connection can be conducted by welding with 45°-60° "V" type slope.
Standard Packaging: Fumigated wooden boxes for export. PE film wrapping is available for tight container space or specific customer requests.
