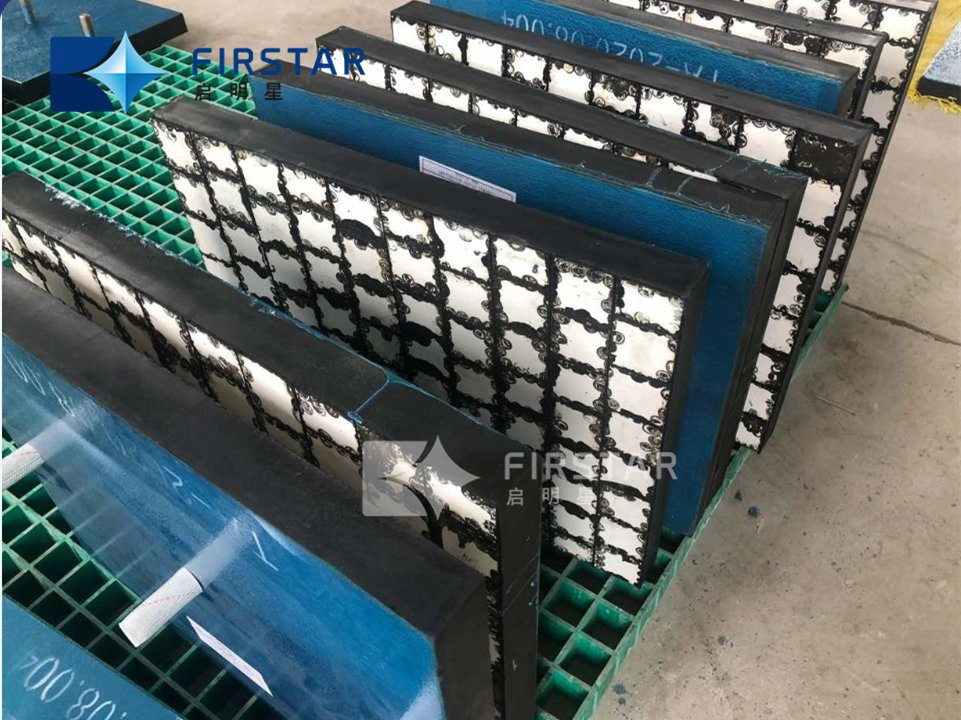

Steel Composite Rubber Backed Ceramic Plates & Liner for Wear & Impact Protection

1 / 5

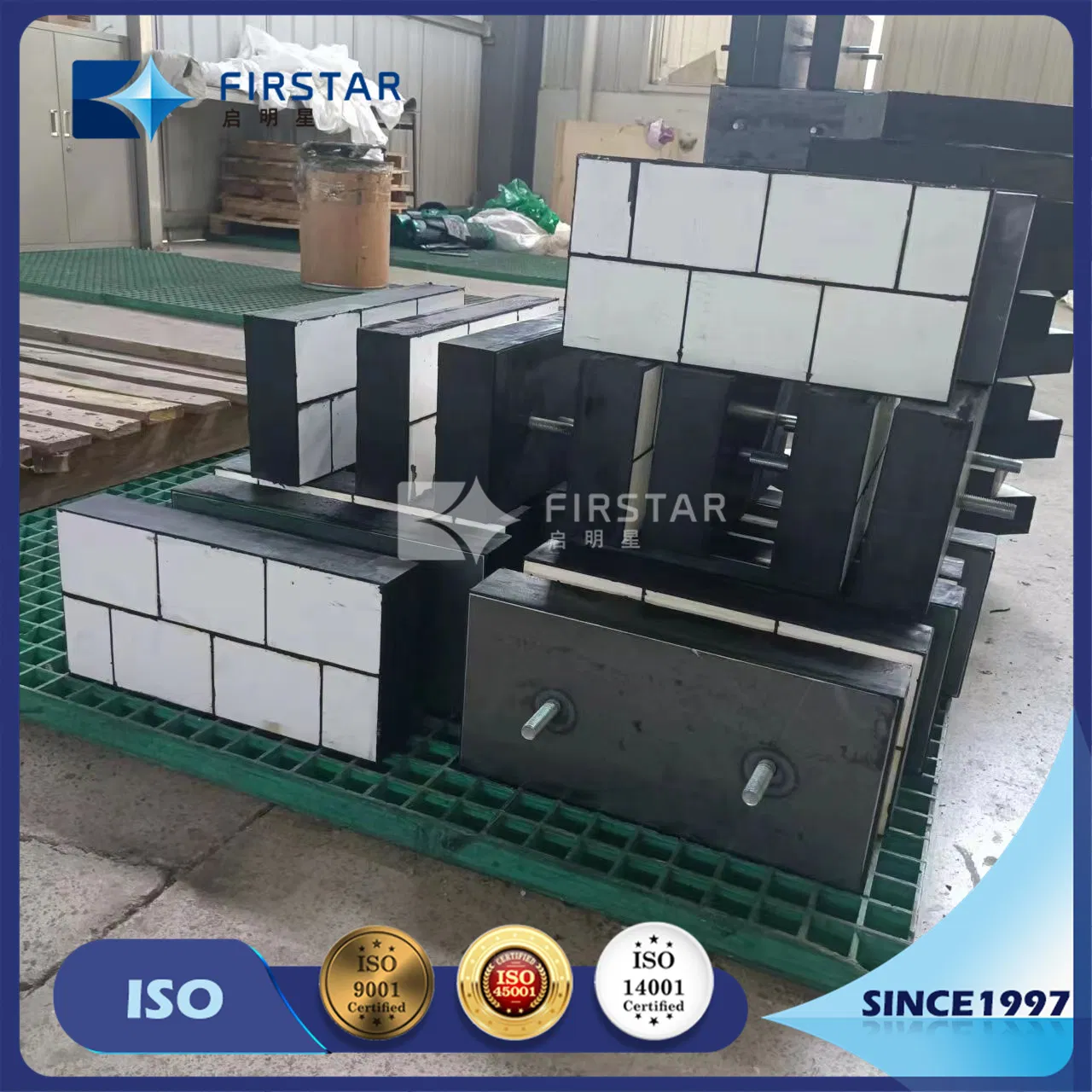

Steel Composite Rubber Backed Ceramic Plates & Liner for Wear & Impact Protection

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Composite Rubber Liner

Material

Aluminum / Wear Resistant Ceramic

Al2O3 Content

92/95/99%

Density

1.4G/Cm3

Size

Max 900*900*64mm

Hardness

Gpa >1400

Function

Wear & Impact Resistant

Production

17000 Tons Per Year

HS Code

6909120000

Product Overview

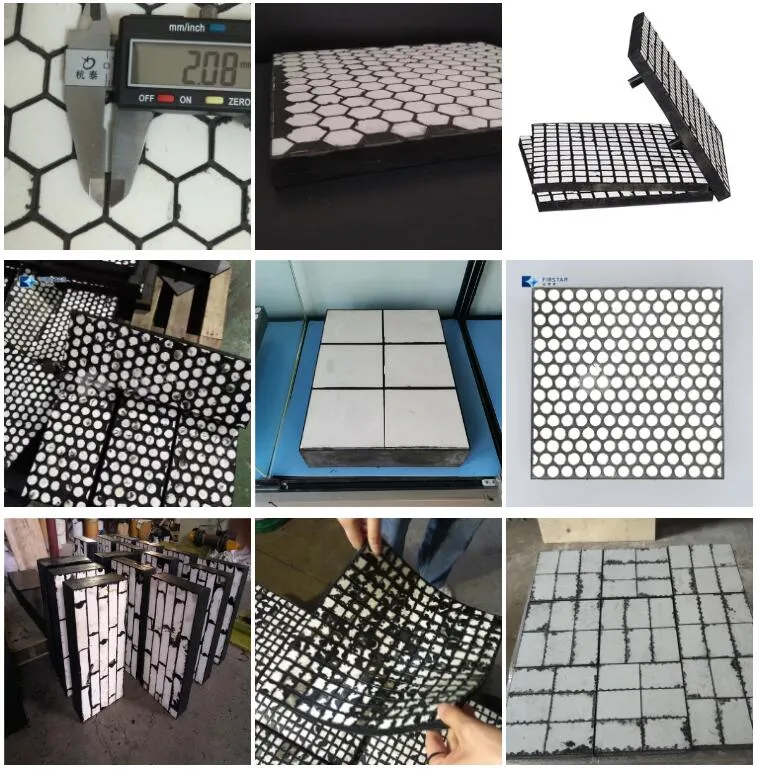

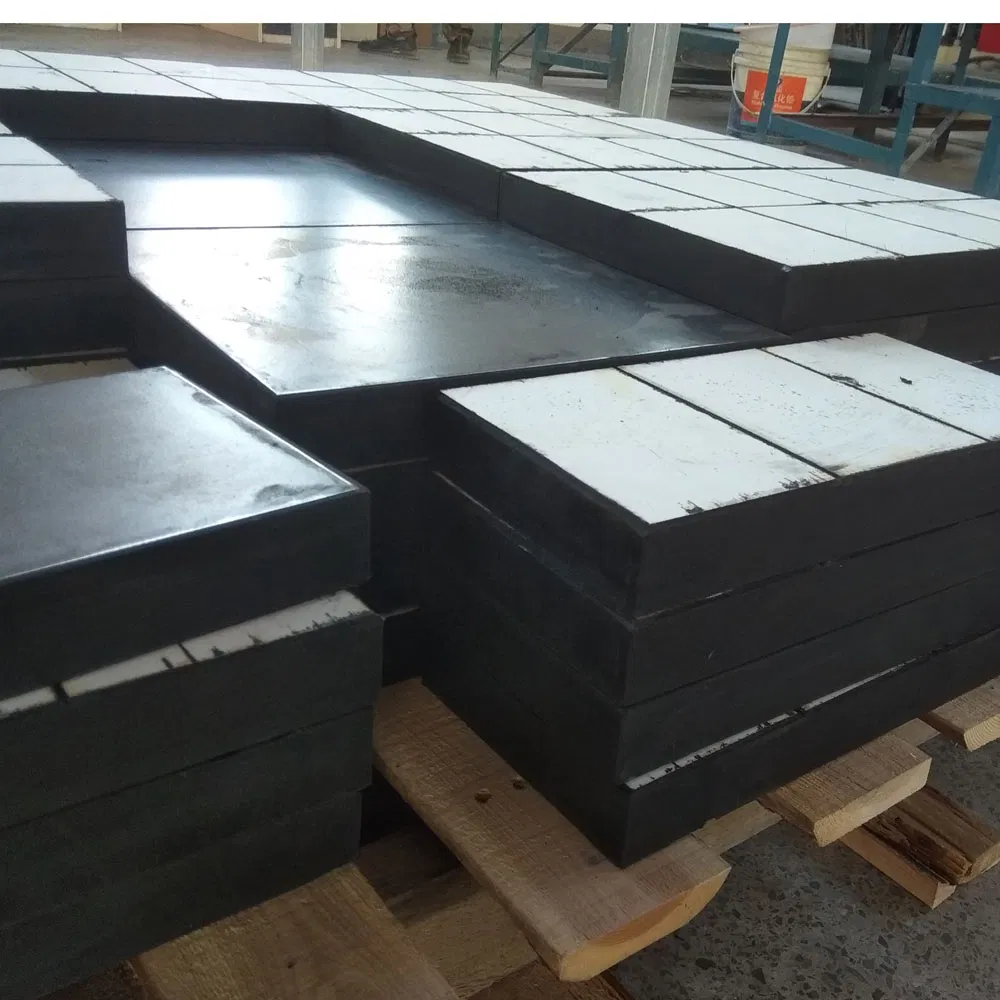

300*300*64mm Wear Resistant Ceramic Rubber Composited Plates

Material	Attributes	Properties
Ceramic Tiles	Material	92%, 95%, T95%, 96%, ZTA
Rubber	Component	Natural, Nitrile, Flame-Retardant
	Tensile Strength	≥15Mpa
	Shore Hardness	45-65
	Adhesion (Tile/Rubber)	1.2-3.0 Mpa
	Working Temp	-50ºC - 200ºC
Steel Plate	Material / Thickness	Q235A / 5-6mm

Key Features & Applications

Features:

Combines wear-resistance of ceramic and impact-resistance of rubber. Ideal for conveying systems operating under normal temperatures with high impact stress.

Applications:

Pipes and Tanks
Deflectors & Launders
Loading Chutes
Bins & Hoppers
Mill Feed Components
Flotation Cells

Wear Protection ceramic Linings are used throughout Mineral Processing to protect the steel surfaces of equipment from wear and corrosion. By appropriately protecting equipment from the extreme wear caused by high speed and flow rates of ore, better equipment longevity is ensured.

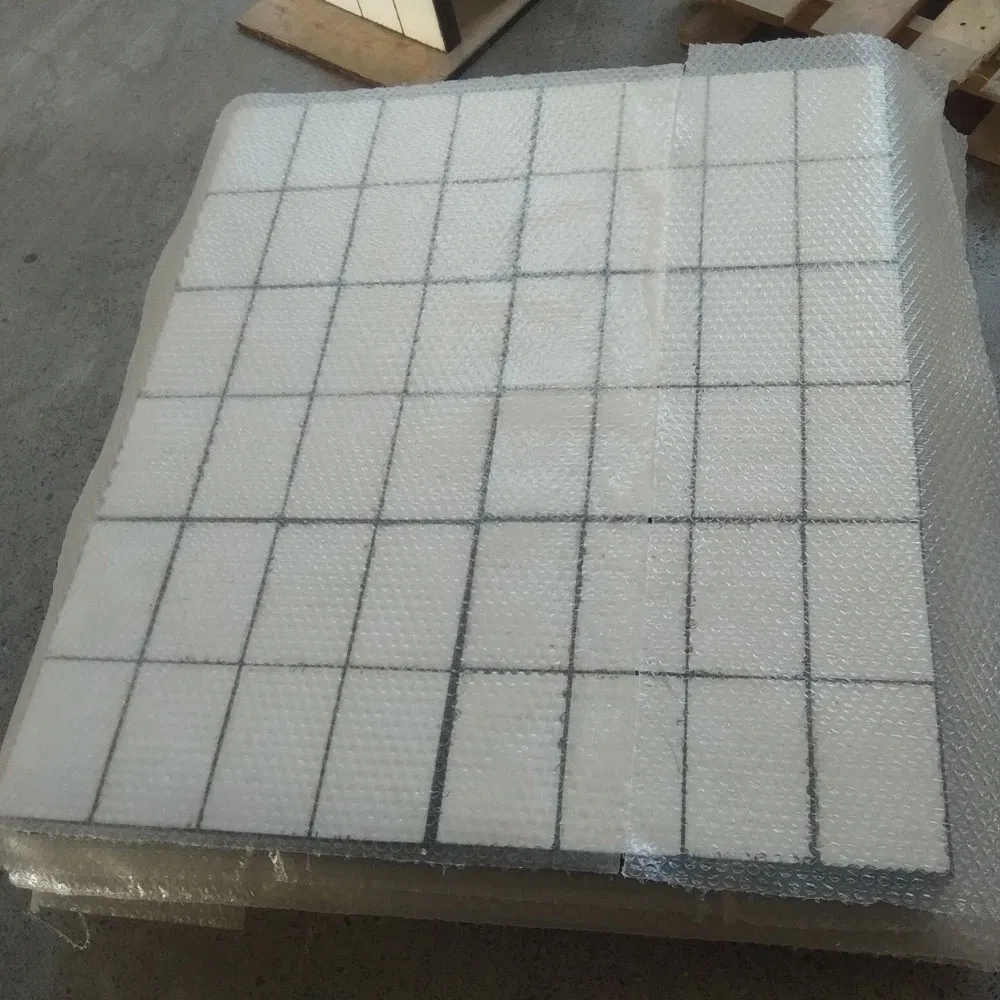

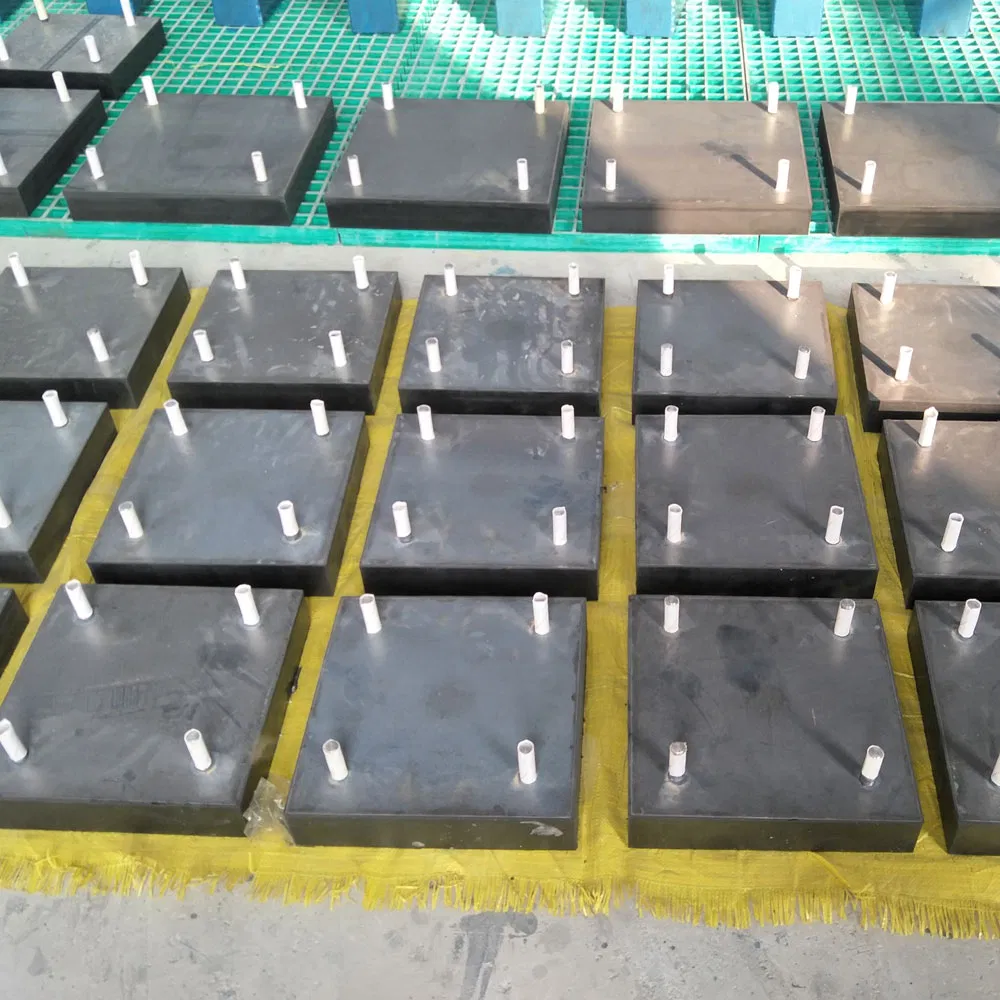

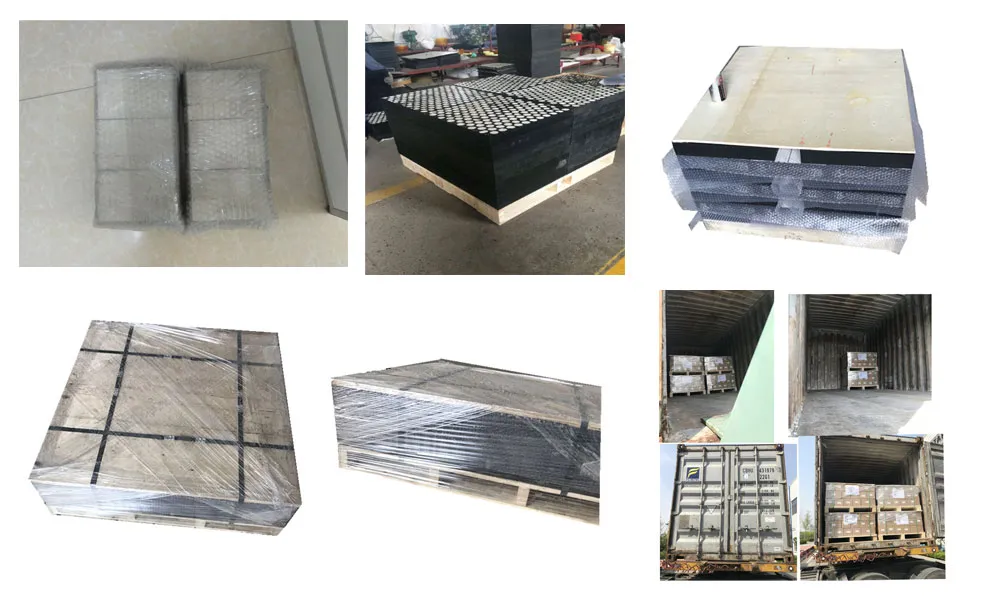

Packaging & Production

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory with a production capacity of 17,000 tons per year.

Is the sample free?

Yes, we offer free samples. The sample air shipping fee will be returned when the bulk order is placed.

How long is your delivery time?

Generally it is 5-10 days if in stock, or 15-30 days for production depending on the quantity.

What are your terms of payment?

T/T 30% as deposit, with the balance against the copy of B/L after shipment.

What is the maximum size available?

The maximum standard size for composite plates is 900*900*64mm.

Can you provide customized solutions?

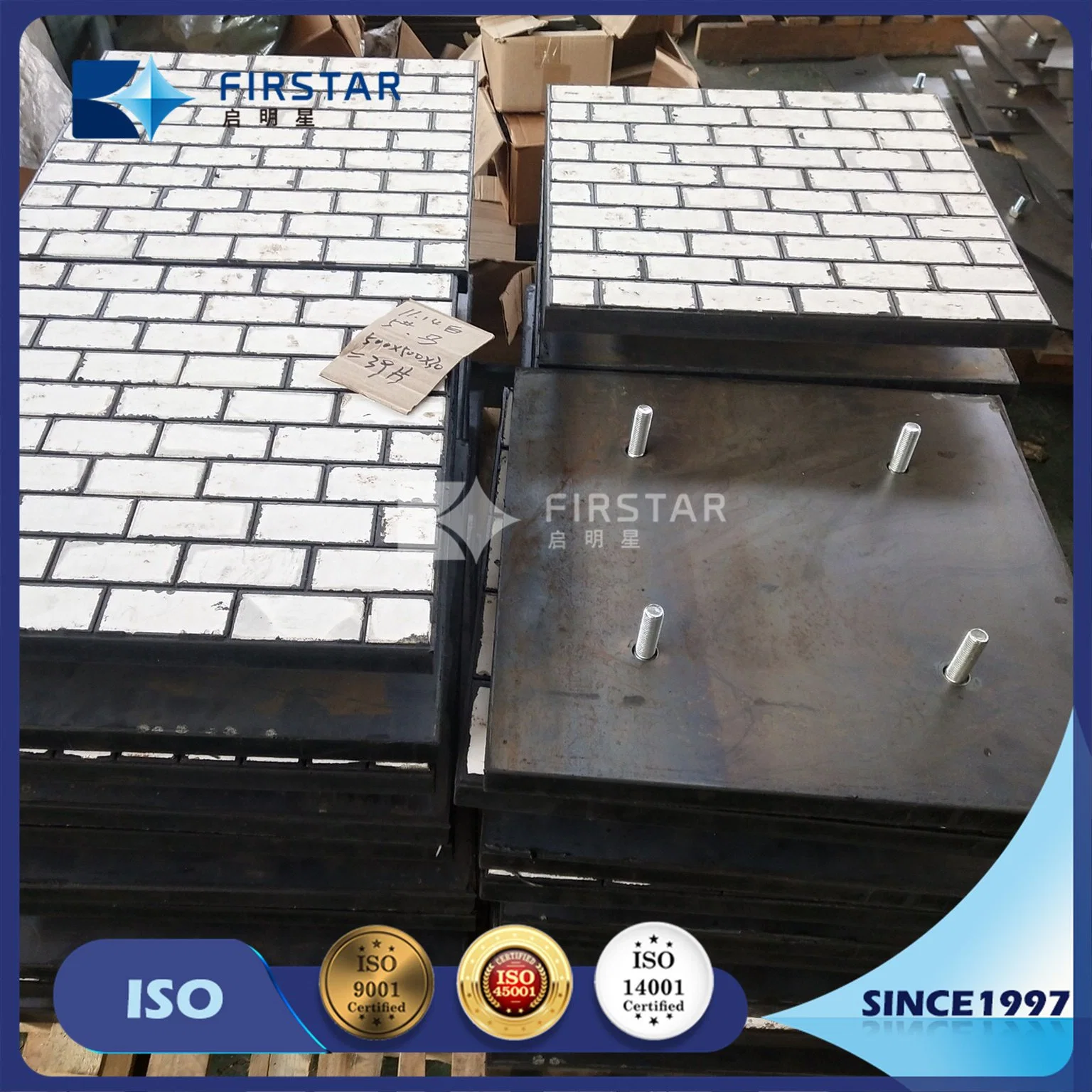

Yes, we accept customization including specific dimensions, ceramic types (ZTA/95%), and backing plates with or without bolts.
