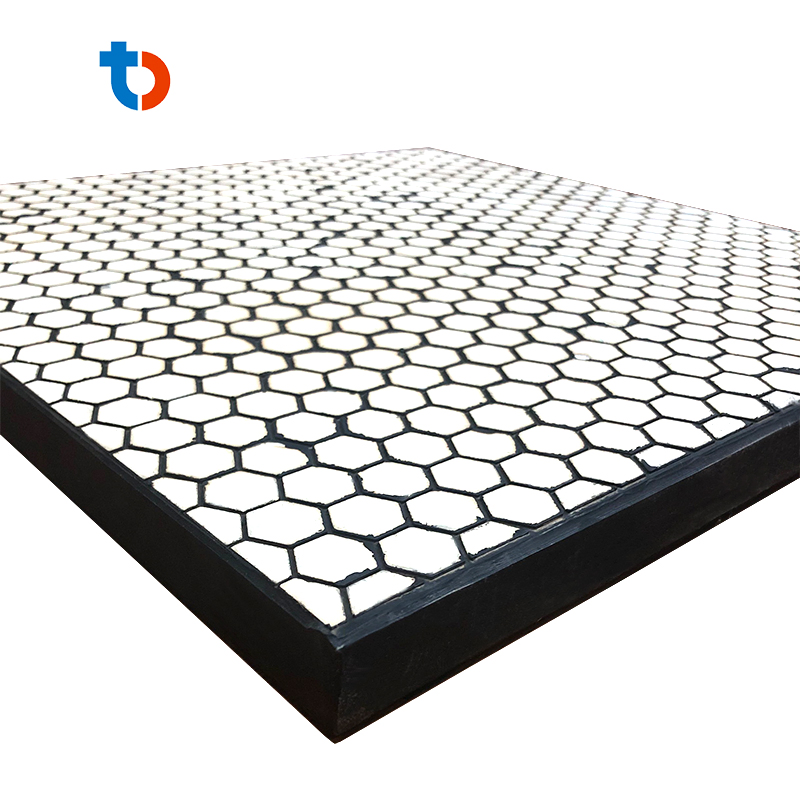

Screen Discharge Chute Wear Plate Ceramic Rubber Sheeting with Steel Liner Backed

1 / 5

Screen Discharge Chute Wear Plate Ceramic Rubber Sheeting with Steel Liner Backed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Feature:

Abrasion and Impact Resistance

Size:

Customizable

Tear Strength:

≥520kn

Transport Package:

Wooden

Specification:

10x10x10

Production Capacity:

50000 Square Meter/Year

Product Overview

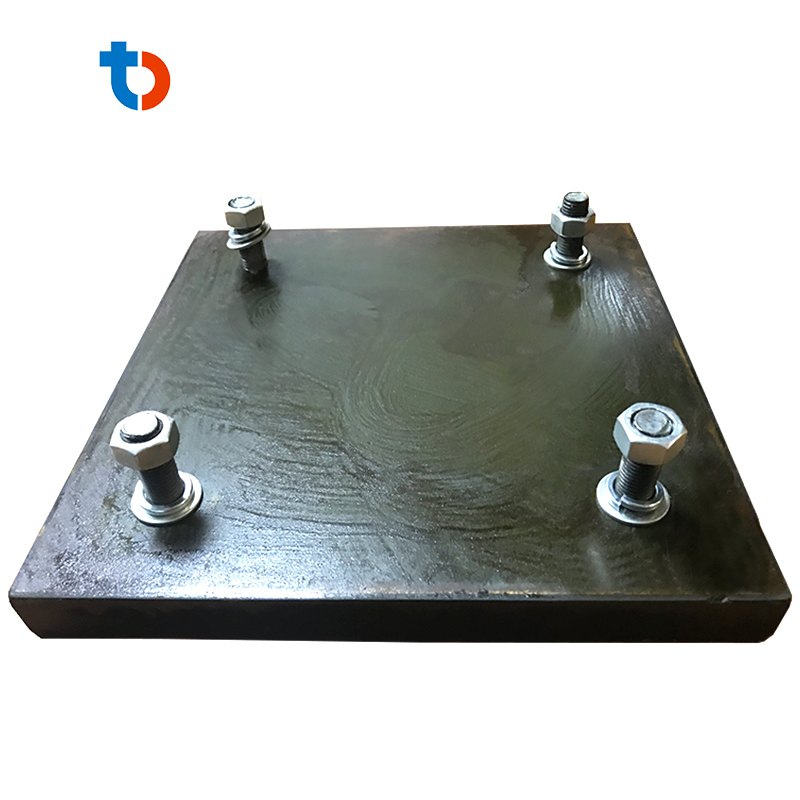

RUBBER AND CERAMIC COMPOSITE WEAR-RESISTANT PRODUCTS utilize a hot vulcanization process to integrate toughened ceramic sheets into a steel plate groove equipped with special rubber. The assembly is secured using countersunk bolts for maximum stability.

Key Advantages:

Reduces maintenance time and costs significantly.
Increases equipment service life by at least 10 times.
Enhanced impact resistance (3 to 5 times higher than standard ceramics).

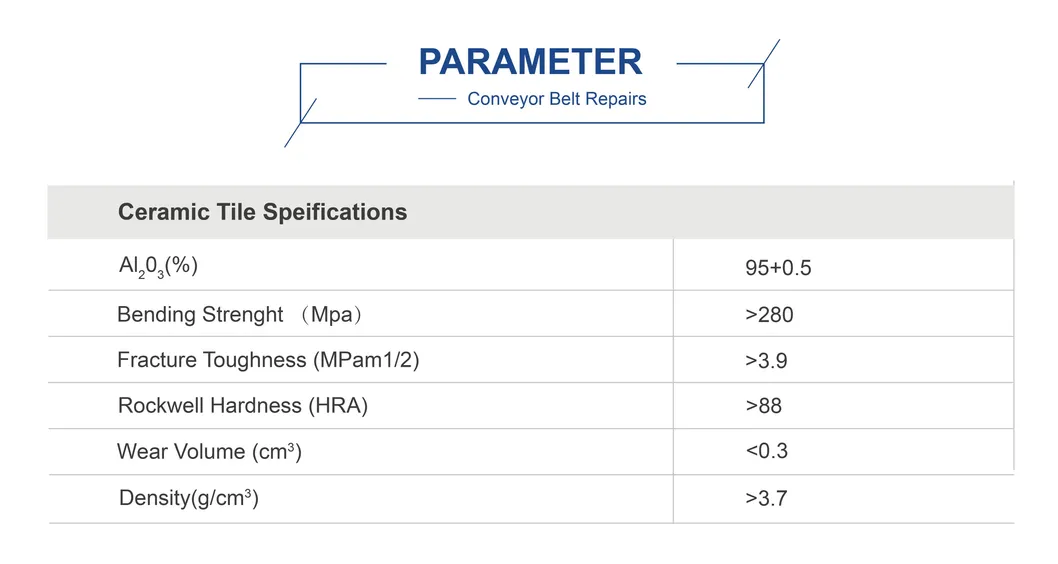

High-purity alpha alumina raw materials for uniform performance.

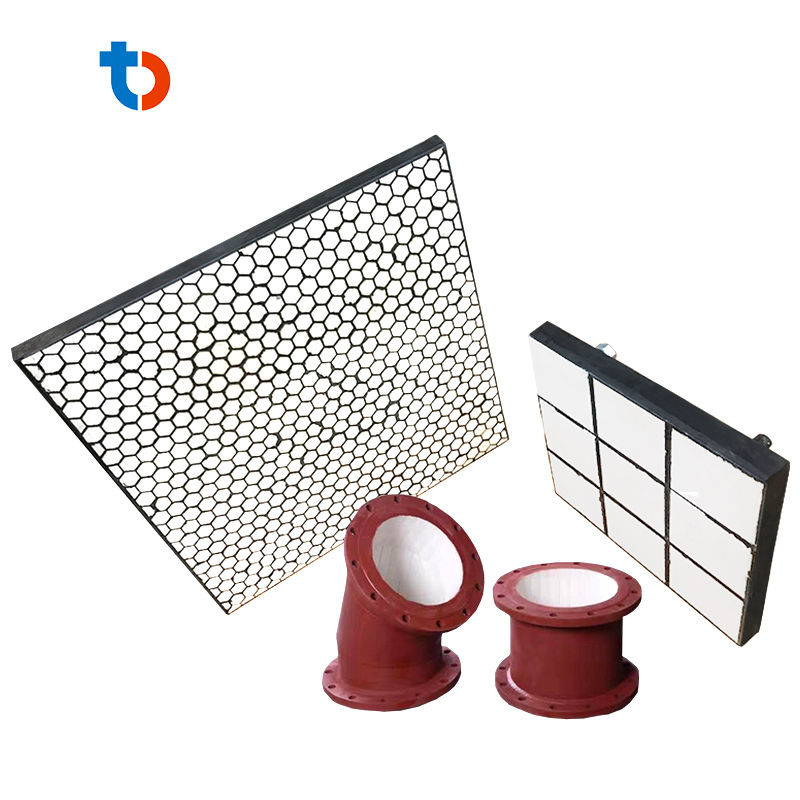

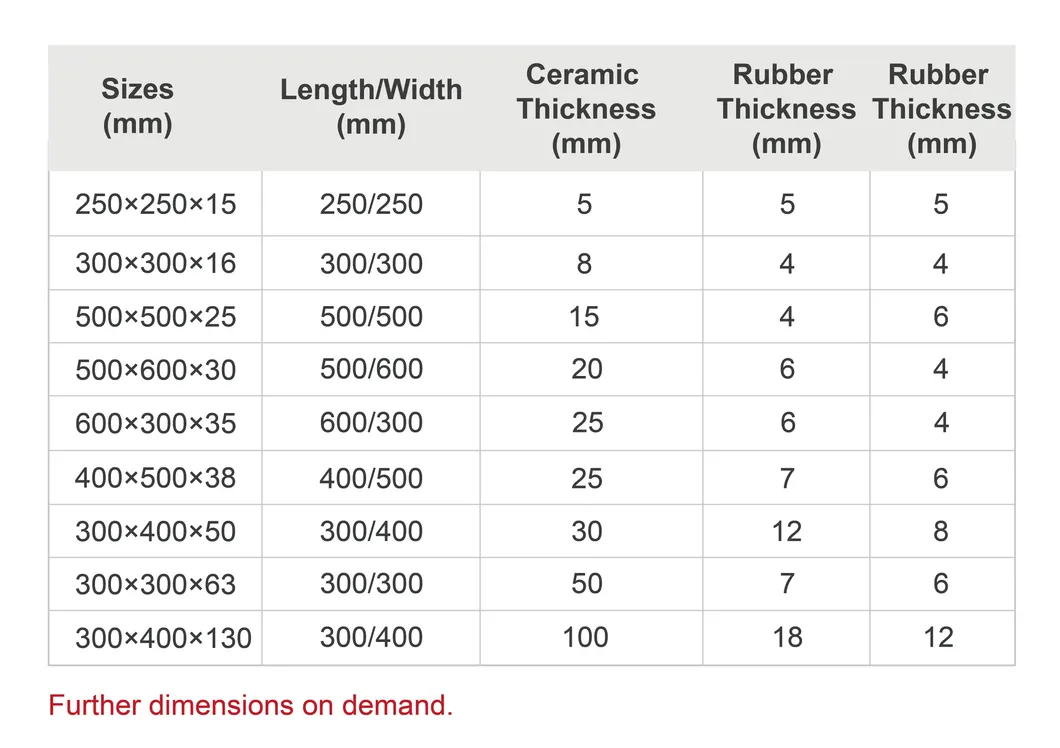

Available Dimensions & Shapes

This is a fully customized product available in various geometries:

Square Bricks: 10x10x2~10mm, 17.5x17.5x2~15mm, 20x20x2~15mm, 33x33x7~25mm

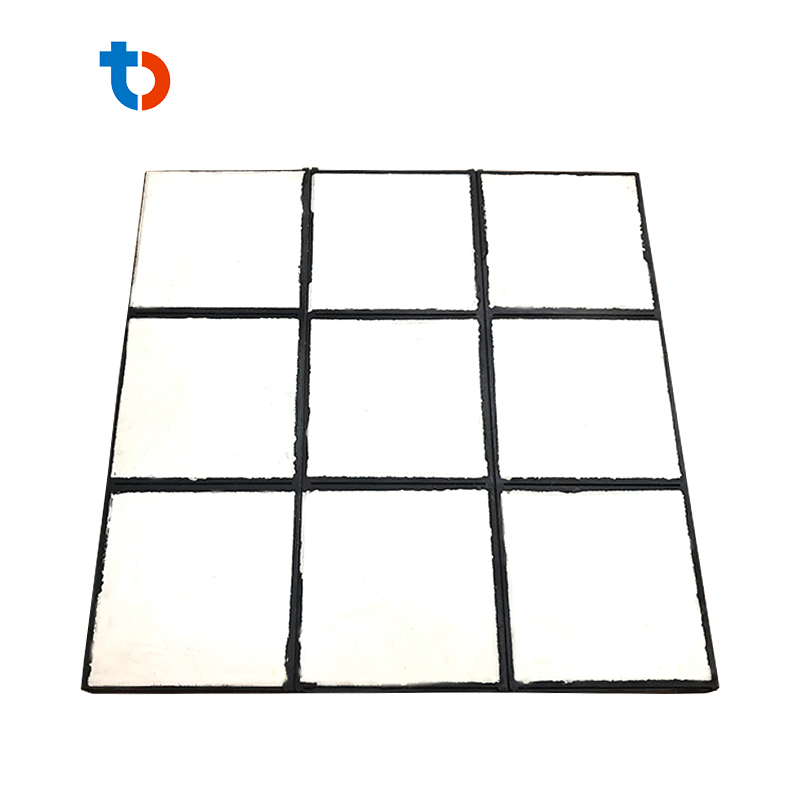

Ceramic Plates: 100x100x6~50mm, 150x100X6~50mm

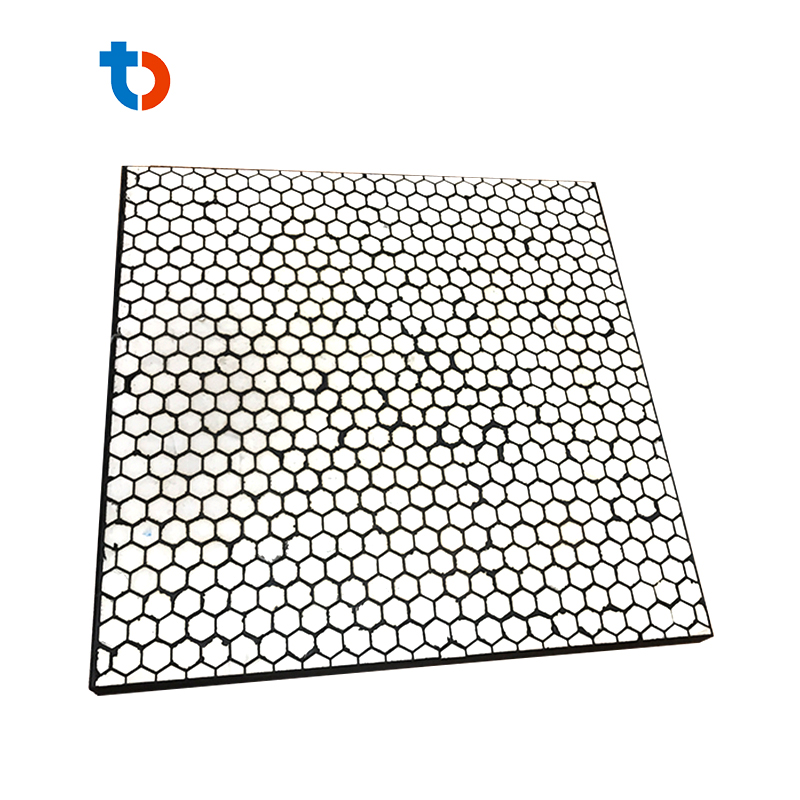

Hexagonal Tiles: S12xT3~20mm, S19xT6~25mm
Ceramic Cylinders/Rods: 6x6mm, 15x15mm, 20x20mm, 31x31mm, 50x50mm

Industrial Applications

Widely used in high-wear environments including: Coal handling, material conveying systems, pulverizing systems, ash discharge, and dust removal. Suitable for thermal power, steel, smelting, mining, chemical, cement, and port enterprises.

Frequently Asked Questions

What makes the impact resistance of this product superior?

The unique toughening formula forms a strong crystal bond, enhancing impact resistance to 3-5 times that of standard wear-resistant ceramics.

Can the size and shape of the liners be customized?

Yes, the product is fully customizable. We offer square bricks, hexagonal tiles, ceramic cylinders, and plates in various thicknesses.

In which industries is this product commonly used?

It is extensively used in mining, steel, thermal power, cement, chemical, and port facilities for material conveying and dust removal systems.

How does the composite structure improve equipment lifespan?

By combining the hardness of alumina ceramics with the cushioning of rubber, it reduces wear and tear, increasing service life by over 10 times.

What is the production capacity for these wear-resistant products?

Our current production capacity is 50,000 square meters per year to meet large-scale industrial demands.
