Model NO.
Chemshun Ceramics
Materials
Alumina Ceramics
Appearance
Square Tiles with Chamfer, Water Polished, Smooth
Use for
as Wear Resistance Part for Protection Equipments
Application Method
Rubber Backed/Lining/Vulcanized Ceramic
Equipment
Hopper, Chute, Conveyer, Bunker, Concrete Storage
Specification
150x100xT6-25mm

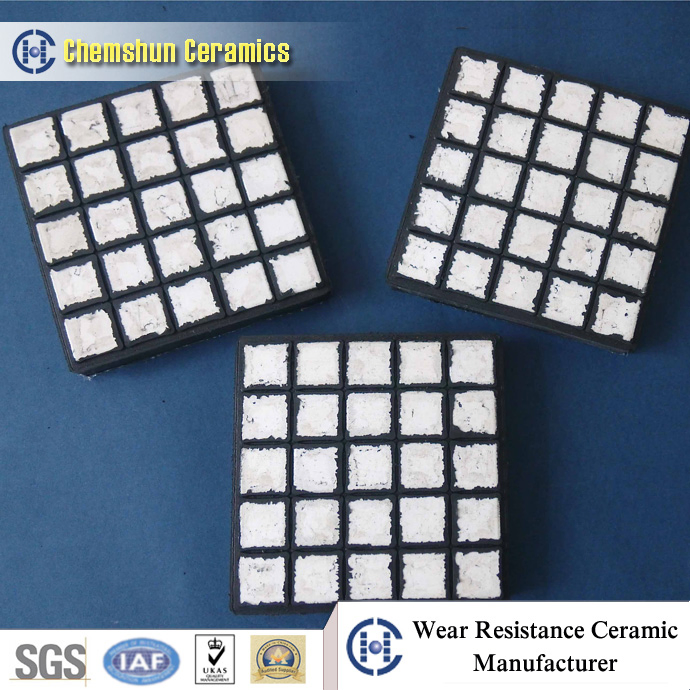

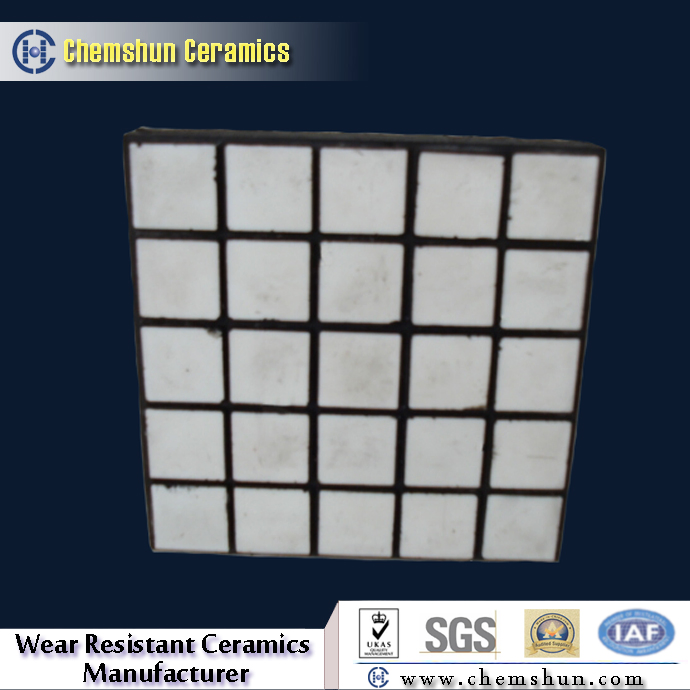

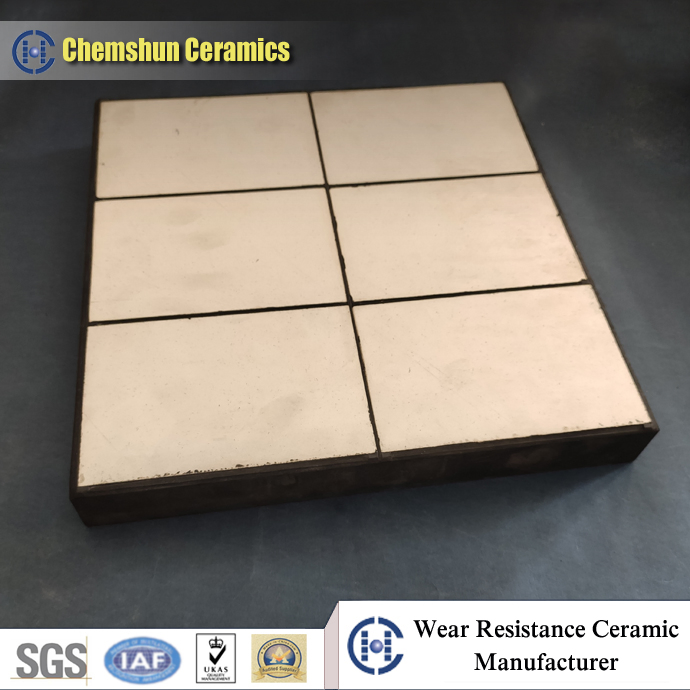

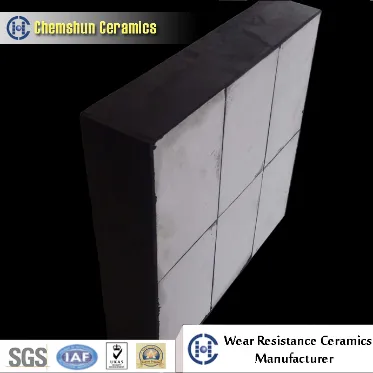

Impact Resistant Rubber Ceramic Wear Plate
Alumina ceramic liner has excellent abrasion resistance, impact resistant, corrosion resistance, and heat resistance. It is widely used in mining, mineral processing, power generation plants, steel plants, cement industries, petro-chemical refining, coal washery, and ports.
Common Equipment Applications:
Agitators; Bends; Branches; Bunker; Chutes; Classifiers; Cyclones; Conveyor Belt; Distribution Box; Feeders; Hopper; Mills; Pipes; Pulley Lagging; Silos; Tanks; Transfer Points, etc.
Ceramic Product Range:

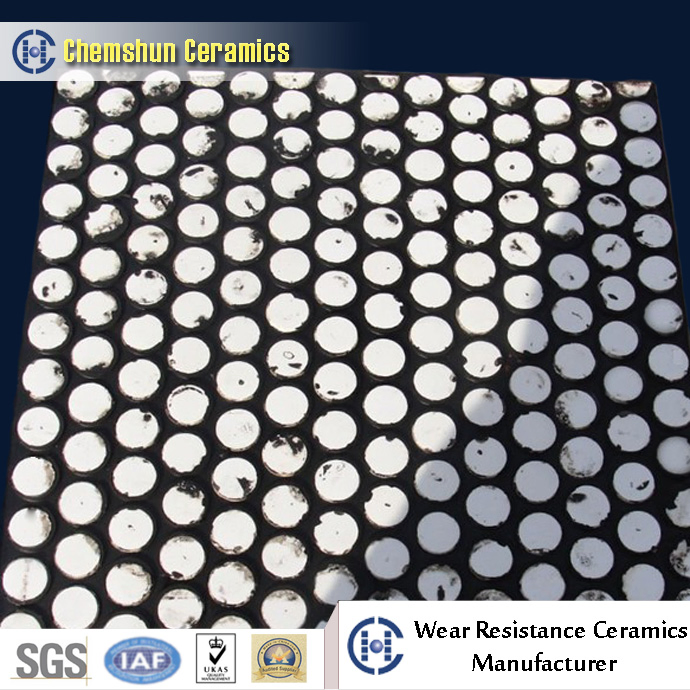

- 92% & 95% Al2O3 Standard wear resistant alumina ceramic liner/cylinder/mosaic/hexagon tile.
- Abrasion resistant high alumina ceramic pipe/tubes (Diameter 20mm to 500mm).
- Ceramic rubber wear liner/Steel Rubber ceramic composite panel.
- Wear resistant pre-engineering tiles in various geometric shapes.
- Ceramic lined process equipment like pipes, bends, chutes, hoppers.

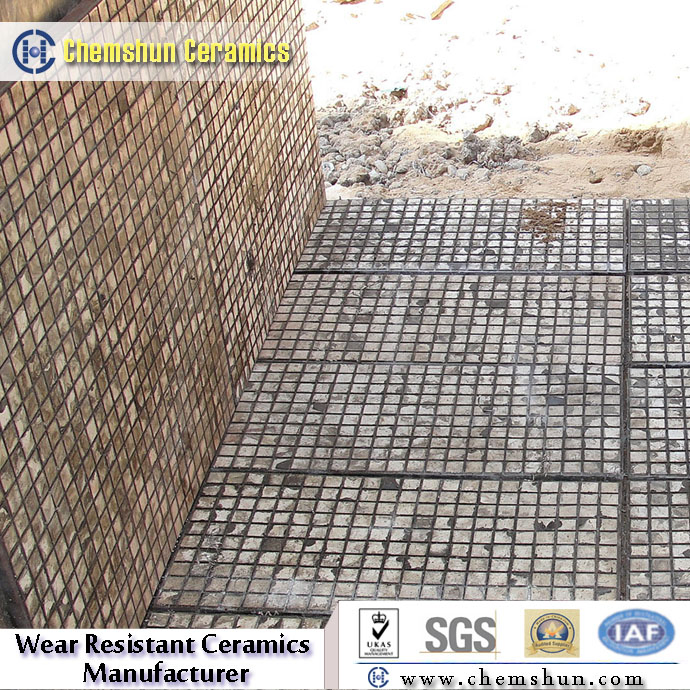

Wear Resistant Ceramic Lining Composite with Rubber:
- Character: High impact, abrasion resistance, corrosion resistance, high temperature resistance.
- Size: 200*200 mm, 300*300 mm, 500*500 mm.
- Structure: Rubber + Ceramic; Rubber + Ceramic + Steel plate.
📋 Technical Data
| Item | Description | Unit | Result |
| Alumina Ceramics |
| 1 | Alumina (Al2O3) | % | 92 / 95 |
| 2 | Density | g/cm3 | 3.64 |
| 3 | Water Absorption | % | ≤0.01 |
| 4 | Hardness | Mohs | 9 |
| Rubber |
| 1 | Material | - | NR, BR |
| 2 | Gravity | g/cm3 | 1.15 |
| 3 | Tensile Strength | MPa | 16 min |
| 4 | Elongation | % | 400 min |
| 5 | Abrasion Loss | mm3 | ≤80 |
| Peeling Strength |
| 1 | Rubber & Ceramic | kN/m | ≥12 |
| 2 | Rubber & Steel | kN/m | ≥12 |
❓ Frequently Asked Questions
What are the primary benefits of rubber ceramic wear plates?
They combine the high hardness of alumina ceramics with the impact-absorbing properties of rubber, providing excellent resistance to both heavy impact and extreme abrasion.
What alumina content is available for these liners?
We offer high alumina ceramics with 92% and 95% Al2O3 content depending on the specific wear requirements of your application.
In which industries are these wear plates commonly used?
They are widely used in mining, steel plants, power generation, cement production, and material handling systems at ports.
Can the ceramic plates be customized?
Yes, we accept OEM orders and can engineer ceramics into various geometric shapes, from simple tiles to complex pre-engineered designs.
What is the standard size for the composite panels?
Common sizes include 200*200mm, 300*300mm, and 500*500mm, with various structural options including rubber+ceramic or rubber+ceramic+steel backing.
How is the bonding strength between the rubber and ceramic?
The peeling strength between rubber and ceramic is ≥12 kN/m, ensuring the components remain securely bonded even under high-stress conditions.
