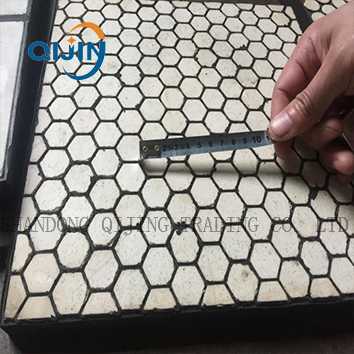

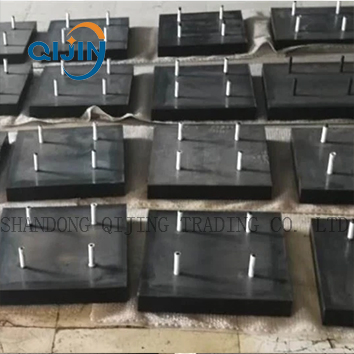

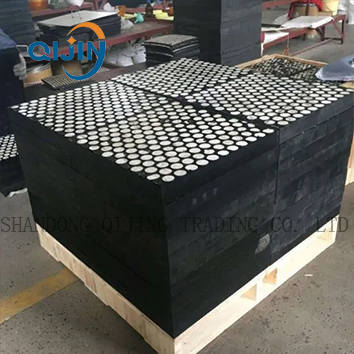

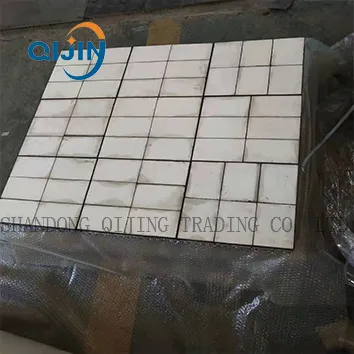

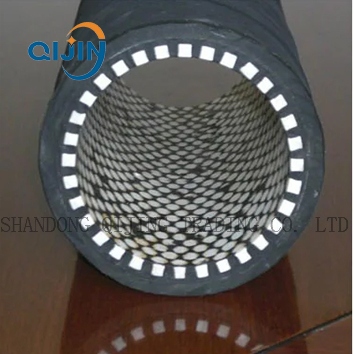

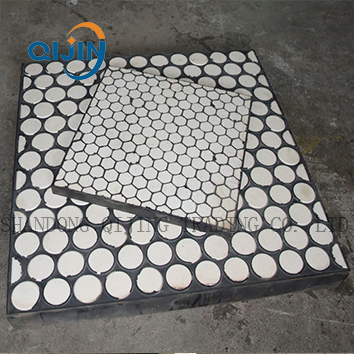

Custom Impact Resistant Rubber Backed Ceramic Liner for Chute

Customization:	Available
Standard:	ISO9001
Application:	Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.

40*40

Material

Alumina Ceramic, ZTA, Rubber, Steel Plate

Type

Wear Resistant Ceramic

Connection

Adhesive, Bolted

Thickness

Customizable

Delivery

20 Days

Condition

100% New

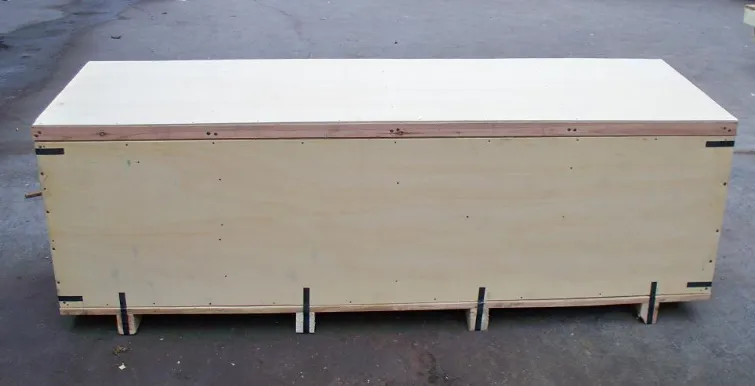

Package

Wooden Box

Origin

Shandong

HS Code

6909120000

Capacity

5,000,000 Units

📋

Product Description

Our main business includes industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment accessories, slag removal equipment, wear-resistant pipes, mining accessories, alumina ceramic parts, and electronic insulation materials.

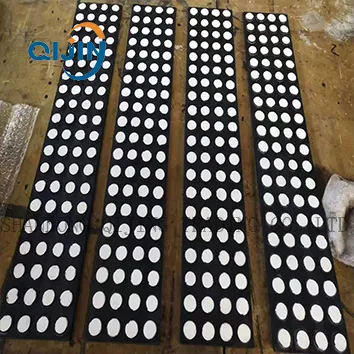

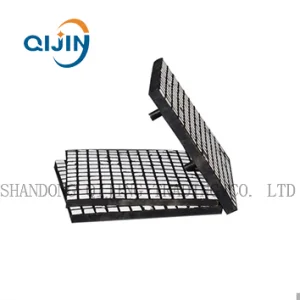

Features: It combines the wear-resistance of ceramic with the impact-resistance of rubber, ideal for conveying systems operating under normal temperatures with significant impact force.

Applications: Mainly used for protecting blanking points in square chutes, blanking tubes, bulk material handling, terminal transportation, and mine transfer equipment.

📊

Technical Parameters

Material	Attributes	Properties
Ceramic Tiles	Material Purity	92%, 95%, T95%, 96%, ZTA
Rubber	Component	Natural rubber, Nitrile butadiene, Flame-Retardant
	Density	~1.4g/cm3
	Tensile Strength	≥15Mpa
	Hardness (Shore)	45-65
	Aging Period	≥15 Years
	Working Temp	-50ºC to 200ºC
Steel Plate	Material & Thickness	Q235A, 5-6mm
Adhesive	Working Temp	-20ºC to 100ºC

Component	Standard Dimensions (mm)
Whole Plate	150x300, 300x300, 450x450, 500x500, 600x450 etc.
Ceramic Size	Square: 10x10 to 150x100; Hexagonal: 12x3 to 19x25; Locking blocks: 40x40 etc.
Ceramic Thickness	3mm - 75mm
Rubber Thickness	Customized based on expected impact stress

Wear Protection ceramic Linings are used throughout Mineral Processing to protect steel surfaces from wear and corrosion. Applications include pipes, tanks, chutes, pumps, flotation cells, and feed spouts.

🛠

Installation Precautions

Handle with care during transport to avoid serious collision or direct metal impact on the ceramic layer.
Install with directivity: arrows on the surface must match the medium flow direction.
Align with the center line accurately; displacement should be within 1.0mm.
For welding, use 45°-60° "V" type slope angles with a 0.8-1.2mm gap.
Thermal expansion is 1/3 of steel; adjust expansion clearance by 3-5mm accordingly.

❓

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a factory specialized in industrial ceramic production.

What is the standard delivery time?

Generally 15 days if mould sizes are in stock, and up to 25 days for custom sizes, depending on quantity.

Do you provide free samples?

Yes, we provide stock samples free of charge, though the freight cost is covered by the customer.

What are your payment terms?

For new customers, 100% T/T in advance. For regular customers, 30% T/T in advance and the balance upon receipt of the B/L copy.

Can the ceramic liners be customized?

Yes, thickness, ceramic type (Alumina/ZTA), and dimensions can be fully customized to meet specific application needs.

How do I choose between adhesive and bolted connections?

Adhesive is ideal for standard wear, while bolted connections are recommended for high-impact environments or where the liner needs frequent replacement.
