Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
1 / 5
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality
Rubber Backed Ceramic Tile for Hopper with High Quality

Rubber Backed Ceramic Tile for Hopper with High Quality

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Rubber ceramic liner
Material
Alumina Ceramic
Process
Special Ceramic Plate
Type
Wear Resistant Plate
Standard
ISO
Alumina Content
92% & 95%
Density
3.6~3.7g/Cc
Applied Equipment
Chute, Hopper, Silo, Pipe, Cyclone
Product Description

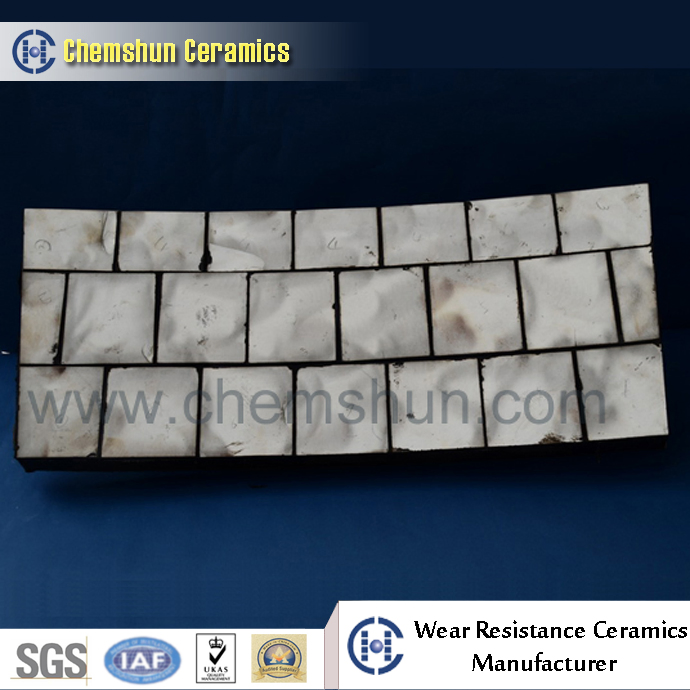

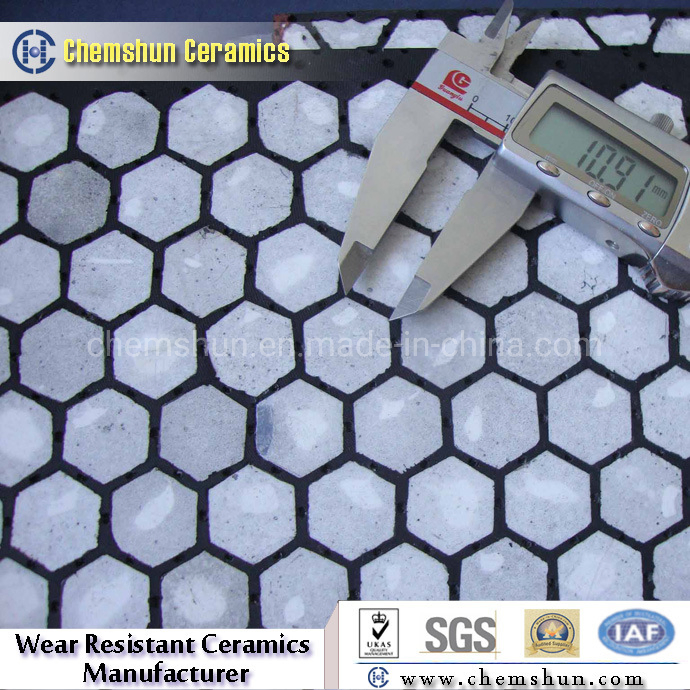

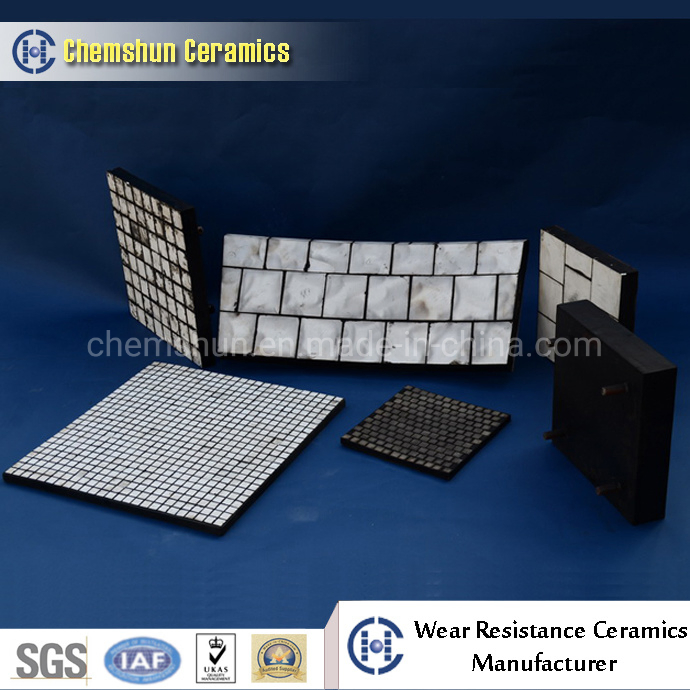

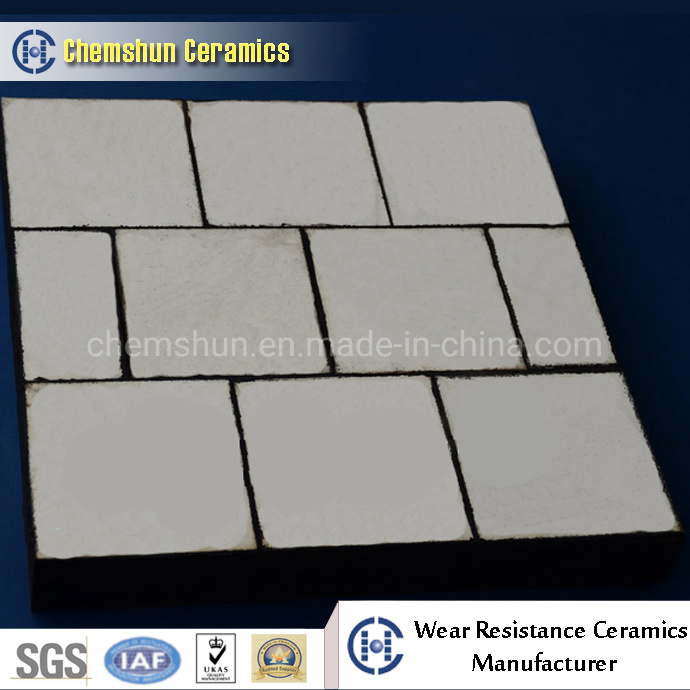

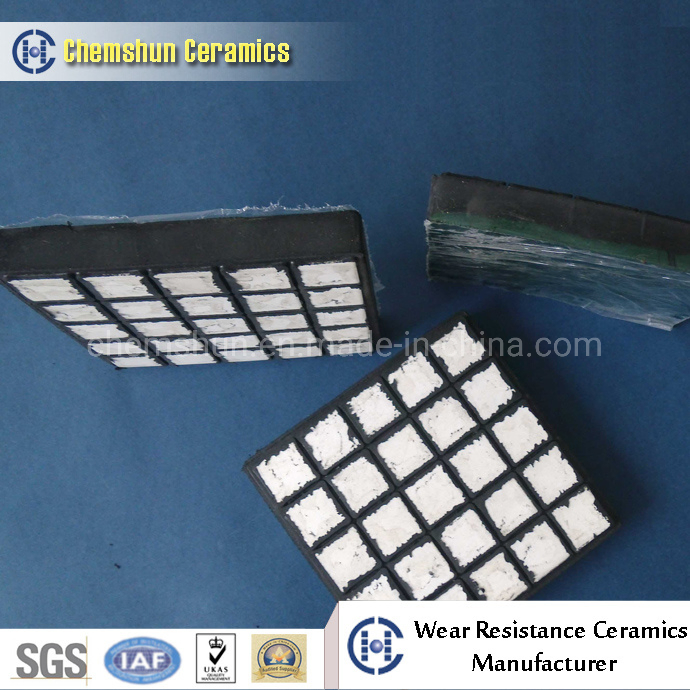

Rubber Backed Ceramic Tile for Hopper with High Quality

Wear liners comprise of advanced alumina oxide ceramic tiles bonded in a high tensile strength rubber sheet to a studded steel backing plate. These can be used in transfer chutes, deflectors, impact chutes, bins, hoppers, skirt liners, stackers and reclaimers. This solution improves material flow and ensures greater performance and wear life.

Key Features & Benefits
  • High hardness for extreme durability
  • Superior abrasion and impact resistance
  • Corrosion and chemical resistance
  • Light weight for easy handling
  • Easy installation by epoxy resin or bolt
  • Improved safety by decreasing noise and vibration
Technical Specifications
Properties Unit 92% Alumina 95% Alumina
Densityg/cc≥3.6≥3.7
Rockwell HardnessHRA8085~88
Compressive StrengthMPa850950~1000
Flexural StrengthMPa280300
Max Using TempºC12501250
Standard Sizes
300 * 300 * 63 mm
500 * 500 * 30 mm
300 * 300 * 25 mm
Note: Customized sizes available upon request.
Product Showcase

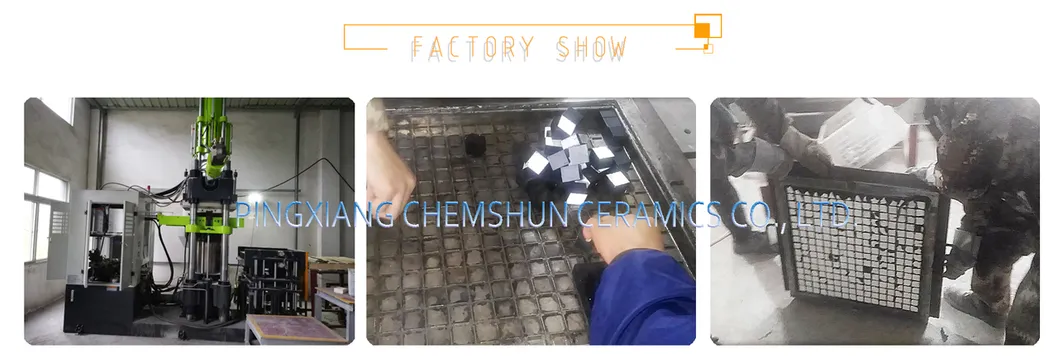

Ceramic Liner 1
Ceramic Liner 2
Ceramic Liner 3
Ceramic Liner 4
Ceramic Liner 5
Ceramic Liner 6
Frequently Asked Questions
Q1: What industries are these ceramic liners suitable for? A: They are widely used in Cement, Steel, Thermal Power, Mining, Chemical, and Port industries for handling abrasive materials.
Q2: How are the rubber ceramic liners installed? A: They can be easily installed using epoxy resin bonding or via a mechanical bolt system.
Q3: What are the main advantages of rubber-backed ceramics? A: They combine the high hardness of ceramics with the impact-absorbing properties of rubber, reducing noise and extending equipment life.
Q4: Can I get customized sizes? A: Yes, customized sizes and thicknesses (typically ranging from 25mm to 75mm) are available based on specific requirements.
Q5: What is the alumina content of the ceramic tiles? A: We offer both 92% and 95% alumina content options to suit different wear environments.
