Wear ceramic liner is suitable for application in areas of severe impact and areas of high abrasion.

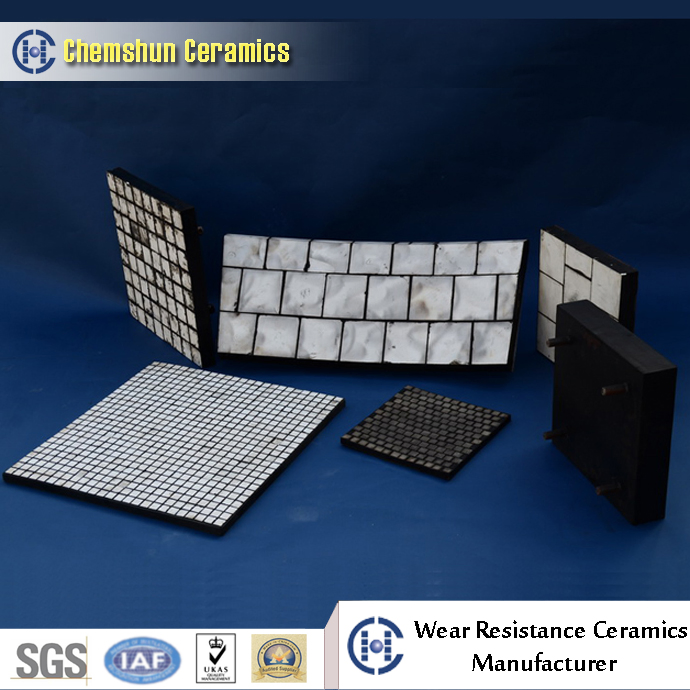

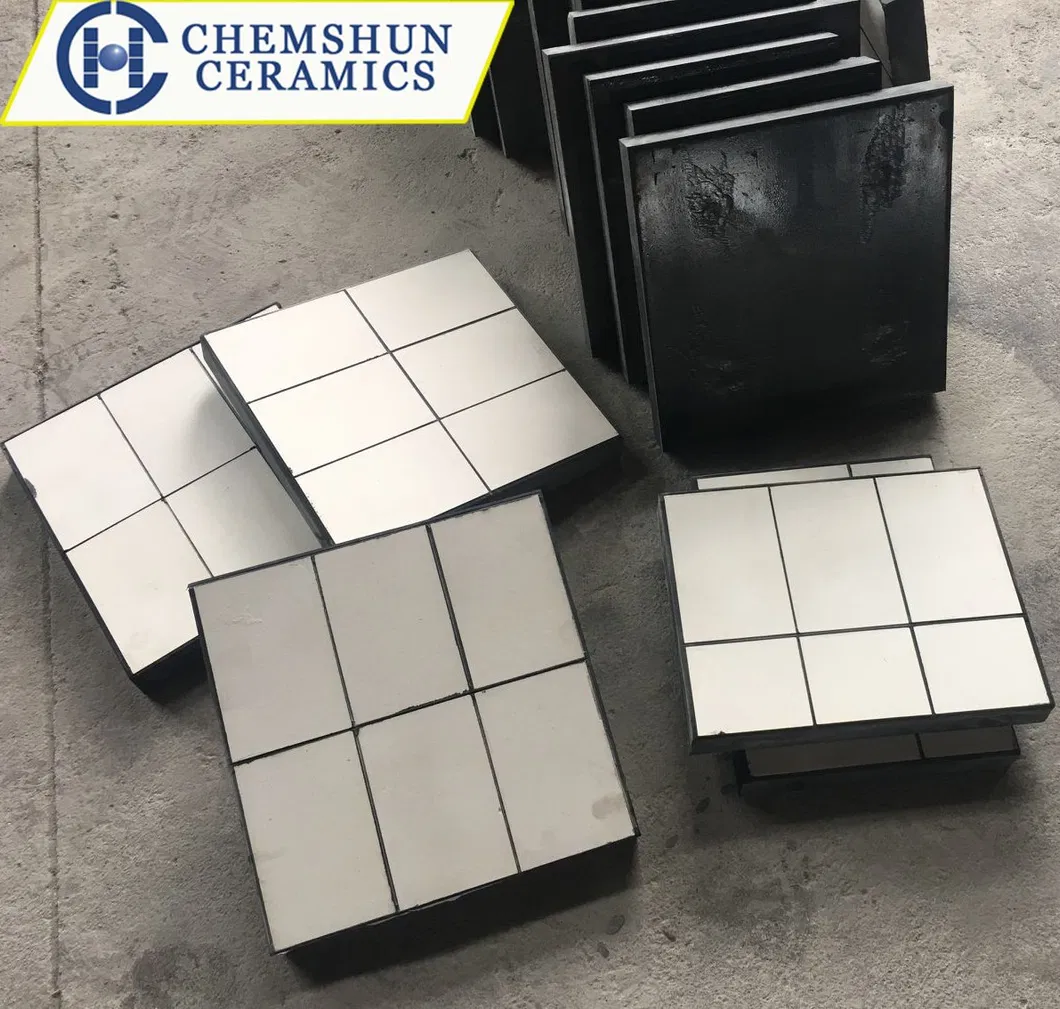

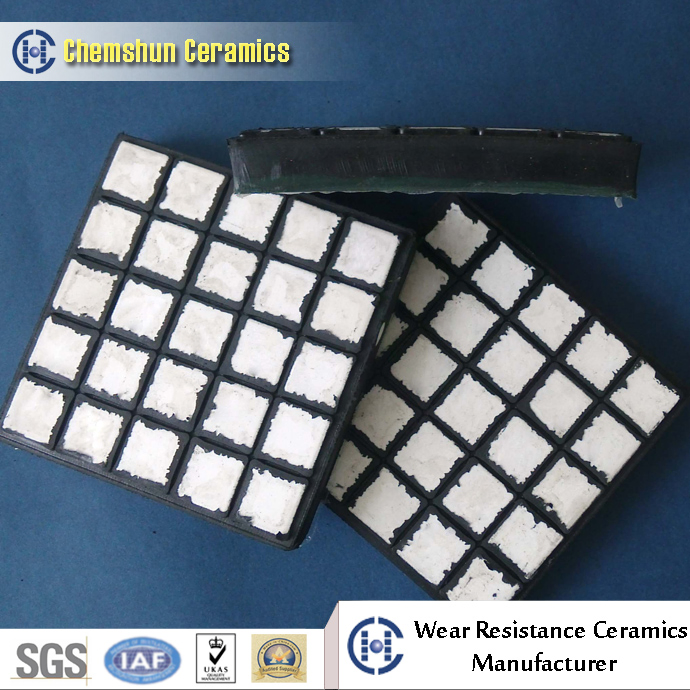

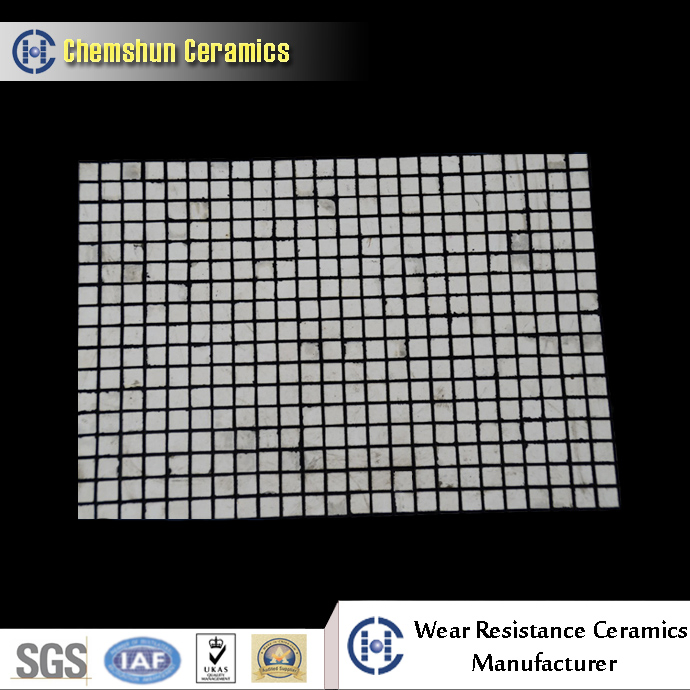

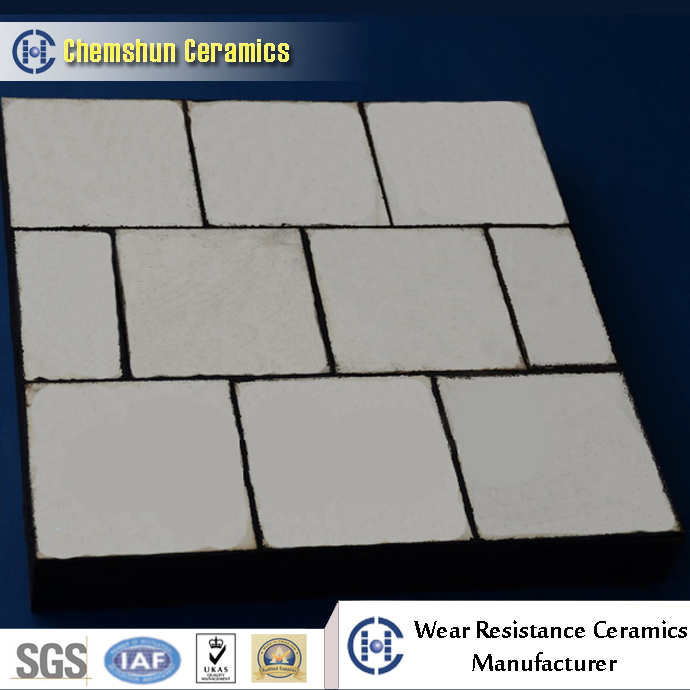

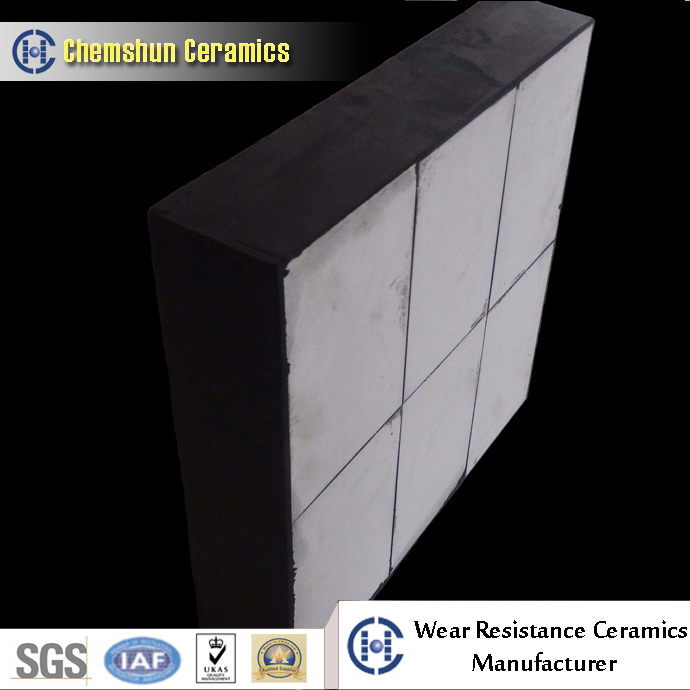

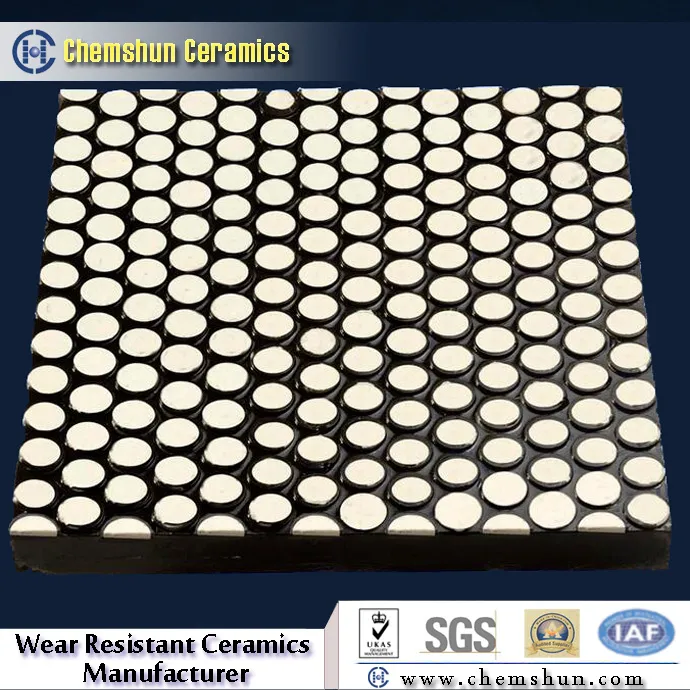

Rubber ceramic composite liner can be supplied to incorporate a variety of ceramic shapes, including hexagonal tiles, cylinders and cubes, ceramic plain tiles, all of which have a high alumina content that withstands severe impact and high abrasion. Wear ceramic liner is ideal wear protection materials for chute, bunker mining equipment, because it is easy to be installed in equipment substrate by epoxy glue water or welded by bolts. Ceramic rubber liners structure including: ceramic vulcanized in rubber, ceramic vulcanized in rubber then backed with steel panel.
| Dimensions (Length * Width * Thickness) |
|---|
| 300*300*63 mm |
| 500*500*30 mm |
| 300*300*25 mm |
| Note: Customized size available according to requirements |
| Property | Value |
|---|---|
| Normal Size | 500*500mm, 300*300mm, 250*250mm |
| Ceramic Thickness | 15~50mm |
| Rubber Thickness | 3mm~10mm |
| Type of Rubber | Vulcanized natural rubber compound with carbon black filler (approx. 40%) |
| Rubber Shore A hardness | 45 (+/-5) |
| Rubber Tensile Strength | 2710 psi |
| Rubber Elongation | 600% |
| Alumina Content | Al2O3 92% / 95% |
