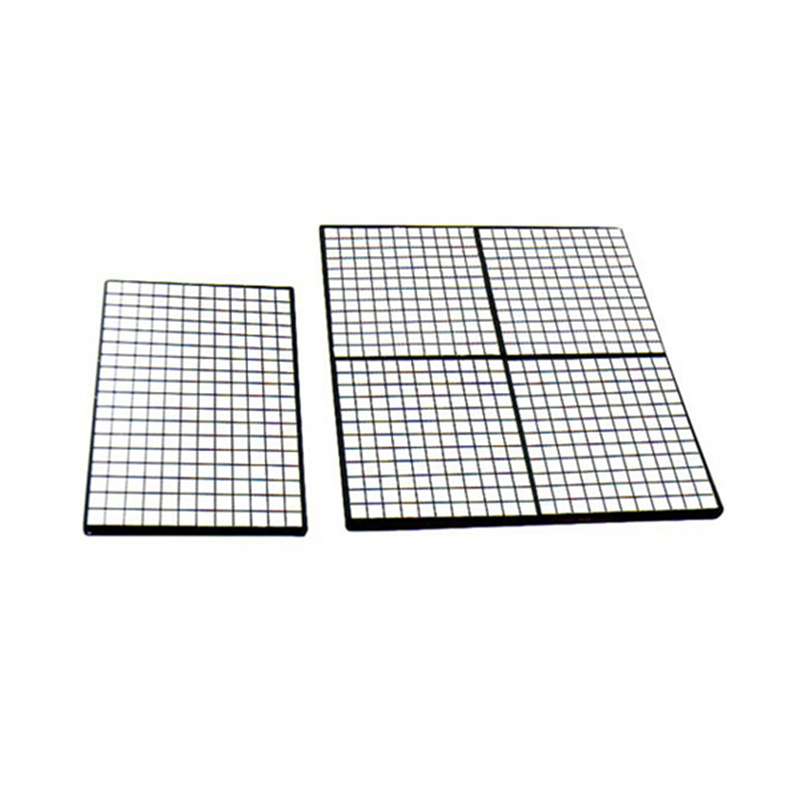

Chute Steel Backed Wear Resistance Rubber Ceramic Liner Pad

1 / 5

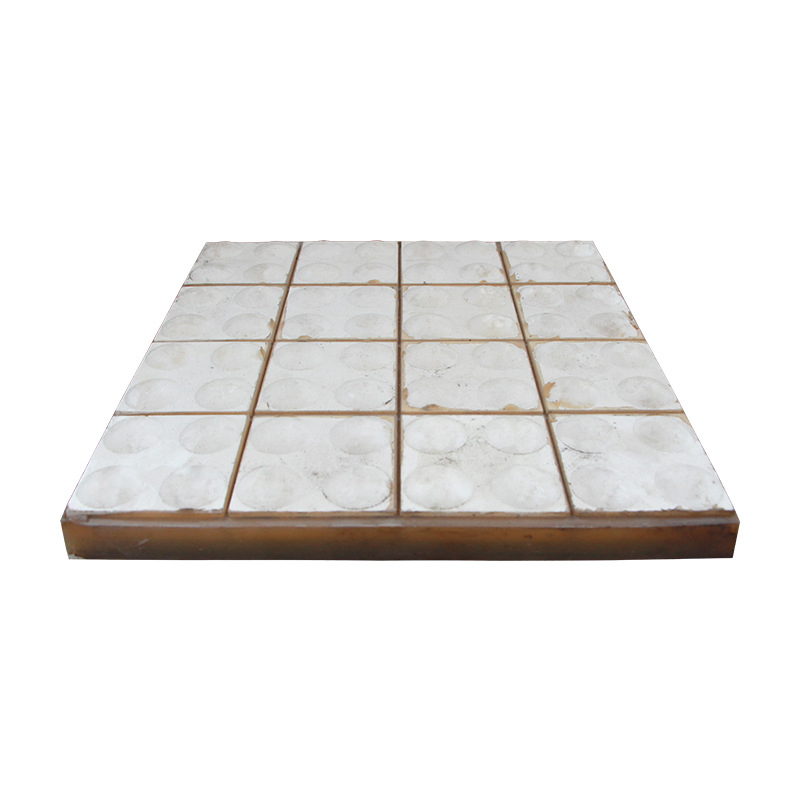

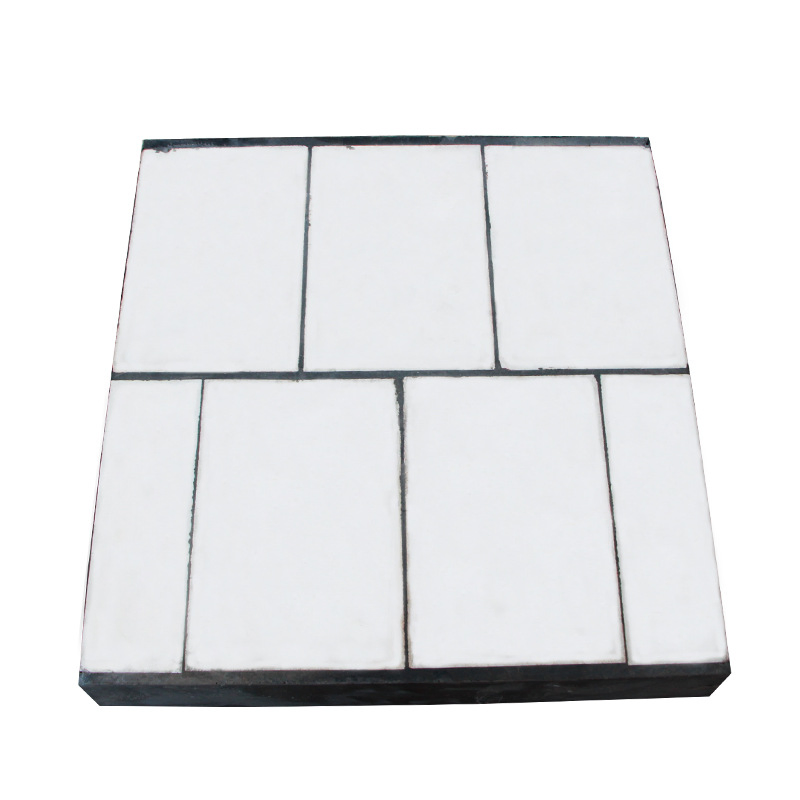

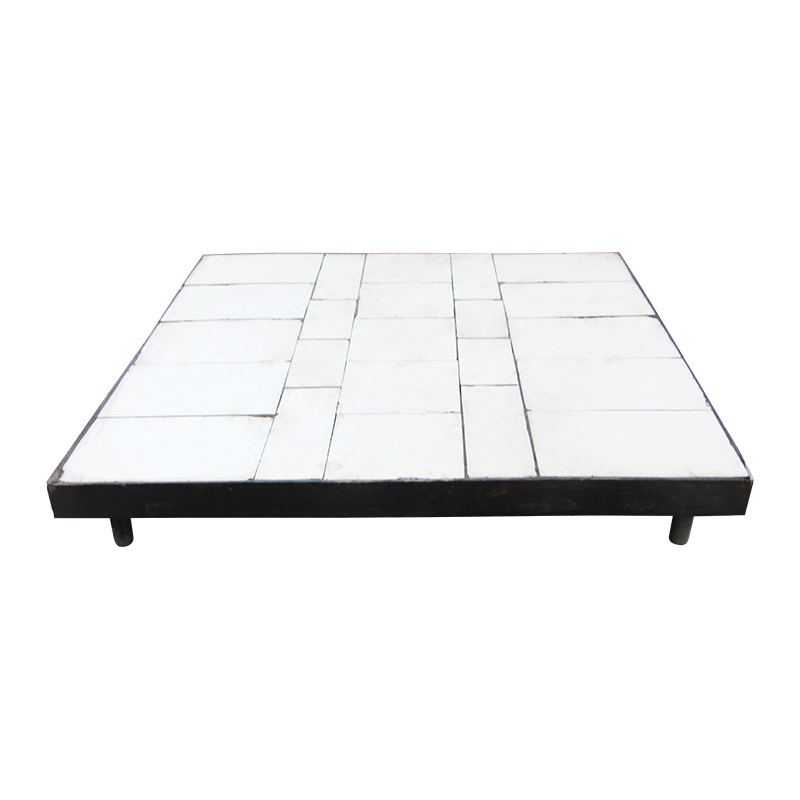

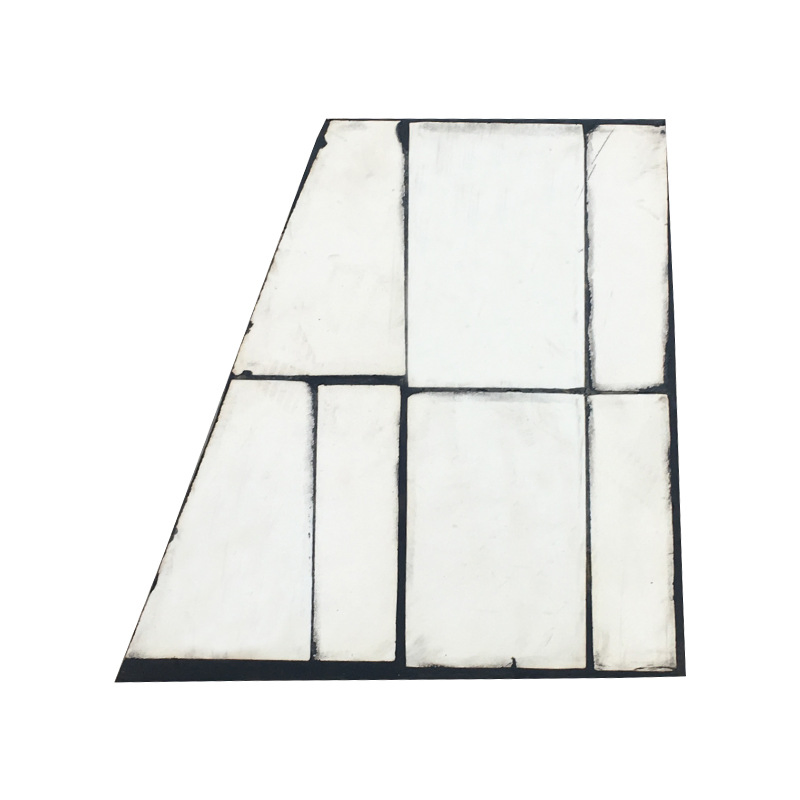

Chute Steel Backed Wear Resistance Rubber Ceramic Liner Pad

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

Rubber Part-JYRCL007

Material

Ceramic and Rubber

Type

Wear Resistant Plate

Part Name

Rubber-Ceramic Wear Liners

Ceramic Hardness

9 Mohs

Rubber Hardness

60 ~ 65 Shore a

Tensile Strength

>15MPa

Fracture Elongation

>300%

Temperature Range

-40 to 80

Wear Resistance Index

140mm3

Peel Strength

>13MPa

Density

1.4G/Cm3

Certificate

SGS, ISO

Use

Chute Wear Resistant

Function

Wear Abrasion Resistant

Supplying Capacity

17000 Tons Per Year

Compressive Strength

850MPa

Delivery Date

10-30 Days

Transport Package

Pallet

Specification

Custom dimensions available

Origin

China

HS Code

6909120000

🛠️ Product Description

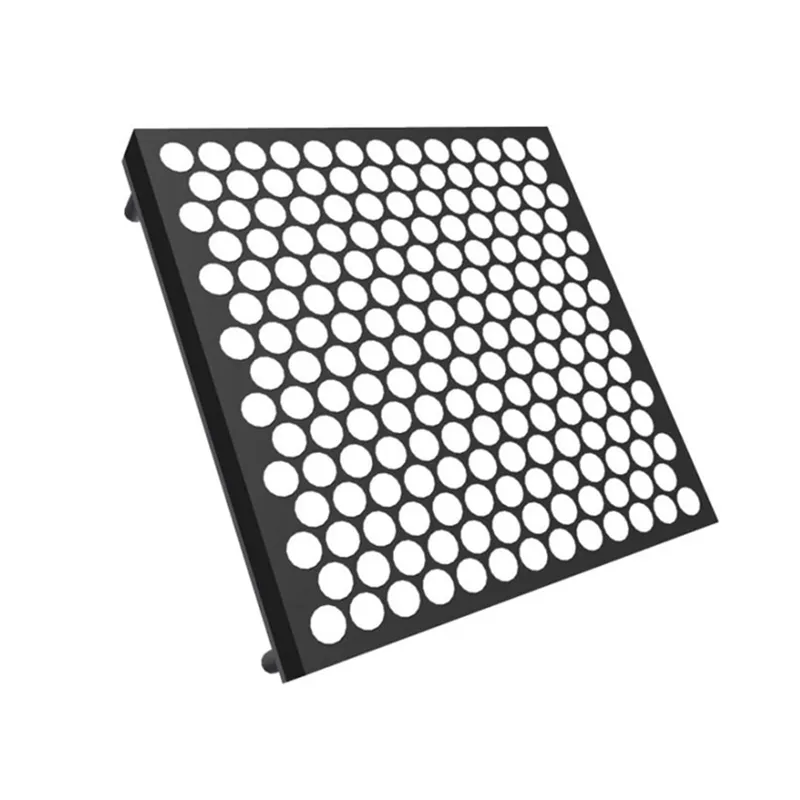

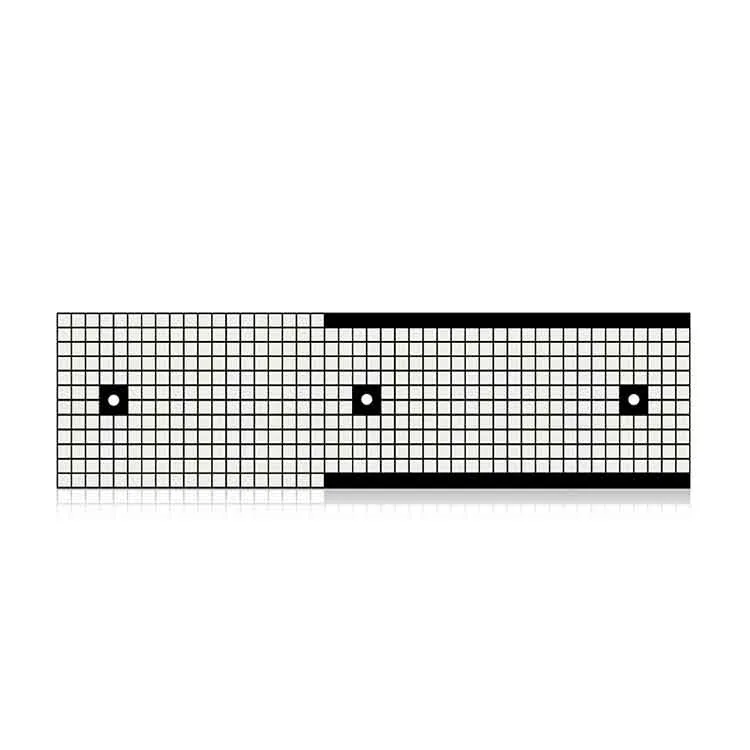

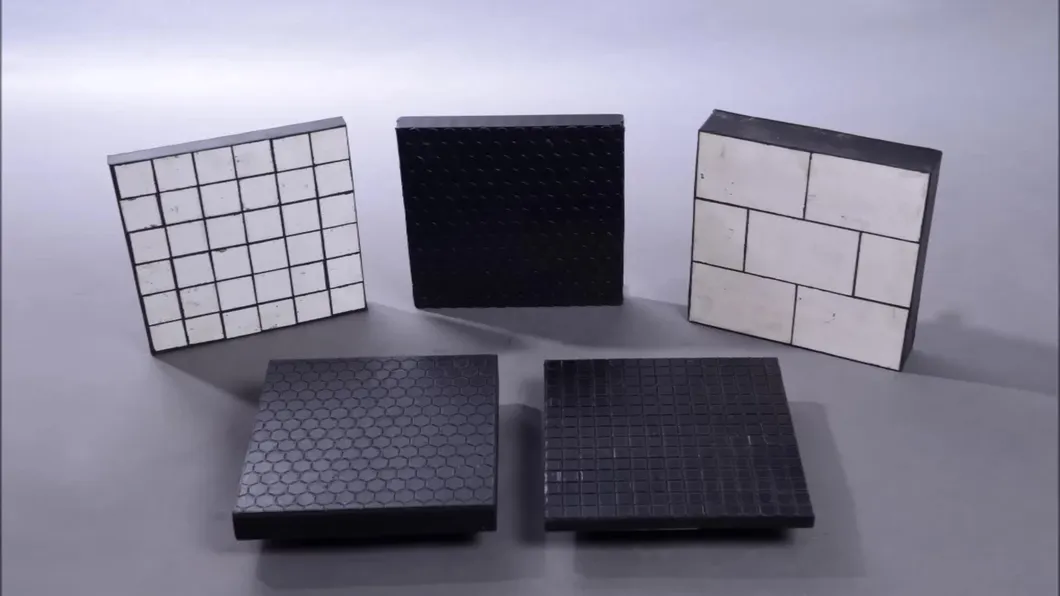

Rubber-Ceramic Wear Liners

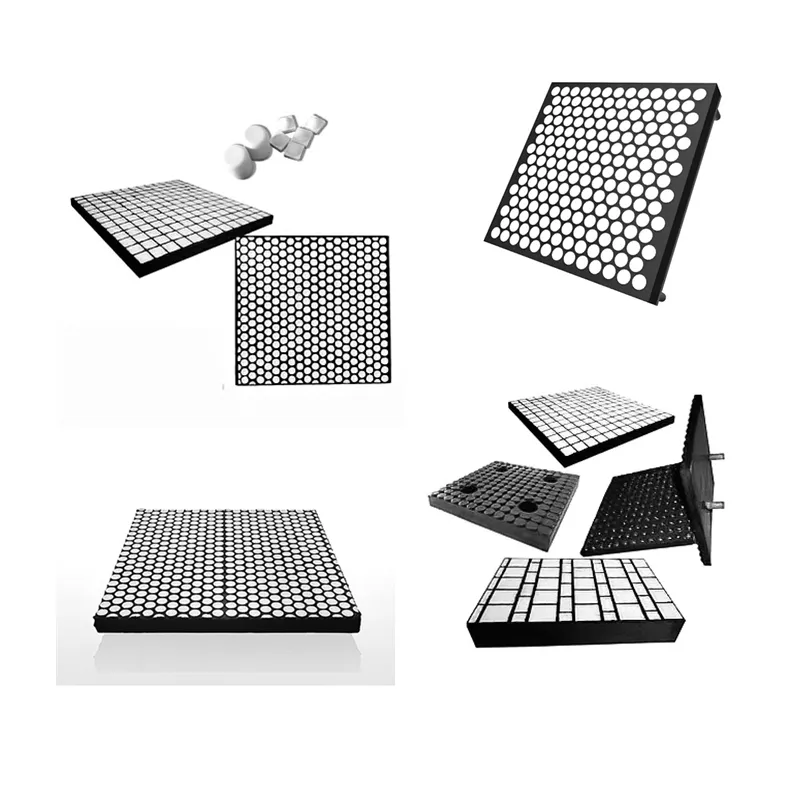

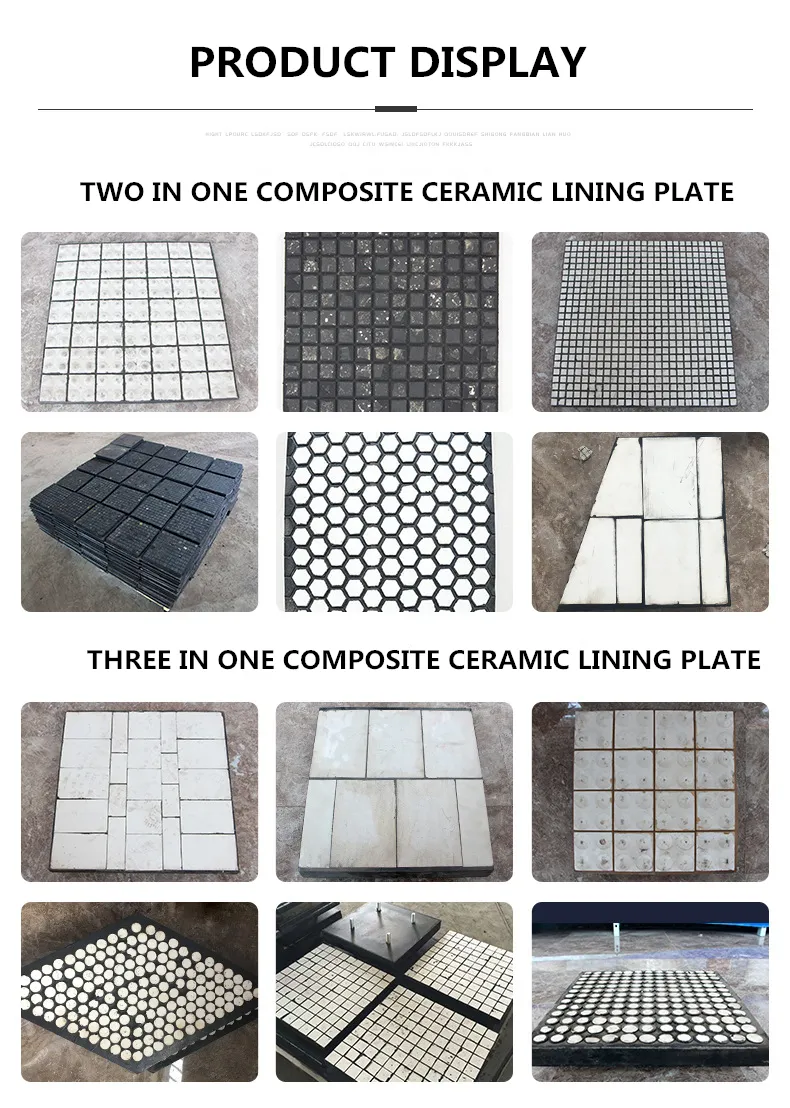

Ceramic Rubber Composite Plate is a Square Wear-resistant Rubber Lining Plate Formed by Embedding Special Ceramic Sheets in Special Rubber Through Vulcanization, and then Fixed on the Inner Shell Steel Plate of the Equipment by Welding or Pasting to Form a Solid and Buffering Wear-resistant Layer. It is Widely Used As Anti-wear Lining Plate for Coal Conveying and Ash Discharge System of Thermal Power Plant and Silo, Hopper and Other Equipment in Material Conveying and Batching System of Metallurgical Iron and Steel Industry.

Why Choose Our Wear Solutions:

Wear Resistance: Alumina Corundum Ceramics Are Adopted, with Hardness Above Hra85 and Wear Resistance 271.5 Times Higher Than That of Manganese Steel.
Impact Resistance: Toughened Ceramic Formula, Which is Not Easy to Break and Can Resist the Impact of Large Materials.
High Temperature Resistance: It Can Operate at 0 ºC - 250 ºC for a Long Time.
Anti Falling Off: The adhesive used is very firm; each ceramic has a penetrating bolt passing through the bottom steel plate, firmly welded with double safety.
Easy Installation: Provided as a whole lining plate to facilitate replacement and installation.
Reduce Maintenance: Greatly reduces maintenance frequency, saving cost and labor.

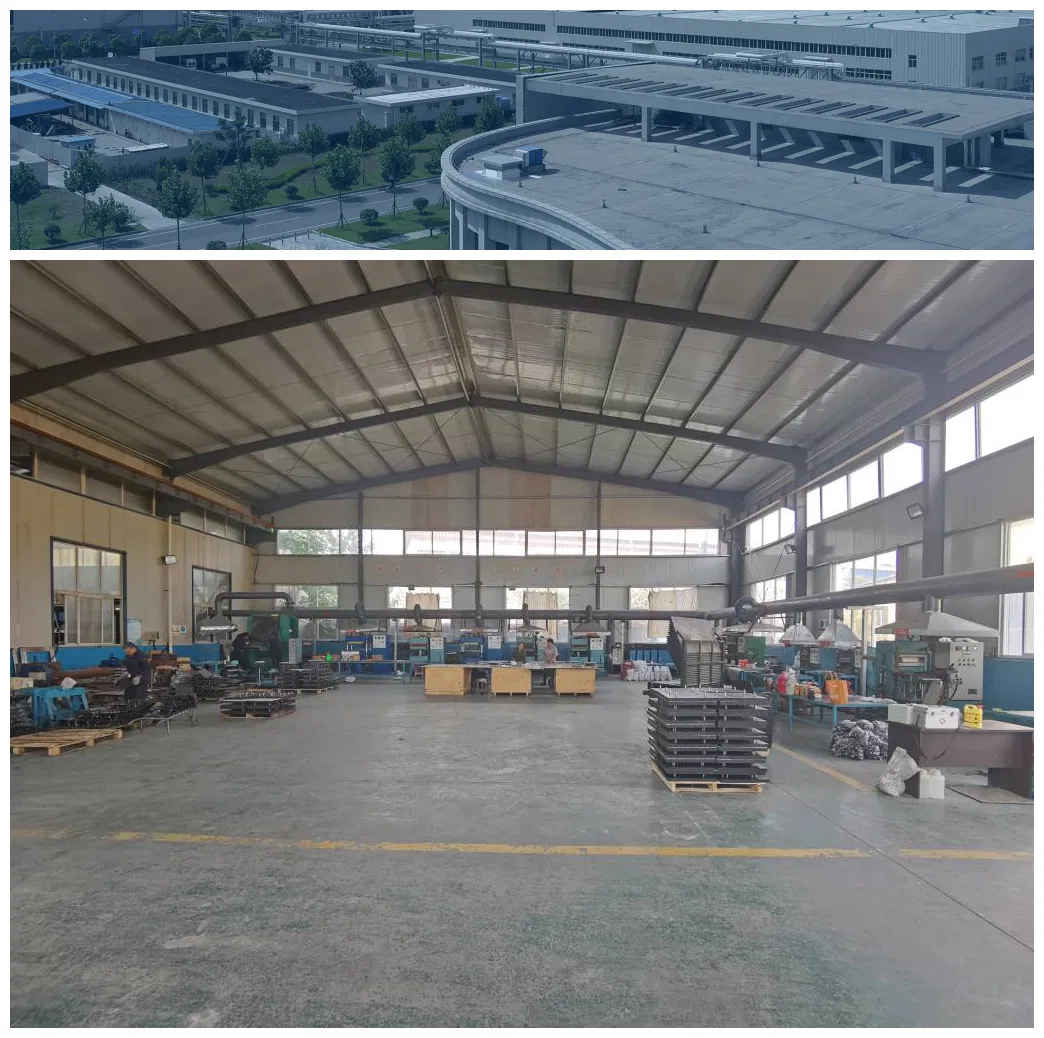

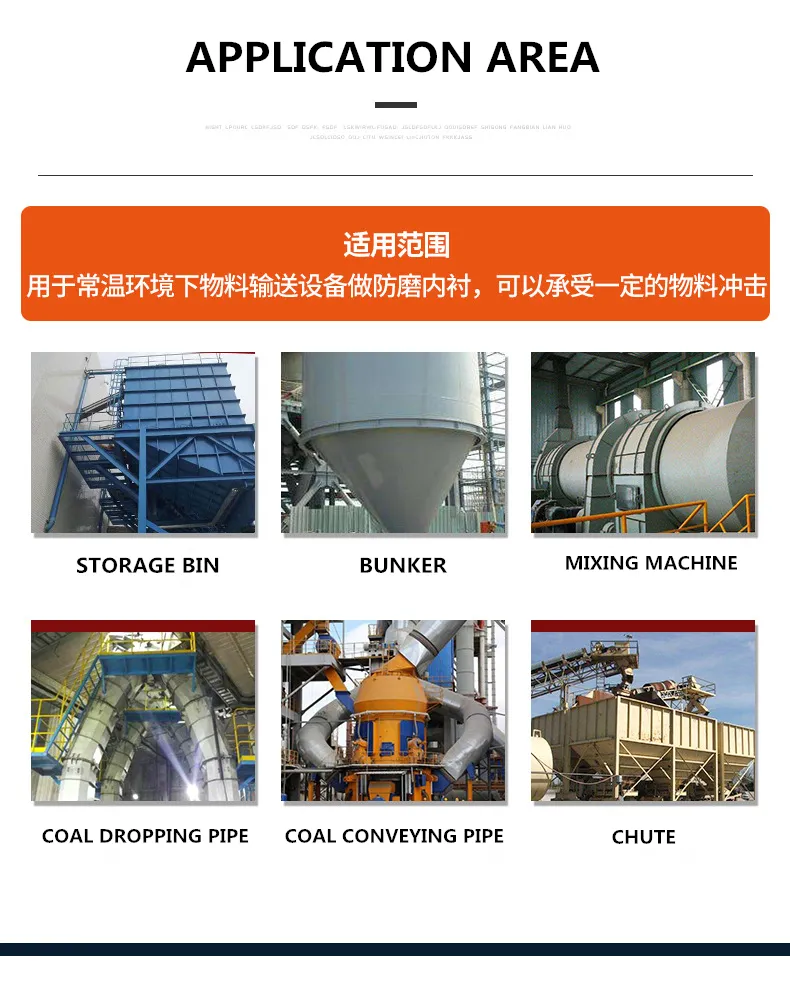

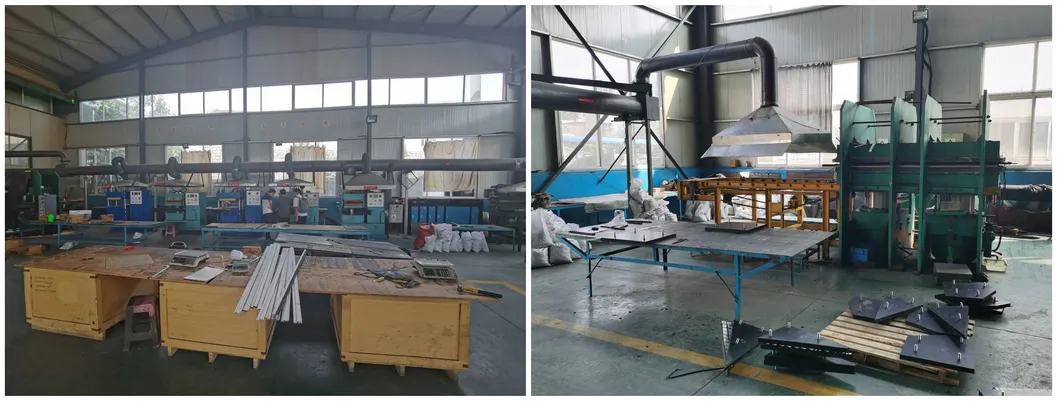

Our composite liner is widely used in high wear parts of mine and mineral processing equipment, such as pipes, tanks, deflectors, scrubbers, overflow inclined walls and loading tanks, hopper, etc. We have a fully-equipped workshop that meets ISO 9001:2015 and IATF 16949:2016 requirements. Products are compliant with FDA, WRAS, UL, RoHS and REACH standards.

Standard and Customized Parts:

We specialize in providing quality customized rubber molding, extrusion parts, and plastic injection products. Parts include, but are not limited to: Liners, grommet, sleeve, feet, gasket, wheel, bellow, cap, dust cover, pad, washer, Strip, plug, stopper, grip, seal, bushing, bumper, blocks, and anti vibration mounts.

❓ Frequently Asked Questions

What types of rubber do you use?

We have extensive experience in a vast range of rubber, including: Natural Rubber, SBR, CR, NBR, HNBR, EPDM, Silicone Rubber, FPM, ACM, FK etc.

What types of plastic do you use?

We work with a vast range of plastics, including: ABS, Polypropylene (PP), PVC, POM, PE, PEEK, Polyamide (PA) Nylons, PBT, etc.

What services do you provide?

We offer a broad range of services, including Custom Rubber Molding, Liquid Injection Molding, Rubber Extrusion, and Rubber/Plastic to Metal Bonded Parts.

What are your quality control processes?

Our process includes Raw Material Inspection (physical property testing), Mold Inspection (cavity consistency check), In-process Product Inspection, and 100% Finished Product Inspection.

Why choose your wear-resistant products?

With over 15 years of manufacturing experience, we offer professional R&D, superior wear performance using Alumina Corundum Ceramics, and competitive pricing with fast delivery.
