Short description:

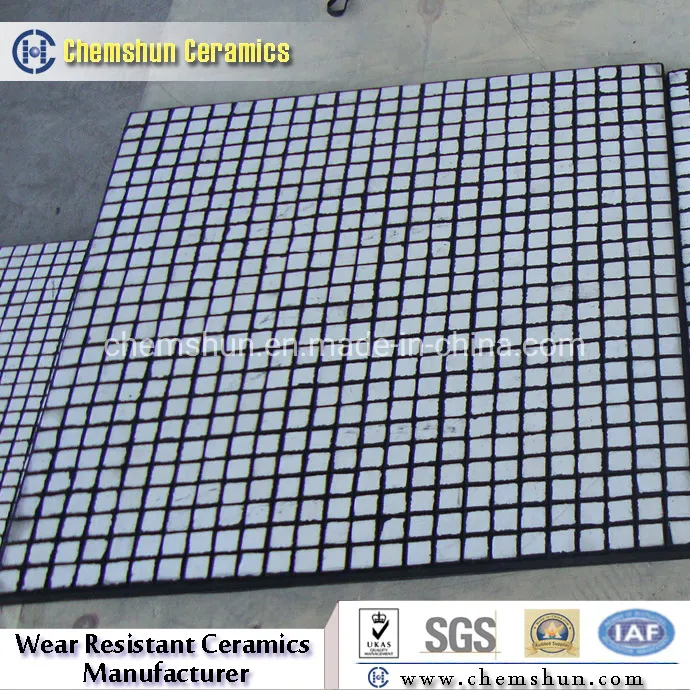

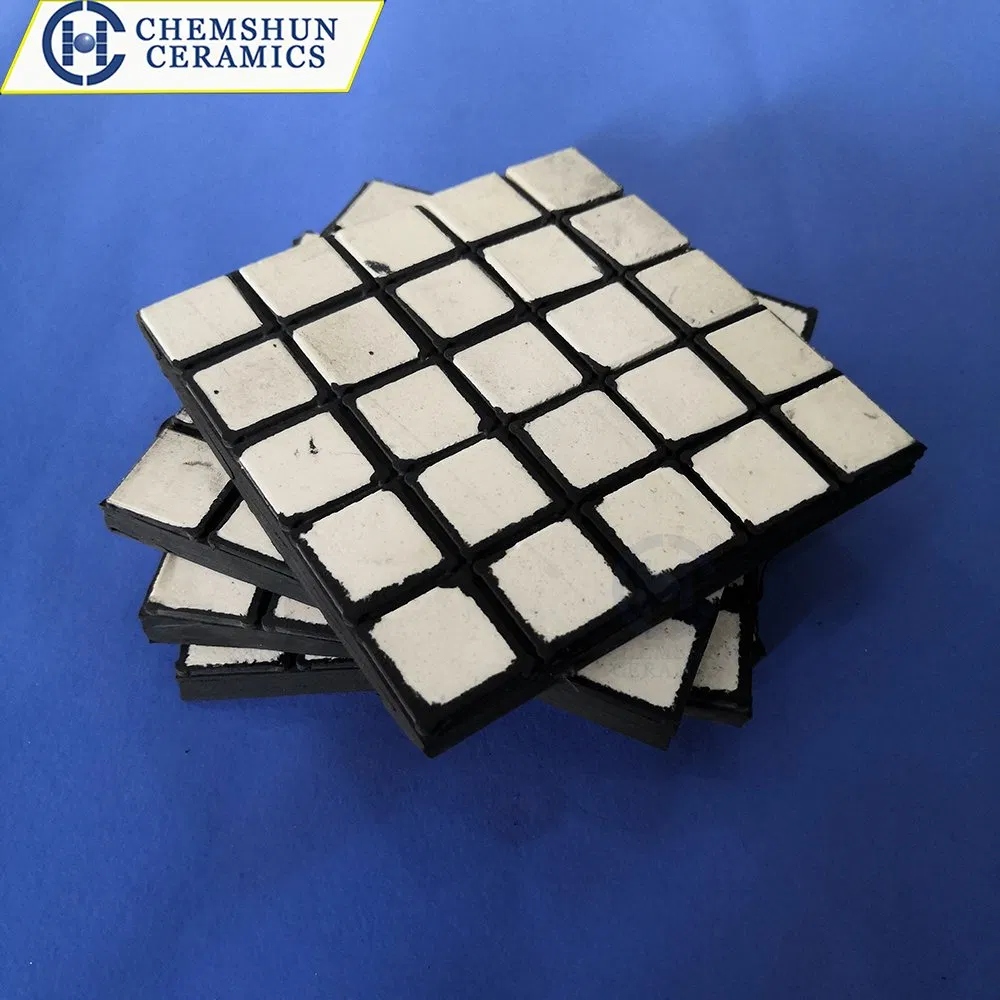

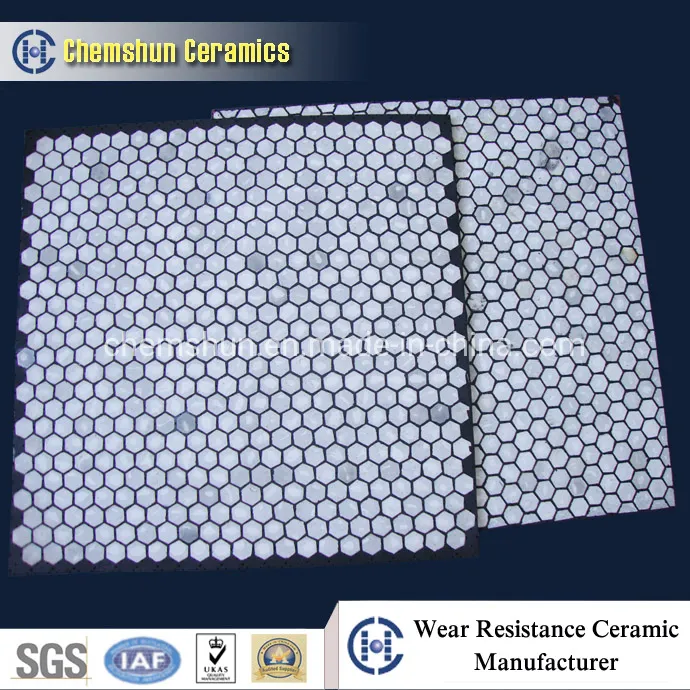

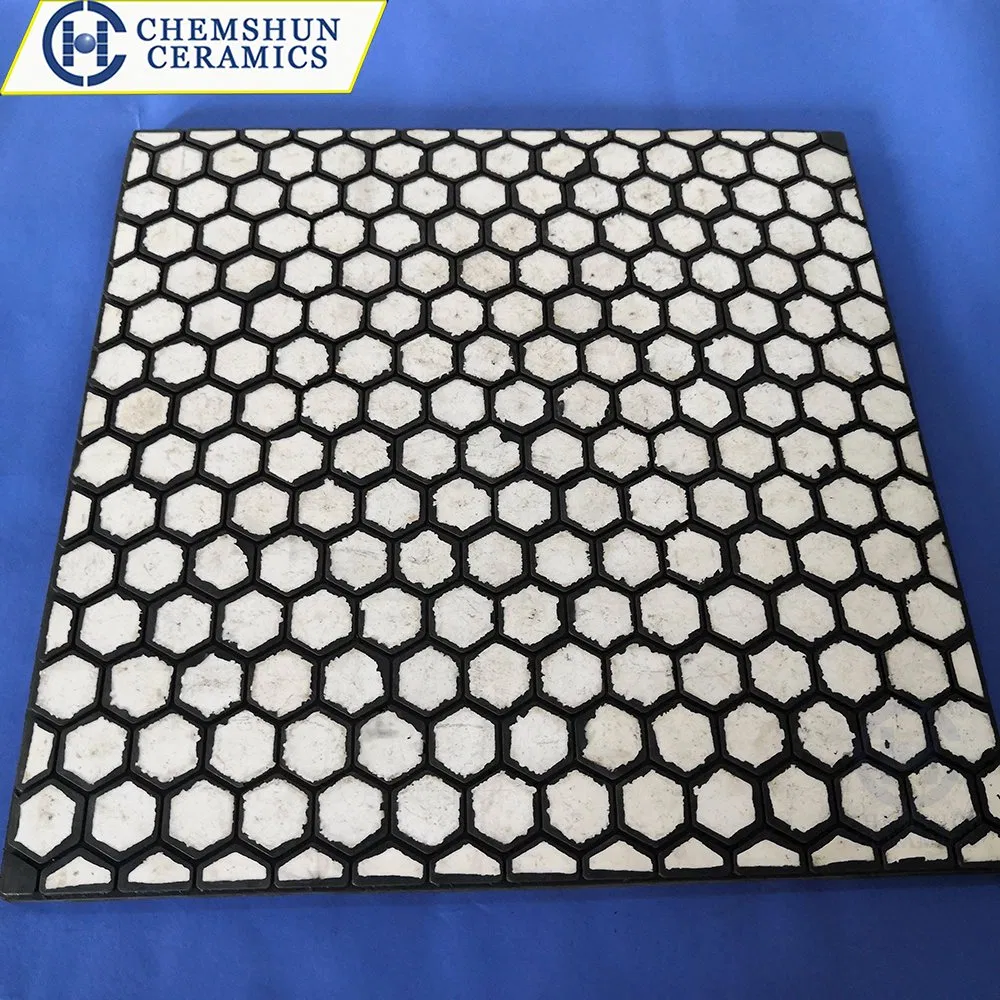

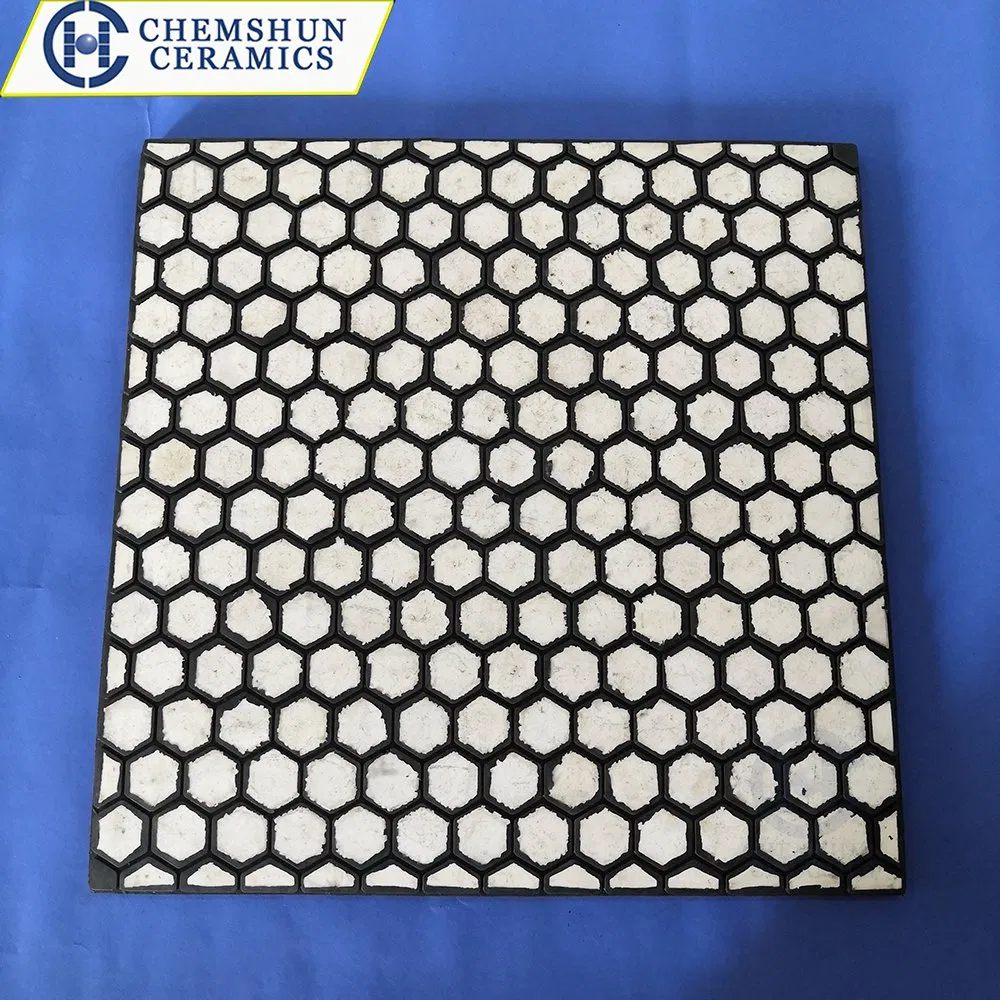

Rubber ceramic plate is impact resistant for bulk material handling equipment in coal industry, mining. Wear resistant rubber ceramic panel is made by a combination of abrasion resistant alumina ceramics (cylinders, hexagon, plate) vulcanized in resistance rubber base or add the steel backings.
Product Description:

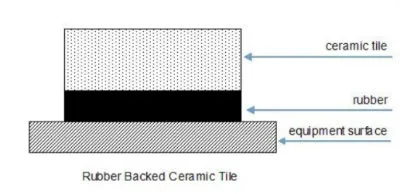

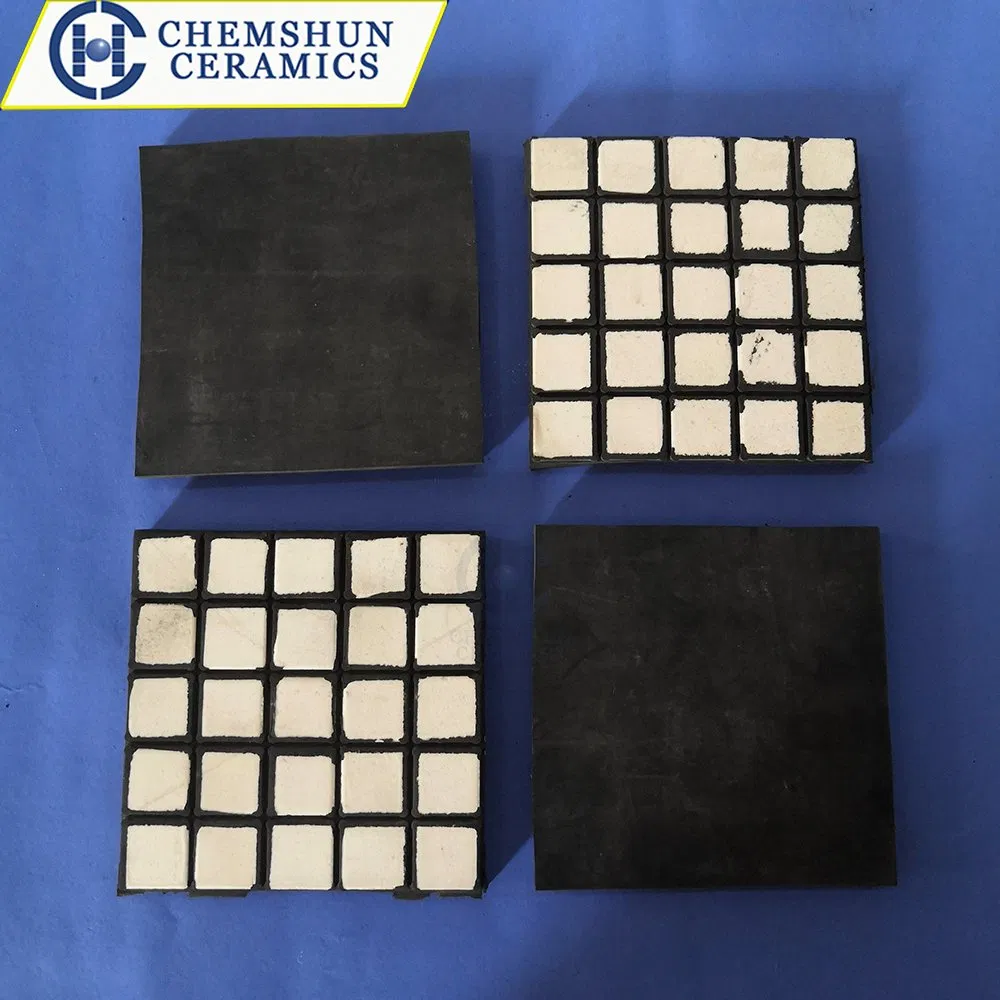

Wear resistant rubber ceramic panels also called wear ceramic liner is made by a combination of wear resistant alumina ceramics (cylinders, hexagon, plates) vulcanized in resistant rubber base, some rubber plates can selectively with steel backing.
The alumina ceramic provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks.

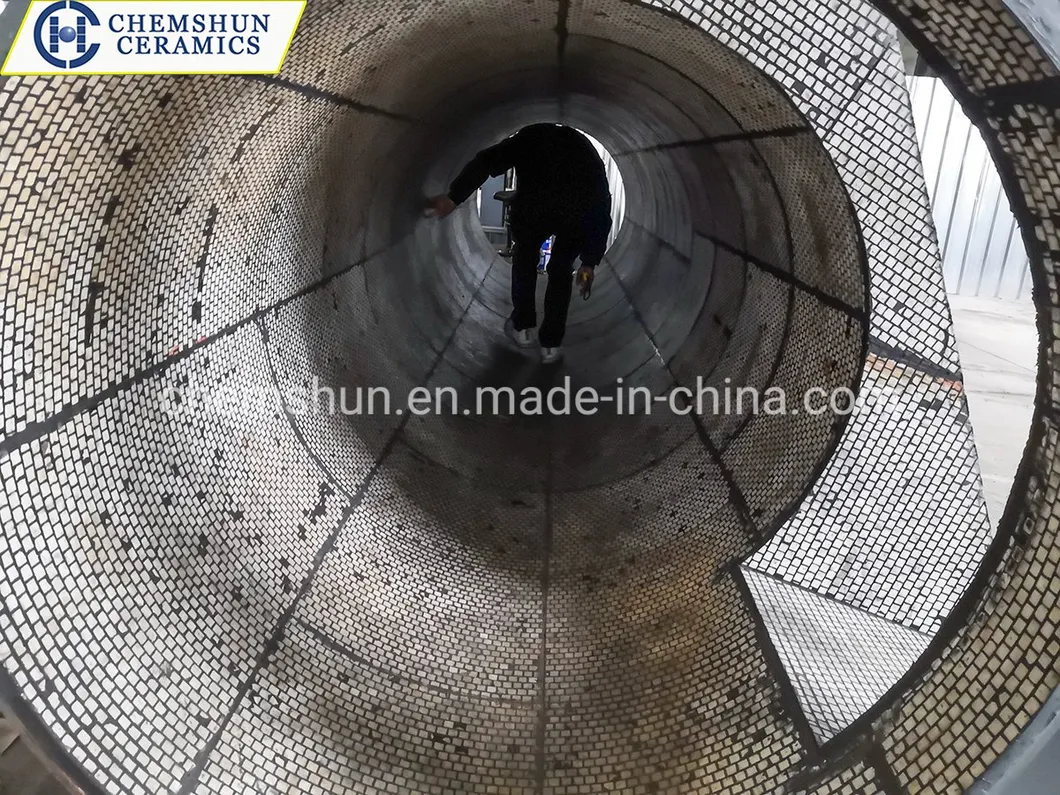

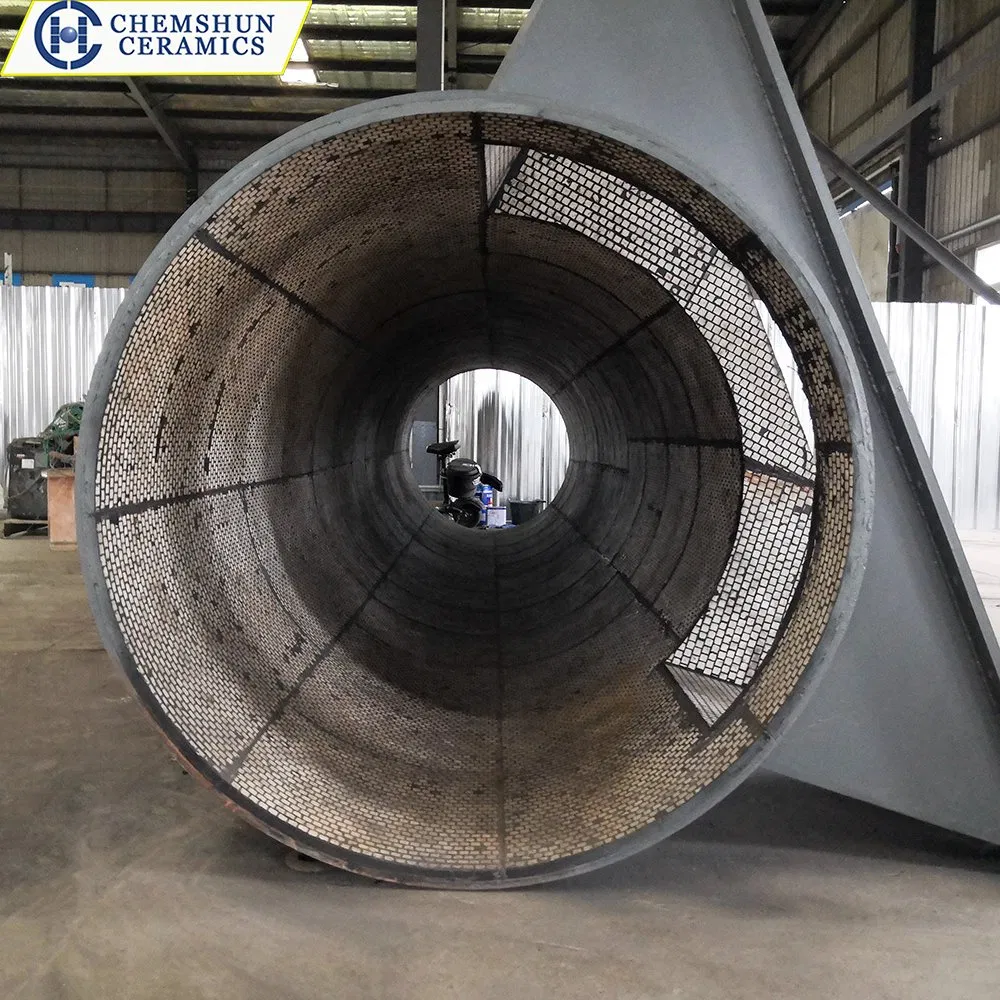

As excellent impact and wear resistant material, rubber ceramic liners is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker, etc. The major applicable industries are mining, Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.
| Property | Value |
|---|---|
| Normal Size | 500*500mm, 300*300mm, 250*250mm |
| Ceramic Thickness | 15~50mm |
| Rubber Thickness | 3mm~10mm |
| Type of Rubber | Vulcanized natural rubber compound with carbon black filler |
| Rubber Shore A hardness | 45 (+/-5) |
| Rubber Tensile Strength | 2710 psi |
| Rubber Elongation | 600% |
| Rubber-ceramic bond | Surface chemical pre-treatment of ceramic prior to hot pressure vulcanized |
| Alumina Content | Al2O3 92% 95% |
Package: by fumigation-free wooded pallet. Products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc.
